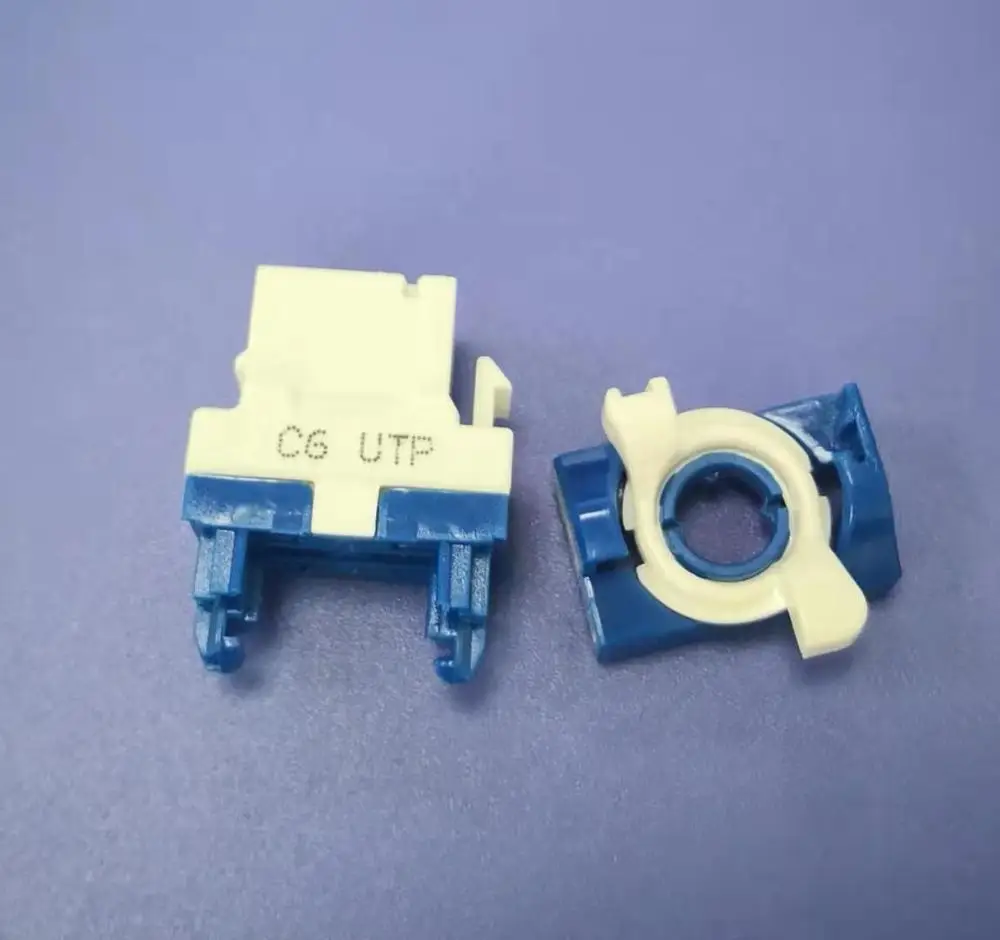

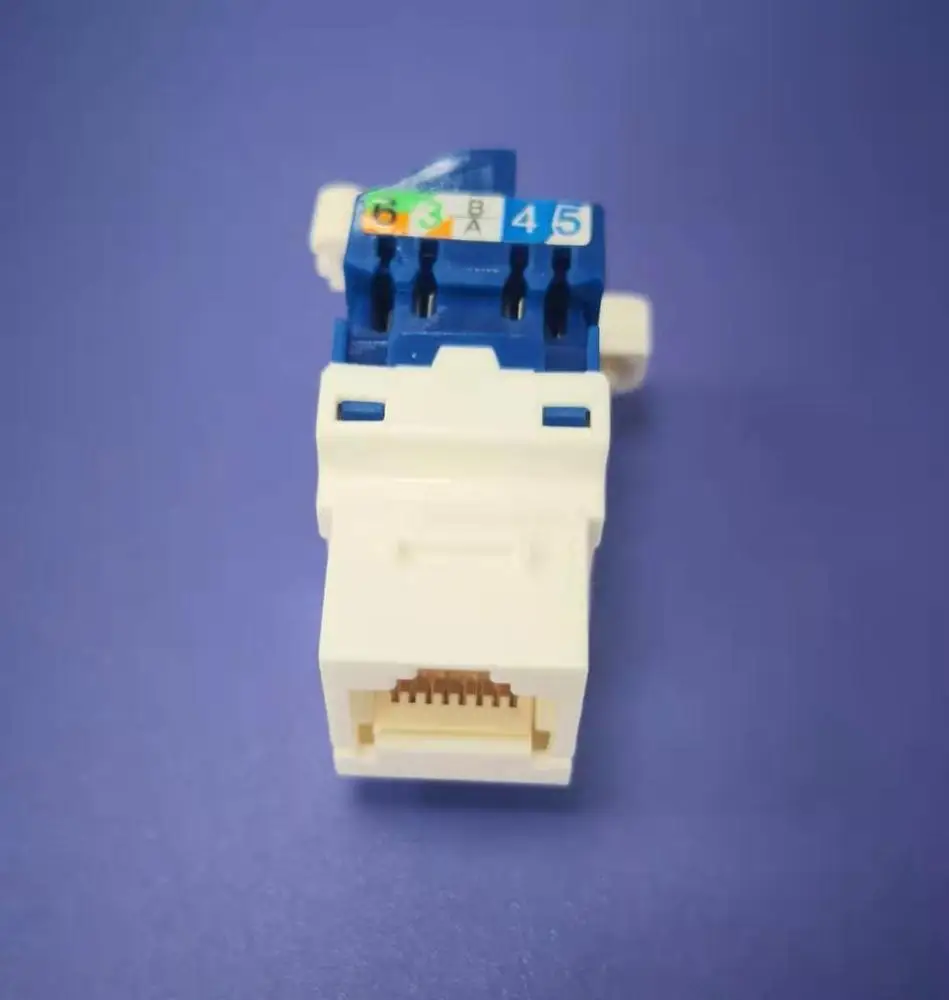

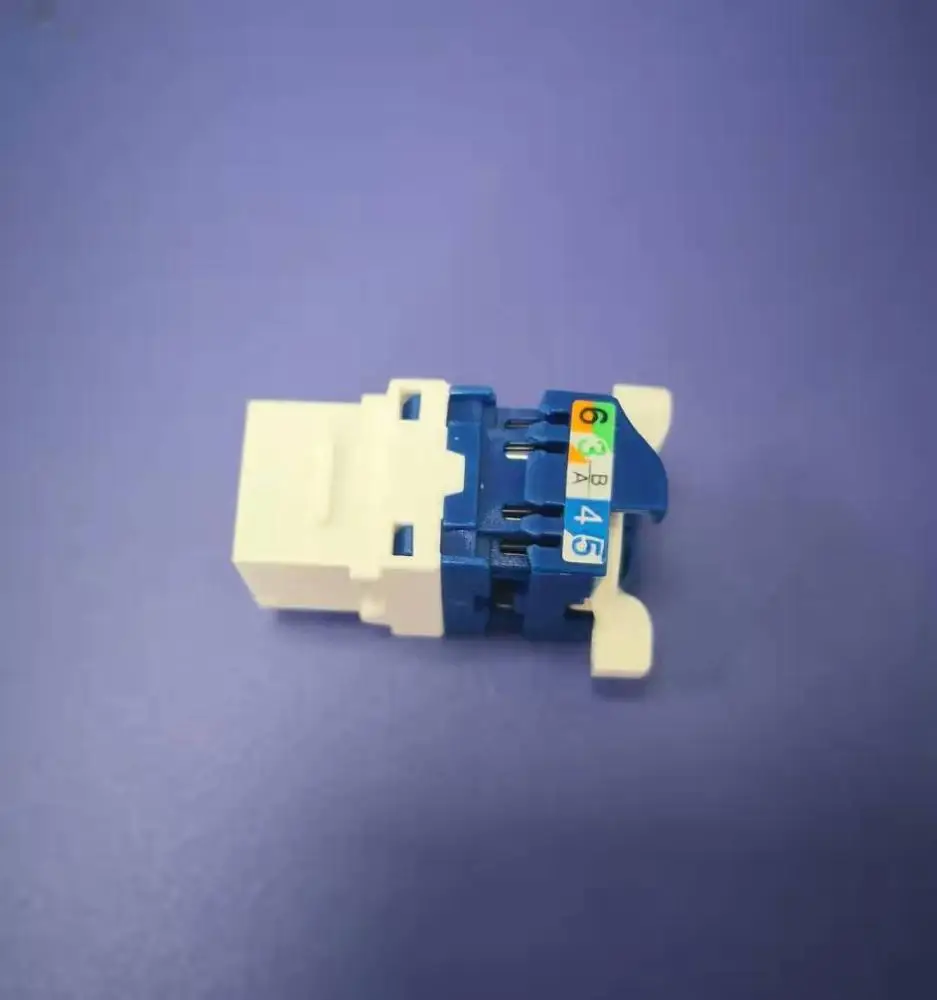

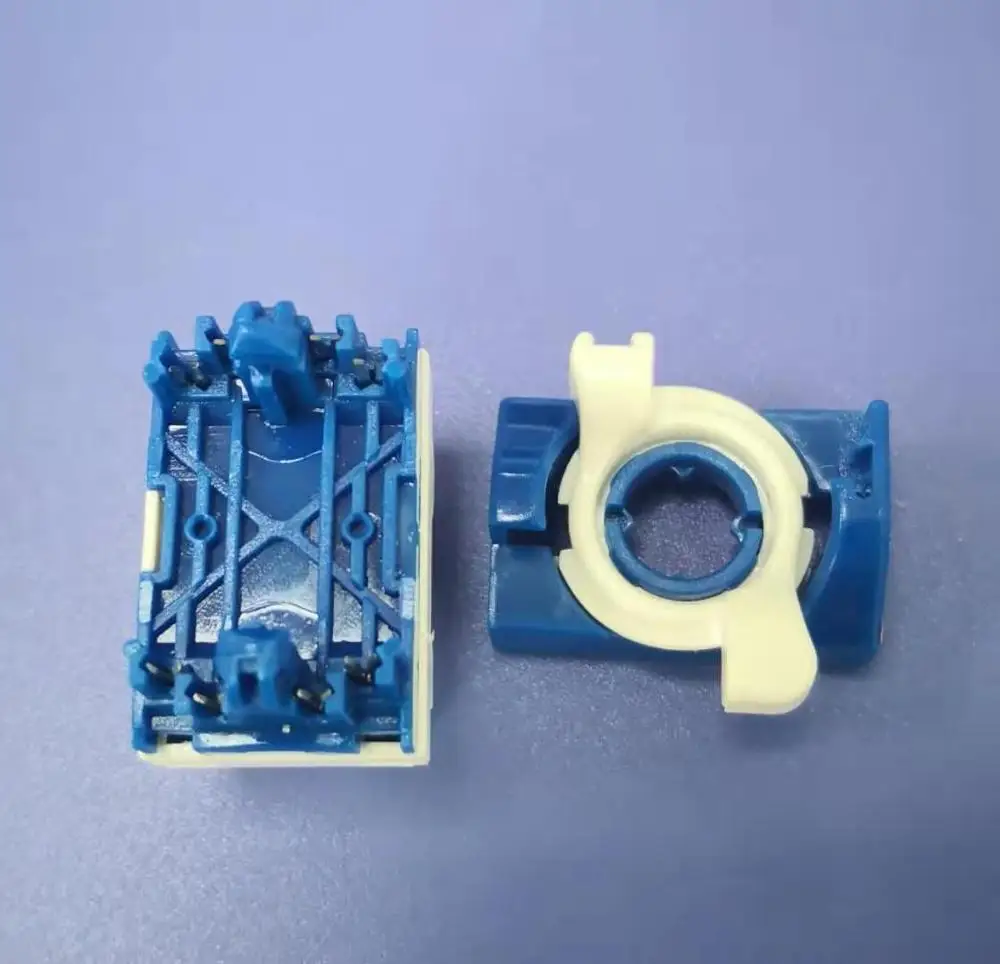

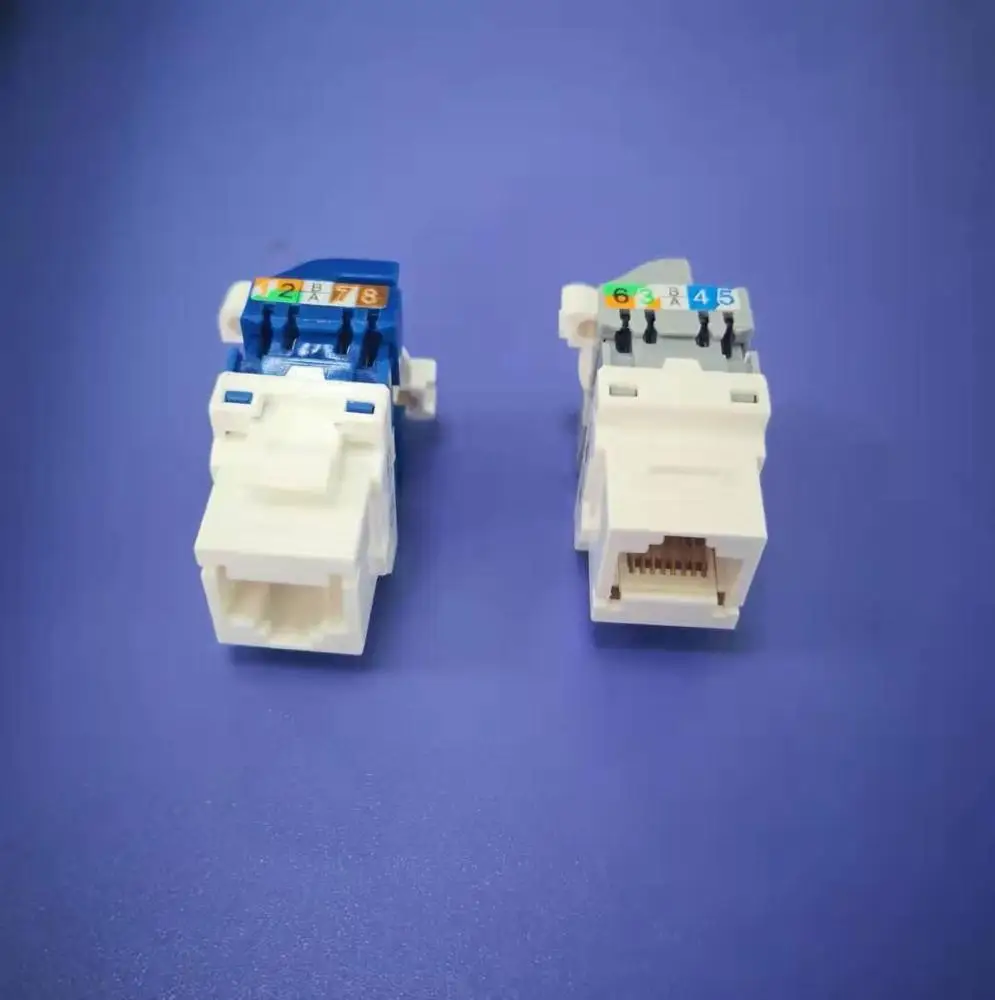

BK-1018-C6 CAT6 keystone jack 180 градусов UTP tooless KJ

Cat.6 180 degree KJ

Performance:

Meets Cat.6 EIA/TIA568B/2-1 Standard.

Material:

Modular Housing: Fireproof PC UL94V-0

RJ45 Jack Insert: Housing-Fireproof ABS UL94V-0

              Pin-8P8C 50 micro inches gold plated

PCB: FR-4/1.6mm UL94V-0

IDC Body: Fireproof PC UL94V-0

IDC Pin: Bronze & Tinned

Label Color Code: T568 A/B

IDC Terminal: For 22-26 AWG Code

Electrical Specifications:

Insulation Resistance: 500M ohms (min.)

Contact Resistance: 20m ohms (max.)

DC Resistance: 0.3m ohms (max.)

Mechanical Specifications:

The overall dimensions: comply with the requirements of the dimension in drawing

RJ45 Jack Insertion Cycle: Over 750 Cycles (min.), comply with IEC60512-15-5

IDC Punch Down Cycle: Over 250 Cycles (min.), comply with IEC60512-9-3

Drop test: From a height of 0.91 meters (3 feet), direction: x y z axis, No decomposition and deformation (every 3 times), comply with UL 1863

Insert force & take output: N<20 (Max. Rate: 50mm/min), comply with IEC60512-13-2
