Оригинальный GPS-модуль SIM33ELA с GNSS модулем MTK высокоточный навигационный
- Категория: Беспроводной & IoT >>>
- Поставщик: Shenzhen,Goodview,Global,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.87 $* | 13.55 $* |
| Aug-18-2025 | 12.52 $* | 13.0 $* |
| Jul-18-2025 | 10.64 $* | 11.96 $* |
| Jun-18-2025 | 12.36 $* | 13.80 $* |
| May-18-2025 | 10.97 $* | 11.18 $* |
| Apr-18-2025 | 11.10 $* | 12.57 $* |
| Mar-18-2025 | 11.45 $* | 12.40 $* |
| Feb-18-2025 | 11.83 $* | 12.47 $* |
| Jan-18-2025 | 11.23 $* | 12.33 $* |
Характеристики
Product Description

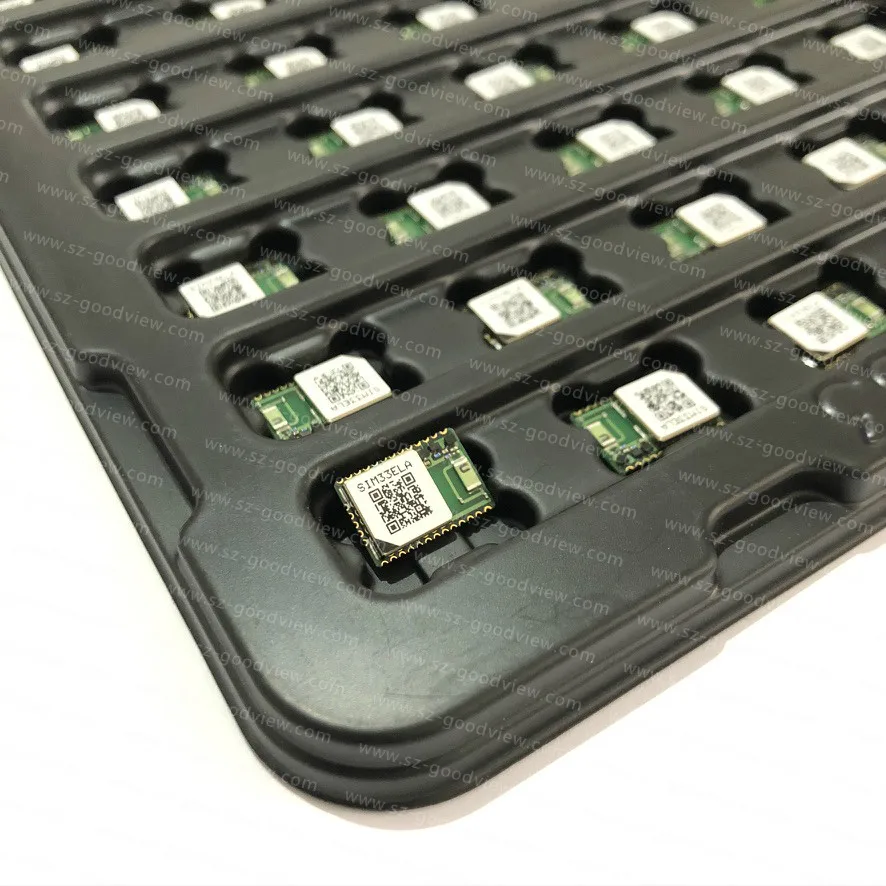

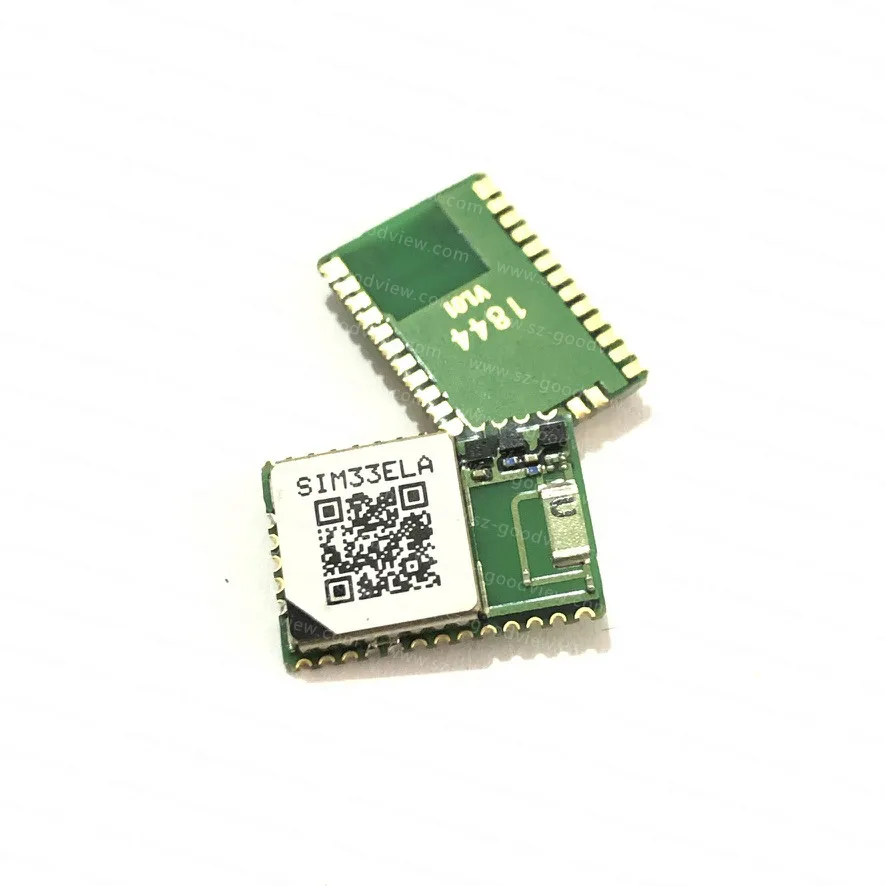

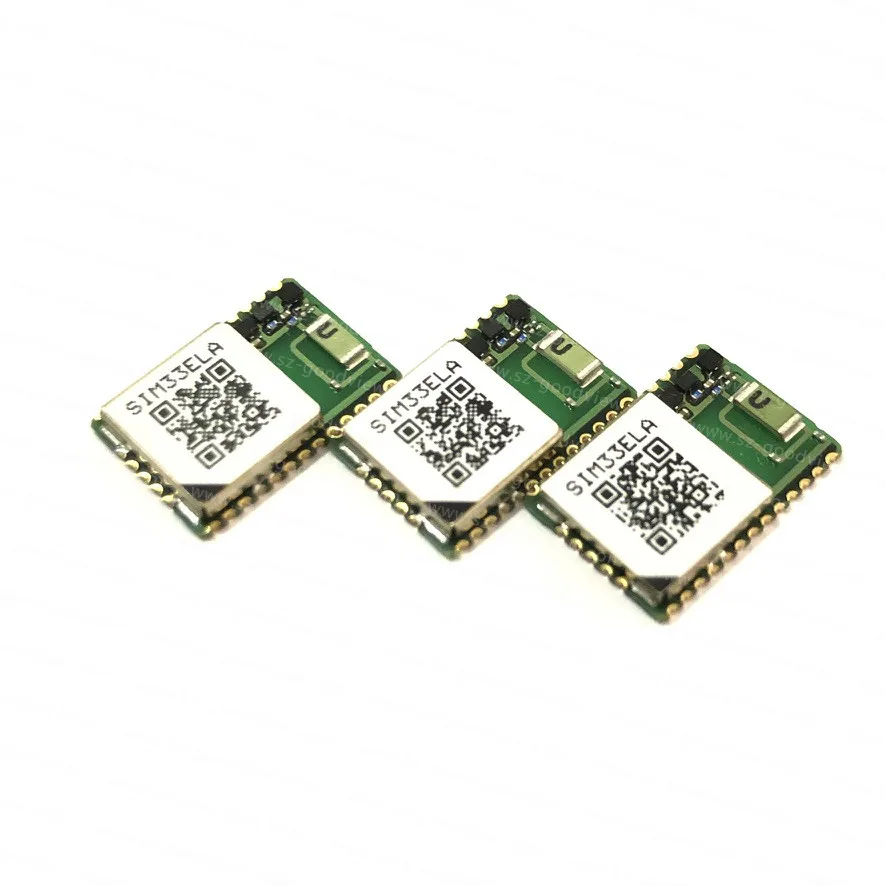

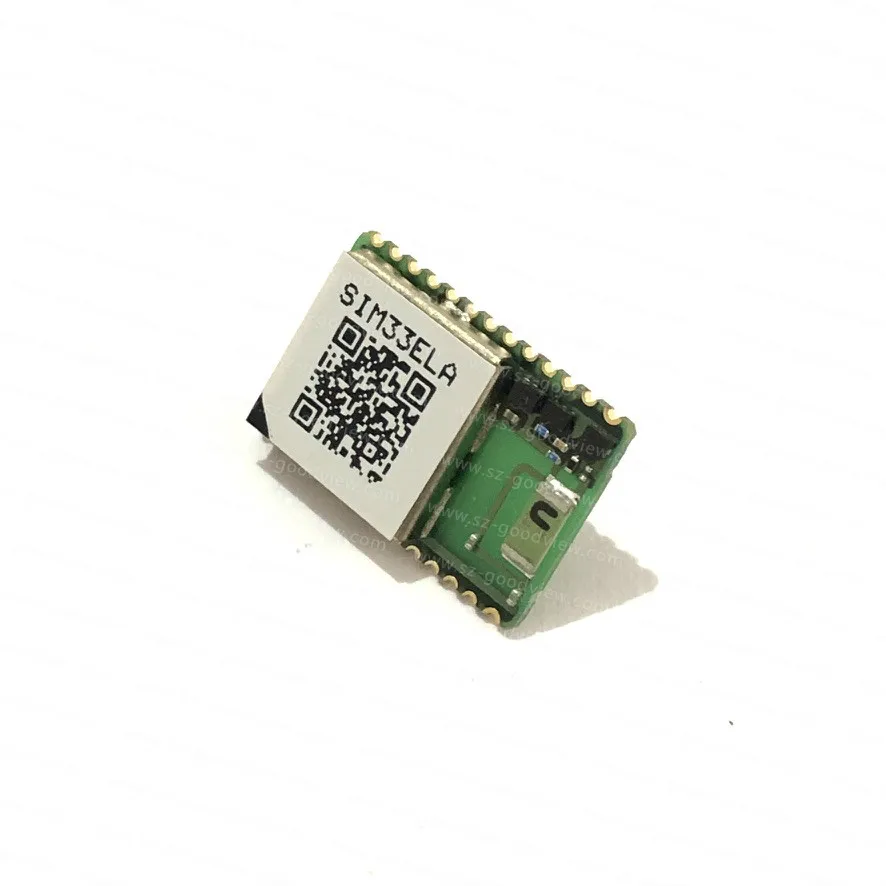

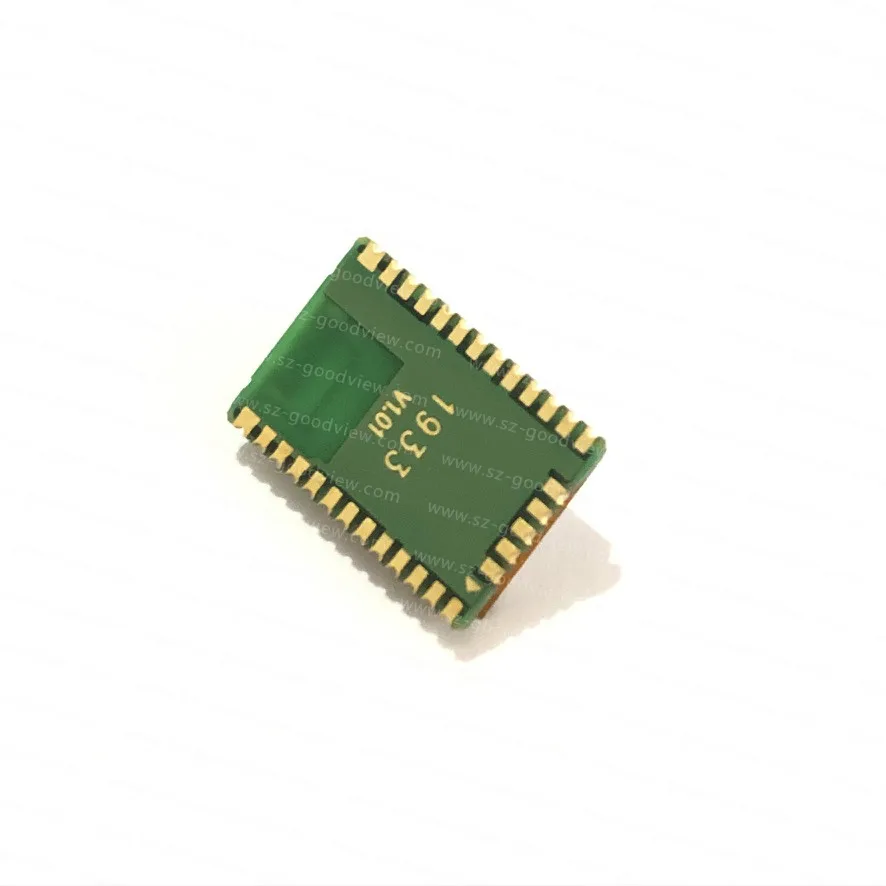

SIM33ELA
SIMCOM presents a high performance GPS module accompany with GNSS antenna - SIM33ELA. This is a standalone GNSS module embedded a
linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels
of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is
very easy to embed into customer’s application.
linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels
of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is
very easy to embed into customer’s application.
Features
• Support GPS/GLONASS/Galileo/QZSS
• Support EASYTM self-generated orbit prediction
• Support EPOTM orbit prediction
• Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• Support Jamming Removing
• Low-noise amplifier has been integrated
Interfaces
• Serial interfaces UART
• Digital I/O PPS 3D-FIX FORCE -ON
• Protocols NMEA PMTK
Support product
• SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
• Receiver type 33tracking/99 acquisition- channel GNSS receiver
• Max. update rate 10Hz • Sensitivity1 Tracking: -165 dBm Reacquisition: -160 dBm Cold starts: -147 dBm
• Time-To-First-Fix2 Cold starts: 28 s (typical) Warm starts: 26s Hot starts: <1s EPO Assist: 13s(CTTFF)
• Accuracy Automatic Position3: 2.5m CEP Speed4: 0.1m/s
• Operation temperature: -40°C~+85 °C
Electrical data
• Power supply 2.8~4.3V
• Backup power 2.0V~4.3V
• Power consumption2 3.3V(typical) Acquisition 25mA Tracking 20mA Backup 14uA
• Support GPS/GLONASS/Galileo/QZSS
• Support EASYTM self-generated orbit prediction
• Support EPOTM orbit prediction
• Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• Support Jamming Removing
• Low-noise amplifier has been integrated
Interfaces
• Serial interfaces UART
• Digital I/O PPS 3D-FIX FORCE -ON
• Protocols NMEA PMTK
Support product
• SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
• Receiver type 33tracking/99 acquisition- channel GNSS receiver
• Max. update rate 10Hz • Sensitivity1 Tracking: -165 dBm Reacquisition: -160 dBm Cold starts: -147 dBm
• Time-To-First-Fix2 Cold starts: 28 s (typical) Warm starts: 26s Hot starts: <1s EPO Assist: 13s(CTTFF)
• Accuracy Automatic Position3: 2.5m CEP Speed4: 0.1m/s
• Operation temperature: -40°C~+85 °C
Electrical data
• Power supply 2.8~4.3V
• Backup power 2.0V~4.3V
• Power consumption2 3.3V(typical) Acquisition 25mA Tracking 20mA Backup 14uA
Company Introduction
Related Products
Product transportation costs-take the United States as an example(DHL) The specific cargo weight is calculated based on the product volume. | ||||||||
Qty(pcs) | weight(kg) | shipping cost(usd) | ||||||
1-50 | 0.5 | 22 | ||||||
50-100 | 1 | 28 | ||||||
101-150 | 1.5 | 35 | ||||||
151-200 | 2 | 45 | ||||||
FAQ
Q: What it the delivery time?
A: Always is 3-5 days by DHL /UPS/ Fedex
Q: What is your testing policy and how you control the quality?
A: GSM GPS GLONASS Module & Accessories: Original Brand, testing 100%
A: Always is 3-5 days by DHL /UPS/ Fedex
Q: What is your testing policy and how you control the quality?
A: GSM GPS GLONASS Module & Accessories: Original Brand, testing 100%
Q:What is your package?
A:With anti static bag&Then pack it together in a box.
A:With anti static bag&Then pack it together in a box.
