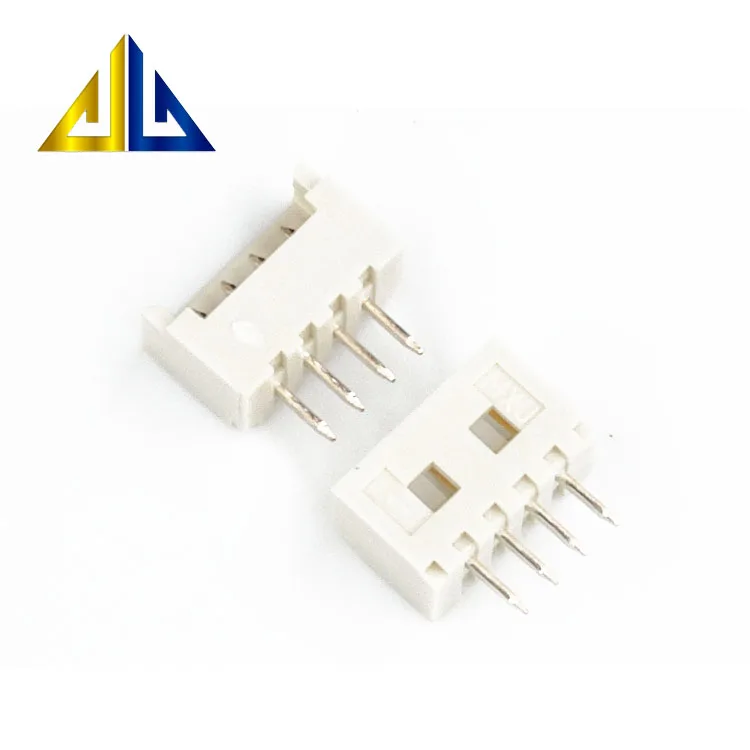

Разъем 53047-0410 разъем с сквозным отверстием 4 положения 0 049 дюйма (1 25
- Категория: >>>
- Поставщик: Shenzhen,Jinbojiuzhou,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.52 $* |
| Aug-19-2025 | 0.37 $* | 0.90 $* |
| Jul-19-2025 | 0.39 $* | 0.24 $* |
| Jun-19-2025 | 0.3 $* | 0.63 $* |
| May-19-2025 | 0.49 $* | 0.10 $* |
| Apr-19-2025 | 0.21 $* | 0.74 $* |
| Mar-19-2025 | 0.62 $* | 0.17 $* |
| Feb-19-2025 | 0.11 $* | 0.34 $* |
| Jan-19-2025 | 0.69 $* | 0.67 $* |
Характеристики
Product Description
| Connector Type | Header | |
|---|---|---|
| Contact Type | Male Blade | |
| Pitch - Mating | 0.049" (1.25mm) | |
| Number of Positions | 4 | |
| Number of Rows | 1 | |
| Row Spacing - Mating | - | |
| Number of Positions Loaded | All | |
| Style | Board to Cable/Wire | |
| Shrouding | Shrouded - 4 Wall | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Detent Lock | |
| Contact Length - Mating | 0.089" (2.25mm) | |
| Contact Length - Post | 0.091" (2.30mm) | |
| Overall Contact Length | - | |
| Insulation Height | 0.165" (4.20mm) | |
| Contact Shape | Rectangular | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) | |
| Contact Finish - Post | Tin | |
| Contact Material | Phosphor Bronze | |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
