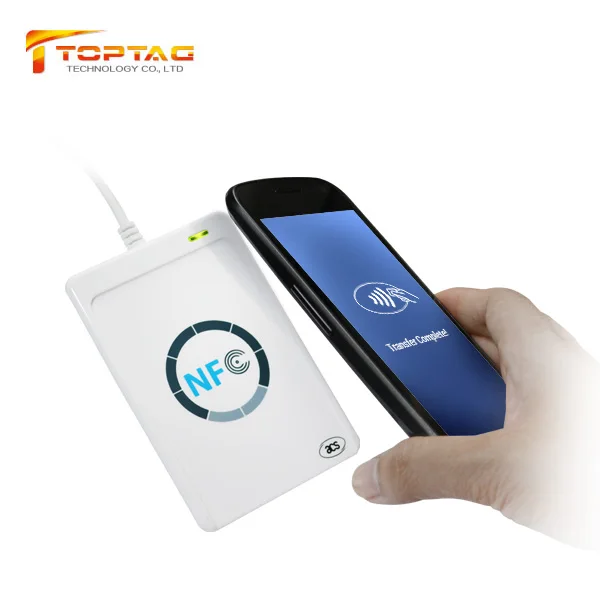

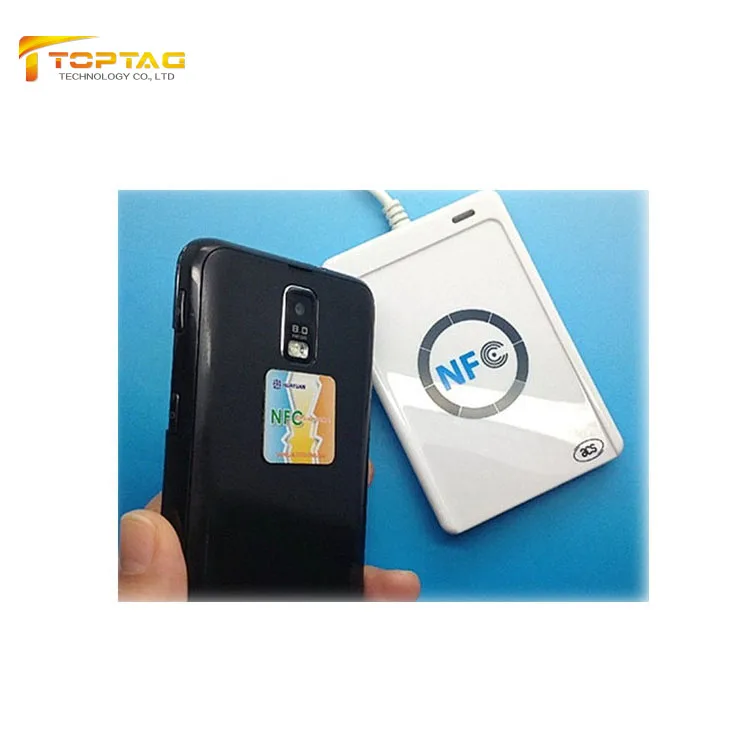

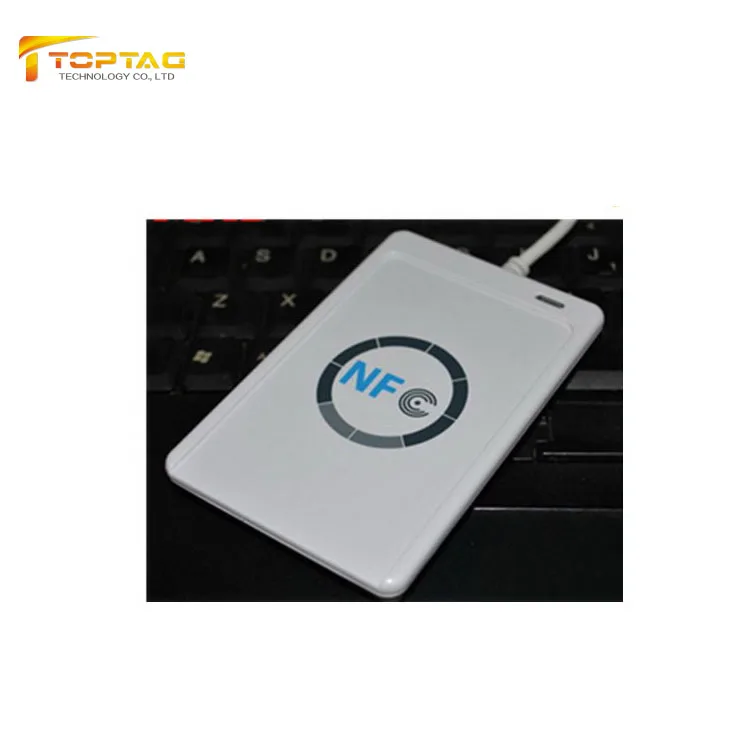

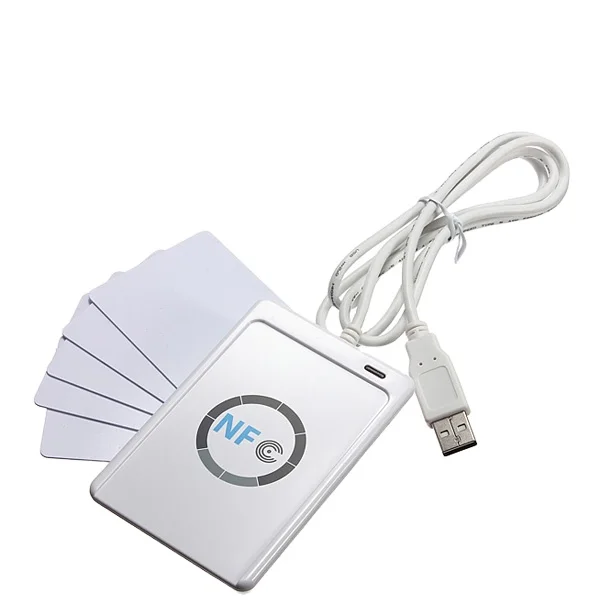

1.0. Introduction

The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support  ISO 14443 Type A and B cards and NFC tags.

By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

1.0. Features

• CCID-compliant


• PC/SC-compliant


• Read/write speed up to 424 kbps


• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)


• Supports ISO 14443 Type A and B, all 4 types of NFC (ISO/IEC 18092) tags


• Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes


• Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)


• USB PnP


• User-controllable bi-color LED


• Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)


• Light Weight: 70 g


• User-controllable buzzer

1.0.  Typical Applications

• e-Government


• e-Banking and e-Payment


• e-Healthcare


• Transportation


• Network Security


• Access Control


• Loyalty Program

Universal Serial Bus Interface

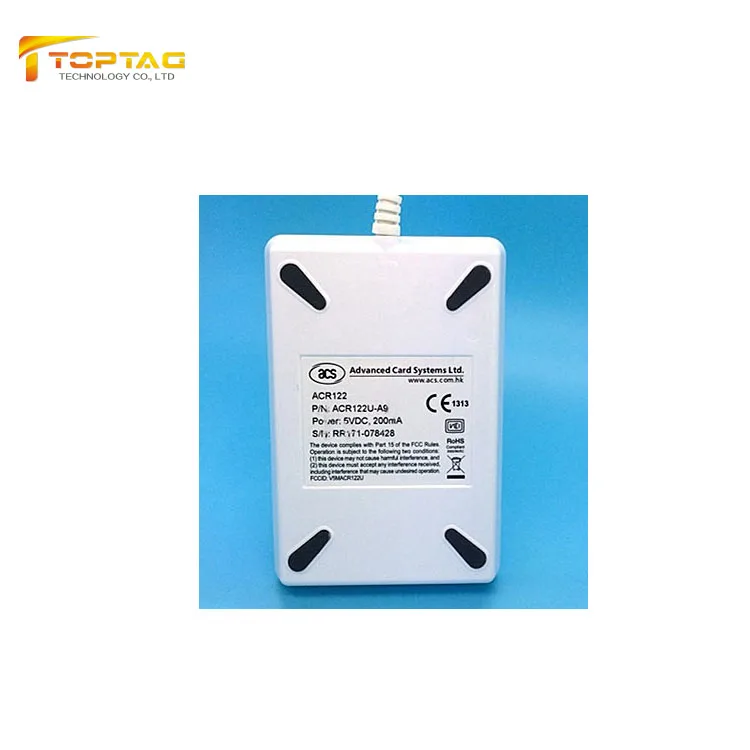

Power source.................................... From USB

Speed................................................ 12 Mbps (Full Speed)

Supply Voltage.................................. Regulated 5 V DC

Supply Current ................................ 200 mA (maximum); 50 mA (standby); 100 mA (normal)

Contactless Smart Card Interface

Standard........................................... ISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa

Protocol............................................. FeliCa protocol, T=CL protocol

Operating Frequency........................ 13.56 MHz

Smart card read / write speed.......... 106 kbps, 212 kbps, 424 kbps

Casing

Dimensions....................................... 98 mm (L) x 65 mm (W) x 12.8 mm (H)

Weight............................................... 70 grams

Material............................................. Polycarbonate (PC)

Color................................................. Pearl White

Antenna Size..................................... 50 mm x 40 mm

Operating distance............................ Up to 50 mm (depending on tag type)

Built-In Peripherals

Bi-Color LED..................................... Bi-color LED, red and green

Buzzer............................................... Monotone

Operating Conditions

Temperature..................................... 0 – 50 °C

Humidity............................................ 10% - 80%

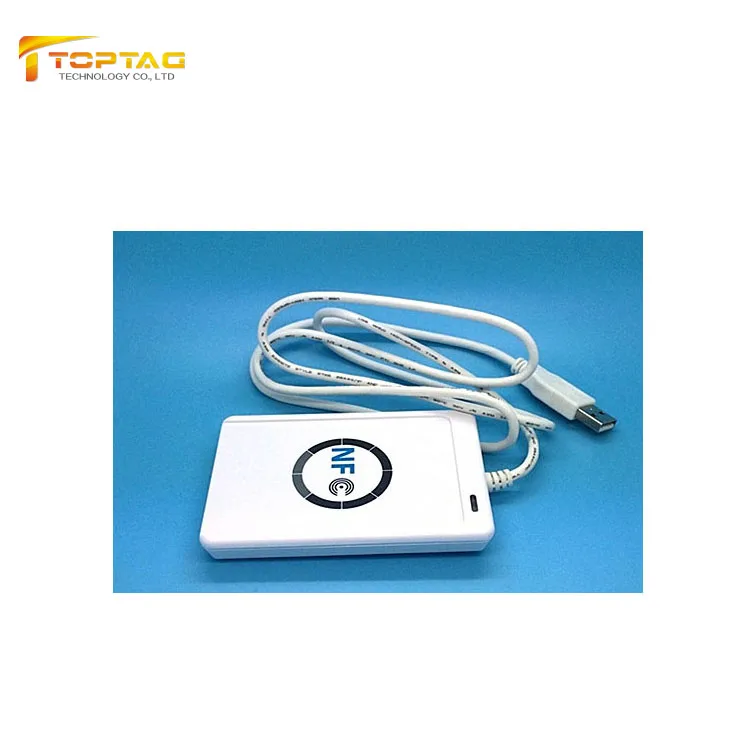

Cable Connector

Length............................................... 1.0 M (USB)

Certifications/Compliance

PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed

Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

Device Driver Operating System Support

Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

Windows ® CE 5.0

Linux, Mac
