21 5 Дюймов Высокая яркость 1000nit все в одном сенсорный экран
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Leadingtouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.51 $* | 0.28 $* |
| Aug-18-2025 | 0.65 $* | 0.64 $* |
| Jul-18-2025 | 0.48 $* | 0.3 $* |
| Jun-18-2025 | 0.58 $* | 0.23 $* |
| May-18-2025 | 0.71 $* | 0.33 $* |
| Apr-18-2025 | 0.13 $* | 0.99 $* |
| Mar-18-2025 | 0.50 $* | 0.29 $* |
| Feb-18-2025 | 0.14 $* | 0.27 $* |
| Jan-18-2025 | 0.8 $* | 0.68 $* |
Характеристики
Product Description
TC-2152AP
21.5inch Industrial Grade PCAP Panel PC
Aluminum alloy front bezel, inside PCAP meet IP65 Water-proof, Highlight display with anti-vandal tempered cover glass meet UL60950, Suitable for outdoor application, which is designed for Industrial Control, ATM, POS, Indoor/outdoor Kiosks, Transportation, Advertisement machine, Gaming, Medical, etc. is easily connected and installed by user.
Aluminum shell design, silver or black optional
Seamless panel with IP65 water-proof and dust-proof
Seamless panel with IP65 water-proof and dust-proof
Interface: HDMI+DVI+VGA, RJ45-USB optional
Installation: Wall-mounted, VESA, Embedded, Desktop Stand Optional
Industrial grade A TFT LCD Panel
Sunlight readable high brightness
Whole Aluminum alloy enclosure, high efficiency for heat dissipation
Touch Screen: Resistive, 10-point capacitive optional
Touch Screen: Resistive, 10-point capacitive optional

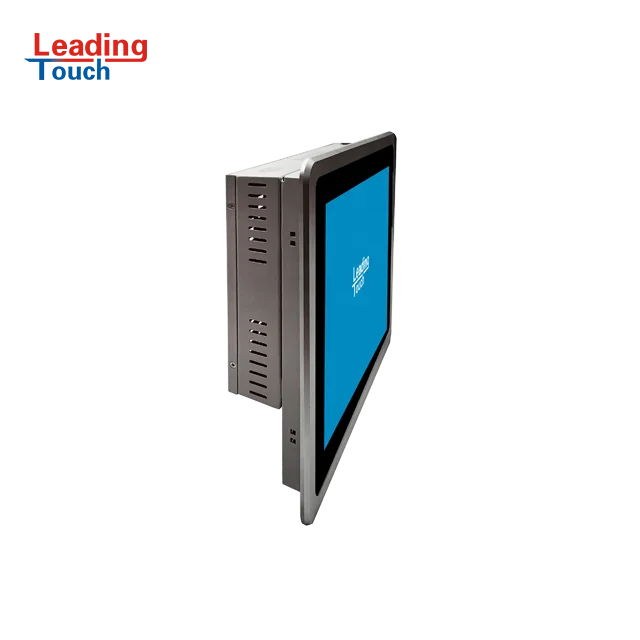

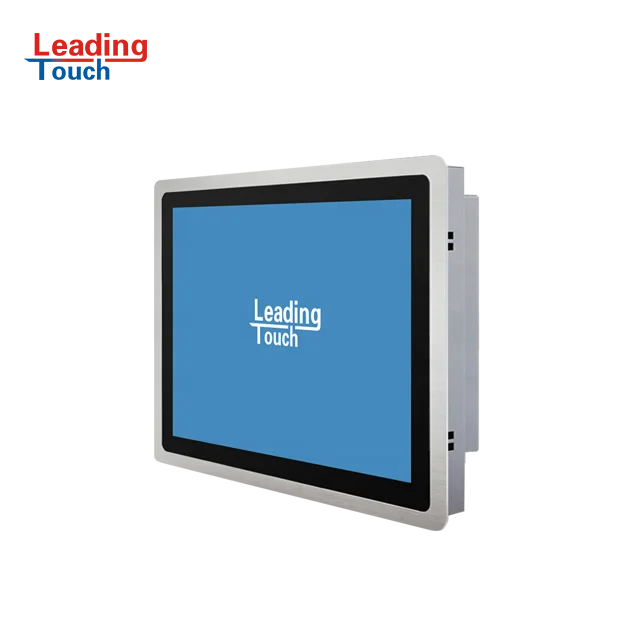

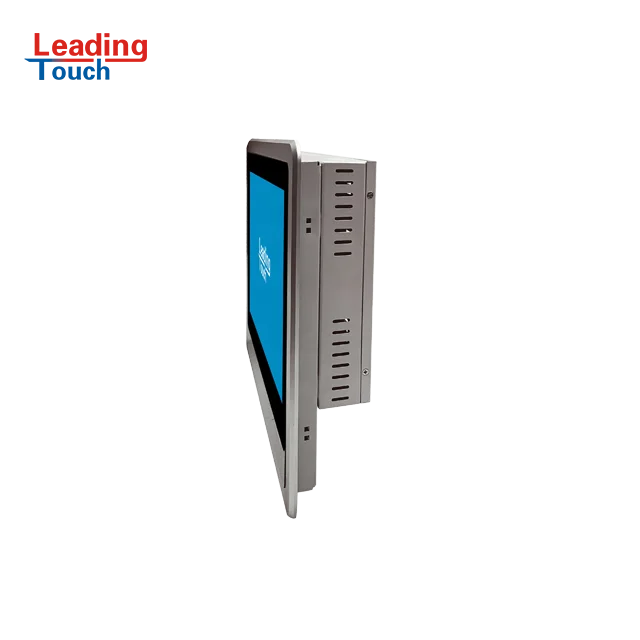

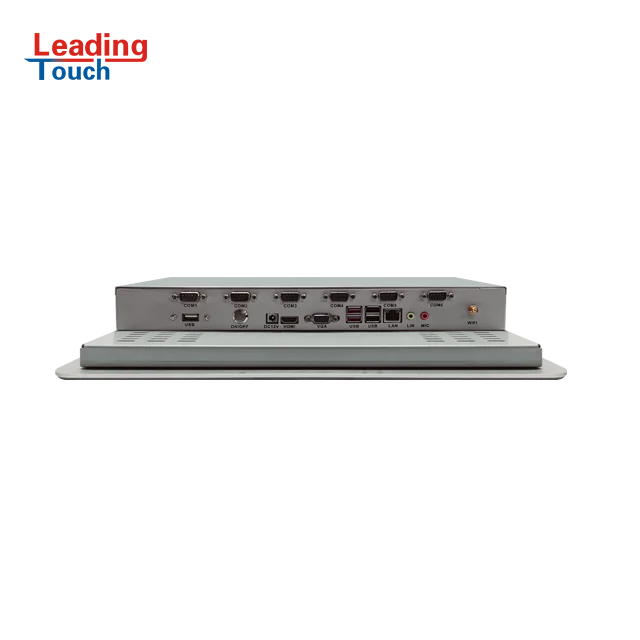

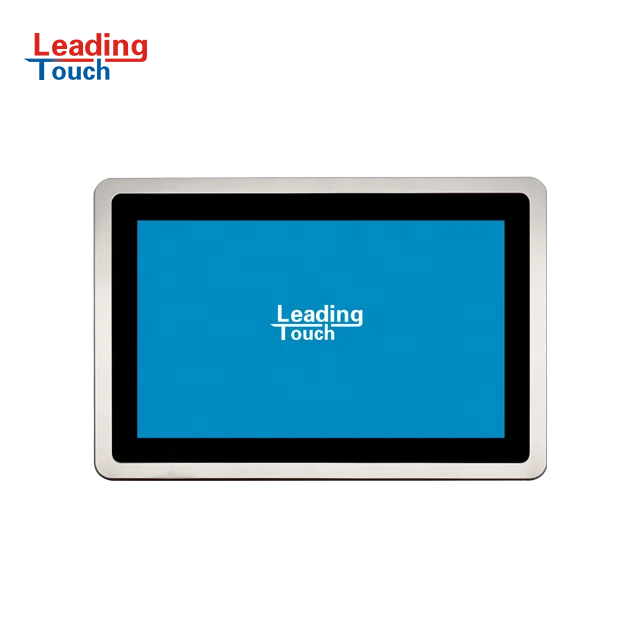

Detailed Images
Product Paramenters
Product Model | TC-2152AP | ||
Product Description | 21.5” Industrial Grade PCAP Panel PC | ||
Color | Silver, Black Optional | ||
DISPLAY | Display | 21.5“ 16:9 Active Matrix TFT LCD | |
Useful Screen Area | 476mm x 267.5mm | ||
Optimal Resolution | 1920 x 1080 @60Hz | ||
Number of colors | 8bit,16.7 Million colors | ||
Brightness | LCD Panel:1000cd/m² | ||
Contrast Ratio | 3000:1 (Typical) | ||
Viewing Angle | Horizontal: ±89°or 178°total | ||
Vertical: ±89°or 178°total | |||
Computer | CPU | Celeron J1900 1.99GHz(Intel i3,i5,i7 options) | |
RAM | 4G or 8G | ||
Hard Disk | 32G, 64G or 128 SSD | ||
USB and COM Port | 2 x USB 3.0, 4 x USB 2.0, 6 x COM(RS232) or 485 | ||
Ethernet Port | 1 x LAN RJ45(Gigabit) | ||
Additional Video Out | 1 x HDMI and 1 x VGA out | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2 x 12W internal speakers | ||
TOUCH | Touch Technology | Project capacitive touch technology | |
Response Time | 3ms | ||
Touch Resolution | 32767 x 32767 | ||
Touch Glass | 3mm Anti-vandal tempered glass meet IK07 | ||
Front Bezel | 4mm Industrial grade aluminum sheet IP67 with PCAP 3mm touch panel | ||
Sealability | Touchscreen sealed to Aluminum sheet-bezel IP67 | ||
Touchscreen sealed to LCD | |||
MTBF | 50,000 hours demonstrated | ||
Mounting Options | VESA, Embedded, Wall Mount, Desktop optional | ||
Power Supply | 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
Product Dimension | 556mm x 351mm x 56mm | ||
Warranty | 1 year | ||
Agency Approvals | FCC, CE, RoHS | ||
FAQ
Q: Are you a trading company or factory?
A: We are a professional touch screen/touch monitor/ touch panel PC manufacturer since 2001.
Q:What’s Minimum Order Quantity?
A: No limited on MOQ. You are welcomed to place order to test our product quality and services.
Q: Whether your industrial panel PC support the OEM / ODM?
A: Yes, our Industrial Panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: What’s your Payment Terms?
A: TT or Alibaba trade assurance. We are 11 years supplier on Alibaba.
Q: How long is your Lead Time ?
A: Sample within 3 days. Bulk production is 7 days according to quantity.
