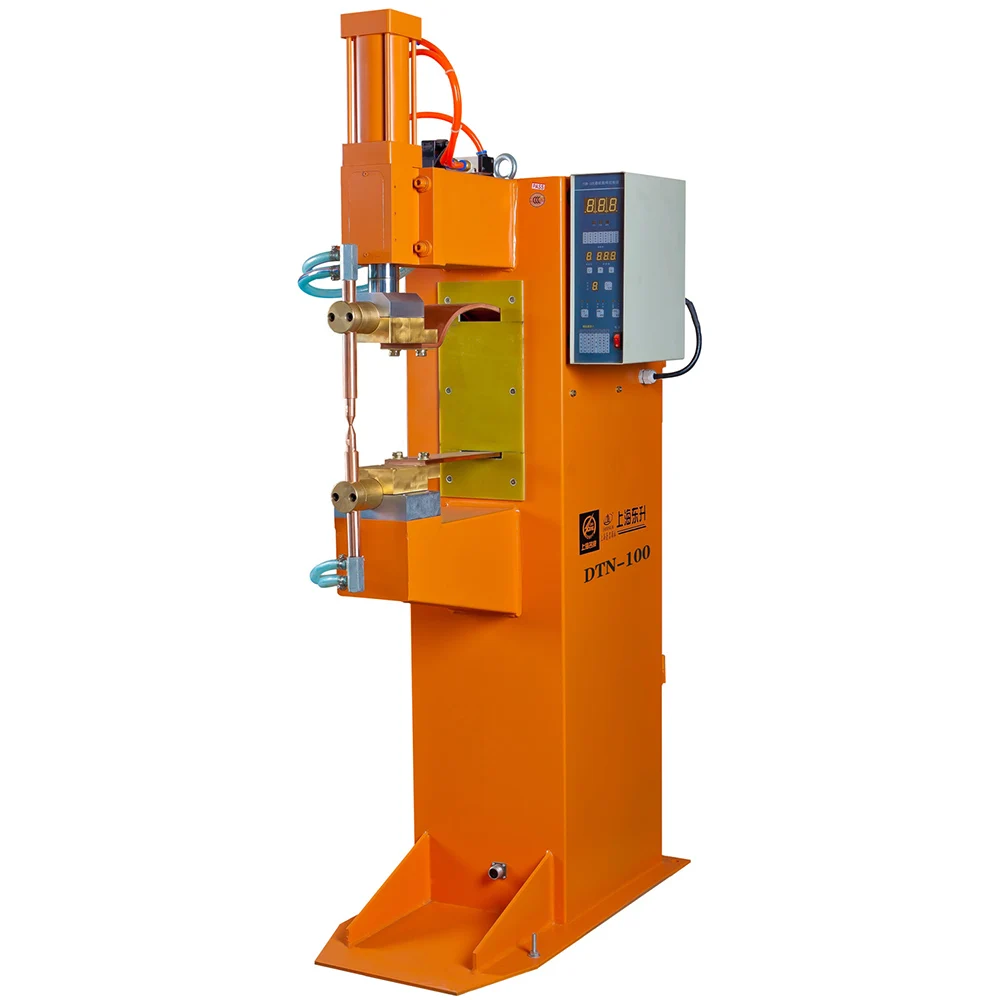

DTN 100 пневматический точечный сварочный
- Категория: Spot Welders >>>
- Поставщик: Shanghai,Donsun,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3841.72 $* | 4033.42 $* |
| Aug-16-2025 | 3809.81 $* | 3999.11 $* |
| Jul-16-2025 | 3196.12 $* | 3356.16 $* |
| Jun-16-2025 | 3744.9 $* | 3931.34 $* |
| May-16-2025 | 3260.76 $* | 3423.56 $* |
| Apr-16-2025 | 3680.7 $* | 3864.99 $* |
| Mar-16-2025 | 3648.20 $* | 3830.29 $* |
| Feb-16-2025 | 3615.5 $* | 3796.56 $* |
| Jan-16-2025 | 3583.62 $* | 3762.32 $* |
Характеристики
Product Description
Features:
The machine controlled by micro-computer controller can work in high accuracy six procedures within welding process which are squeezing, welding holding, welding.
The control system provides 20%-100% fine adjust for welding current.
The conrol system possesses power factor self-adapting function
Electrode force is adjustable and can be kept constantly.
| Model/Parameters | DTN 100 |
| Power supply voltage(V) | 1Phase 380V/50HZ |
| Rated capacity(KW) | 100 |
| Rated Input Power (KW) | 263 |
| Rated Duty Cycle | 20% |
| Secondary open circuit voltage(V) | 3.66-7.32 |
| Electrode arm extension length(mm) | 500 |
| Horn spacing(mm) | 350 |
| Upper electrode working stroke(mm) | 100 |
| Max. Electrode force(N) | 9700 |
| Thickness (Low carbon steel) (mm) | 5+5 |
| Pressure of condensed air(Mpa) | 0.6 |
| Flux of cooling water (L/h) | 300 |
| Dimensions (mm) | 1120 * 620 *1880 |
| Weight(KG) | 500 |
spot welder
