Расширяемый сборный контейнерный дом

Категория: Прочее строительство и недвижимость >>>
Поставщик: Platinum,Building,Technology,Development,Inc.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.73 $*	0.34 $*
Aug-16-2025	0.81 $*	0.93 $*
Jul-16-2025	0.64 $*	0.83 $*
Jun-16-2025	0.82 $*	0.89 $*
May-16-2025	0.50 $*	0.72 $*
Apr-16-2025	0.99 $*	0.10 $*
Mar-16-2025	0.67 $*	0.15 $*
Feb-16-2025	0.85 $*	0.53 $*
Jan-16-2025	0.24 $*	0.74 $*

Характеристики

Product Description

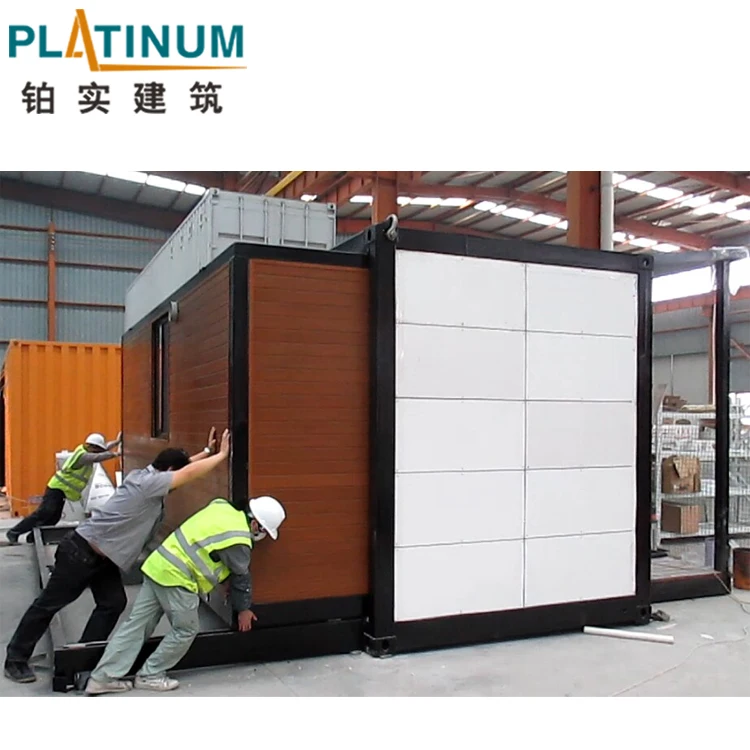

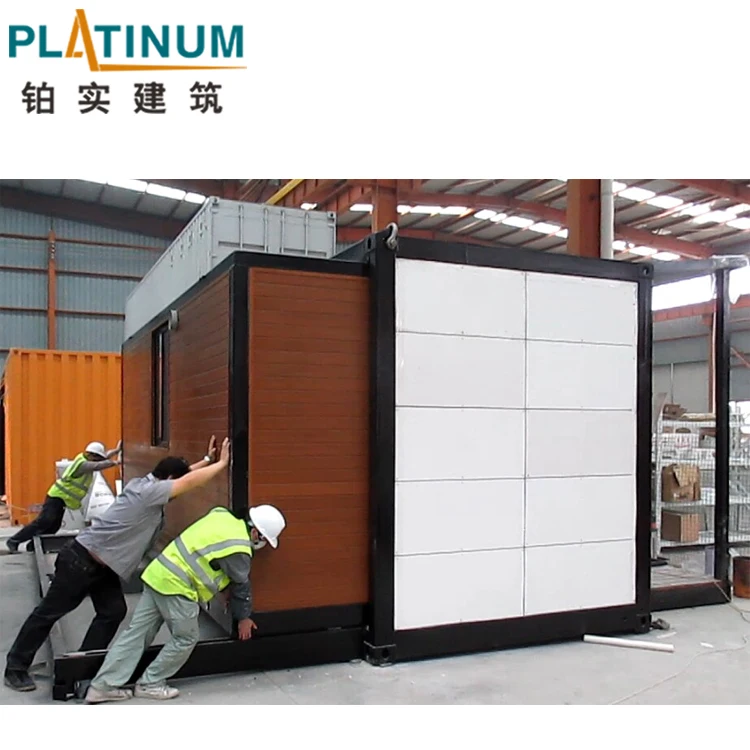

Product Name	Expandable prefab container house, expandable modular
Layout	1 bed, 1 bath, 1 kitchen, 1 living room
Scope of work	Roofing, walls, flooring, windows and doors, kitchen and bathroom, electrics and plumbing, decking

20' container house 2438m (W) * 6058m(L) * 2896m(H)
20' container house 2438m (W) * 6058m(L) * 2896m(H)
S/N	ITEMS	DESCRIPTION
I. Steel Frame
1	Steel Frame	SHS main frame and LGS supporting cladding
II. Wall
1	Ext. Wall	0.5mm coated steel sheets, air cell 7mm +75mm rockwool insulation, fiber gypsum board 12mm
2	Int. Wall	fiber gypsum both sides, fibercement board for wet area
3	Accessories	Screws, fasteners and flashings
III. Roof
1	Roof Cover	0.5mm galvanized steel roofing
2	Roof Insulation	100mm mineral wool (120KG/m3)
3	Sub Ceiling	Plywood 10mm
4	Ceiling	PVC ceiling slides
5	Ceiling Joist	Wood batten 40mm x 30mm
IV. Floor
1	Floor Covering	1.6mm PVC floor tile, 0.7mm wear layer
2	Floor Deck	20mm MGO board
3	Floor Moulding	PVC moulding 6cm high
4	Floor Insulation	75mm rockwool
5	Bottom Plate	0.4mm galvanized steel sheet
V. Windows & Doors
1	Sliding Window	Alum. sliding window, Size: 1150*1200, single glazing
2	Sliding Entrance Door	Alum. sliding door, Size: 12000*2100, single glazing tapped
3	Bathroom Door	MDF solid door with PVC finishing
4	Ventilating Fan	300mmx300mm, 24w
VI. Water System
1	Water System
VII. Electrical System (optional)
1	Electric Box	JIS standard
2	Wiring for Light	JIS standard, PVC 1.25 m2
3	Wiring for Aircon	JIS standard, PVC 4m2
4	Outlet
5	TV Outlet
6	Air-con Outlet
7	LED Fluorescent Tubes	PSE listed, T5 900mm, 960lm
8	LED lighting	PSE listed,Φ180x81mm, 12w, 880lm

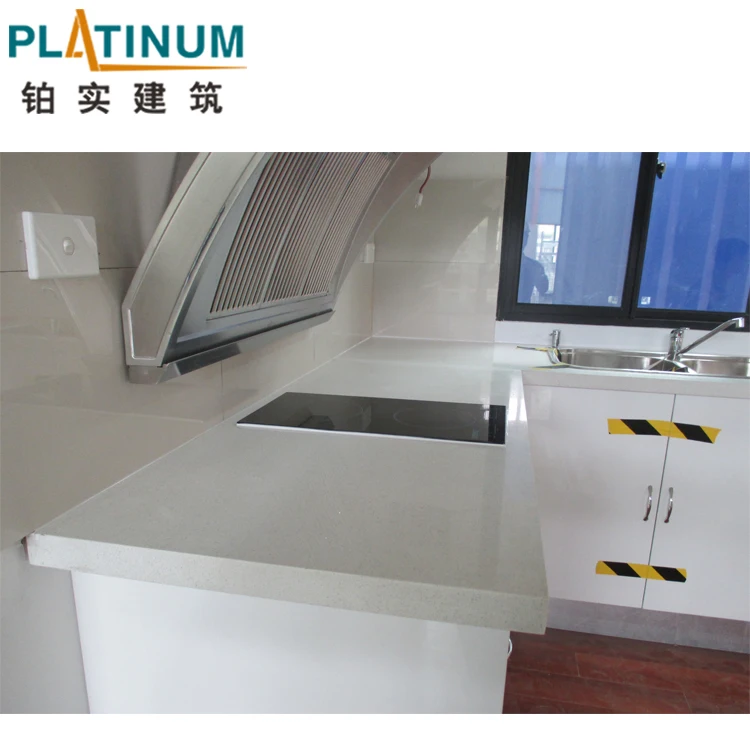

VIII. Kitchen (optional)

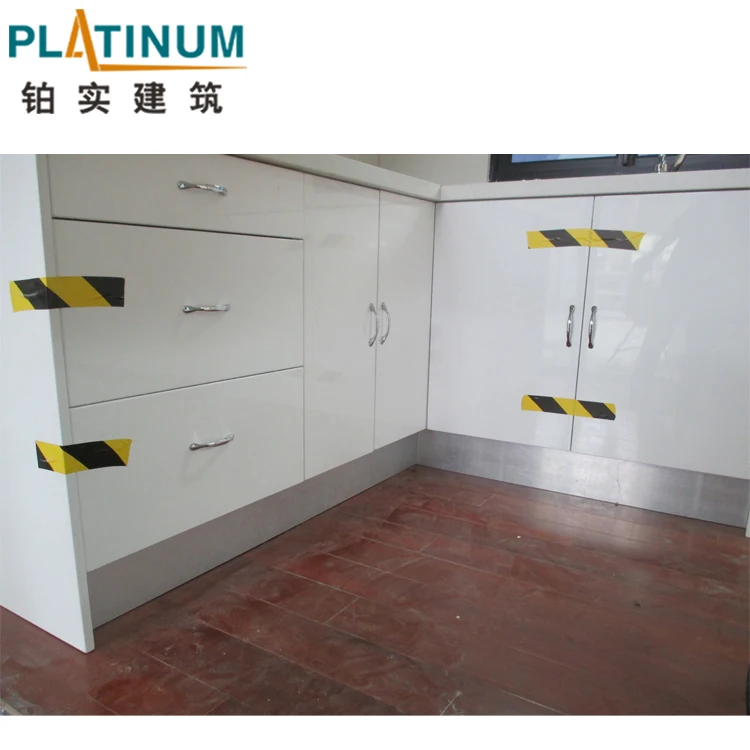

1	Kitchen Cabinet	Laminated wood cabinet, artificial marble countertop
2	Electric Cooker	Stainless steel housing with built -in design, Thermo fuse for safety use
3	Wash Sink
4	Faucet
IX. Bathroom (optional)
1	Closestool	HZX-3, 700x482x740mm
2	Bathtub	ORY-8005, 1500x800x680
3	Shower Head
NOTES:
1. The price is based on Platinum standard payment terms;
2. We can supply upto 800 units per month. Mininum order is 500 units.
