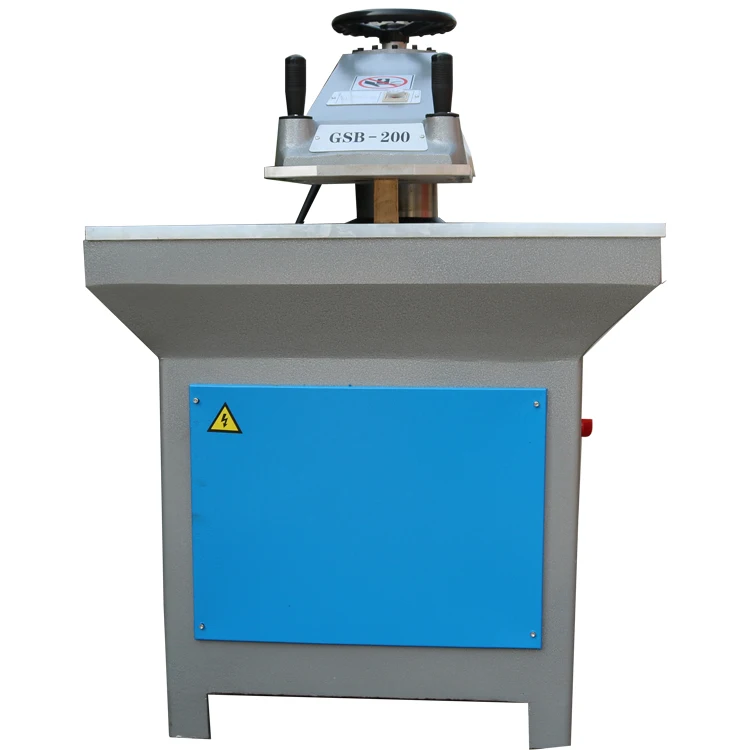

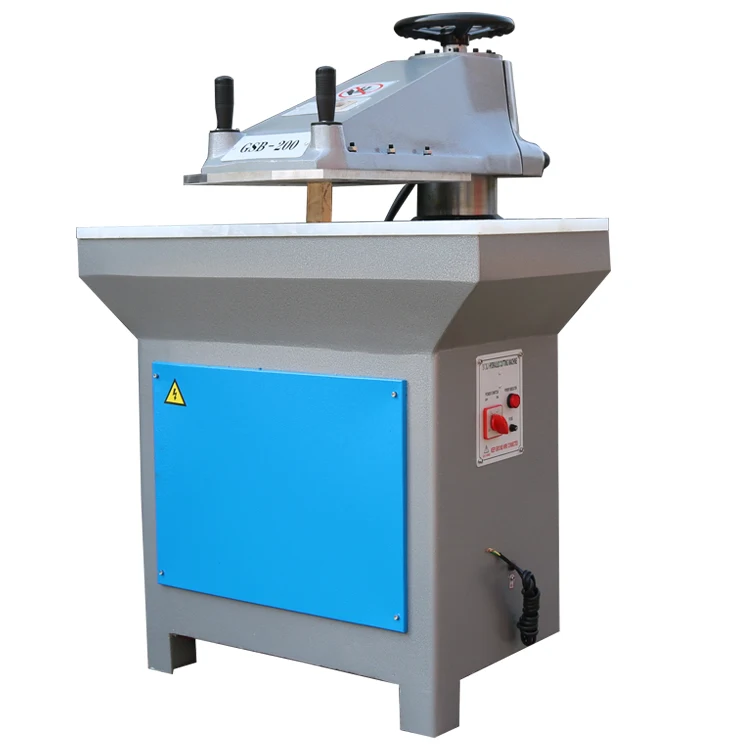

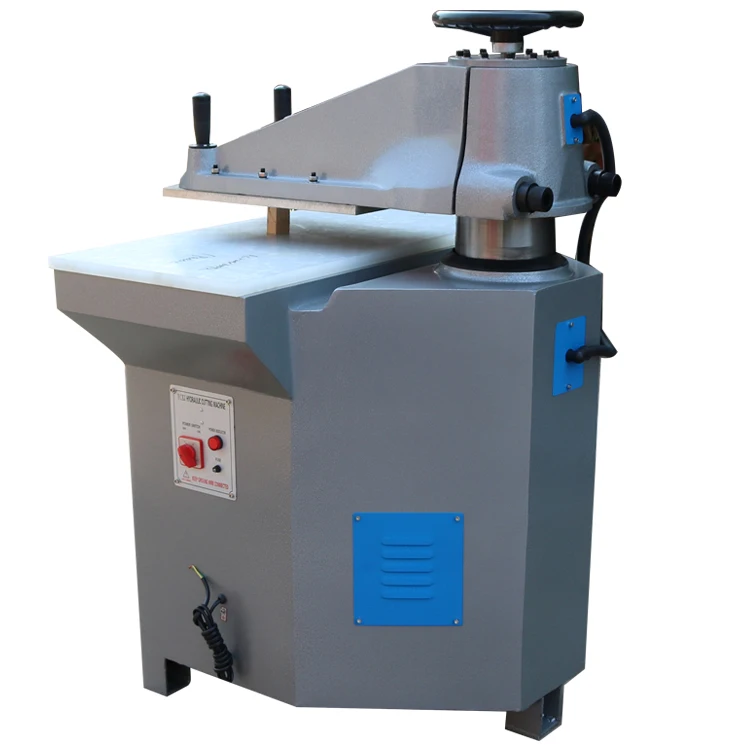

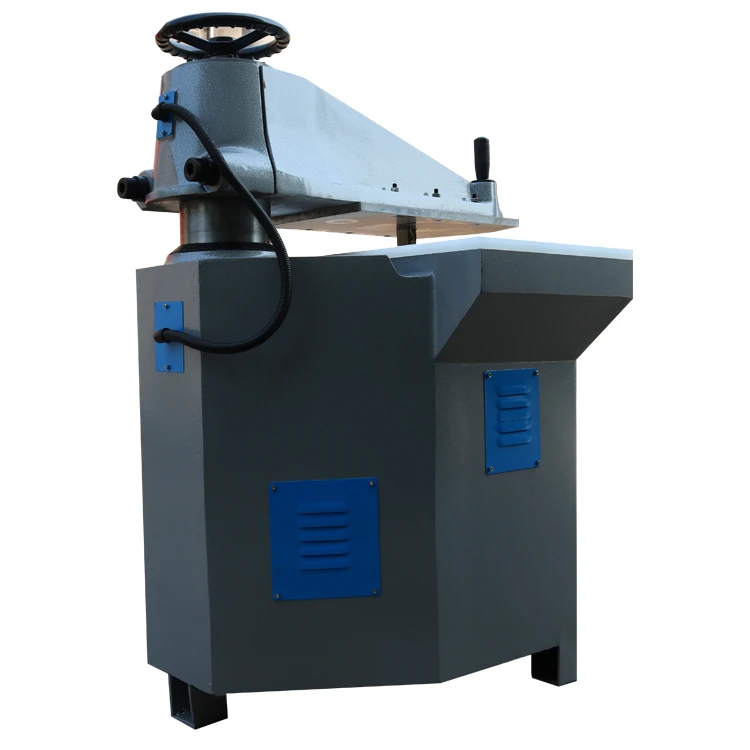

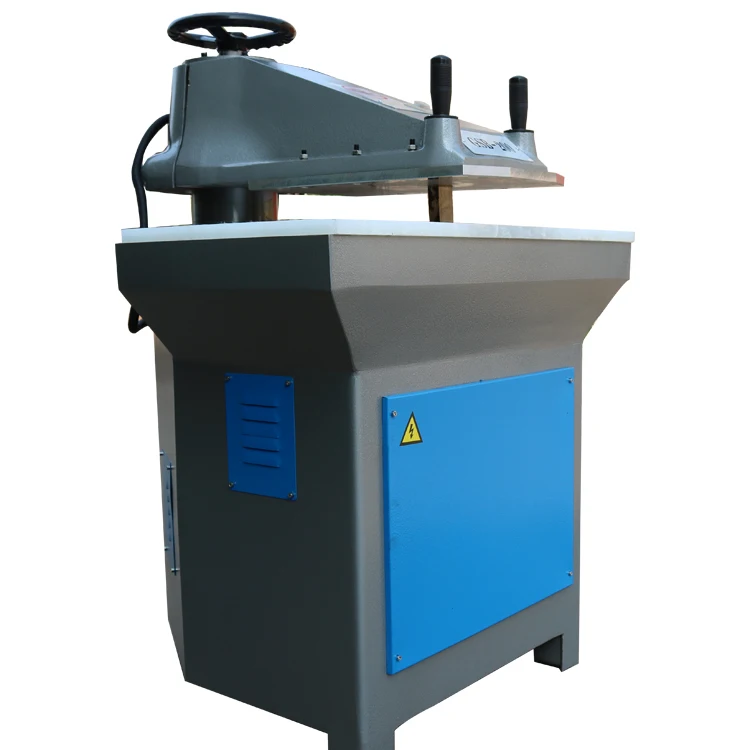

High Quality Hydraulic Swing Arm PU Leather Bag
- Категория: Other Shoemaking Machines >>>
- Поставщик: Yancheng,Jeakar,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 3570.13 $* | 3749.71 $* |
| Aug-17-2025 | 3540.17 $* | 3717.89 $* |
| Jul-17-2025 | 2970.3 $* | 3119.83 $* |
| Jun-17-2025 | 3480.30 $* | 3654.78 $* |
| May-17-2025 | 3030.30 $* | 3182.17 $* |
| Apr-17-2025 | 3420.57 $* | 3591.36 $* |
| Mar-17-2025 | 3390.33 $* | 3560.60 $* |
| Feb-17-2025 | 3360.80 $* | 3528.31 $* |
| Jan-17-2025 | 3330.84 $* | 3497.64 $* |
Характеристики
It is widely used in shoemaking, cloth,luggage, car interiors,toy, Interior decoration and other industries;
Small knife mold components, small toys, decorative pieces, leather bags accessories, candy and other non-metal materials blanking ( such as leather, fabric, foam, EVA, rubber gasket, plastic etc);
Suitable for all kinds of nonmetal materials, and widely used;
Safe ,two-hand operate the switch, rocker cutting head rotates freely, easy operation;
Equipped with automatic oil supply and lubrication system,reduce wear and extend service life;
Cutting travel is automatically controled by the time meter, after the height of the die cutting;
| Model No. | CX-100KN | CX-120KN | CX-160KN | CX-200KN |
| Cutting force | 10Ton | 12Ton | 16Ton | 20Ton |
| Working table size | 400*800mm | 400*800mm | 410*900mm | 500*1000mm |
| Swing arm size | 350*450mm | 350*450mm | 350*500mm | 350*550mm |
| Motor power | 0.75kw | 0.75kw | 1.1kw | 1.5kw |
| Voltage | 380V 3Phase 50Hz | 380V 3Phase 50Hz | 380V 3Phase 50Hz | 380V 3Phase 50Hz |
| Stroke adjustment range (MM) | 5-65mm | 5-65mm | 5-75mm | 5-75mm |
| Hydraulic oil capacity | 32L | 32L | 38L | 50L |
| Machine size | 800*780*1250mm | 800*880*1250mm | 900*850*1350mm | 960*950*1600mm |
| Package size | 810*840*1450mm | 810*940*1450mm | 960*900*1550mm | 1000*980*1430mm |
| Machine weight | 320kg | 340kg | 470kg | 700kg |
| Package weight | 360kg | 380kg | 520kg | 750kg |
