please click the prodcut picture to view the details,welcome to feel free to  ask us about all of the products

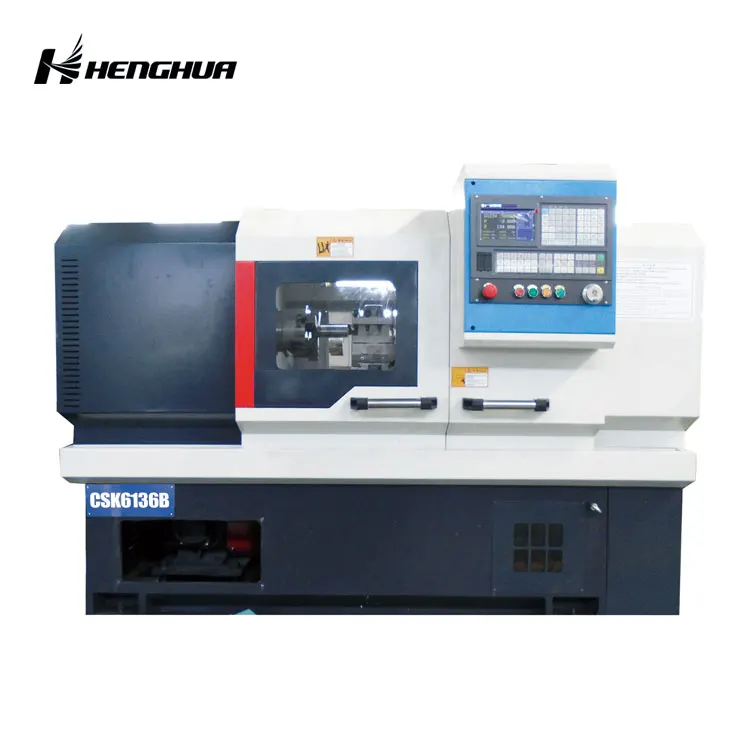

Specifications	unit	CSK6136	CSK6140
Max.sawing over bed	mm	φ360	φ400
Max.sawing over cross slide	mm	φ180	φ250
Max.procssing length	mm	Chuck 490 Chuck 580	Chuck 600 chuck 700
X/Z axis travel	mm	280/580	280/750
Spindle norse		A2-6	A2-6/(A2-8Optional)
Thu-hole dia. Of spindle	mm	φ48	φ48Optionalφ83
Spindle drawn tube diameter	mm	φ41	φ41/φ65
Max.spindle speed	rpm	150-2000	150-1800
Chuck size	mm	200	200/250
Spindle motor	KW	5.5	5.5/7.5
X/Z axis Position accuracy	mm	0.01/0.015	0.01/0.015
X/Z axis repeatability	mm	0.012/0.013	0.012/0.013
X/Z axis feed motor torque	N.m	x:4 z:6	x:4 z:6
X/Z axis feed motor power	KW	1/1.5	1/1.5
X/Z axis fast feeding speed	mm/min	x:8 z:10	x:8 z:10
Tailstock sleeve dia.	mm	φ60	φ60
Tailstock sleeve travel	mm	100	100
Tailstock sleeve taper	#	MT4	MT4
Tool post type		4Station electric tool rest	4Station electric tool rest
Cutting tool shape size	mm	20×20	20×20
Guide form		Shuangshan	Shuangshan
Total power capacity	KVA	9	11
Machine dimension(L×W×H)	mm	2000×1200×1620	2200×1100×1620
N.W.	kg	1560	1800



CNC Lathe Use:

The machine tool can automatically complete the machining of inner and outer cylindrical surfaces, tapered surfaces, circular surfaces, end faces, etc. It can also realize the turning of single, multi-threads in the public, English and various other forms.

CNC Lathe Features:

1. High base strength, widened pallet, suitable for powerful turning
2. Four-station electric knife holder
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Select configuration: hydraulic chuck

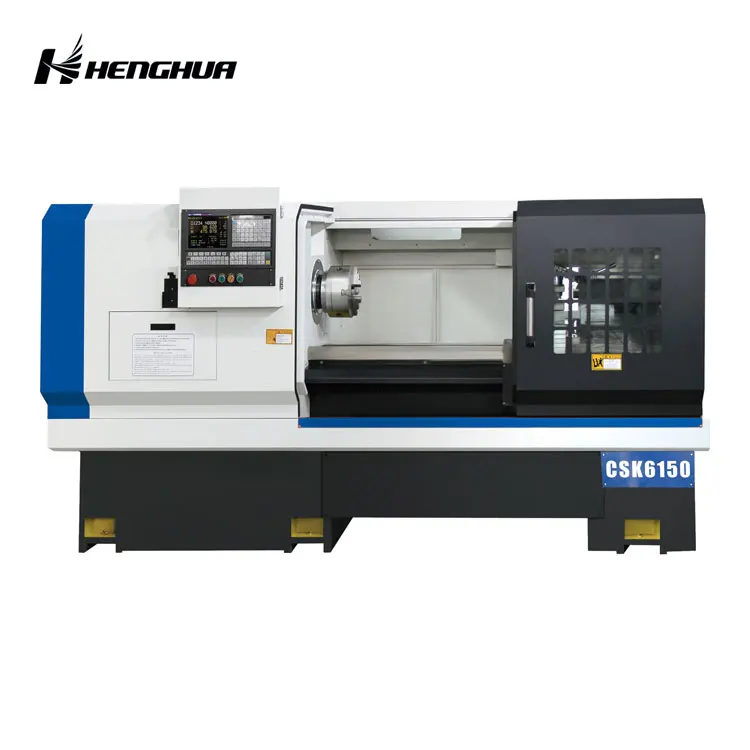

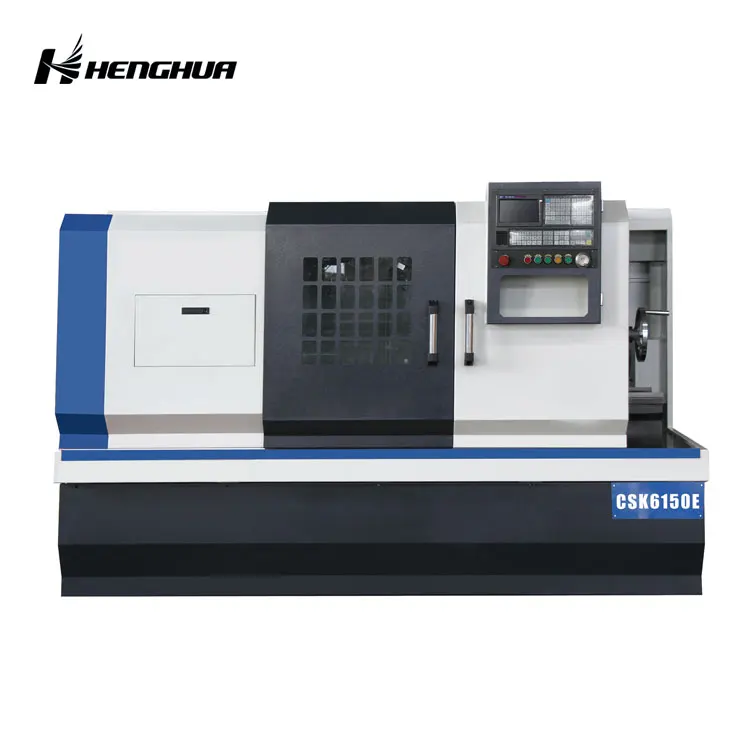

High base strength widened pallet powerful turning CSK6150/CSK6160 hard guide way cnc lathe machine with Four-station electric knife holder

About Company:
Creat the most advanced modern machine tool manufacturers, to provide high-performance manufacturing high-quality machine tools. Hard wok and innovation, create first-class enterprises, of which the ministry of the rise of Pineer. The introduction of a new machine tool manufacturing concept, business model ,combined with management experience, establishh industry development model. Change the traditional mode of the machine tool manufacturing industry, promote the development of the industry.

Quality is the successful partership, is to protect the quality standards implementation. Quality is more important than the merits of cost.

Strong economic strength, advanced technology and equipment, improve the detection means, pragmatic work style ,and excellent full management, build a good quality product. The company based on quality, market-oriented, customer-centric, to serve the purpose.

Service Concept:
Adhering to the "quality,efficient,fast service to create the greatest practical value for the customer" philosophy has always been to improve the service system to provide quality and reliable products and solutions for the manufacturing process throughout all areas of users, to help users solve the high processing complexity of the problem, to ensure the machine to maximize value and create a wider profit margins for the user.



Service Commitments:
1/ Whole year free warranty and lifetime maintenance services.
2/ 7X24 hours after-sales service hotline online customer fault 2 hour response,issued the solution.
3/ The scene within 24 hours of conventional service area, the farthest not more than 48 hours acorss the country.
