20D  Retina Aspheric lens For slit lamp fundus contact lens--ophthalmic instrument Diagnostic Optometry

Packaging

Specifications

Aspheric lens ( for slit lamp ) is used to observe patient's fundus and examine the internal situation of patients' eyes through

Aspheric lens ( for slit lamp ) is used to observe patient's fundus and examine the internal situation of patients' eyes through their papillary in coordination with slit lamp microscope. It helps doctors to make correct diagnosis of patient's eye diseases and other symptoms.

Magnification ratio: 2.97X

Static FOV: 50

Working distance: 47mm

Clear aperture: Ø47mm

Dimension: Ø56 X20mm

Default color: Black,other colors need to customize

CLEAN:Clean with alcohol wipe.

DISINFECT:Soak 20 minutes in glutaraldehyde(2% or 3.4% solution), or 10 minutes in 10% bleach solution,mixed 1 part bleach to 9 parts water.Caution: To avoid lens damage,do not exceed recommended exposure times.Rinse with cool or tepid water,3 cycles of 1 minute is recommended.Dry and store in case.

STERILIZE:Ethylene oxide gas 1 hour at 130F(54C),aerate 12 hours.

WARNING:NEVER STEAM AUTOCLAVE OR BOIL.

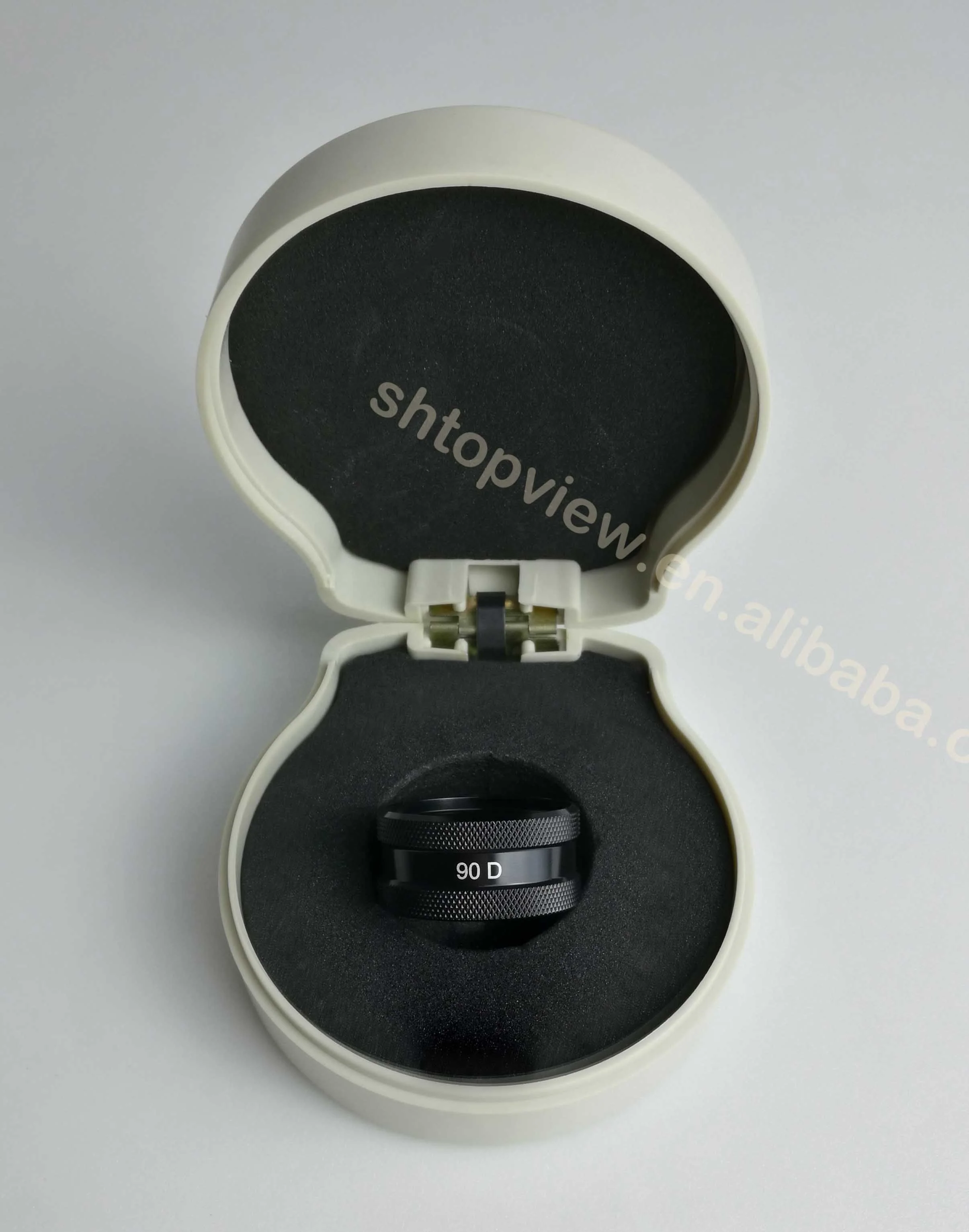

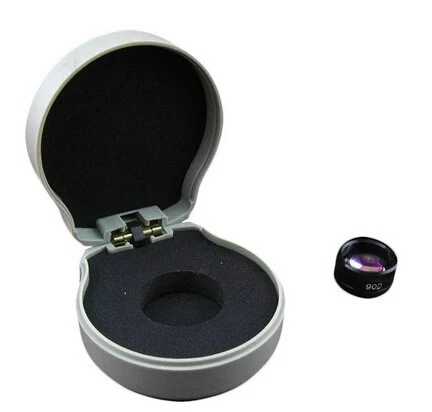

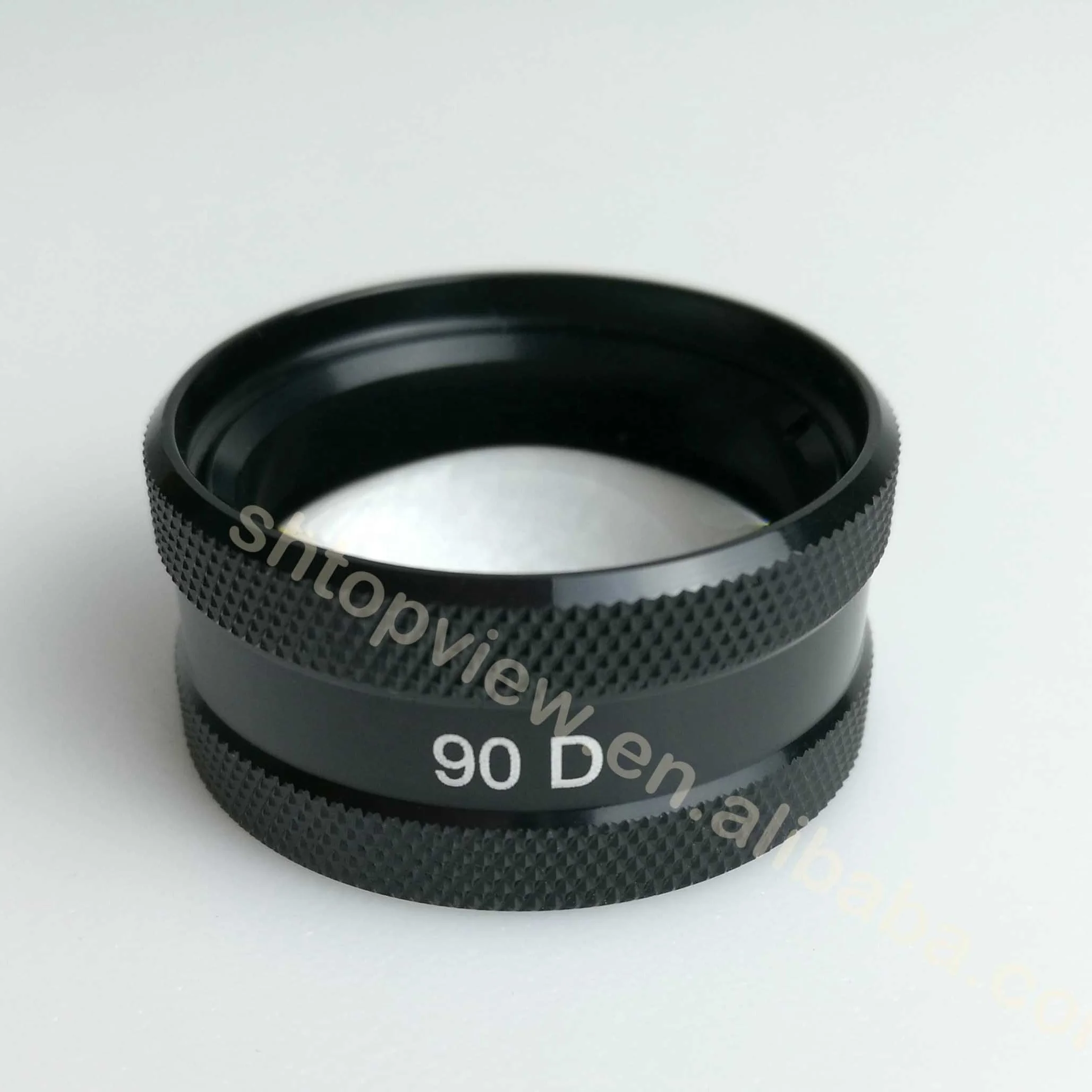

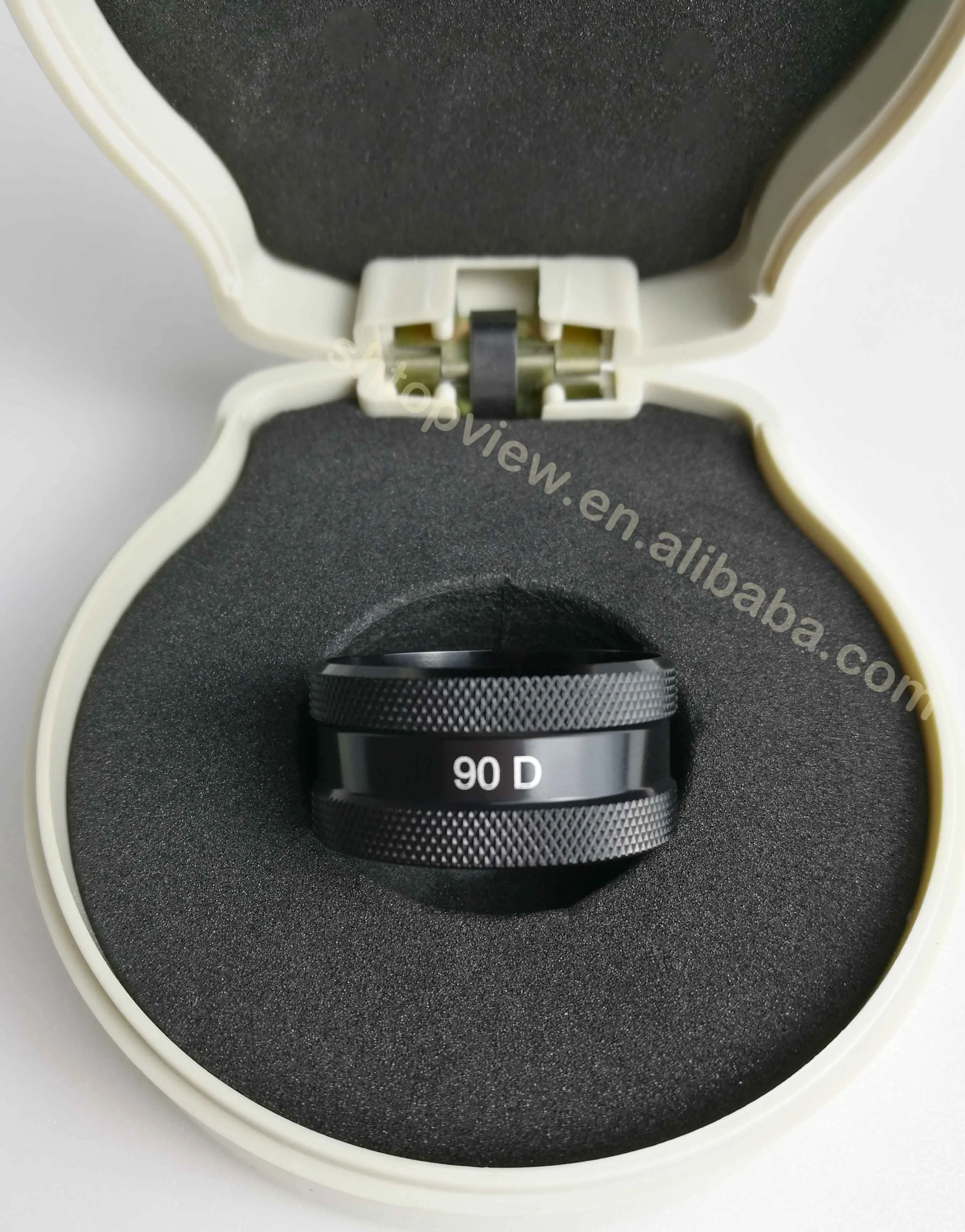

There are four types of retina lens(20D,78D,90D,90DLR) available.

Maintenance

slit lamp microscope is a kind of sophisticated equipment, typically, the instrument

should be placed in ventilated, dry environment, no more than 50% of the indoor

relative humidity, otherwise the surface coating of metal parts and optical parts has

bad influence.

2, slit lamp show badge mirror lens is the key to ensure equipment normal use, be

sure to always keep clean.When the lens from dust, dust dust pen of available

random spare parts will gently brushed;If the lens is smeary, usable degreased

cotton dips in 60% alcohol and 40% ethyl ether mixture gently wipe, remove the

oil pollution.

3, optical lens surface to do basin to avoid contact with hands and other body parts, because the body sweat and oil will directly affect the quality on the surface of the

optical components is the most;If operation is not ao after contact. Just in time to

wipe clean. To ensure the lens can be used for a long period.

4, instrument of the top of the condenser accumulate dirt easily, desirable under light cover and lamp holder, pen with dust or dirt gently brushed to ensure the quality of equipment in normal work of the light source.

5 a proud, instrument movement at the base of the shaft part should often wipe

clean keeling outside. And evenly coated with a thin layer of lubricating oil, to keep

the smooth;Otherwise it is easy to rust or infected with dirt and directly affect the

flexible operation of instruments

.6, instrument in move, the movement base, slit lamp arm and fastening screw to

tighten on the arm of the microscope in order to prevent the instrument when

handling instrument guide or lose instrument focus. Broken equipment.Instrument

during normal use of the three bolts should be loosen.

7, after using, instrument should be set on the instrument of dust outside leather.

In order to prevent the instrument from dust and dirt.

8, and optical instruments and spare parts (or attachments) should be stored in the

containing desiccant drying cylinder.

9, instrument before use, please pay attention to the local power supply is in

compliance with the instrument for the use of the power supply requirements.
