Синий модуль дисплея oled 0 91 дюйма IIC I2C 128X32 4pin с чипом контроллера
- Категория: Модули дисплея >>>
- Поставщик: Shenzhen,Funkey,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.7 $* | 1.79 $* |
| Jul-15-2025 | 1.35 $* | 1.18 $* |
| Jun-15-2025 | 1.2 $* | 1.19 $* |
| May-15-2025 | 1.16 $* | 1.43 $* |
| Apr-15-2025 | 1.32 $* | 1.31 $* |
| Mar-15-2025 | 1.68 $* | 1.95 $* |
| Feb-15-2025 | 1.68 $* | 1.78 $* |
| Jan-15-2025 | 1.41 $* | 1.29 $* |
Характеристики
Recommend Products
Introduction
Hello everyone!

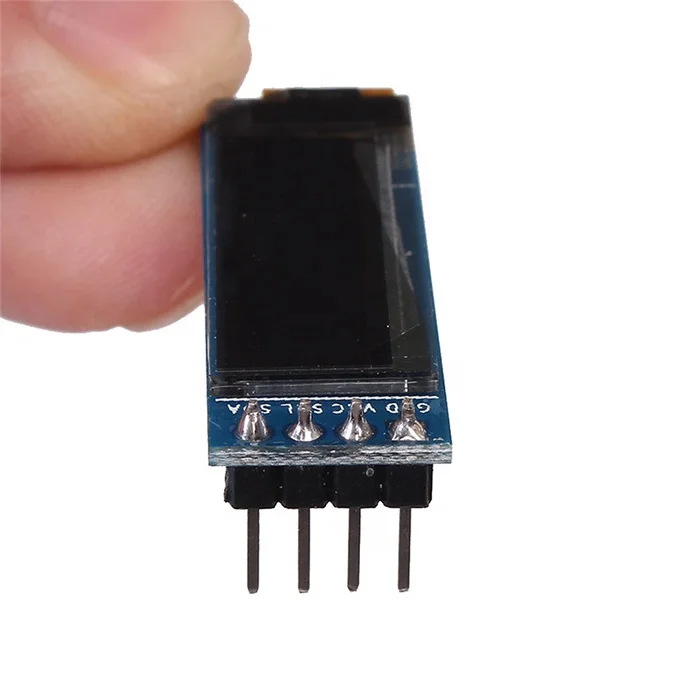

This 0.91 inch blue/white oled display module is made of 128x32 individual blue OLED pixels, 4pins,each one is turned on or off by the controller chip SSD1306. This display makes its own light, no backlight is required. This reduces the power required to run the OLED and that's why the display has such high contrast; we really like this miniature display for its crispness.
Support customized service for PCB color, pin header, logo , packing
Specification
Size | 0.91 inch | ||||||
Controller chip | SSD1306 | ||||||
Pixel | 128x32 | ||||||
Interface | IIC cummunication | ||||||
Color | Blue / White | ||||||
Driving voltage | 3.3V-5V | ||||||

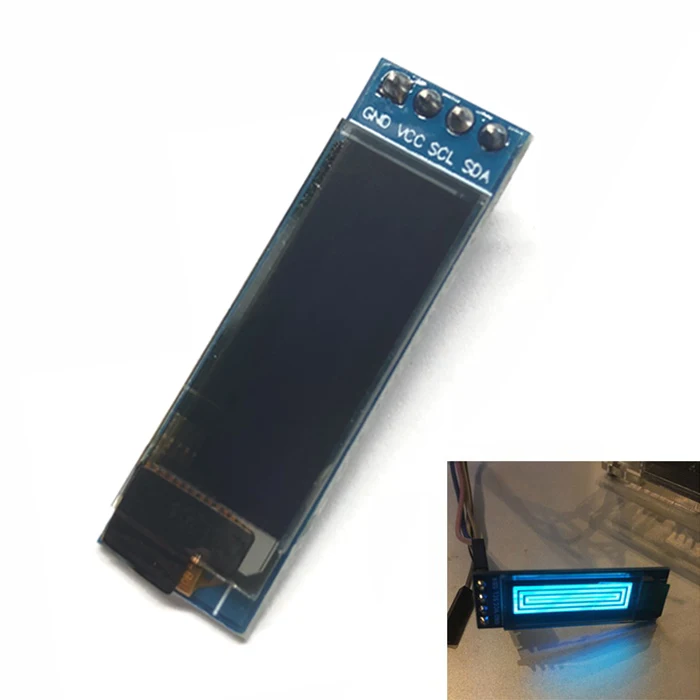

Pins | 4pins (GND,VCC, SCL,SDA) | ||||||
1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire

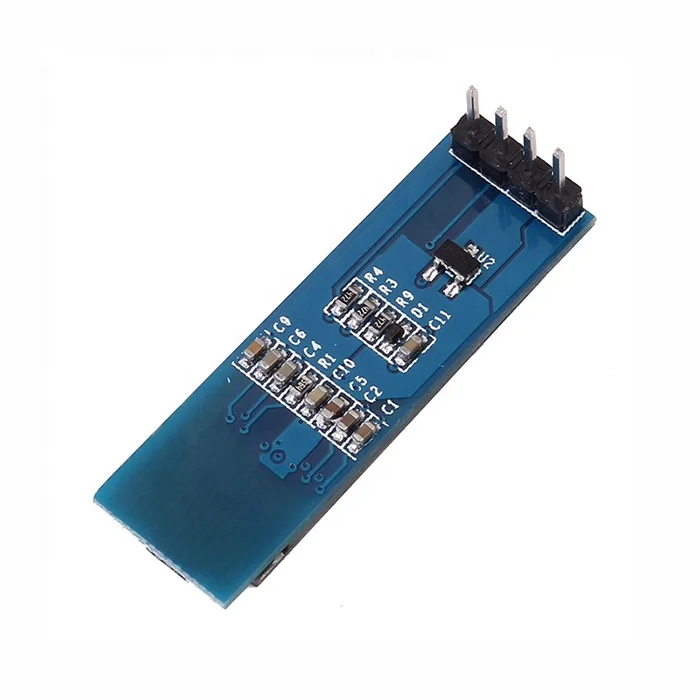

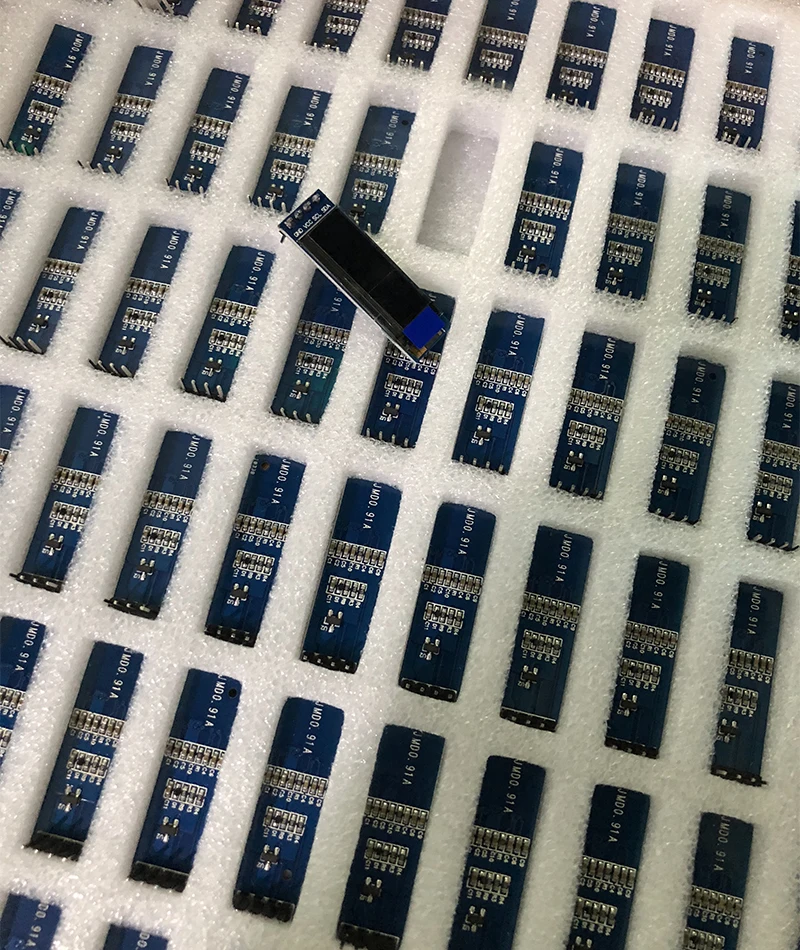

Details Images
Application
Widely used for smart watch, mobile, consumer digital products, medical equipment, home appliances, instrumentation, industrial control products ect.
