Энергосберегающая непрерывная сухая шаровая мельница из Каолина шлифовальная с системой воздушного классификатора и
- Категория: Mine Mill >>>
- Поставщик: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 33796.4 $* | 35486.1 $* |
| Aug-16-2025 | 33512.29 $* | 35188.68 $* |
| Jul-16-2025 | 28116.79 $* | 29522.31 $* |
| Jun-16-2025 | 32944.8 $* | 34591.97 $* |
| May-16-2025 | 28684.92 $* | 30118.78 $* |
| Apr-16-2025 | 32376.34 $* | 33995.54 $* |
| Mar-16-2025 | 32092.45 $* | 33697.4 $* |
| Feb-16-2025 | 31808.90 $* | 33398.25 $* |
| Jan-16-2025 | 31524.99 $* | 33100.6 $* |
Характеристики
Energy saving continuous dry ball mill kaolin grinding mill with air classifier and packing system
Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Baichy Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
[ Capacity ]: 0.62–90 t/h
[ Applicable Material ]:
Ball mill is key equipment for grinding materials after crushing process. It is used to grind kinds of materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc.
Energy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal materials.
Working principle

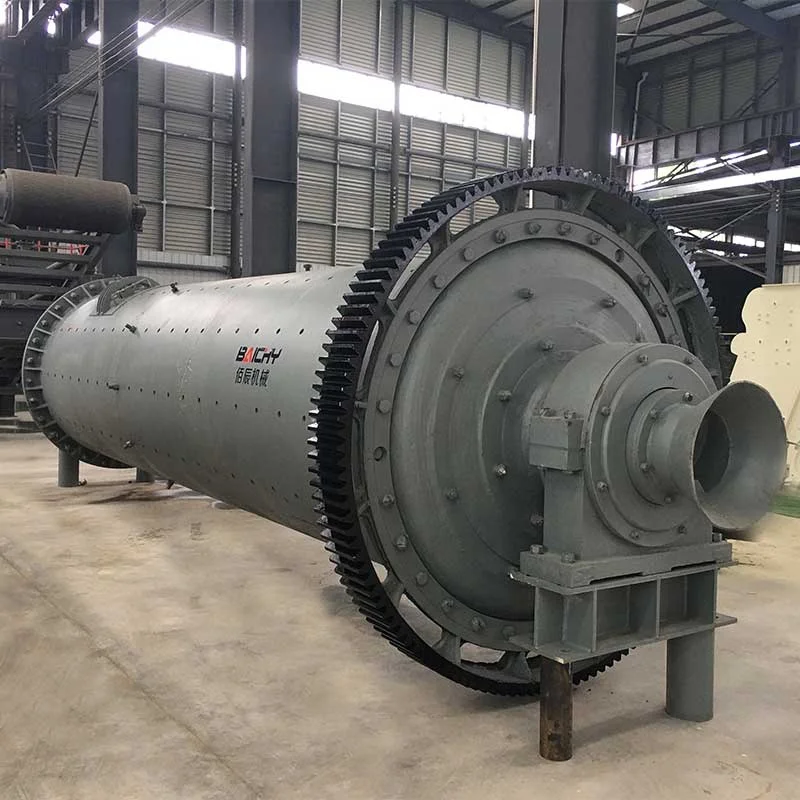

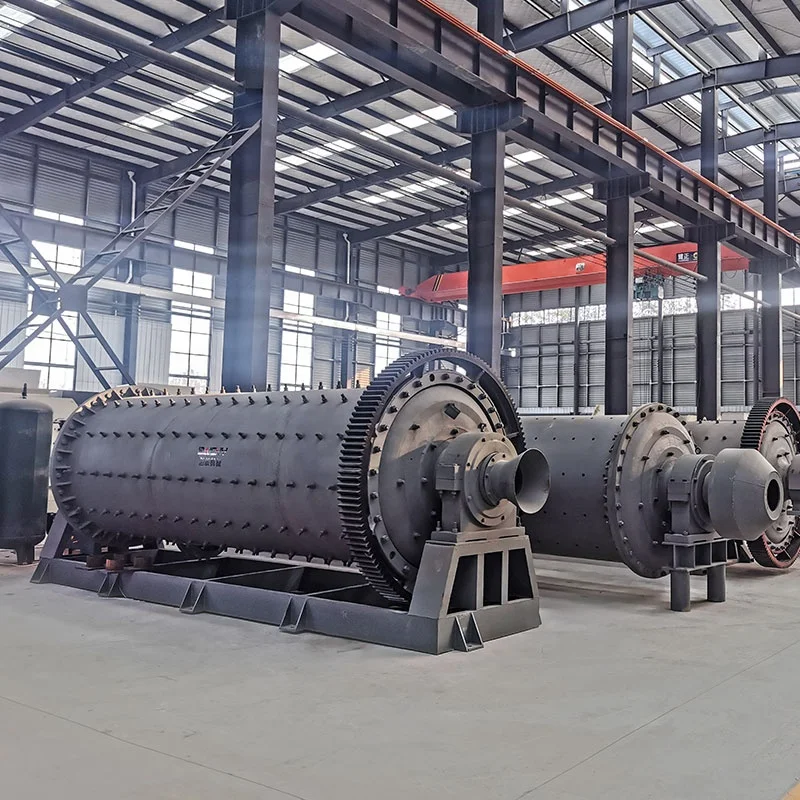

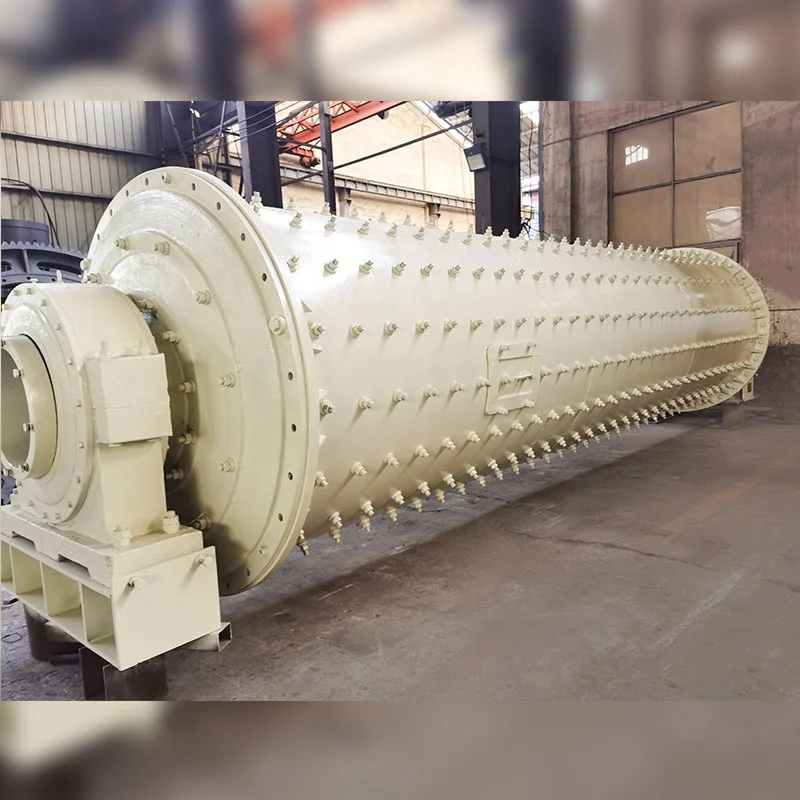

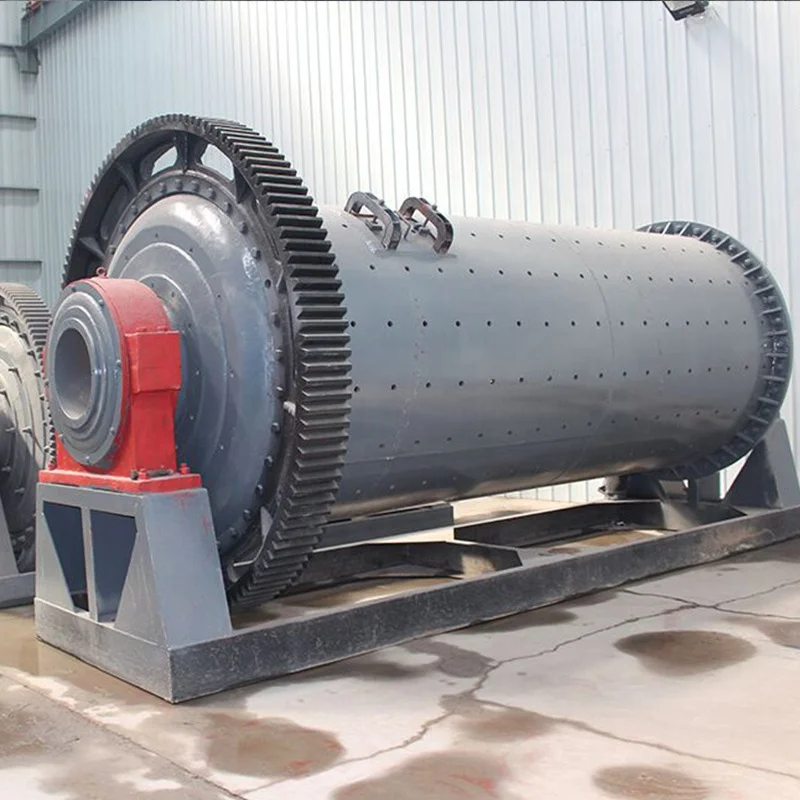

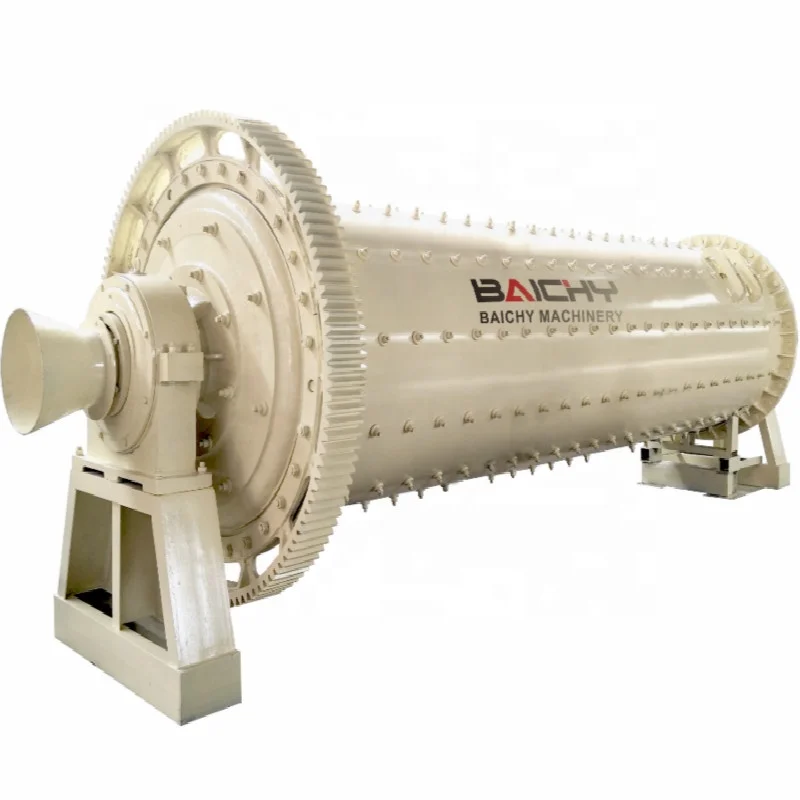

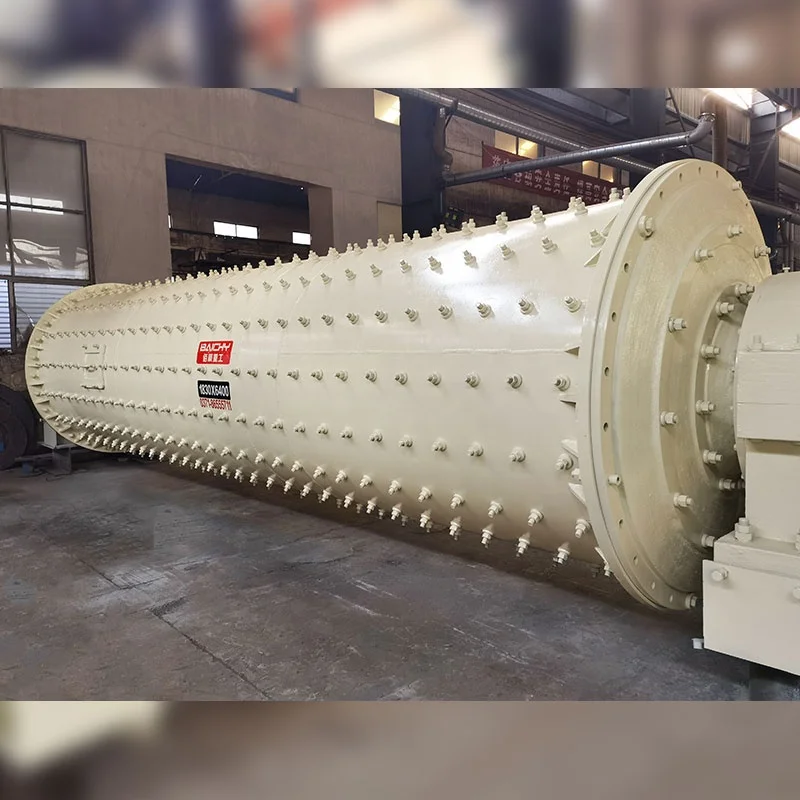

Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
| Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
| 1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
| 1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
| 1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
| 1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
| 2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
| 2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts, Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
Flotation Machine
Spiral Chute
Magnetic Separator
Agitator
Gold Concentrator
Ball mill
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
