LR-LINK бренд Intel I350-T4 1gb 4-порт PCI-Express Сетевая интерфейсная
- Категория: Network Cards >>>
- Поставщик: Shenzhen,Lianrui,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.36 $* | 0.79 $* |
| Aug-19-2025 | 0.22 $* | 0.0 $* |
| Jul-19-2025 | 0.22 $* | 0.26 $* |
| Jun-19-2025 | 0.6 $* | 0.8 $* |
| May-19-2025 | 0.97 $* | 0.58 $* |
| Apr-19-2025 | 0.3 $* | 0.90 $* |
| Mar-19-2025 | 0.31 $* | 0.93 $* |
| Feb-19-2025 | 0.89 $* | 0.70 $* |
| Jan-19-2025 | 0.94 $* | 0.10 $* |
Характеристики
LR-LINK Brand Intel I350-T4 1gb 4-Port PCI-Express Network interface card
Product Description
LREC9724PT is a PCIe x4 1Gbps Quad-Port Copper Sever Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on servers and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly
Features
• Quad Port 10/100/1000Mbps adapters
• PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
• RJ45 Connectivity
• Network Virtualization
• Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports
• Vital Product Data(VPD) Support
• Management Component Transport Protocol(MCTP)
• Low profile and full-height bracket
Specification
Controller | Intel I350 |
Transmission Rate Per Port | 10/100/1000Mbps |
Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m |
100BASE-Tx:Cat5/5e/6or higherup to 100m | |
10BASE-T:Cat3/4/5/5e/6or higherup to 100m | |
Jumbo Frame Support | Up to 9 KB |
Operating Temperature | 0 °C to 55°C (32 °F to 131°F) |
Boot Option and Virtualization | PXE support, Intel® VT-c |
LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, |
100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |
Operating System Support | Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
WindowsXP / Vista /7 / 8 / 8.1 / 10 | |
Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later | |
Linux SLES 9 / 10 / 11or later | |
VMwareESX/ESXi4.x /5.x / 6.xor later |
Packing List
- 1 X CD
- 1 x Network Card
- 1 x Low profile bracket
- 1 X Installation Guide

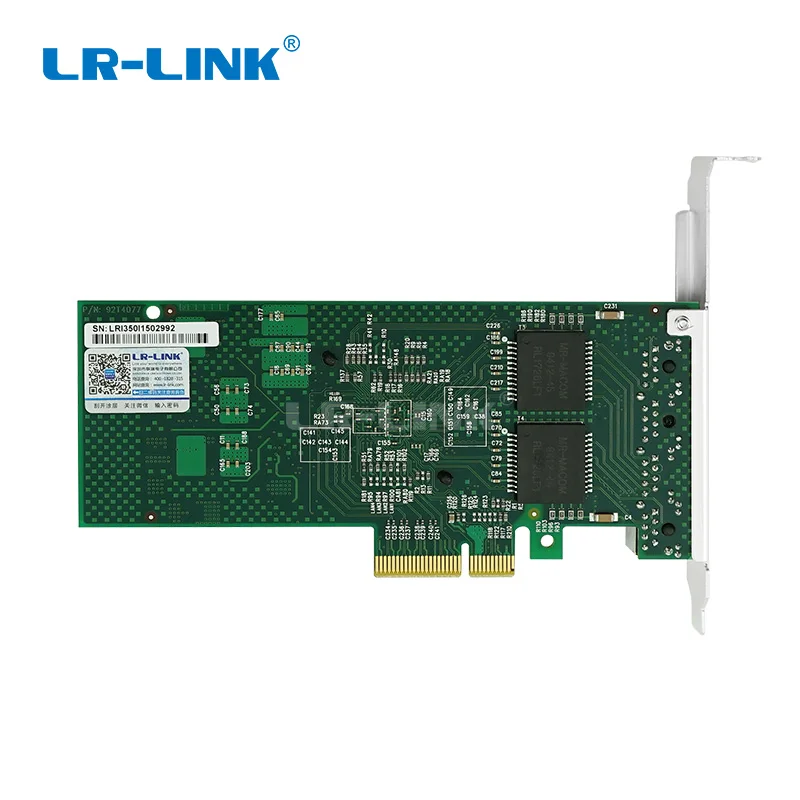

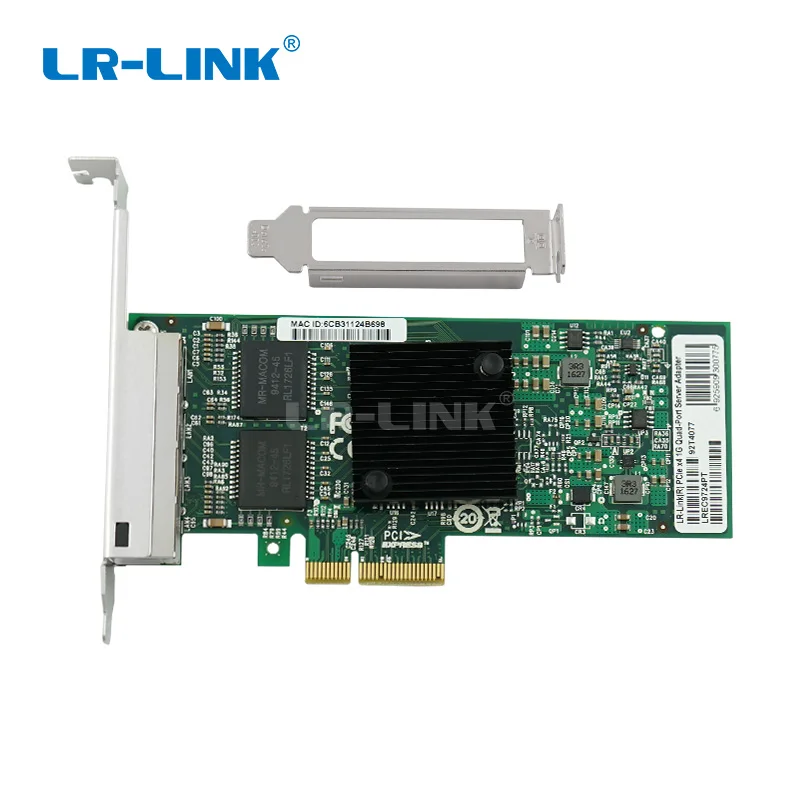

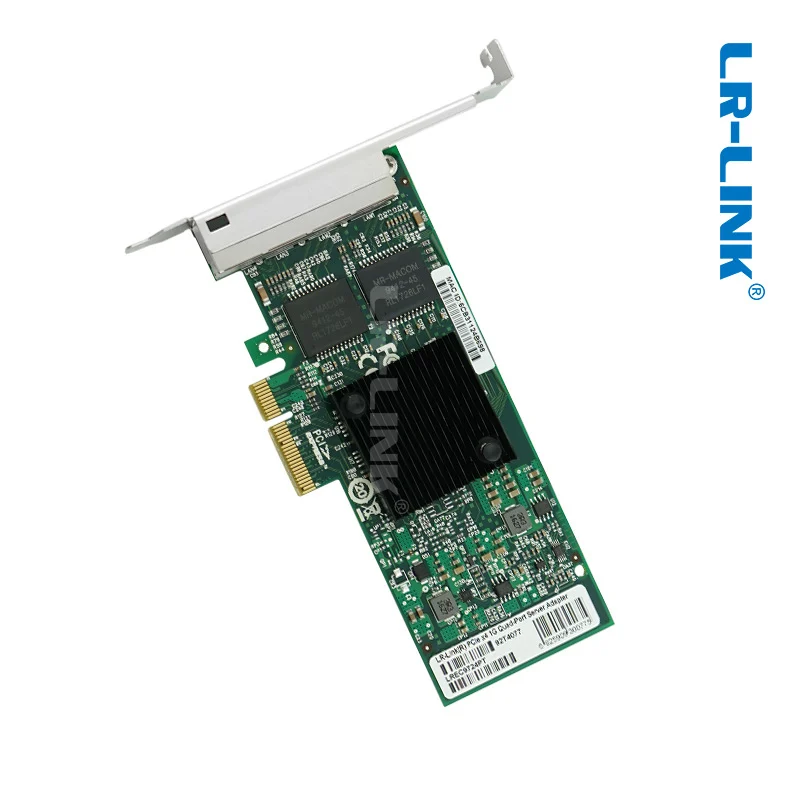

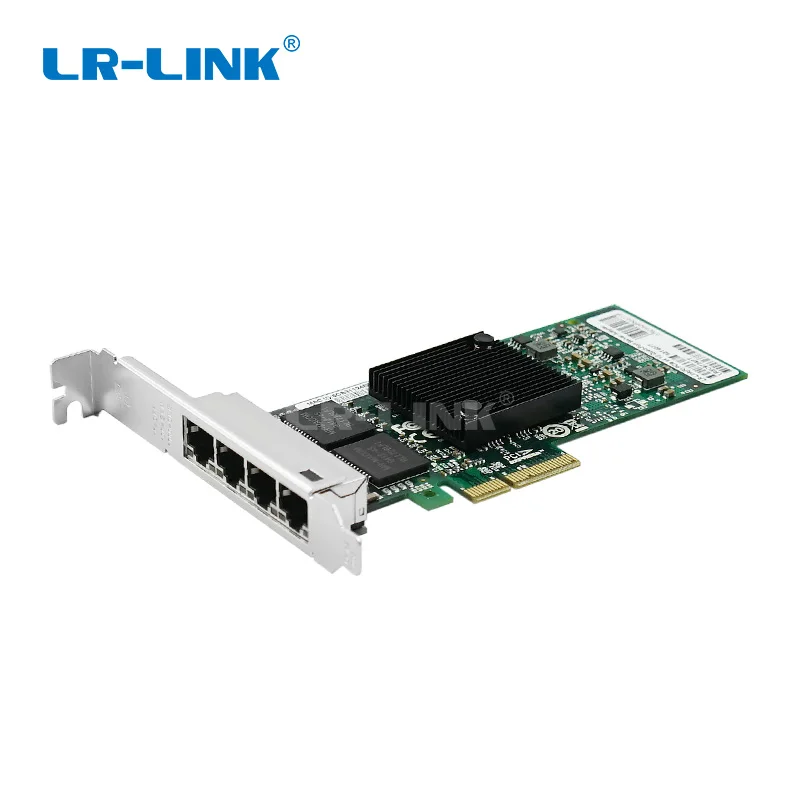

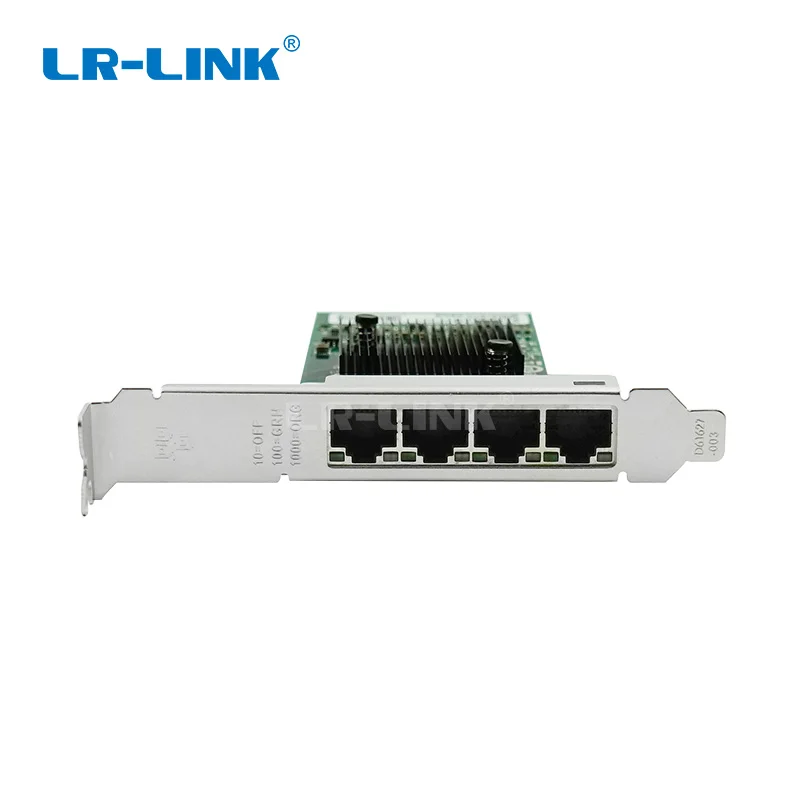

Detail Show
