Hand-push Belt Sander Steel Plate Grinding Belt Sander

Product description:

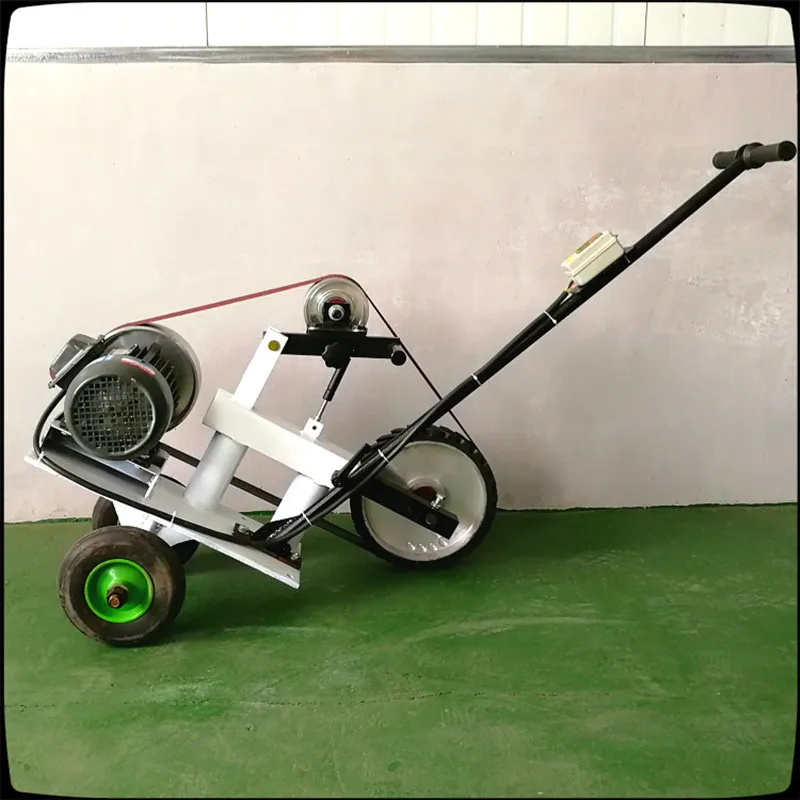

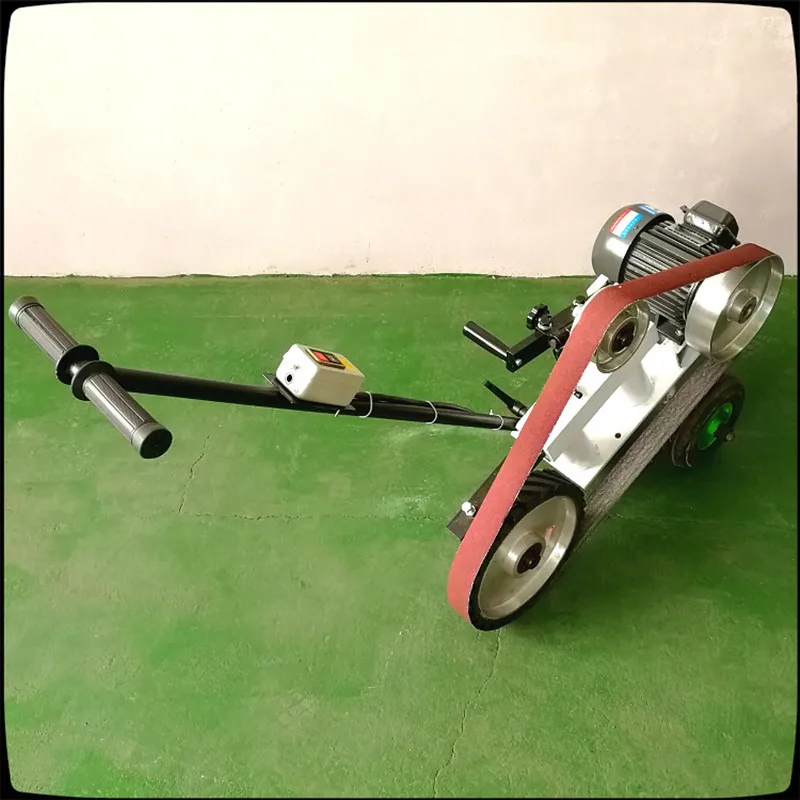

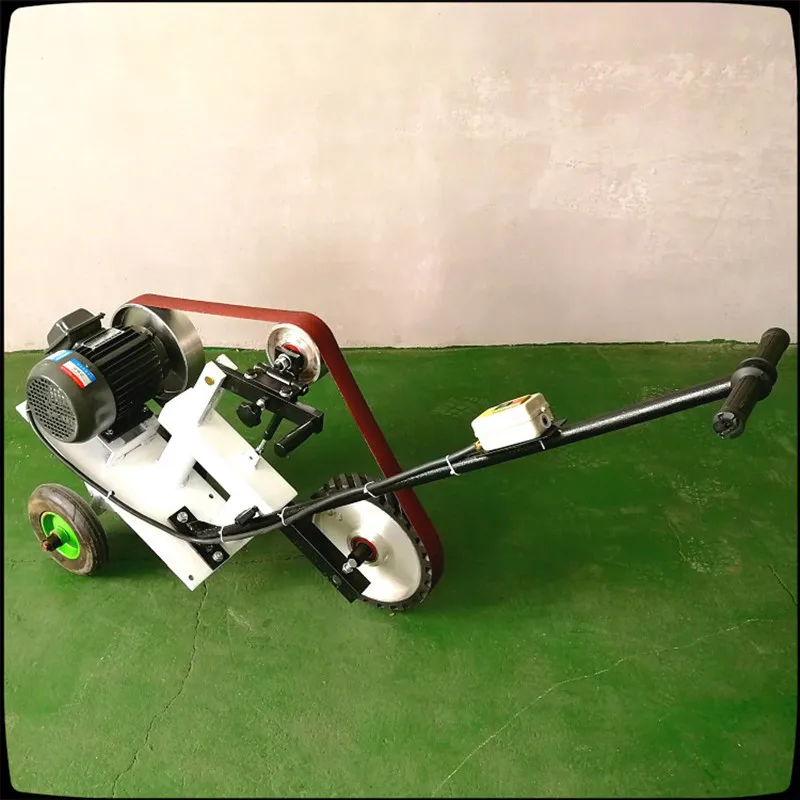

The machine is mainly composed of belt drive mechanism, contact wheel (grinding wheel) system, grinding depth limit device, grinding head forward direction guide device, grinding head body, support, feet, casters, abrasive belts, hand push rods and electrical control. System and other components. The electric motor directly transmits the power to the driving wheel, drives the belt to rotate at a high speed, tensions the belt through the tensioning mechanism, and grinds with the contact wheel.The grinding depth limiter is used to limit the amount of grinding removal of the plate, and the height of the hand push rod can be adjusted by itself.

 Mainly used for the grinding and polishing of large-size steel plates. Abrasive belts can be used for the grinding head. Abrasive belts are suitable for full surface grinding and polishing. It is an ideal equipment for surface treatment and polishing of steel sheets.



Specifications:

1. Abrasive belt dimension(perimeter*width): 2100*50mm

2. Abrasive belt granularity: 40~1000#

3. Abrasive band line speed: 33m/s

4. Power input: 2.2 KW

5. Package size: 600*440*560mm

6. Gross weight: 74KG
