Адаптер KF-40 на 1 в. I.D. Быстрое соединение порт сжатия KF40 NW-40 нержавеющая сталь быстрое для
- Категория: Pipe Fittings >>>
- Поставщик: Zhengzhou,TCH,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 108.51 $* | 110.50 $* |
| Jul-17-2025 | 88.6 $* | 90.81 $* |
| Jun-17-2025 | 106.33 $* | 108.96 $* |
| May-17-2025 | 105.13 $* | 107.29 $* |
| Apr-17-2025 | 84.12 $* | 86.75 $* |
| Mar-17-2025 | 104.53 $* | 106.9 $* |
| Feb-17-2025 | 103.43 $* | 105.26 $* |
| Jan-17-2025 | 102.85 $* | 104.98 $* |
Характеристики

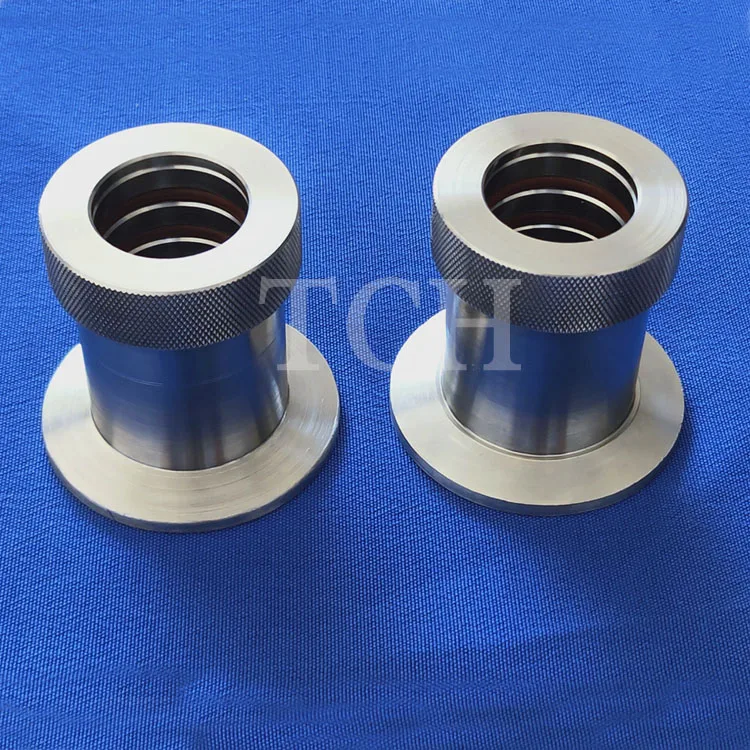

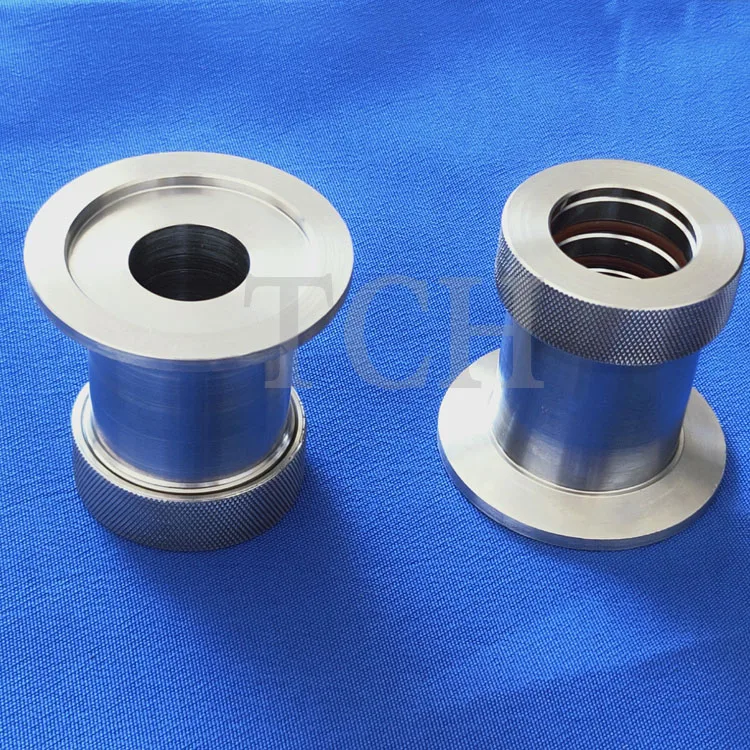

Adapter KF-40 to 1 in. I.D. Quick Coupling , Compression Port, KF40, NW-40, Stainless Steel , quick coupling for quartz tube
Product Description
These adapters are KF-40 to quick coupling compression port 1 inch internal diameter (I.D.). The flange size follows ISO-KF standards and is NW-40. They are commonly used to make connections between ISO-KF fittings and items with a vacuum tubing connection, e.g., vacuum gauges or instruments. The vacuum seal occurs by compression of a Viton rubber O-ring and is easily removable. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of 304 Stainless Steel.
Adapter KF-40 to 1 in. I.D. Quick Coupling Compression Port, ISO-KF Flange Size NW-40, Stainless Steel
Flange Size: ISO-KF NW-40
Tubing Size: 1 in. Outer Diameter (O.D.)

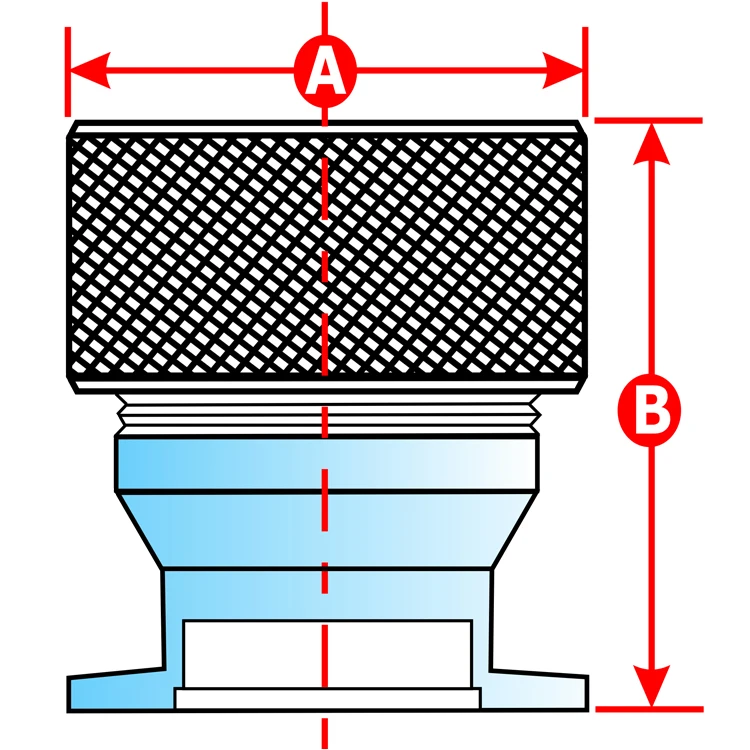

Common Dimensions: A = 1.8125"(46mm), B = 2.00"(51mm)

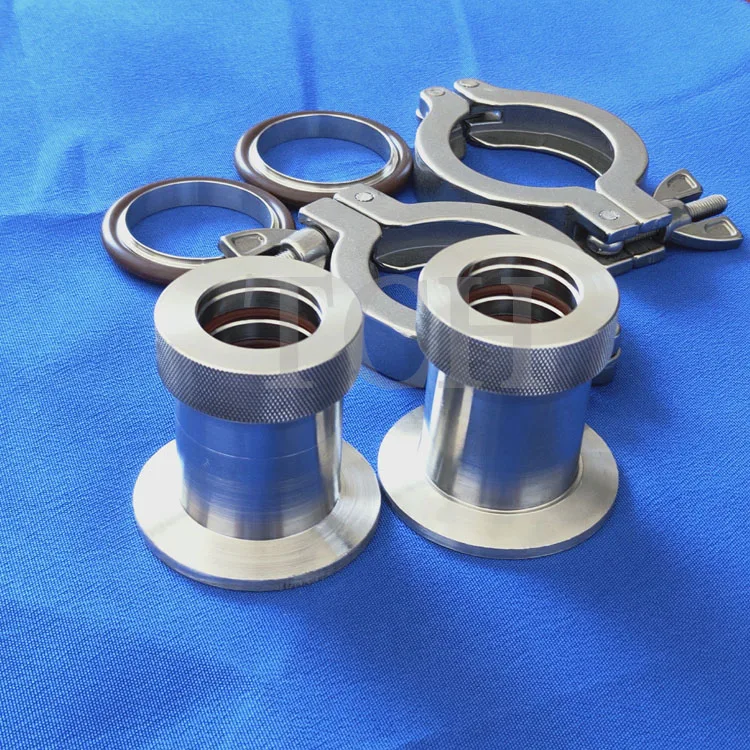

Note: the KF 40 clamps are optional, please contact us and buy it with extra cost.
reference of the Adapter KF-40 to 1 in. I.D. Quick Coupling , Compression Port, KF40, NW-40, Stainless Steel , quick coupling for quartz tube
