Пользовательский манометр воды с двойной
- Категория: Манометры >>>
- Поставщик: Kunshan,Alf,Machinery,And,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.17 $* | 2.63 $* |
| Aug-18-2025 | 2.9 $* | 2.40 $* |
| Jul-18-2025 | 2.62 $* | 2.69 $* |
| Jun-18-2025 | 2.47 $* | 2.11 $* |
| May-18-2025 | 2.2 $* | 2.53 $* |
| Apr-18-2025 | 2.47 $* | 2.7 $* |
| Mar-18-2025 | 2.10 $* | 2.23 $* |
| Feb-18-2025 | 2.24 $* | 2.3 $* |
| Jan-18-2025 | 2.1 $* | 2.6 $* |
Характеристики
Detail Information

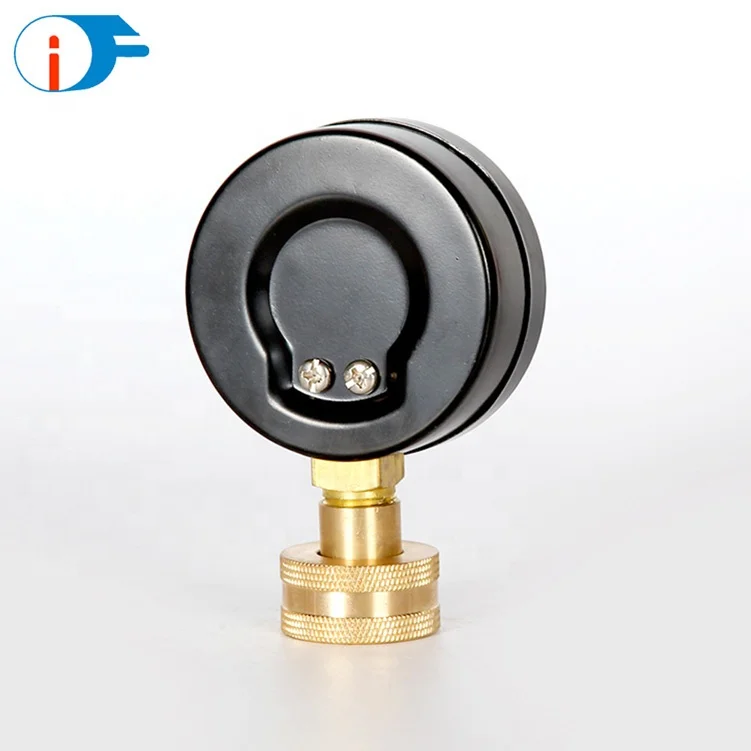

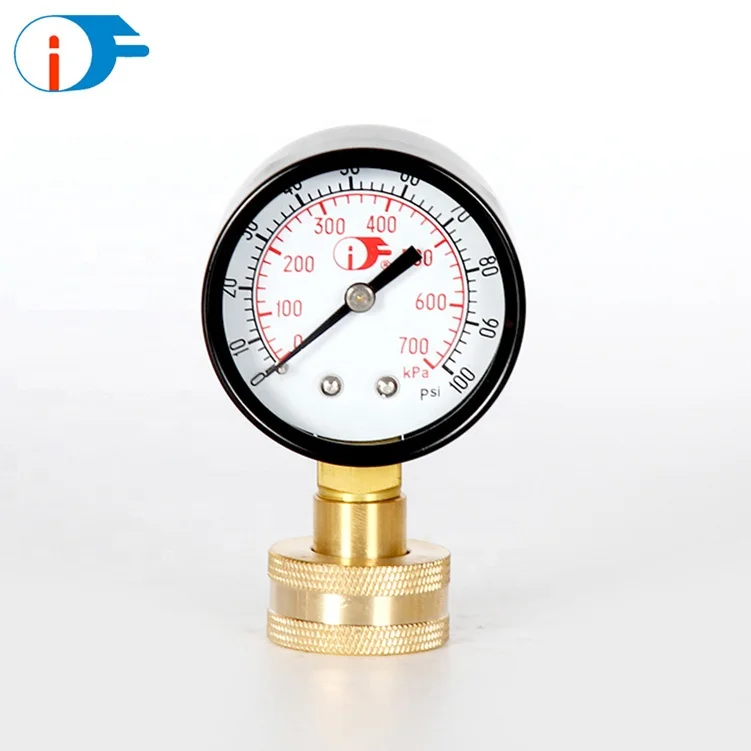

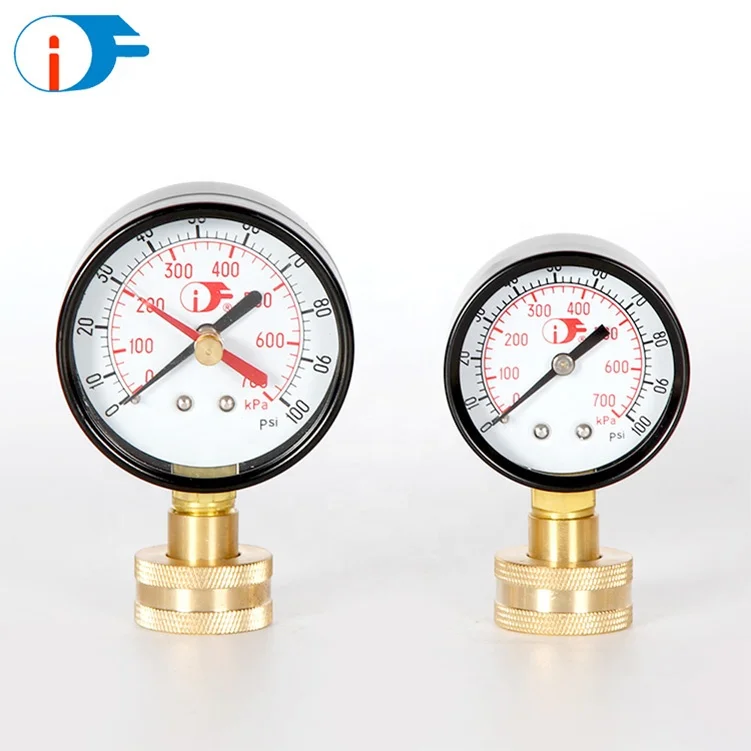

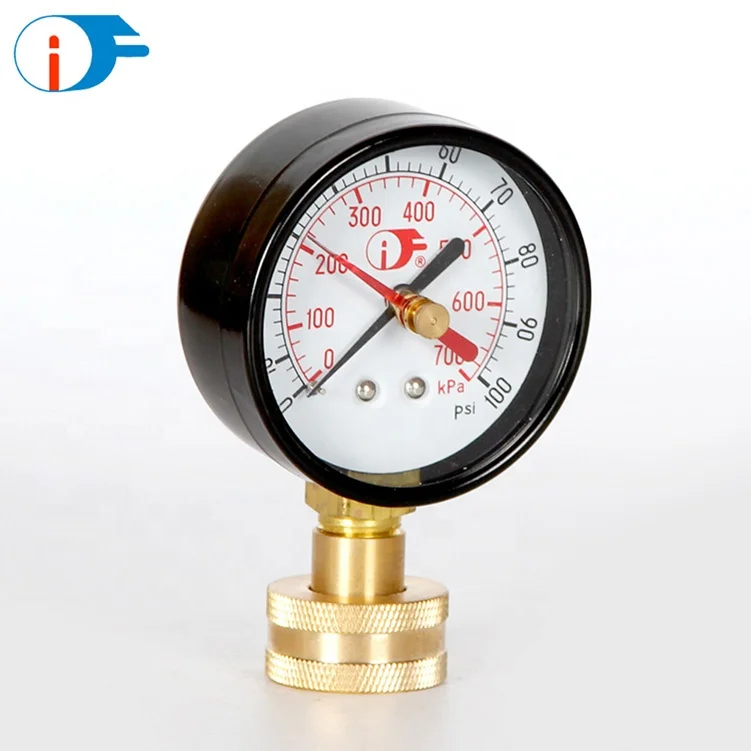

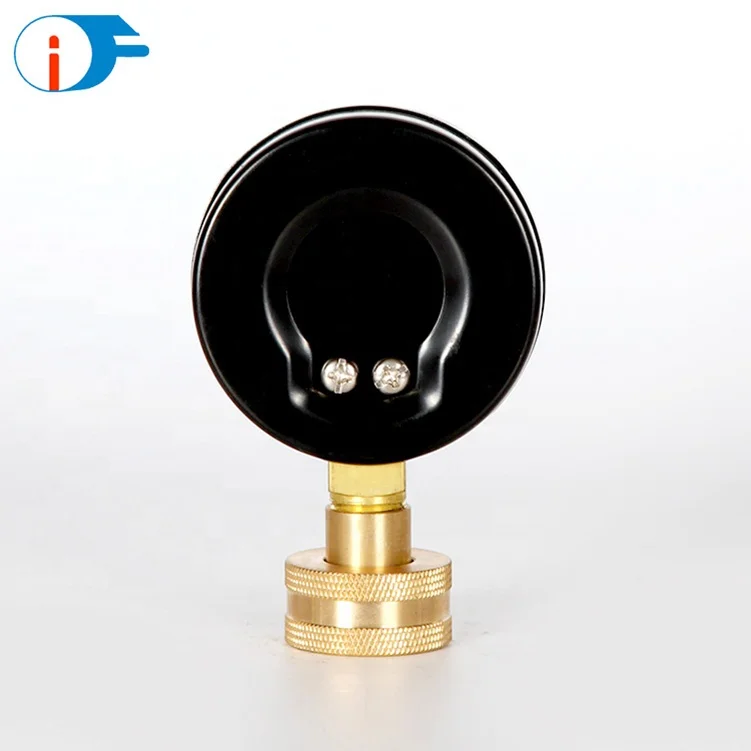

Custom Double Needle Water Test Pressure Gauge
| Model | SY 001 |
| Description | Water test pressure gauge |
| Application | Water test pressure gauge is used to test water systems for leakage,Can be installed to hose bibbs,hoiler drain and lawn faucets |
| Size | 2" or 2.5", and Customized Servic Available |
| Pressure Range | 15 to 15000psi, Vacuum, and compound |
| Socket | Brass Lower Mount |
| Connection Thread | NPT,BSP, BSPT, PT, ZG, or other special specification |
| Tube | Phosphor bronze, copper alloy |
| Case | Black steel |
| Dial plate | Single and dual scale (psi, kpa, mpa, bar, kg/cm2) |
| Ambient temperature | -40℃ to 60℃ |
| Liquid | Without liquid |
| Bracket | With no U-clamp |
| Bezel | Press-on black steel bezel |
| Window(Lens) | Acrylic or glass lens |
| Accuracy | +/- 3/2/3% (ASME B40.1 Grade B); +/-1% (ASME B40.1 Grade 1A) |
| Option Info | 3/4" female brass hose thread,with rubber washer; |
Product Overviews
Related Products
Production Flow
Application
Certification&Patent
ALF received the following certificates and patents:
- ISO9001:2015 manufacture of pressure gauge and door lock
- UL listing: use no oil pressure gauges
- CSA certificate: lead free pressure gauge
- ANSI Grade 3: entry door lock
- High-Tech Enterprise (Jiangsu Province)
- 32 different patents on products and processes
Our Company
Kunshan ALF Machinery & Instrument Co. Ltd. was founded in Shanghai in 1998. With a production base of 70,000 square meters located at Huaqiao Town, Kunshan, Jiangsu province, ALF is specialized in the production and export of pressure gauge and door lock.ALF look forwards to strengthen our cooperation with customers and suppliers and enter a fast-growth lane through training key personnel, fasten technical developments, improving product quality, and enhancing customer satisfaction.
Packing and shiping
