Офтальмологический синоптофор для глаз YZ23B

Категория: Medical Optical Instruments >>>
Поставщик: Shanghai,Best,Optical,Instrument,Co.,Ltd.

Цена:3 890,00 $ - 3 995,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4629.13 $*	4860.47 $*
Aug-19-2025	4590.45 $*	4820.5 $*
Jul-19-2025	3851.96 $*	4044.53 $*
Jun-19-2025	4512.19 $*	4738.60 $*
May-19-2025	3929.60 $*	4125.44 $*
Apr-19-2025	4435.1 $*	4657.79 $*
Mar-19-2025	4396.58 $*	4616.34 $*
Feb-19-2025	4357.1 $*	4575.47 $*
Jan-19-2025	4318.87 $*	4534.51 $*

Характеристики

Product Description

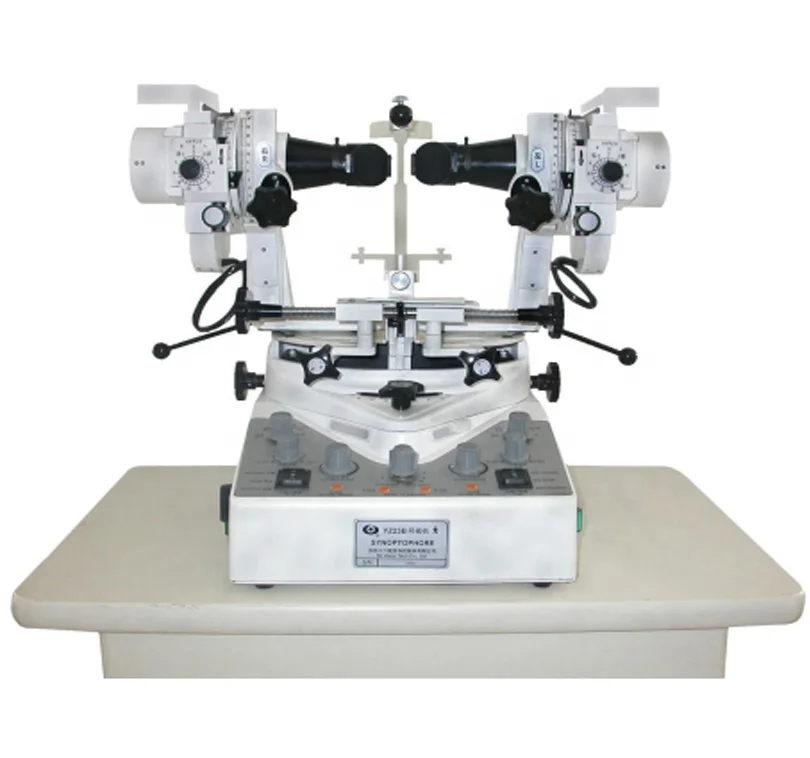

Ophthalmic Synoptophore:YZ23B

Diagnosis and treatment combined with the functions of simultaneous perception, fusion, stereopsis, red reflex and after-image.

Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different functions.

Using transflective reflector in the design of viewing system to facilitate the user to observe ocular position.

Using advanced LED light in the illumination with even illumination, low heat and long service life.

Pictures designed by new technology are anti-broken and has long service life.

Manual or automatic coruscation with accurate frequency and various type is at user's option.

Optional pictures are provided for quantitative measuring of stereopsis acuity (40"~1000")

Magnification	1.65×
Diameter of Field	≥56mm
Red Light	λ = 640nm coruscation system
Pictures of left and right can be moved up and down according optical axis	±10Δ
Pictures of left and right rotate around optical axis	±20°
Pupilary Adjustment	45~75mm
Darkroom Illumination	LED bulb with symmetry design
Adjustable Haidingers Brush	50~100 round/minute
Coruscation Form	manual or automatic
Automatic Coruscation Frequency	10-Steps, 30~300 times/minute
Range of Automatic Coruscation ( each cycle)	1/4 on 3/4 off, 1/2 on 1/2 off, 3/4 on 1/4 off
Type of Automatic Coruscation	Left and right can be turned on or off at the same time Left and right can be turned on or off alternatively One on and the other off One on or off while the other can be turned on or off
