Характеристики

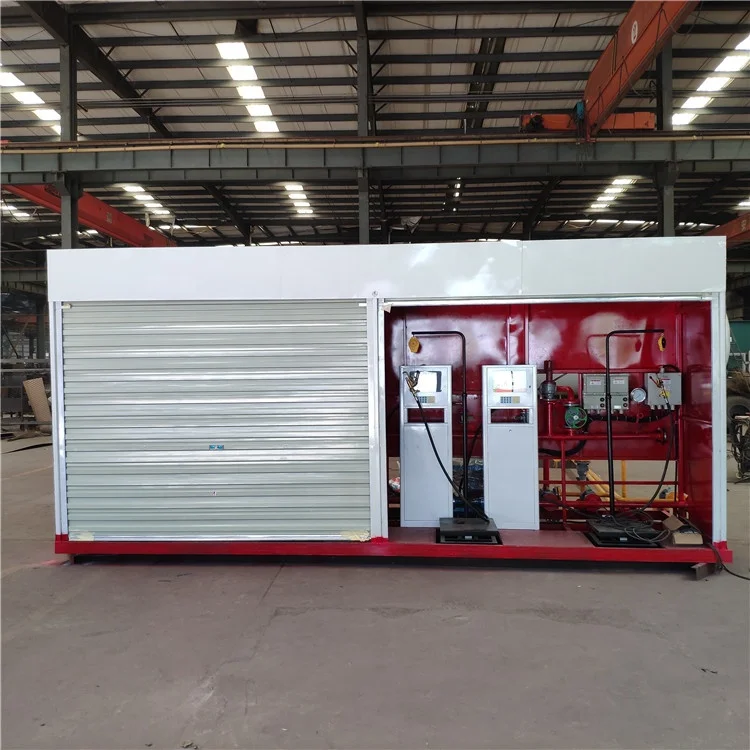

CLW 20tons 40 cbm/40000L lpg distributor lpg filling plant
20tons lpg storage tank with four sets filling scales
connected by pipe
Product Description
LPG skid filling station Features:
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as customer's requirement

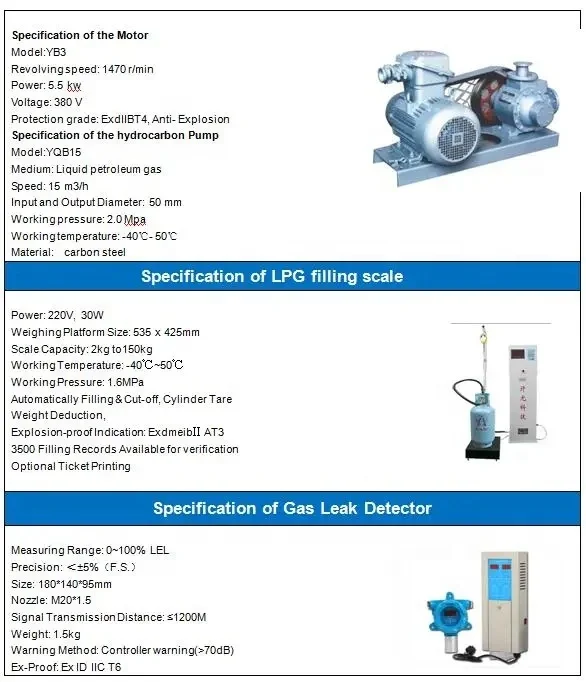

> LPG Filling pump with motor
> LPG discharging pump with motor
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station
Technical parameters:
| 40M3 / 40CBM LPG TANK DIMENSIONS | |||||
| Volume of Tank | 10CBM | ||||
| Filling Weight | 3990 kg | ||||
| Tank Weight | 2950 kg | ||||
| Thickness of Shell (mm) | 10 mm | ||||
| Thickness of Endplate (mm) | 10 mm | ||||
| Tank Diameter (mm) | 1600 mm | ||||
| Tank Dimensions (mm) (length x width x height) | 5260 x 1620 x 2210 mm | ||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||
| Design Pressure | 1.77 MPa | ||||
| Corrosion Allowance | 1 mm | ||||
| Medium Density | 500 kg/ M3 | ||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||||
| Main parts of LPG Tank | |||||
| Item | Specification | Quantity | |||
| Discharge Pipe | DN80 | 1 | |||
| Inflow Pipe | DN80 | 1 | |||
| Outlet | DN50 | 1 | |||
| Gas phase balance pipes | DN50 | 2 | |||
| Manhole | DN450 | 1 | |||
| Drain Hole | DN50 | 1 | |||
| Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. | |||||
| LPG Skid Part list | |||||
| Item | Model Number | Quantity (PCS) | |||
| LPG Tanker | 40CBM | 1 | |||
| LPG Filling scale | / | 1 | |||
| Filling pump (Chinese Brand) | / | 1 | |||
| Motor (Chinese Brand) | / | 1 | |||
| Cut-off Valve | J41N-40 DN50 | 25 | |||
