Cat6 UTP 24 порта патч-панель для rj45 модульный

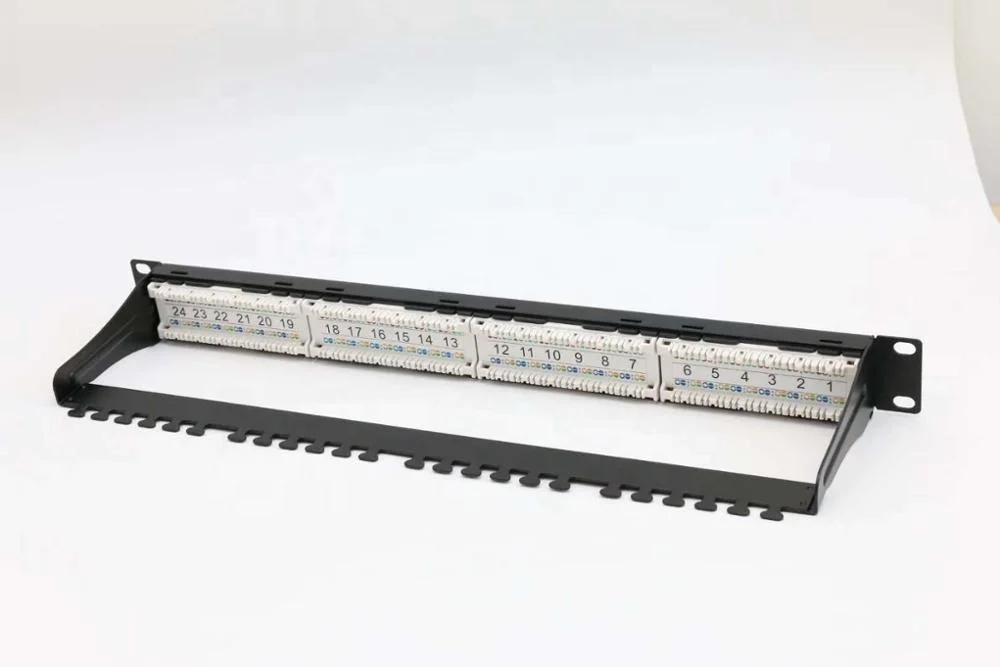

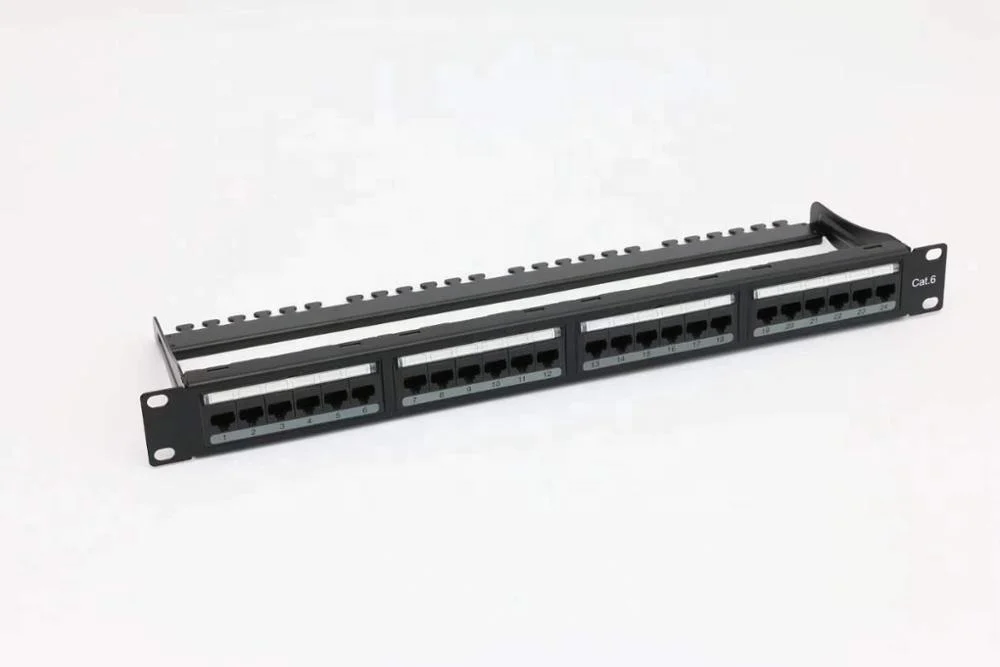

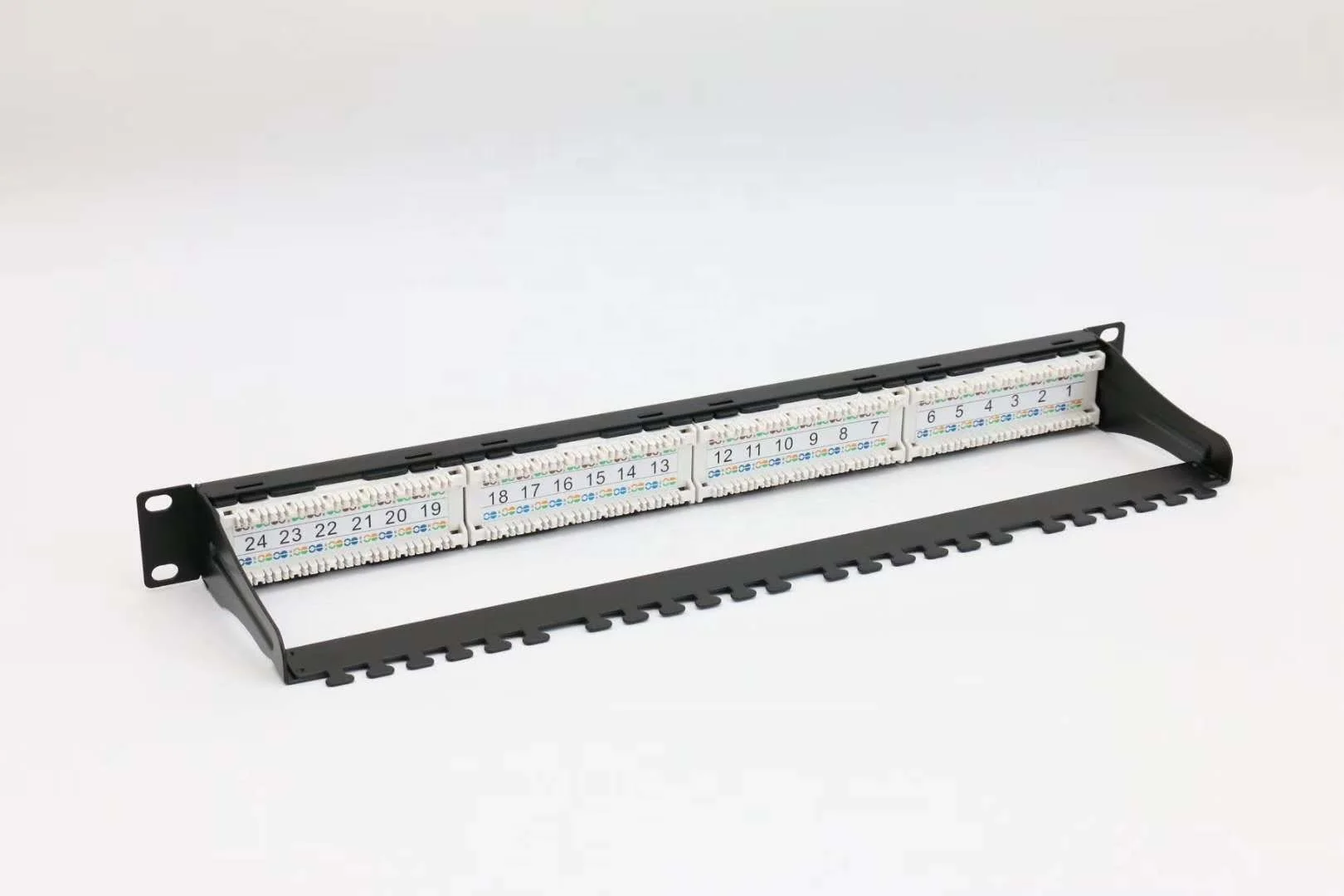

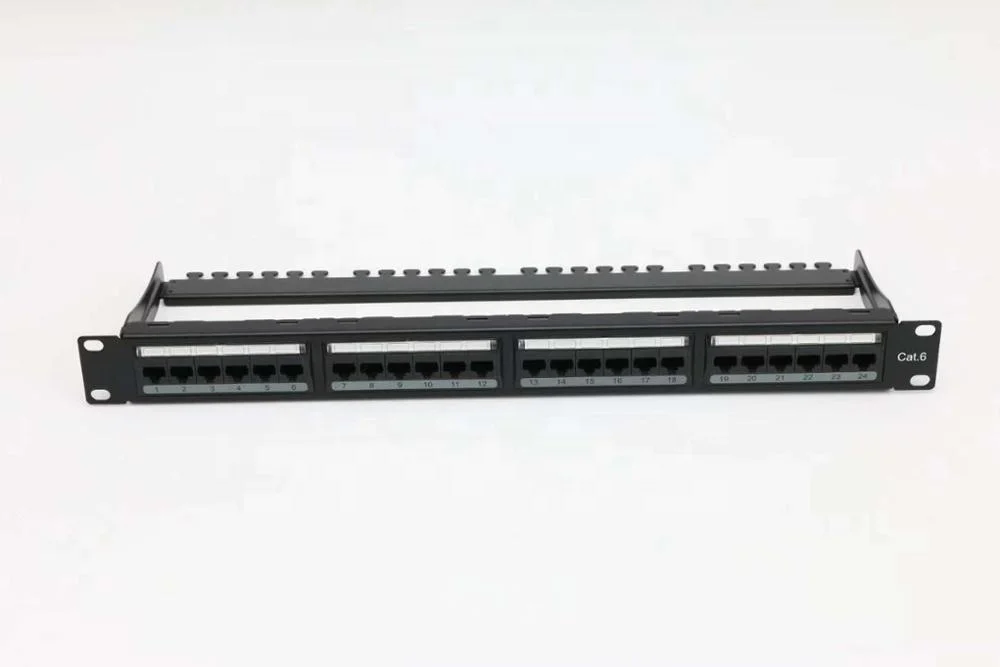

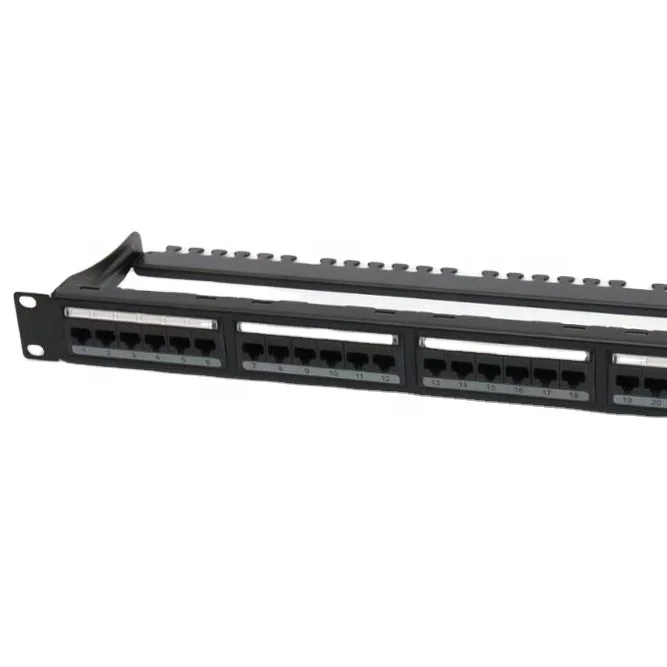

Cat.6 UTP 24 Ports Patch Panel

Technology Request

Performance:

Meets Cat6 EIA/TIA 568b.2 Standard

Material:

Bottom Panel: 1.5mm Thickness Metallic Panel (SPCC) RAL7035

Upper Panel Cover: 1.0mm thickness Metallic Panel(SPCC)/RAL 7035

RJ45 Jack:  Housing-Fireproof PBT UL-94V0

          Pin-8P8C 6 micro inches gold plated

PCB: FR-4/1.6mm UL-94V0

IDC Body: Fireproof PC/ABS UL-94V0/With Color Coded Printing T568A/B

IDC Pin: Bronze &Tinned

IDC Terminal: For 22-26 AWG Cable

Electrical Specifications:

Insulation Resistance: 500M ohms (min.)

Contact Resistance: 20m ohms (max.)

Current Rating: 1.5 Amps

DC Resistance: 0.1 ohms (max.)

Withstanding Voltage: 1000 VAC RMS @60Hz/1 min

Mechanical Specification:

IDC Punch Down Cycle: Over 25 Cycles (min.)

RJ45 Jack Insertion Cycle: Over 200 Cycles (min.)

Accessory:

1.    M3 Screw Set, For Pre-Assembled Ground Wire

2.    Cable Tie(75*1.9mm)*24Pcs

3.    Instruction Sheet

4.    Knurled Screws
