Китай 1 или 2 спальни современный сборный домик высококачественные контейнерные

Описание и отзывы

Трекер стоимости

Характеристики

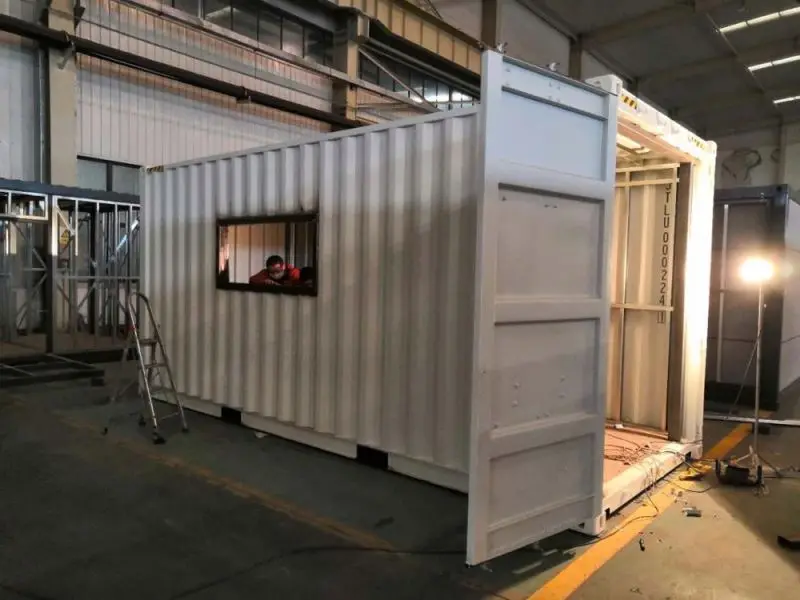

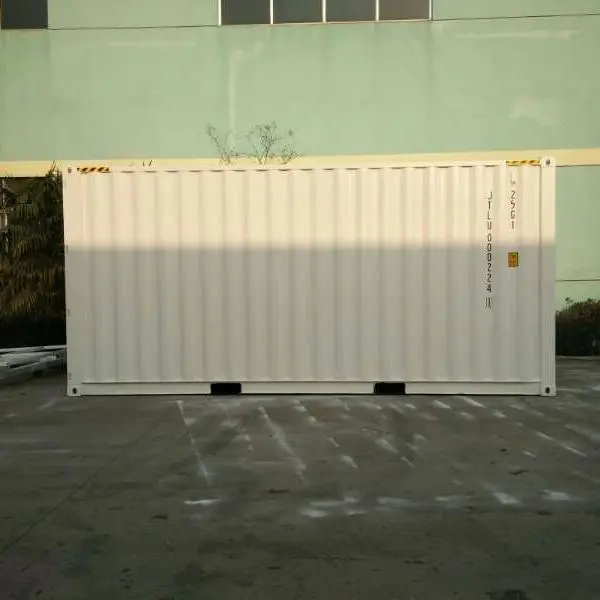

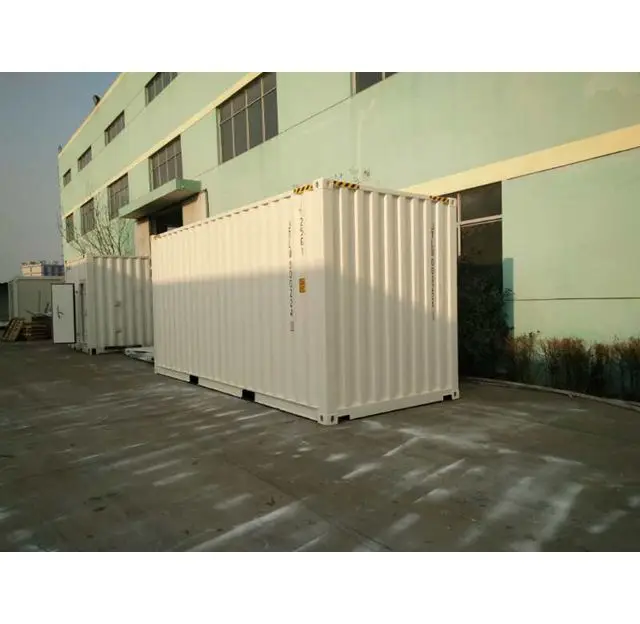

China 1or 2 bedroom modern prefab cabin house high quality container homes 20' container house 2438m (W) * 6058m(L) * 2896m(H)
S/N	ITEMS	DESCRIPTION
I. Steel Frame
1	Steel Frame	SHS main frame and LGS supporting cladding
II. Wall
1	Ext. Wall	0.5mm coated steel sheets, air cell 7mm +75mm rockwool insulation, fiber gypsum board 12mm
2	Int. Wall	fiber gypsum both sides, fibercement board for wet area
3	Accessories	Screws, fasteners and flashings
III. Roof
1	Roof Cover	0.5mm galvanized steel roofing
2	Roof Insulation	100mm mineral wool (120KG/m3)
3	Sub Ceiling	Plywood 10mm
4	Ceiling	PVC ceiling slides
5	Ceiling Joist	Wood batten 40mm x 30mm
IV. Floor
1	Floor Covering	1.6mm PVC floor tile, 0.7mm wear layer
2	Floor Deck	20mm MGO board
3	Floor Moulding	PVC moulding 6cm high
4	Floor Insulation	75mm rockwool
5	Bottom Plate	0.4mm galvanized steel sheet
V. Windows & Doors
1	Sliding Window	Alum. sliding window, Size: 1150*1200, single glazing
2	Sliding Entrance Door	Alum. sliding door, Size: 12000*2100, single glazing tapped
3	Bathroom Door	MDF solid door with PVC finishing
4	Ventilating Fan	300mmx300mm, 24w
VI. Water System
1	Water System
VII. Electrical System (optional)
1	Electric Box	JIS standard
2	Wiring for Light	JIS standard, PVC 1.25 m2
3	Wiring for Aircon	JIS standard, PVC 4m2
4	Outlet
5	TV Outlet
6	Air-con Outlet
7	LED Fluorescent Tubes	PSE listed, T5 900mm, 960lm
8	LED lighting	PSE listed,Φ180x81mm, 12w, 880lm
VIII. Kitchen (optional)
1	Kitchen Cabinet	Laminated wood cabinet, artificial marble countertop
2	Electric Cooker	Stainless steel housing with built -in design, Thermo fuse for safety use
3	Wash Sink
4	Faucet

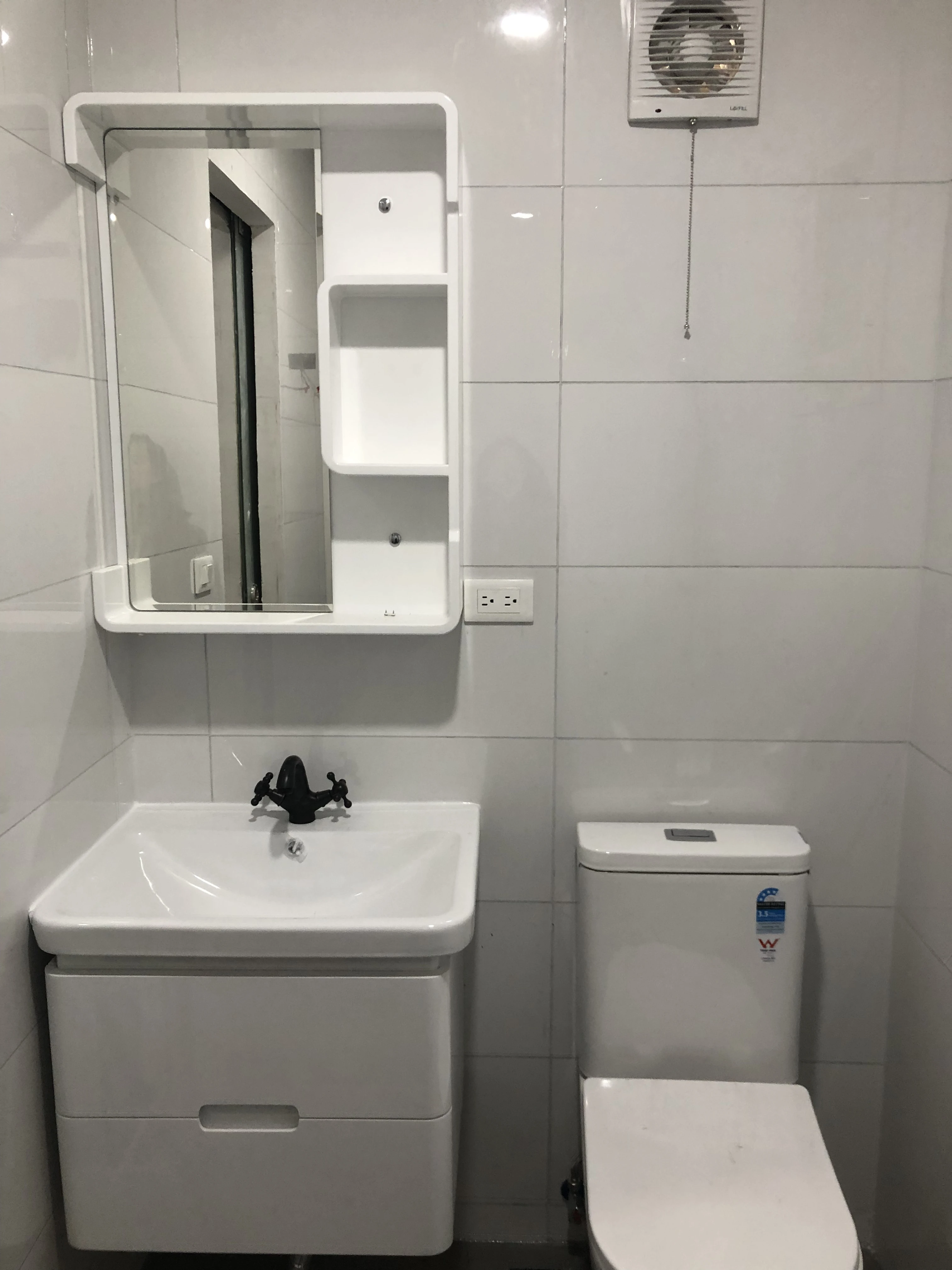

IX. Bathroom (optional)
1	Closestool	HZX-3, 700x482x740mm
2	Bathtub	ORY-8005, 1500x800x680
3	Shower Head
NOTES:
1. The price is based on Platinum standard payment terms;
2. We can supply upto 800 units per month. Mininum order is 500 units.



About us:

 - Established in 2008

 - Manufacturer based in Shanghai

 - Professional engineer with more than 19 years

 - Our products exported to European countries (like Spain, France, Norway, Russia, Sweden etc.); Australia, New Zealand, and some Asian countries

Our product:

 - Light Gauge Steel building (villa, apartment, hotel etc.)

 - Modular house (standard container size houses, or other size houses)

 - Steel frame warehouse

www.bopind.com     http://platinum.en.alibaba
