Ламинированный трансформатор с железным сердечником CRNGO EI 152

Описание и отзывы

Трекер стоимости

Характеристики

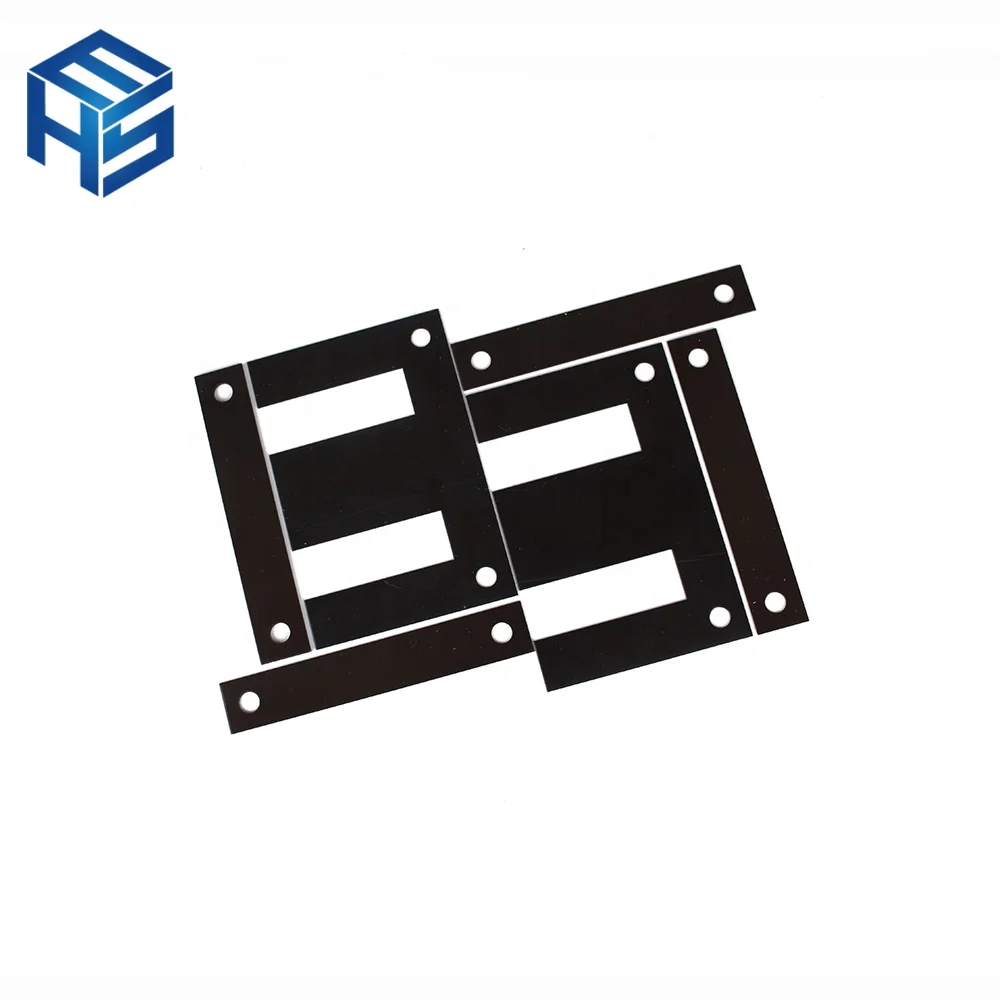

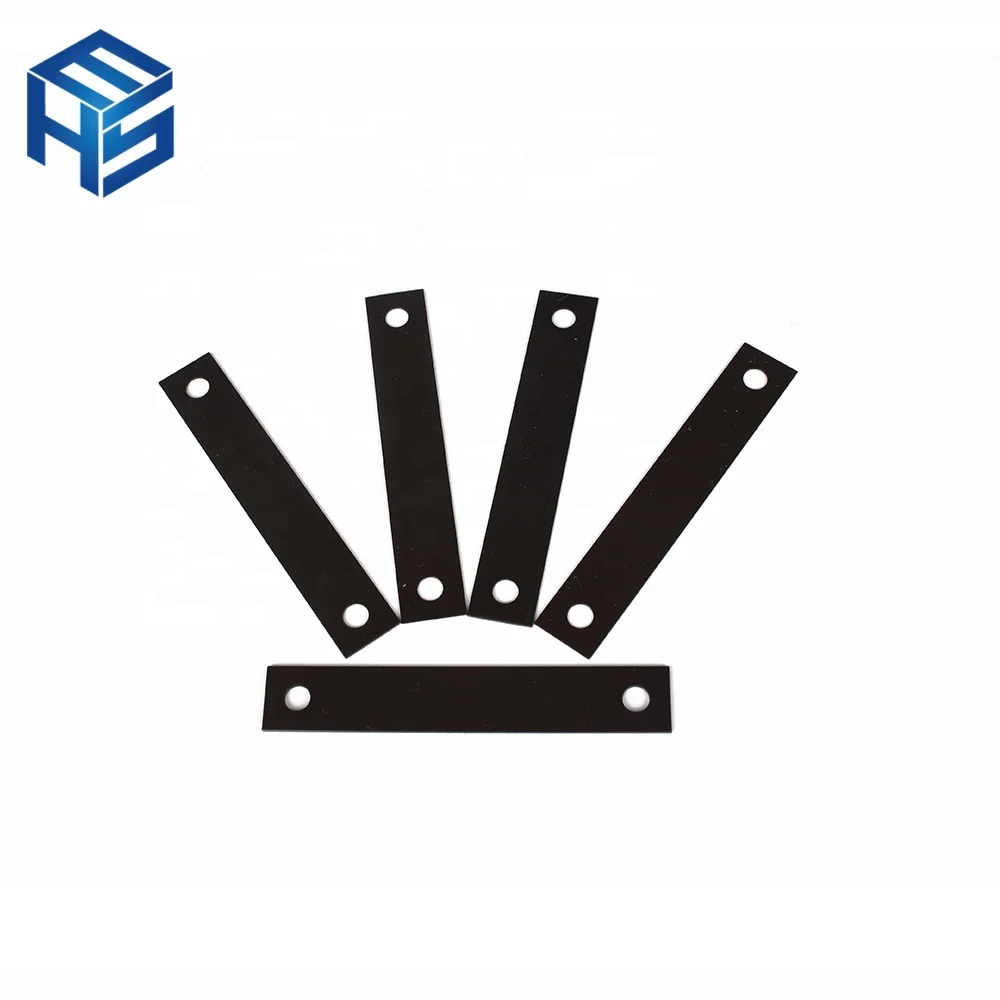

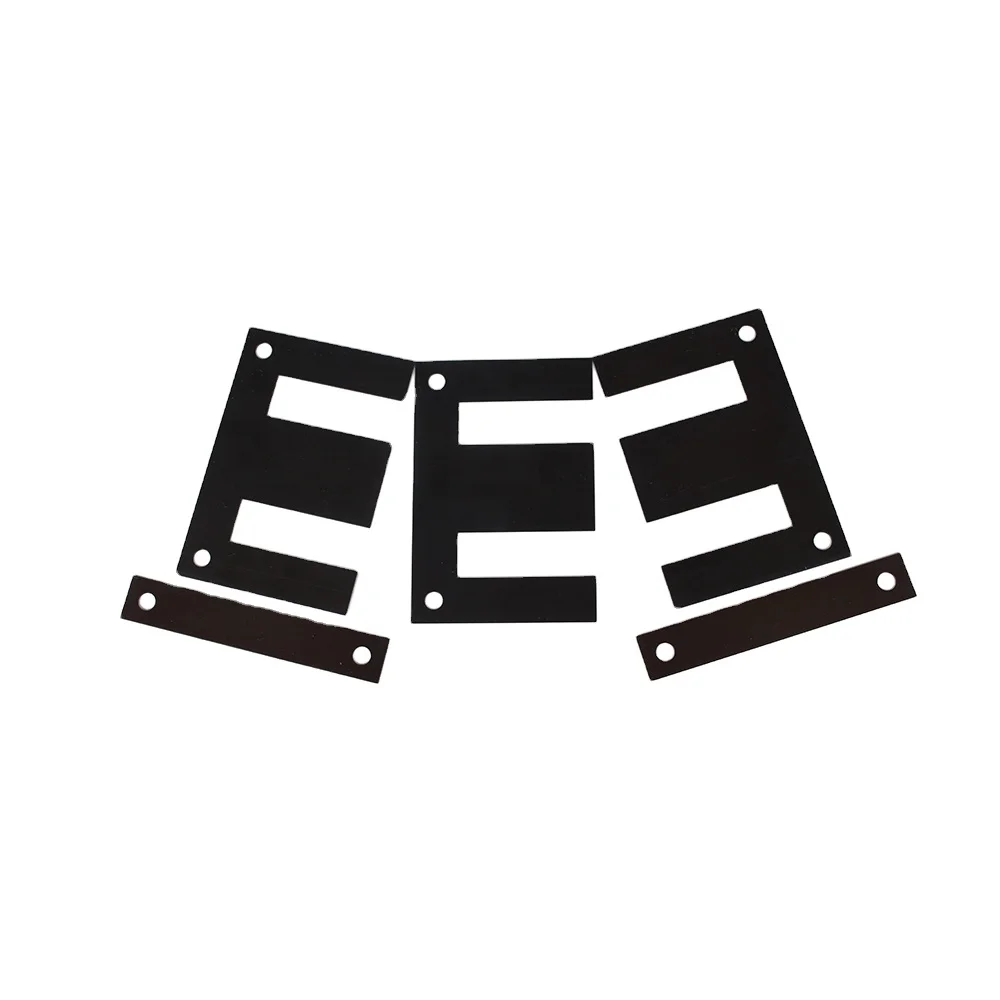

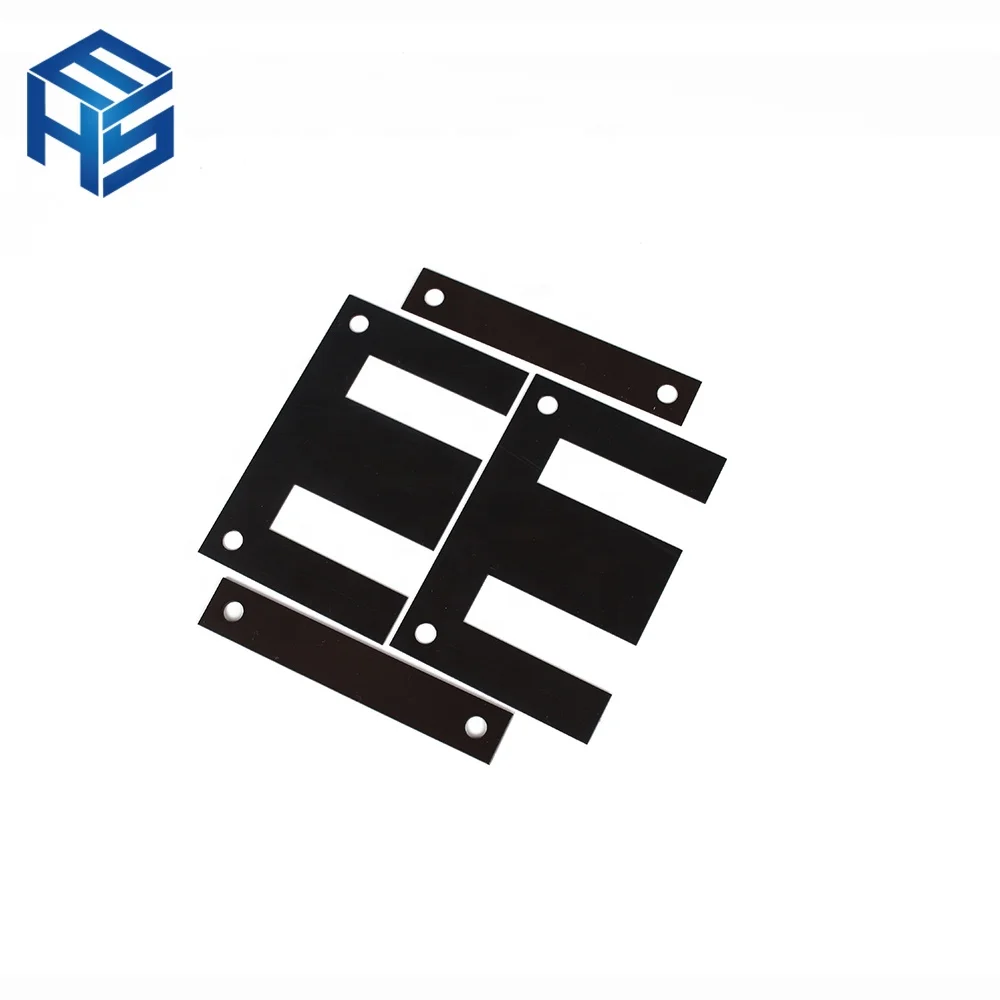

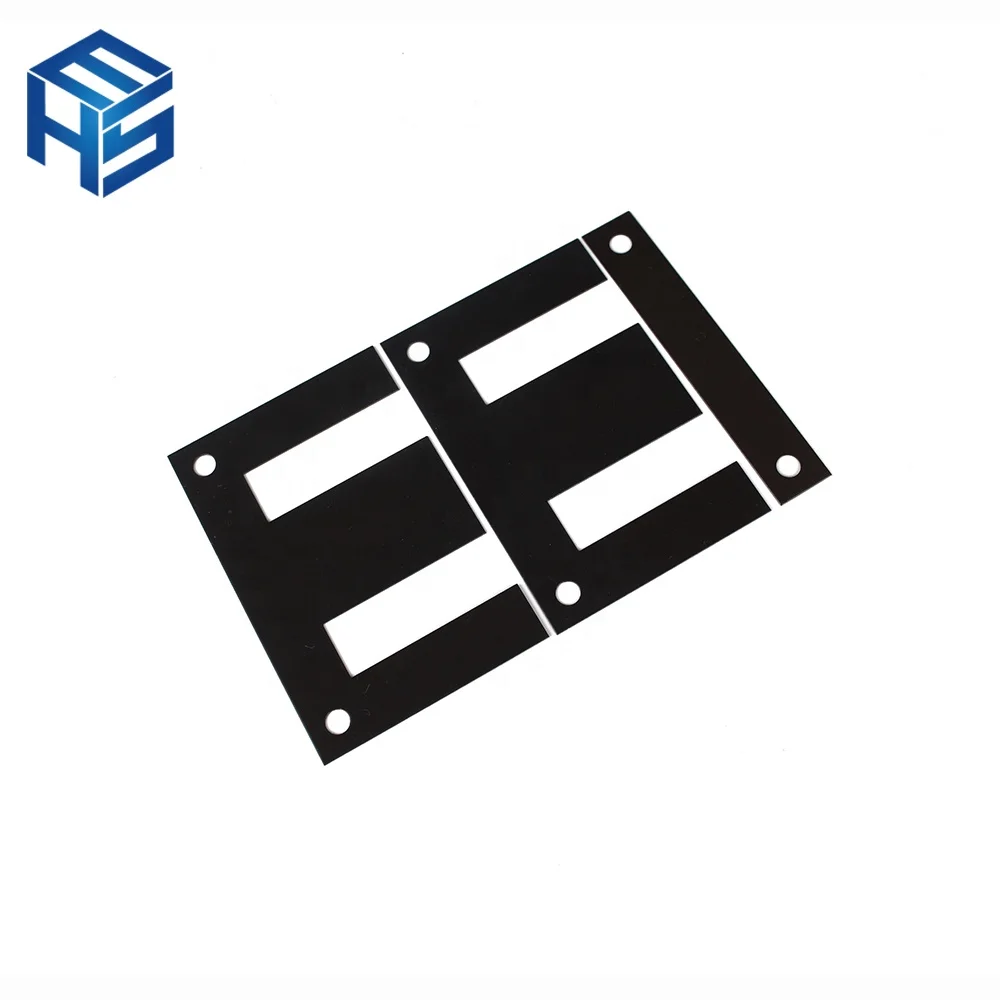

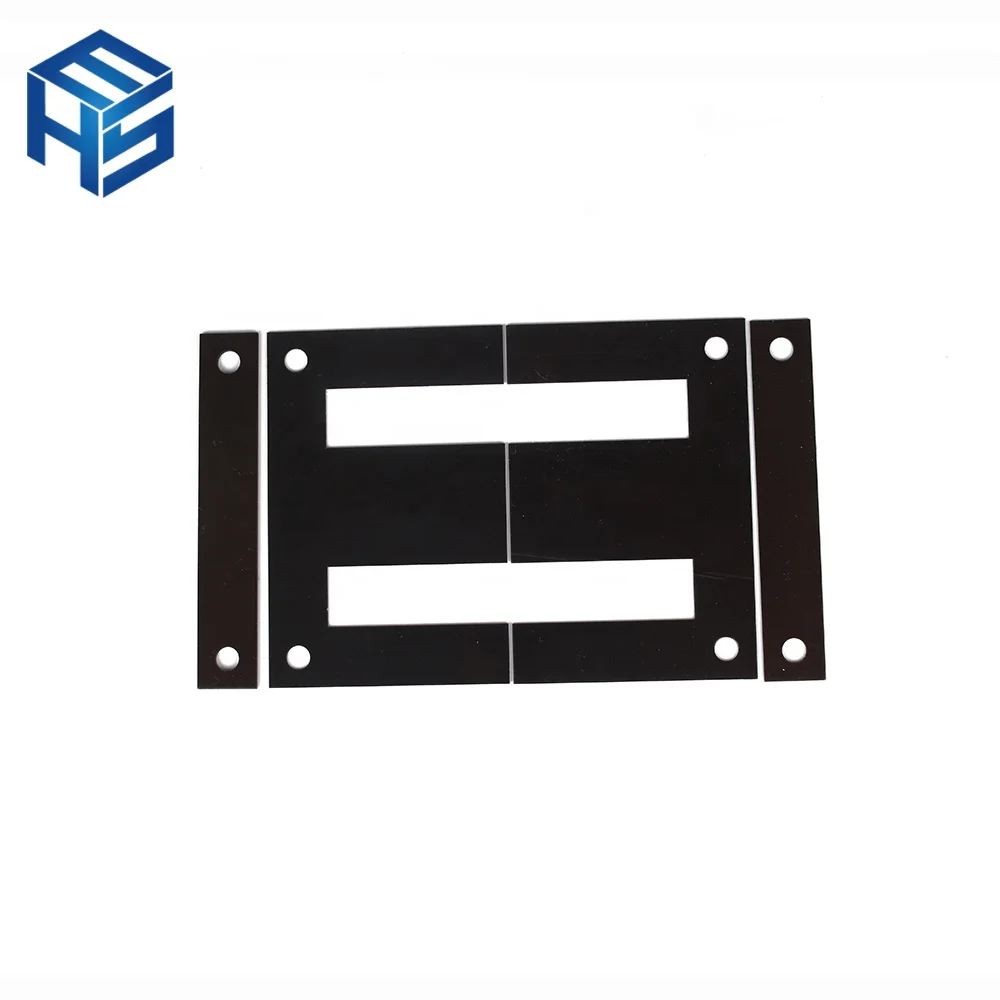

 EI Lamination is made by the silicon steel strip. The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.

Three -phase EI lamination is made by the silicon steel strip. The model of three-phase EI lamination is from three-phase (20) to three phase (100), and the hole size is from Φ4.5 to  Φ14, The gap sizes of transformer lamination core can be customized.



UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100, and the hole size is from Φ 8 to  Φ 14. The gap sizes of transformer lamination core can be customized.



Model	A	B	C	D	E	F	G	Hole Size
EI-28	28	25	8	4	4	17	21
EI-30	30	25	10	5	5	15	20
EI-35	35	29.5	10	5	7.5	19.5	24.5
EI-38.4	38.4	32.2	12.8	6.4	6.4	19.2	25.7
EI-38.4	38.4	52	12.8	6.4	6.4	38.4	45.5
EI-41	41	27	13	6	8	21	27
EI-42	42	35	14	7	7	21	28	3.5
EI-48	48	40	16	8	8	24	32	3.5
EI-50	50	42	14	9	9	25	34
EI-54	54	45	18	9	9	27	36	3.5
EI-57	57	47.5	19	9.5	9.5	28.5	38	4.0
EI-60	60	50	20	10	10	30	40	3.5
EI-66	66	55	22	11	11	33	44	4.5
EI-75	75	62.5	25	12.5	12.5	37.5	50
EI-76.2	76.2	63.5	25.4	12.7	12.7	38.1	50.8	5.0
EI-78	78	65	26	13	13	39	52	5.0
EI-78	78	67	22	14	14	39	53	5.0
EI-84	84	70	28	14	14	42	56	5.0
EI-85.8	85.8	71.5	28.6	14.3	14.3	42.9	57.2	5.0
EI-96	96	80	32	16	16	48	64	6.2
EI-105	105	87.5	35	17.5	17.5	52.5	70	6.0
EI-108	108	90	36	18	18	54	72	5.5
EI-114	114	95	38	19	19	57	76	7.0
EI-120	120	100	40	20	20	60	80	7.0
EI-132	132	110	44	22	22	66	88	7.0
EI-133.2	133.2	111	44.4	22.2	22.2	66.6	88.8	7.0
EI-144	144	124	40	26	26	72	98	7.0
EI-150	150	125	50	25	25	75	100	8.0
EI-152.4	152.4	127	50.8	25.4	25.4	76.2	101.6	8.0
EI-162	162	135	54	27	27	81	108	8.0
EI-168	168	140	56	28	28	84	112	9.0
EI-171	171	142.5	57	28.5	28.5	85.5	114	9.0
EI-174	174	145	58	29	29	87	116	9.0
EI-180	180	150	60	30	30	90	120	10.0
EI-192	192	160	64	32	32	96	128	10.0
EI-210	210	175	70	35	35	105	140	10.0
EI-240	240	200	80	160	40	120	160	10.0



Item	Ballast Core
Type	Steel Coil
Thickness	0.35 ~ 0.50mm
Width	According to your requests
Coil Weight	4 ~ 8 tons
Material	BAO Stleel: B501300, B50A1000, B50A800, B50A700, B50A600, B50A470, B35A440, B35A550, B65A600, B65A1600 B WU Steel: 50WW1300, 50WW1000, 50WW800, 50WW700, 50WW600, 50WW470, 35WW350, 35WW310, 65AW600, 65AW1600 AN Steel: 50AW1300, 50AW1000, 50AW800, 50AW700, 50AW600, 65AW1600, 65AW600, 35AW440, 35AW550 Tai Steel: 50TW290,  50TW310,  50TW470, 50TW600, 50TW800
Surface Treatment	C-4 Insulated Coated
OEM and ODM	Welcome
Application	Motor, electric engine, dynamo, transformer, electromagnetic switch, reactor, magnetic amplifiers, ballast, relay, yoke flow circle and other industry usage.

1. Low iron loss, high magnetic flux strength, comes up to the international advance standard
2. Slight thickness difference between the horizontal and the longitudinal direction, promising the high lamination factor
3. Processing Performance: Easily punched and cut, high dimensional accuracy
4. Insulating Coating: Uniform color, good insulation, strong adhesive, high heat resistance, high putrescibility
5. Smooth surface, no rust, no rolling marks, no cold lap, no crease, no bubble cell, no delamination defects.

1. Directly manufacturing factory with competitive price and quality control, we check all material when we start to bulk productions.

2. Professional advice to help you purchase the products you wanted
3. Professional export service team servers in the deal.
4. Customization service is available, OEM business is appreciated.
5. We will inspect and test all products material carefully to ensure no damage and lost.
6. The success of our cooperation can be guaranteed for our company is a credible and honest partner.



Sample

1. Stock sample is free, but client must pay for sample express cost.


2. Sample not in stock will be charge on client.


3. Customized sample cost will be based on design

About our technical support

We own DOUBLE-HEAD COIL CRADLE(without motor):

Feature:Suitable for straightening machine.

Save the time for feeding ,improve the ability for producing,low cost,be more competitive.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
