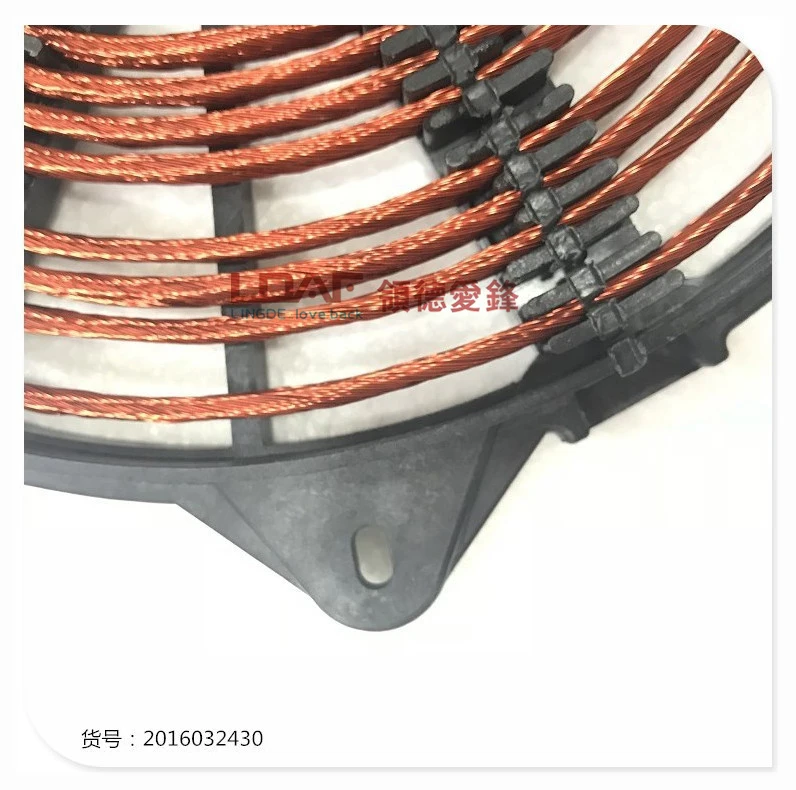

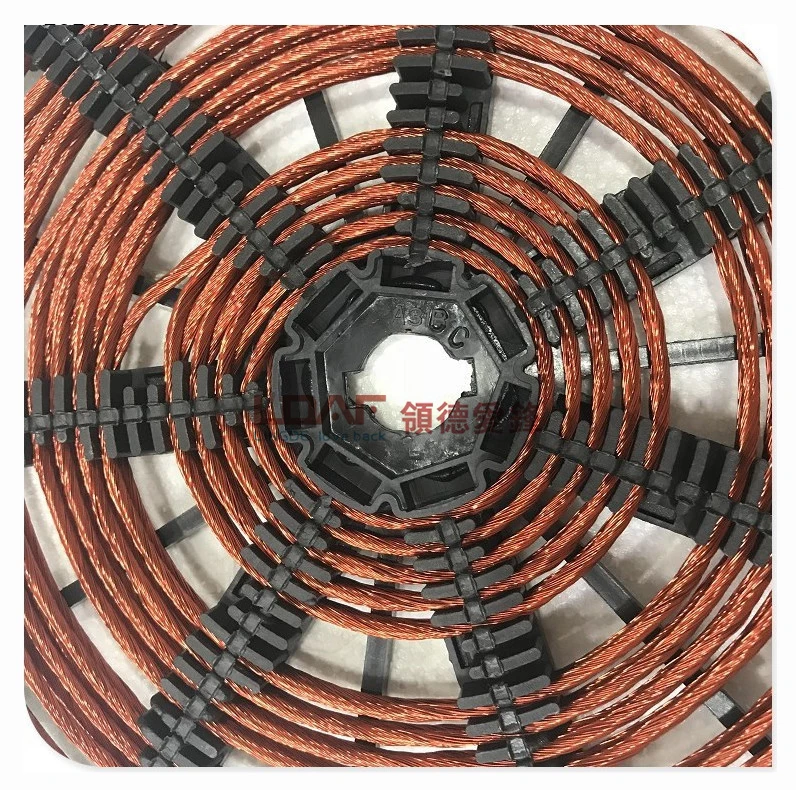

Коммерческие Дома Электромагнитная Индукционная плита 3.5kw катушка для индукционной плиты

Scaffold material

160-180℃PBT material, diameter; 244.87mm, diameter of center ring; 48.14mm thickness: 17.59mm

Copper wire material:

Model: qzy-2 / paint temperature 180℃, insulation grade: H class

Aluminum wire material:

Model: 1PEW/F (L), paint temperature 180℃, insulation grade: H

Magnetic stripe:

Manganese zinc ferrite

Terminal:

brass

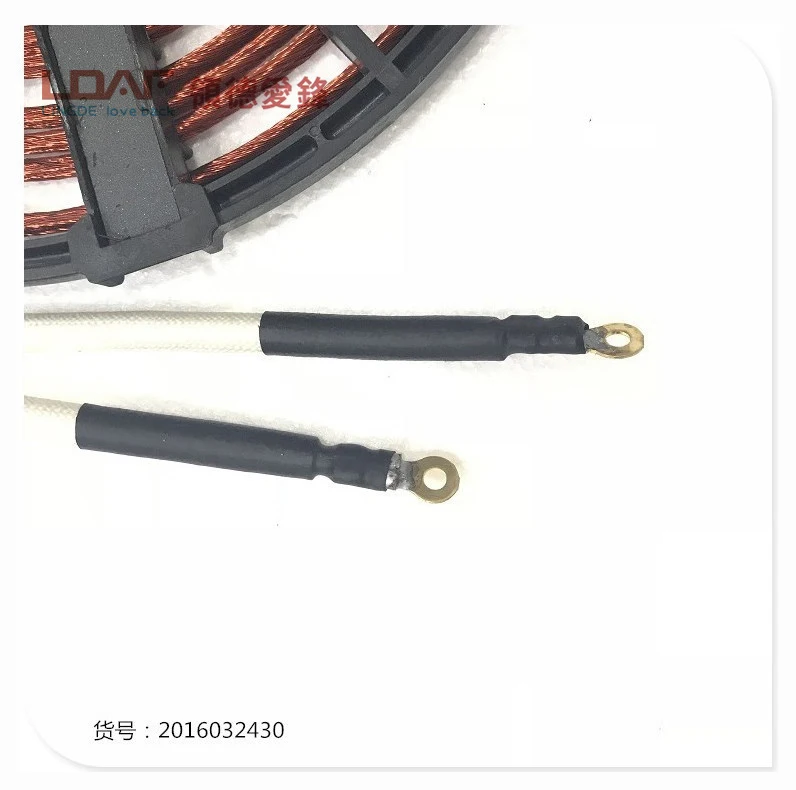

Casing:

Glass fiber sleeve 1200kv-2000kv, 60S self-extinguishing, pressure test 4.5-7.0kv.

Heat shrinkable tube:

Product wall thickness is -0.20±0.05, insulation withstand voltage 600V, 60S no breakdown.

Scope of application: this product is suitable for home and commercial electromagnetic cooker, the parameter range is 3KW to 5KW.
