Двухсторонняя акриловая пенопластовая клейкая лента 1 рулон 3 м VHB 5952 сверхпрочная Монтажная широкий выбор бесплатная

Описание и отзывы

Трекер стоимости

Характеристики

Ready to ship size by choose :



Size:5mm width*3m length or

Size:8mm width*3m length or

Size:10mm width*3m length or

Size:12mm width*3m length or

Size:20mm width*3m length or

Size:25mm width*3m length or

Size:30mm width*3m length or

Size:40mm width*3m length

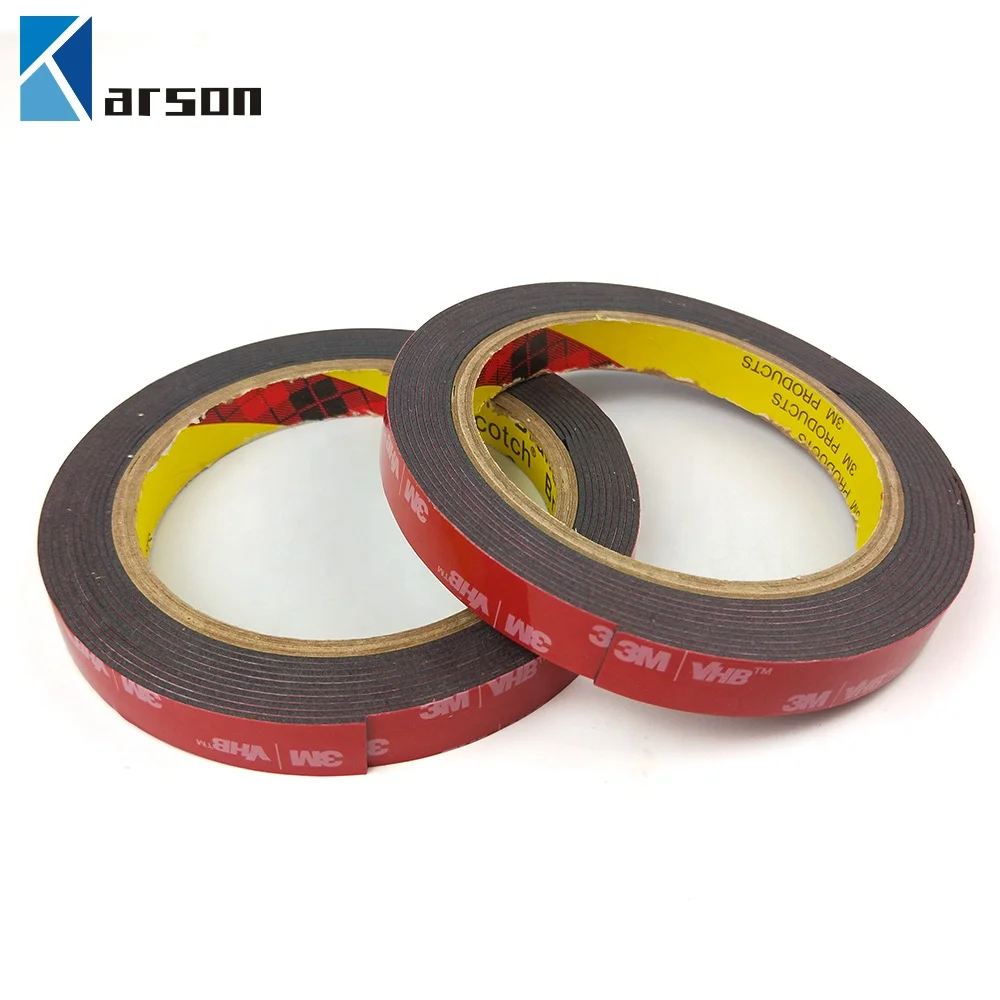

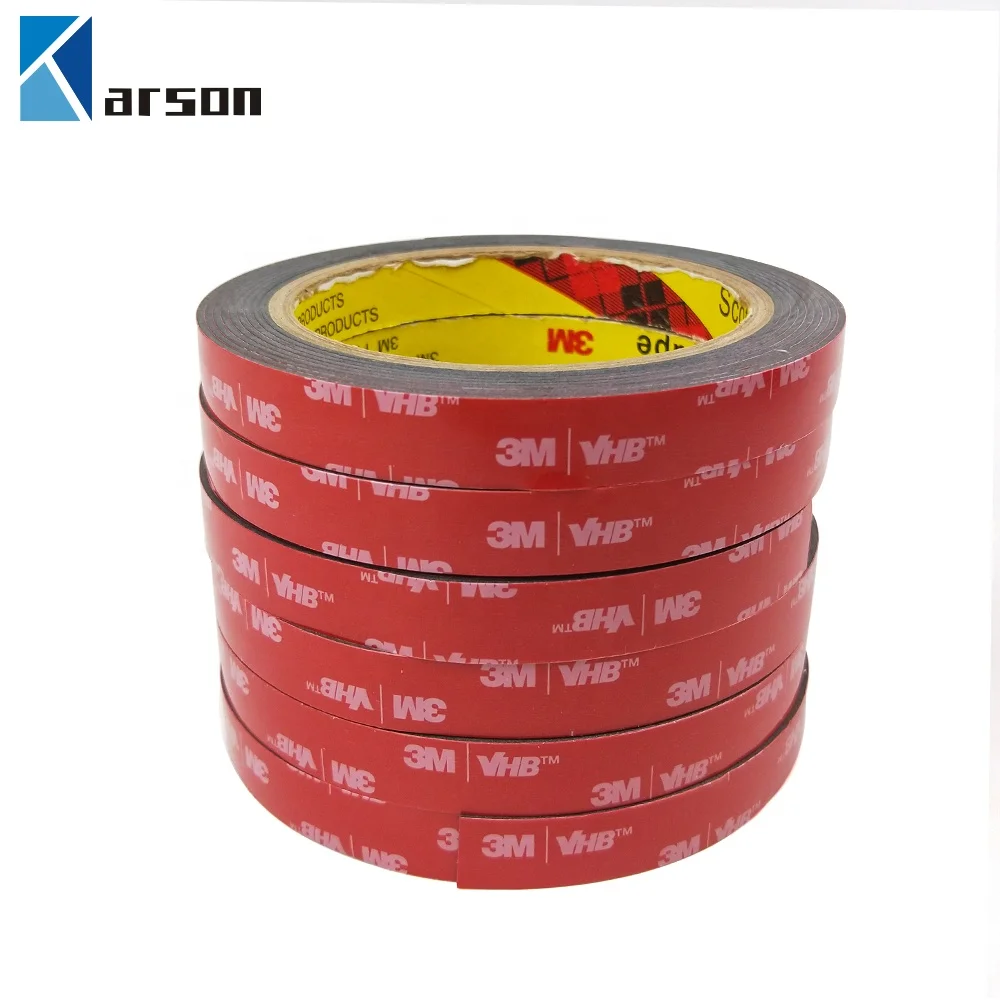

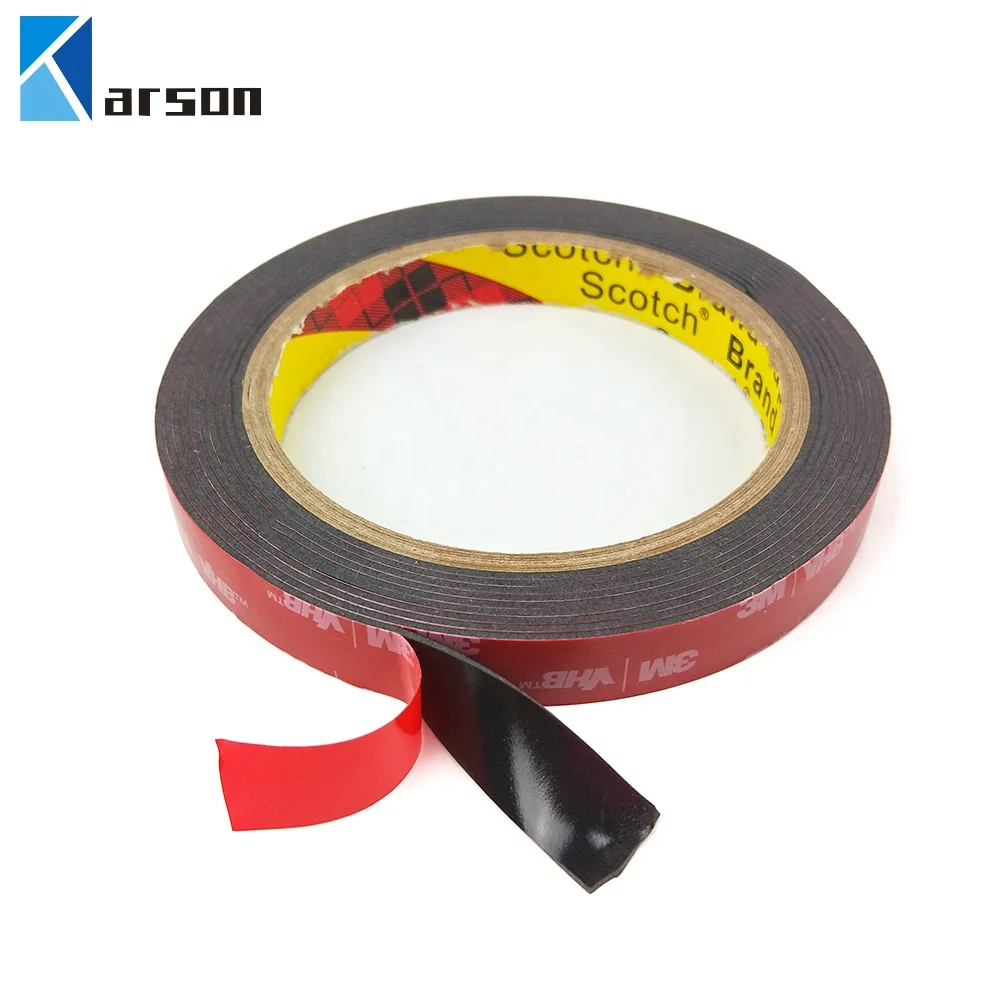

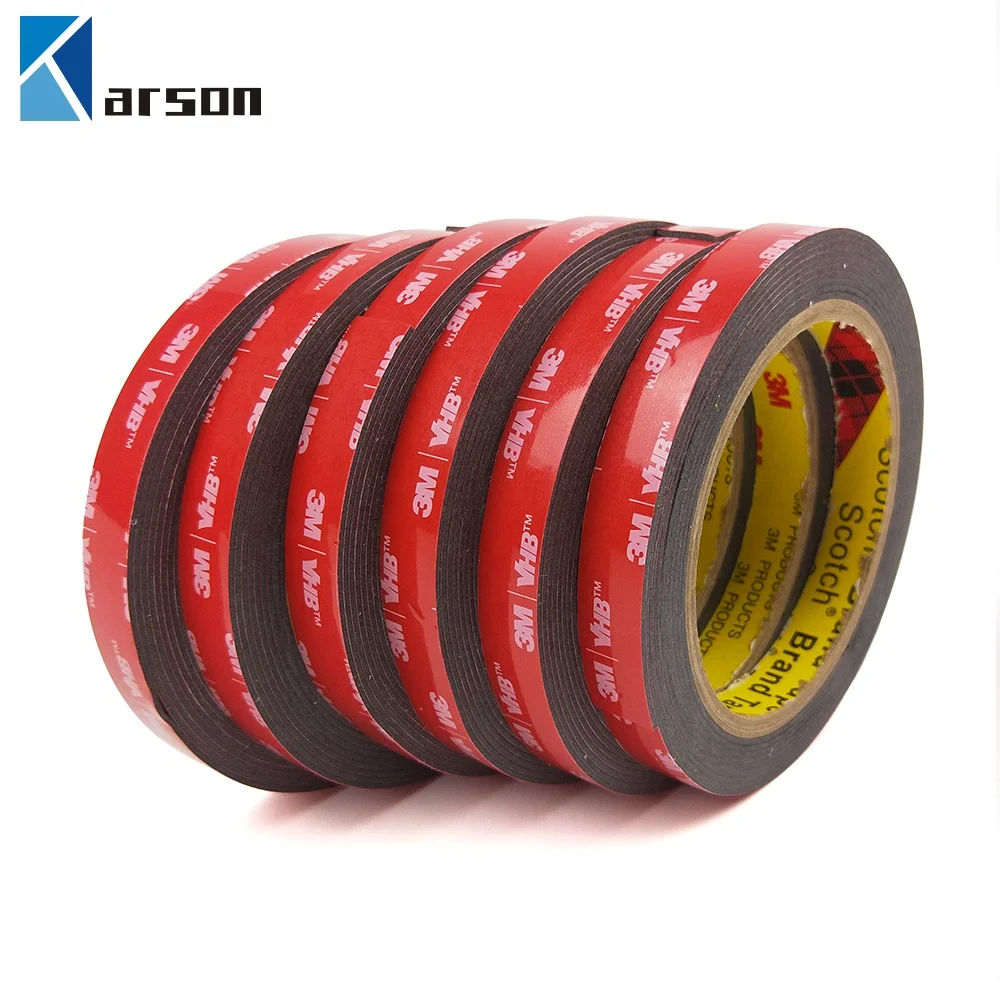

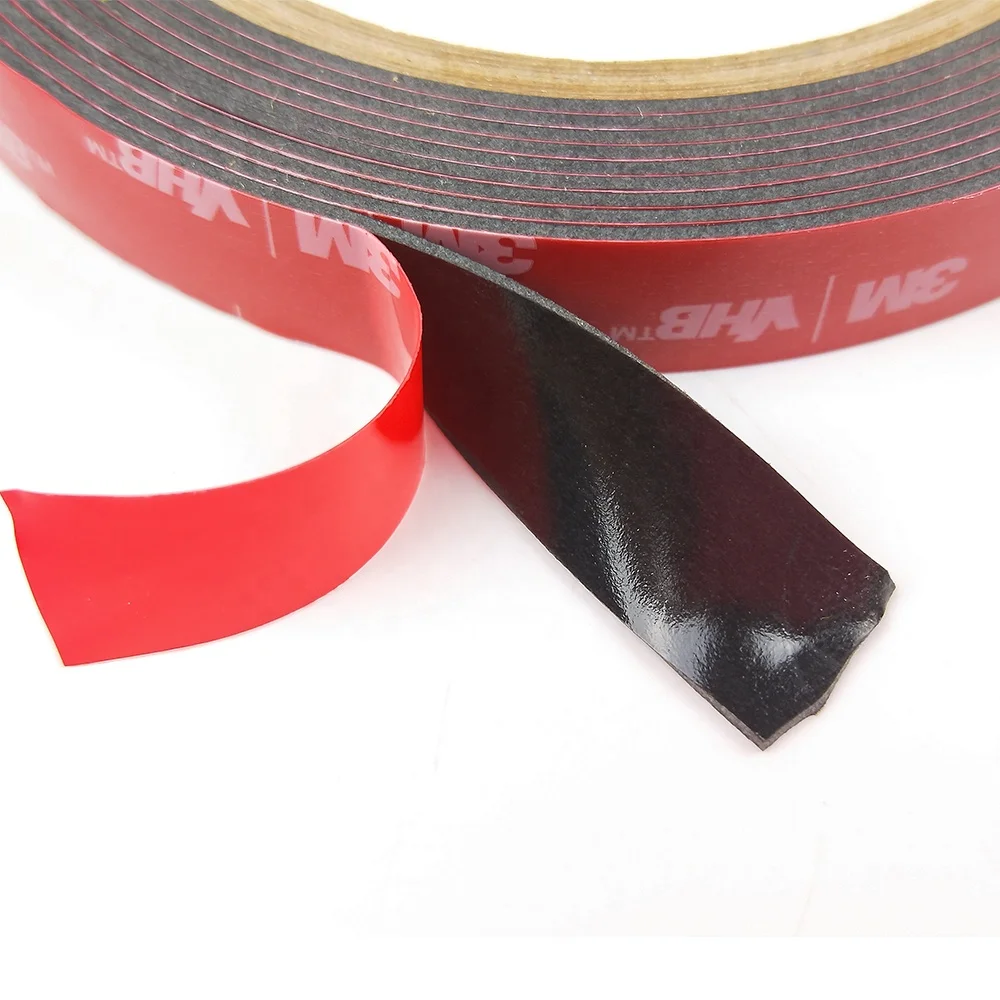

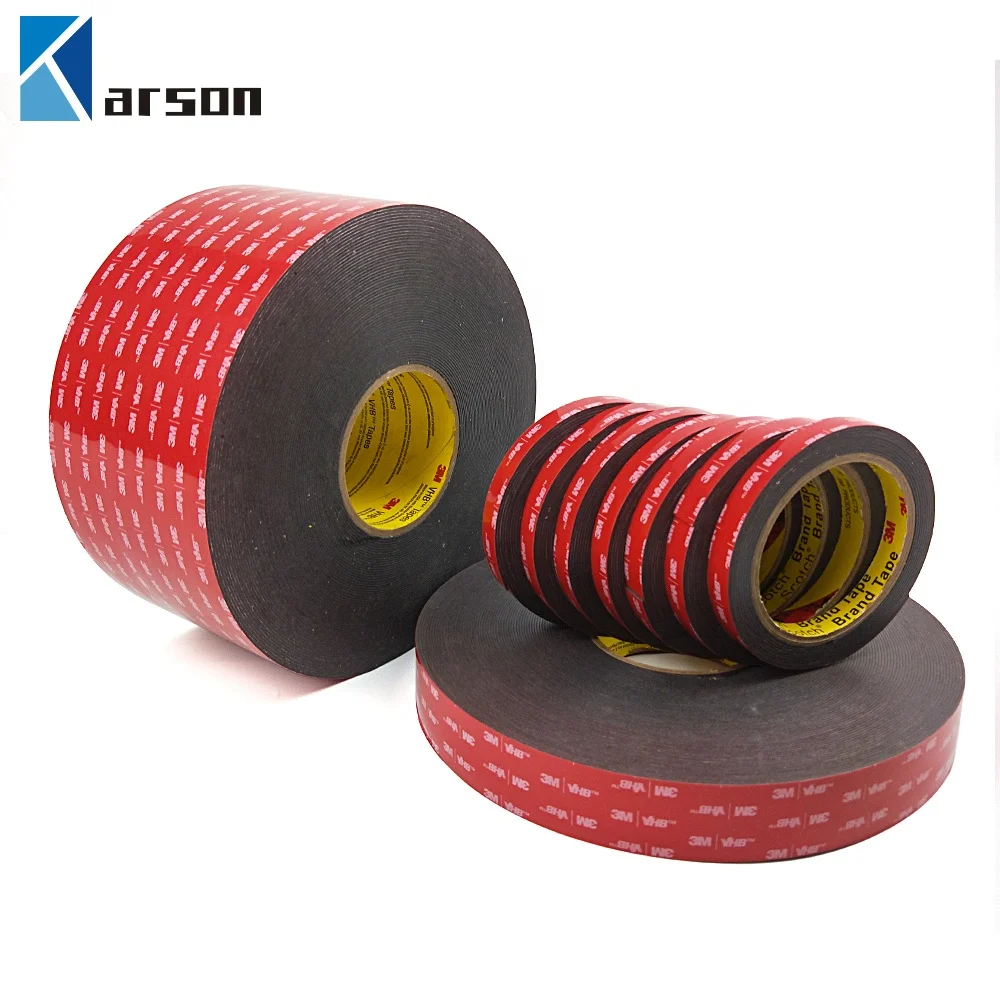

Dream, Design, Deliver with 3M™ VHB™ Tape 5952. It is a black or white, 0.045 in (1.1 mm) modified acrylic adhesive with a very conformable, foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond a variety of surfaces.



Modified Acrylic: Bonds to medium low surface energy paints and plastics, including many powder coated paints in addition to the substrates listed with the multi-purpose acrylic adhesive (except plasticized vinyl).



1 Roll 3M VHB 5952 Double Sided Acrylic Foam Adhesive Tape Heavy Duty Mounting Tape Choose Wide Free Shipping

Details

Fast and easy-to-use permanent bonding method provides high strength and long-term durability.



Virtually invisible fastening keeps surfaces smooth.



Can replace mechanical fasteners (rivets, welding, screws) or liquid adhesives.



Black or white, 0.045 in (1.1 mm), modified acrylic adhesive and very conformable acrylic foam core bonds to a wide variety of substrates including powder coated paints and irregular surfaces.



Eliminate drilling, grinding, refinishing, screwing, welding and clean-up.



Creates a permanent seal against water, moisture and more by offering better gap filling capabilities.



Pressure sensitive adhesive bonds on contact to provide immediate handling strength.



Allows the use of thinner, lighter weight and dissimilar materials.







Specifications

Applications	Bonding Glass to a Metal Clothes Washer Door, Bonding Panels to Metal Frames, Commercial Vehicle Roof Vent Attachment, Gasket Assembly, Interior Rail Car Construction, Mounting and Trim Attachment, Panel to Frame/Stiffner to Panel Assembly, TV Stand Decorative Trim Attachment
Backing Material	Foam
Brand	VHB™
Carrier Material	Acrylic Foam
Color	Black (or white)
Core Size	3 Inch
Design Challenges	Impact & Shock Absorption, Noise Vibration & Harshness Control NVH
Flame Retardant	N/A
Foam Conformability	Very Conformable
Indoor/Outdoor	Both
Industries	Appliance, Construction, Electronics, General Industrial, Metalworking, Signage, Transportation
Length	15 Linear Yard, 36 Linear Yard
Length (Metric)	13.71 m, 32.9 m
Maximum Operating Temperature (Celsius)	149 Degree Celsius
Maximum Operating Temperature (Fahrenheit)	300 Degree Fahrenheit
Position	Better
Primary Liner	Paper or Polyethylene (PE) Film
Primary Liner Thickness	4 mil, 5 mil
Product Form	Roll
Size	Custom
Substrate 1	Glass, High Surface Energy Plastic, High Surface Energy, (400-1100 Dynes/cm), Low Surface Energy Plastic, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Sealed Wood
Substrate 2	Glass, High Surface Energy Plastic, High Surface Energy, (400-1100 Dynes/cm), Low Surface Energy Plastic, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Sealed Wood
Substrates	Glass, High Surface Energy, (400-1100 Dynes/cm), HSE Plastics and Glass, LSE Plastics, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Paints (Powder Coat, Painted Metal, Composite Panel), Rough surfaces
Temperature Resistance - Initial	300 Degree Fahrenheit
Thickness	45 mil
Thickness (Metric)	1.1 mm, 1.14 mm
US Govt Contract Number	GS-15F-1429H
Volatile Organic Compounds (VOCs)	See Safety Data Sheet, Regulatory Data Sheet
Width	0.5 Inch, 0.75 Inch, 1 Inch, 24 Inch, 48 Inch
Width (Metric)	12.7 mm, 1219 mm, 19.05 mm, 25.4 mm, 609.6 mm









Application Ideas:

          Bonds to a variety of plastics and paint systems.

          Bond architectural signs to frames.

          Attach trim and extrusions.

          Hat channels and stiffeners.



Recommended Applications

      Decorative material and trim

      Nameplates and logos

      Electronic displays

      Panel to frame

      Stiffener to panel















Improtant Content Link:





3M VHB Tapes: Technical Data



3M VHB Technical Bulletin-Durability



Surface Preparation for 3M VHB Tapes



 1 Roll 3M VHB 5952 Double Sided Acrylic Foam Adhesive Tape Heavy Duty Mounting Tape Choose Wide Free Shipping

Our Service:

(1) Slitting: any width any length



(2) Die Cutting: any shape any size



Custom Die Cut Black Waterproof Heat Resistant Double Sided Acrylic Adhesive Foam Tape 3M VHB 5952
