A solution for most kind of ducting ventilation system.

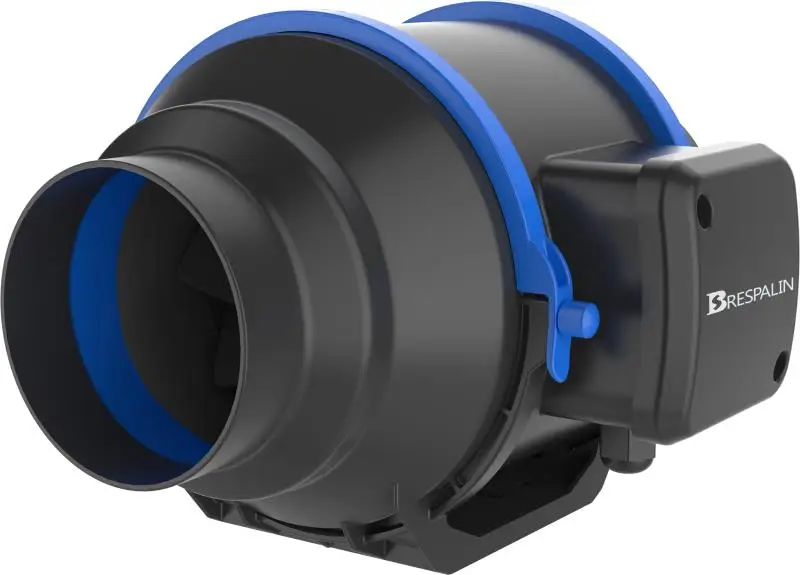

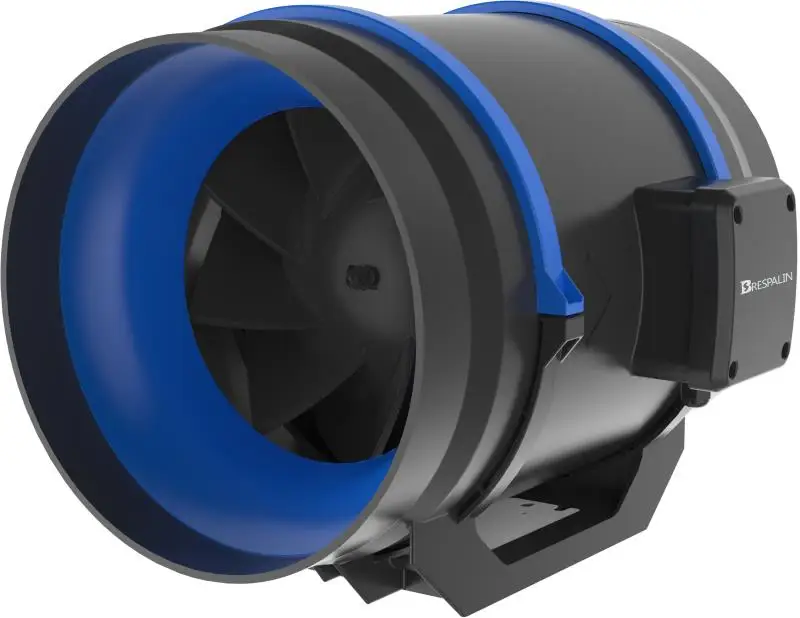

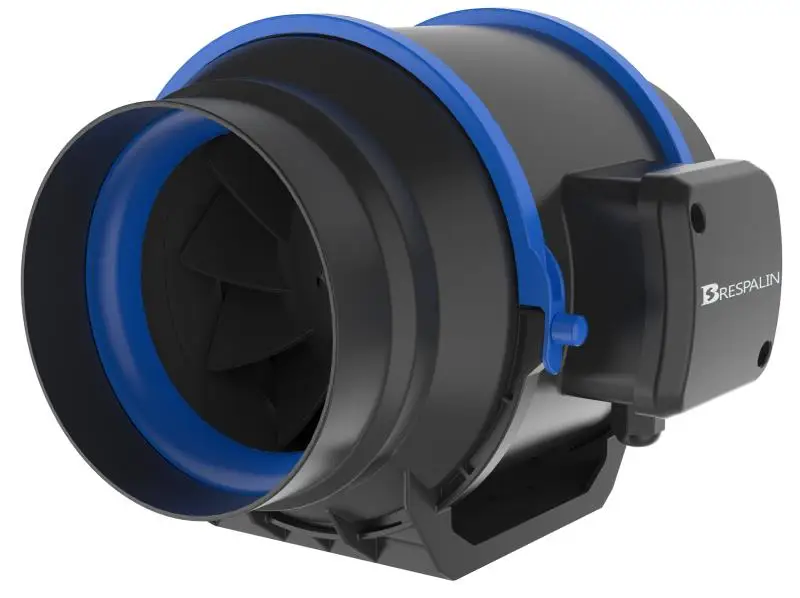

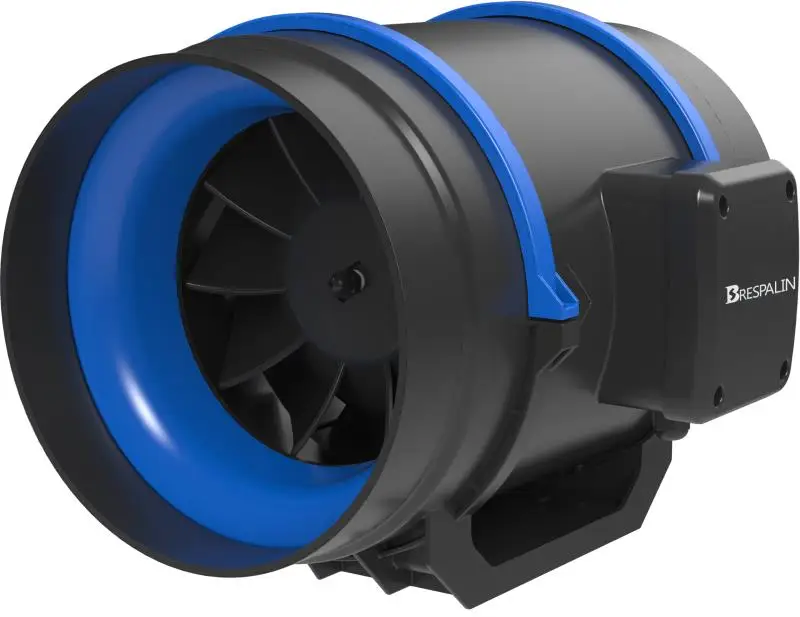

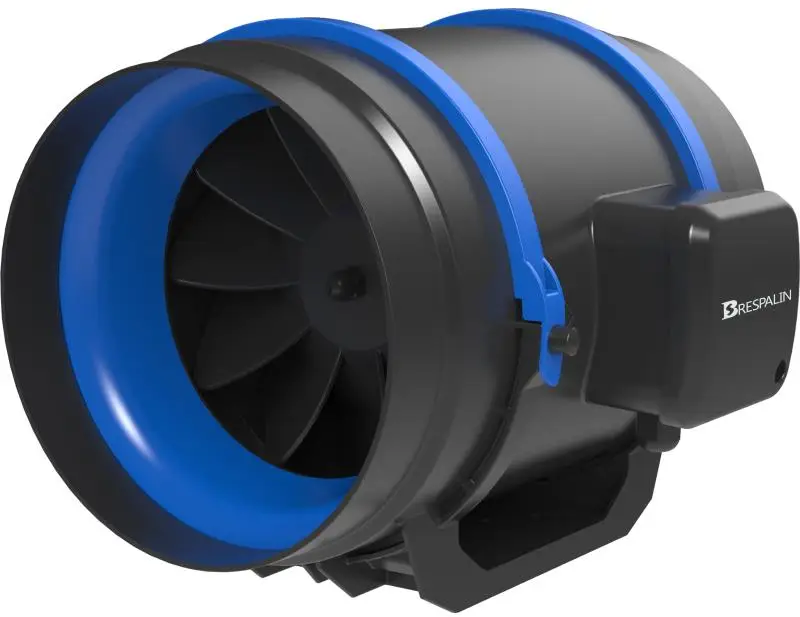

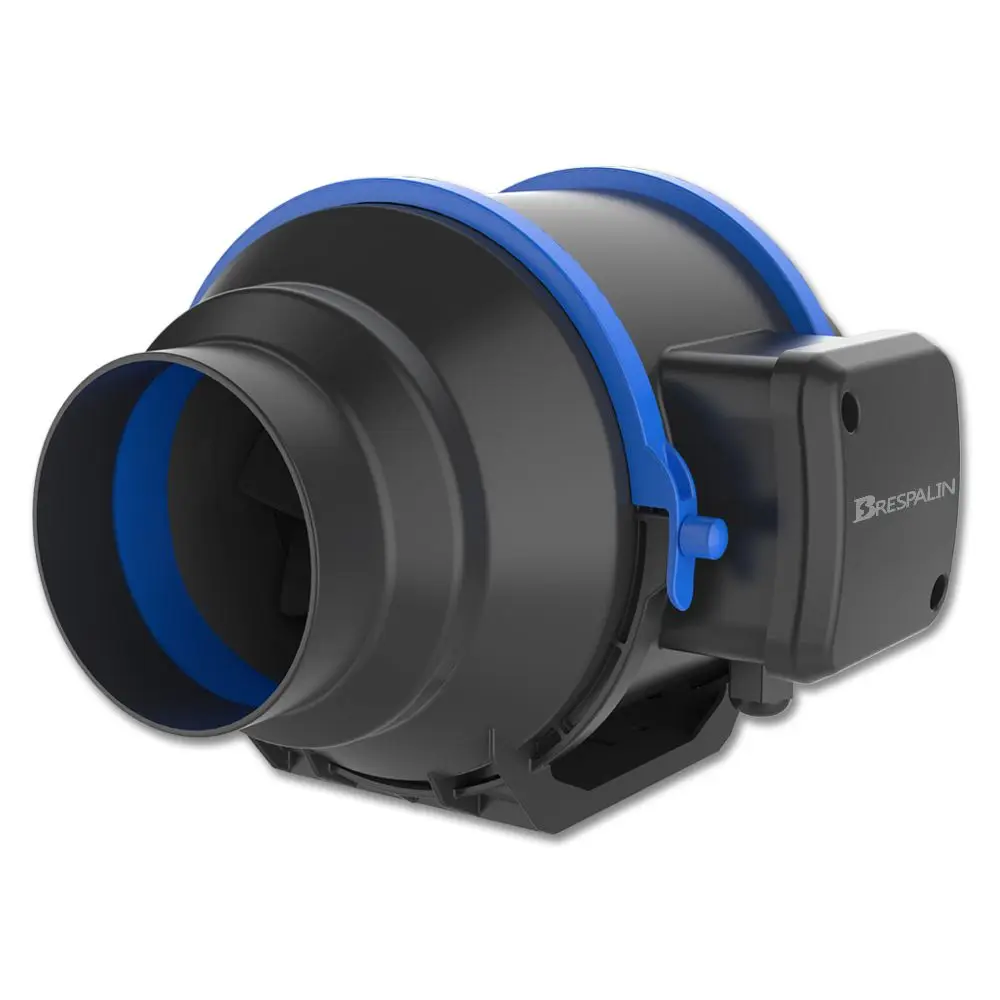

Mixed Flow Inline Duct Fan
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization. ♦ 2 Speeds/ stepless speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
Product Structure
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
PerformanceTable
Model
Power
(W)
Air Volume
(m³/h)
Static Pressure
(Pa)
Noise
(dB)
Duct Size
(mm)
Net
Weight
Applicable Area
AM100
40/38
200/150
180/130
30/25
100/125
1.8
8-16
AM150
60/50
500/400
300/250
35/30
150/160
2.2
18-36
AM200
100/85
850/700
350/280
50/45
200
3.1
34-76
AM250
200/130
1500/1100
550/400
60/54
250
7.0
42-84
AM315
350/280
2300/1800
700/500
66/61
315
9.7
60-120
Overall and Installation Dimension
Multi-Application
Easy Installation & Maintenance
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Curve
