Product Description

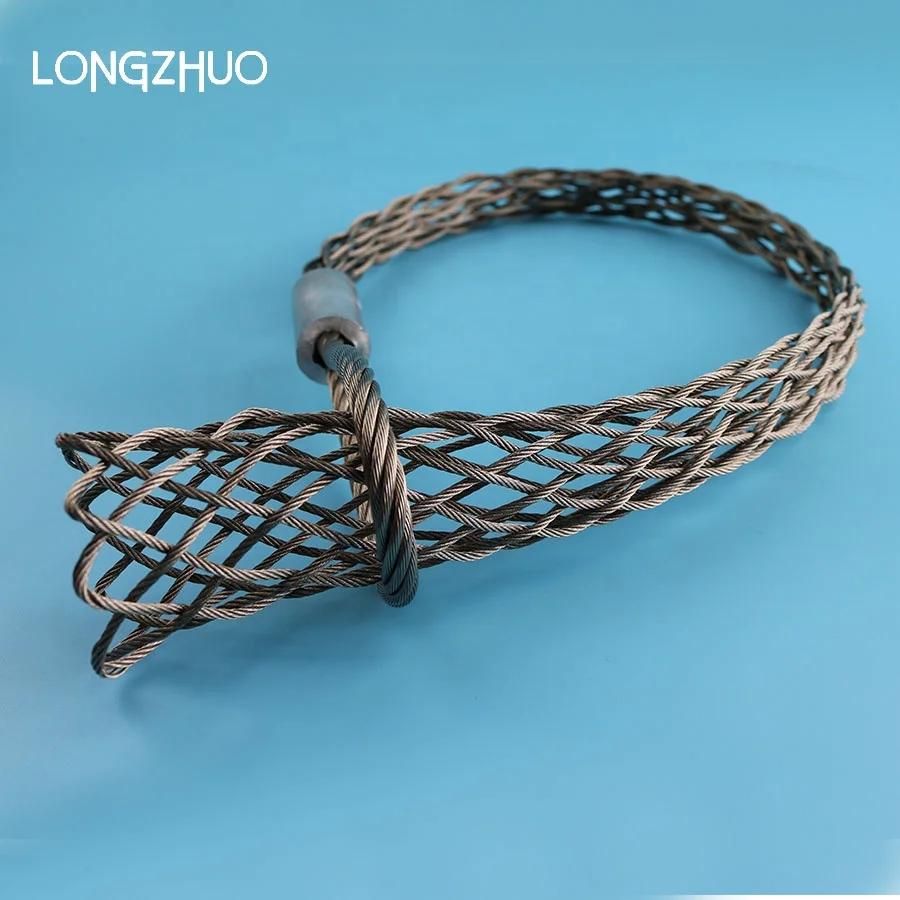

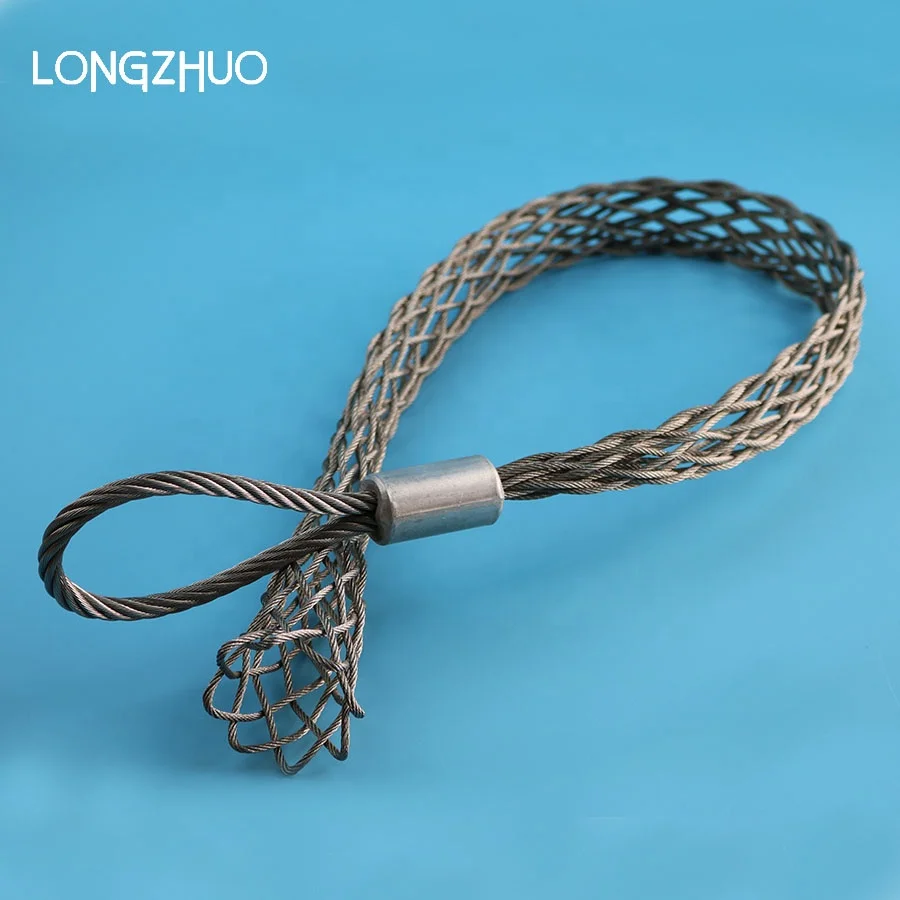

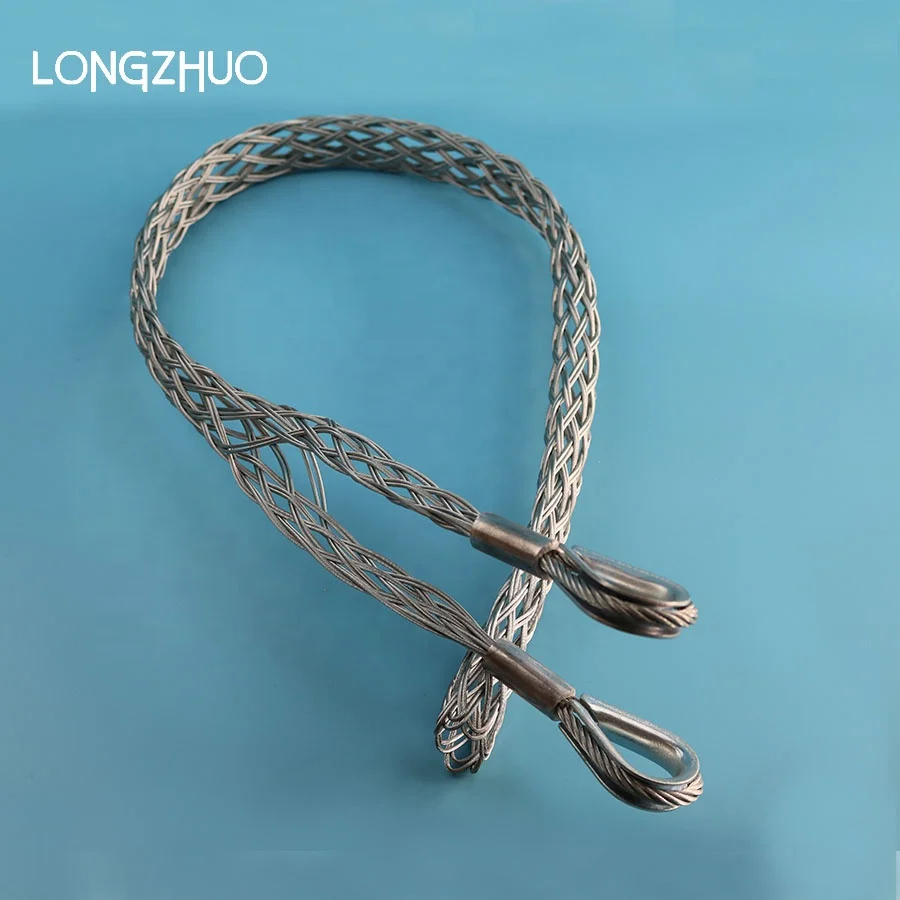

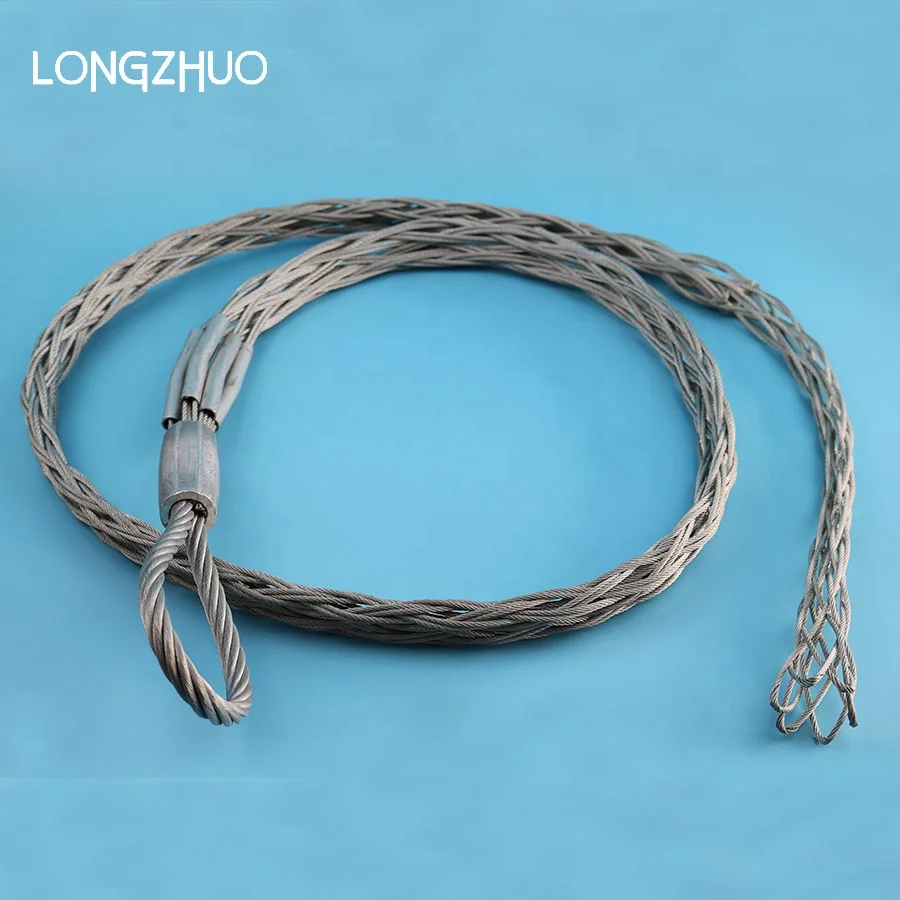

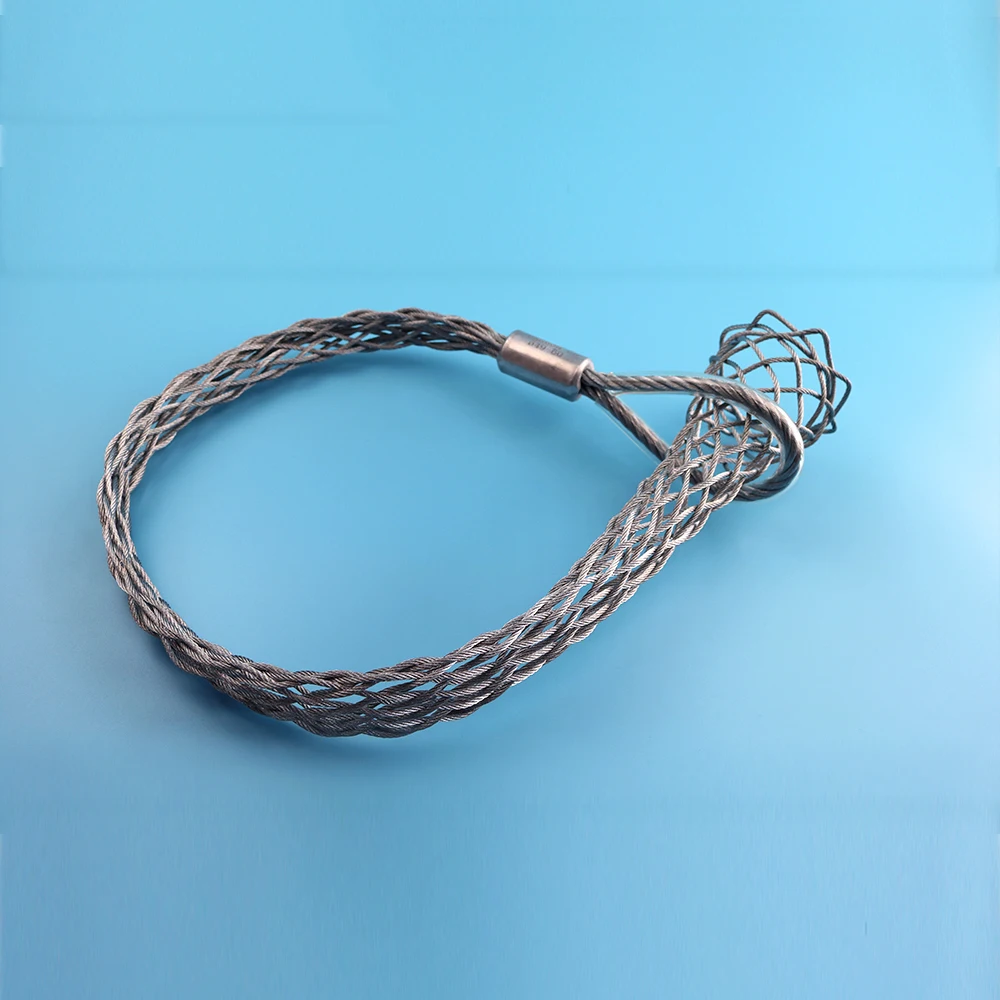

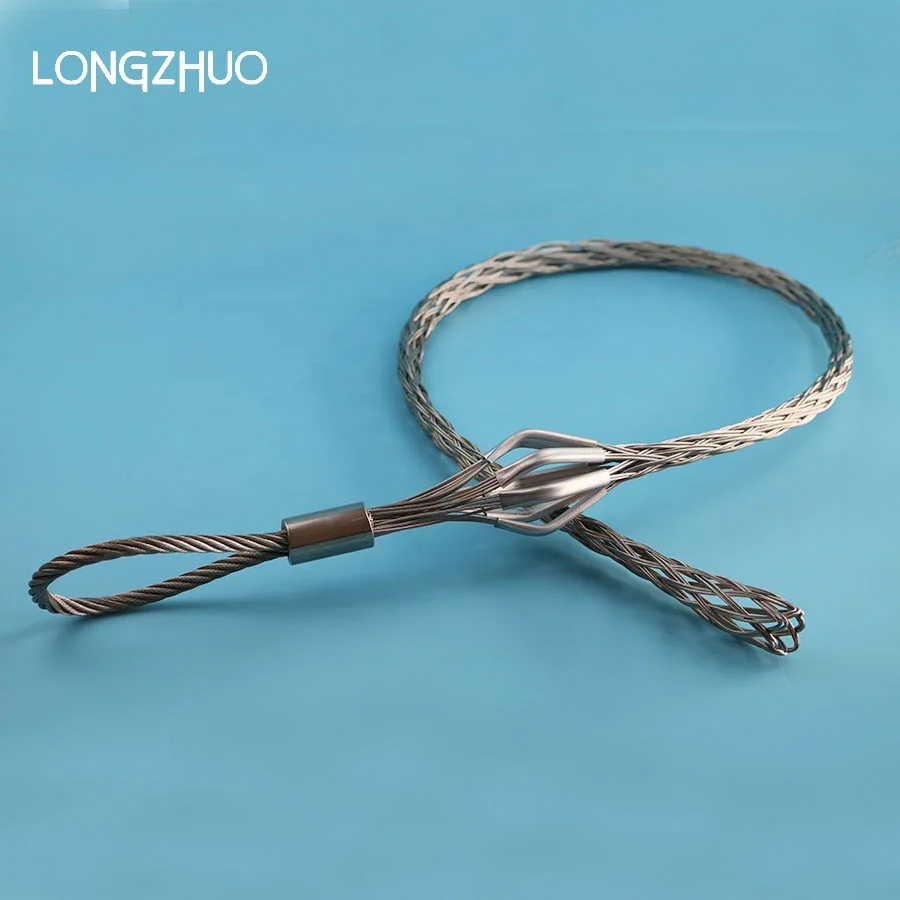

High Tensile Galvanised Standard Wire Mesh Cable Grip Puller
Cable pulling grip is kind of cable laying tools that is widely used in cable pushing cang pulling. It featured a mesh structure, only need to stay in the opposite direction of promote network, cable can be easily waer into or take out the cable. Material can be hot dipped galvanized,stainless steel 304 and stainless steel 316. Cable grip using composite weaving method of single strand, double strand, three strands or multi-strand multilayer.
Cable Grip Series
Product Features
Specification
Size Range (mm) | Mesh Length (mm) | Total Length (mm) | Breaking (KN) | Strength (KG) |
4-6 | 140 | 200 | 0.981 | 100 |
7-12 | 200 | 270 | 5.88 | 600 |
13-18 | 270 | 350 | 8.82 | 900 |
19-24 | 300 | 400 | 11.8 | 1200 |
25-34 | 420 | 550 | 15.6 | 1592 |
35-48 | 520 | 650 | 29.4 | 3000 |
49-60 | 680 | 820 | 39.2 | 4000 |
60-75 | 800 | 950 | 43.2 | 4408 |
75-90 | 950 | 1120 | 49 | 5000 |
90-105 | 970 | 1290 | 49 | 5000 |
110-135 | 1200 | 1350 | 58.8 | 6000 |
130-150 | 1320 | 1500 | 58.8 | 6000 |
150-180 | 1500 | 1750 | 78.4 | 8000 |
180-230 | 1850 | 2100 | 78.4 | 8000 |
230-280 | 1950 | 2200 | 88.2 | 9000 |
280-320 | 2000 | 2300 | 88.2 | 9000 |
Application
1. Telecom cable
2. Fiber cable
3. Coaxial cable
4. Feeder cable
5. Hybrid cable
6. Corrugated cable
7. Smooth cable
8. Braid cable
