8 портов ftth pc abs odp волоконная распределительная
- Категория: Telecommunications >>>
- Поставщик: Ningbo,Jinze,Telecommunication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4.10 $* | 4.99 $* |
| Jul-17-2025 | 3.61 $* | 3.26 $* |
| Jun-17-2025 | 4.50 $* | 4.93 $* |
| May-17-2025 | 4.68 $* | 4.72 $* |
| Apr-17-2025 | 3.58 $* | 3.33 $* |
| Mar-17-2025 | 4.40 $* | 4.45 $* |
| Feb-17-2025 | 4.71 $* | 4.6 $* |
| Jan-17-2025 | 4.38 $* | 4.29 $* |
Характеристики
Products Show
Product Description

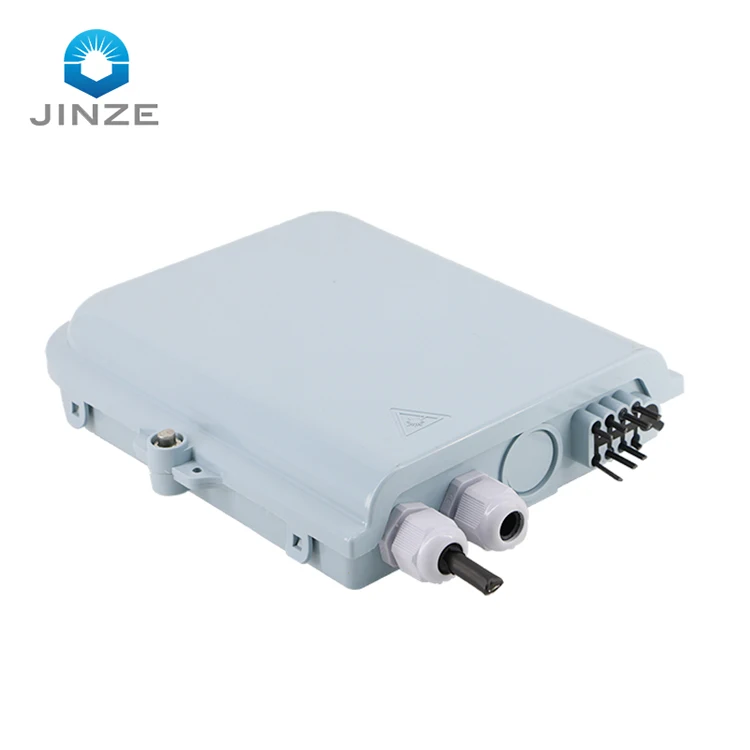

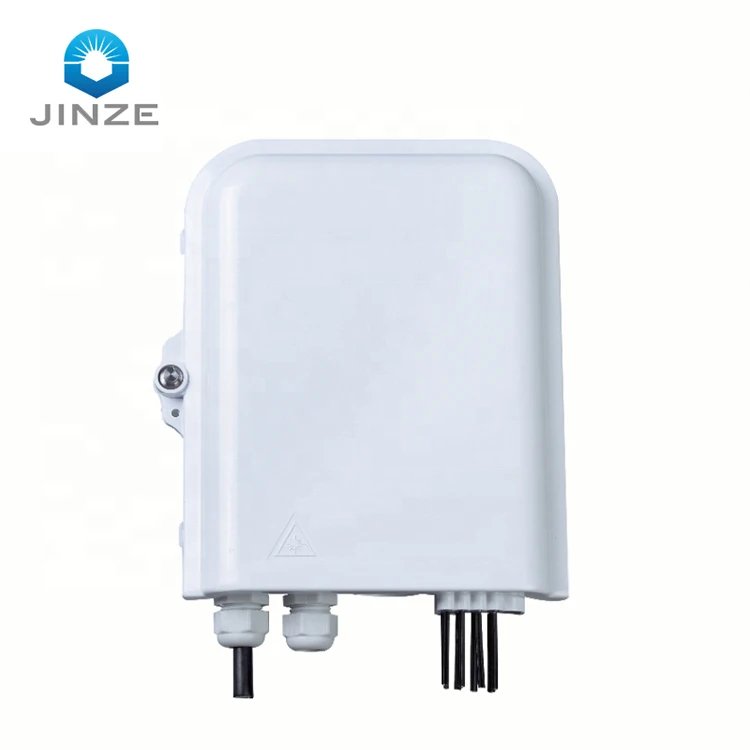

8 core ftth outdoor fiber splitter box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Product Name | 8 core fiber optic distribution box(termination box) |
Shape | Total enclosed structure, be in nice shape |
size | 223mm(H)*180mm(W)*48mm(D) |
Weight | 750g |
Material | PC+ABS |
Material characteristic | 1.wet-proof, water-proof, dust-proof, protection level up to IP65 2.Construction-lightweight plastic offers strength 3.Resistance to chemical and U.V attack 4.Wall mounting or pole mounting. |
Accessories
1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 8 pieces
5. Key :1 piece
6. Protection tube
7. Drop cable sealing:8 pieces
Specification
Environmental Requirement | Main Technical Data | Capacity | ||||
Working temperature | -40℃~+75℃ | Insertion loss | ≤0.2dB | 1*8PLC splitter,8 SC/LC adaptors | ||
Relative humidity | ≤85℃(+30℃) | UPC return loss | ≥50dB | |||
Atmospheric pressure | 70KPa~106KPa | APC return loss | ≥60dB | |||
Features
Features:

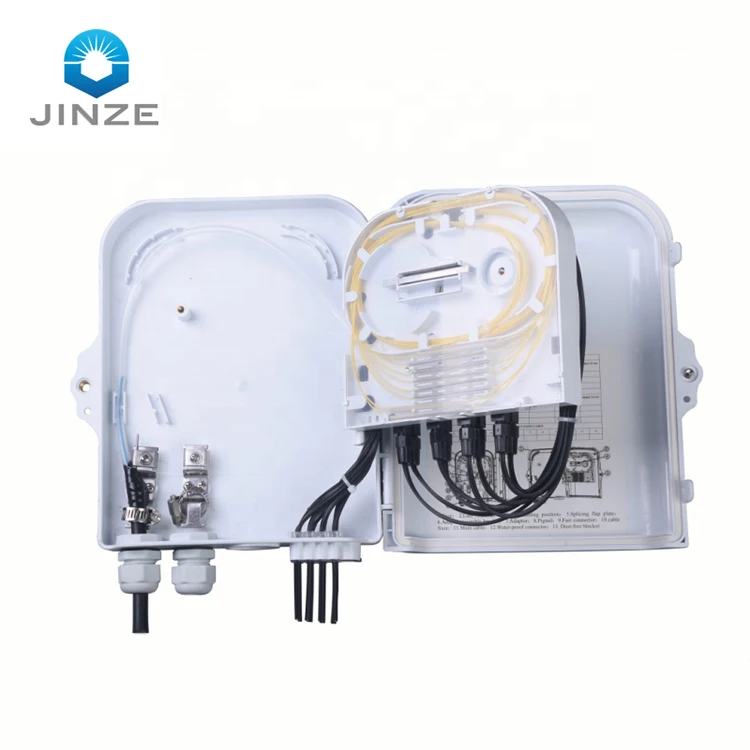

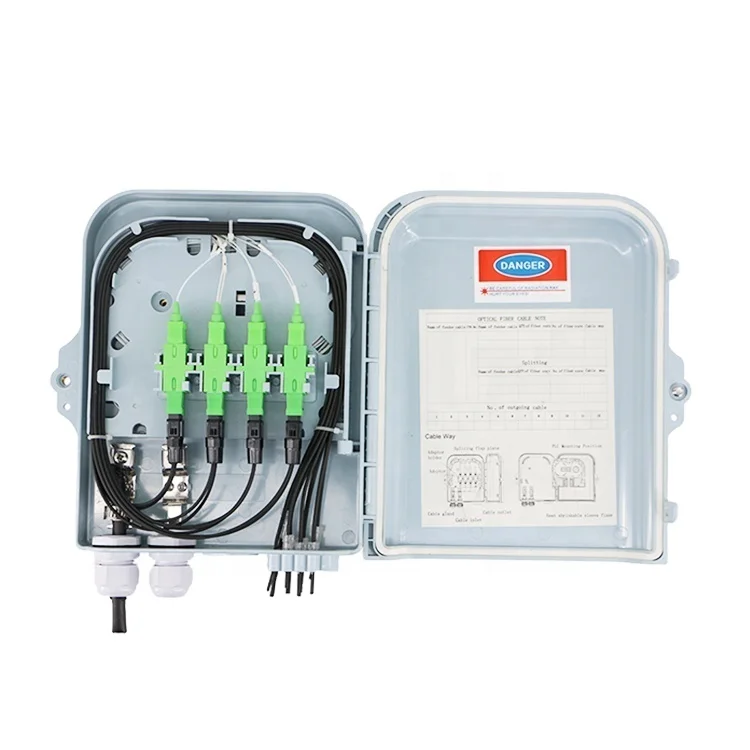

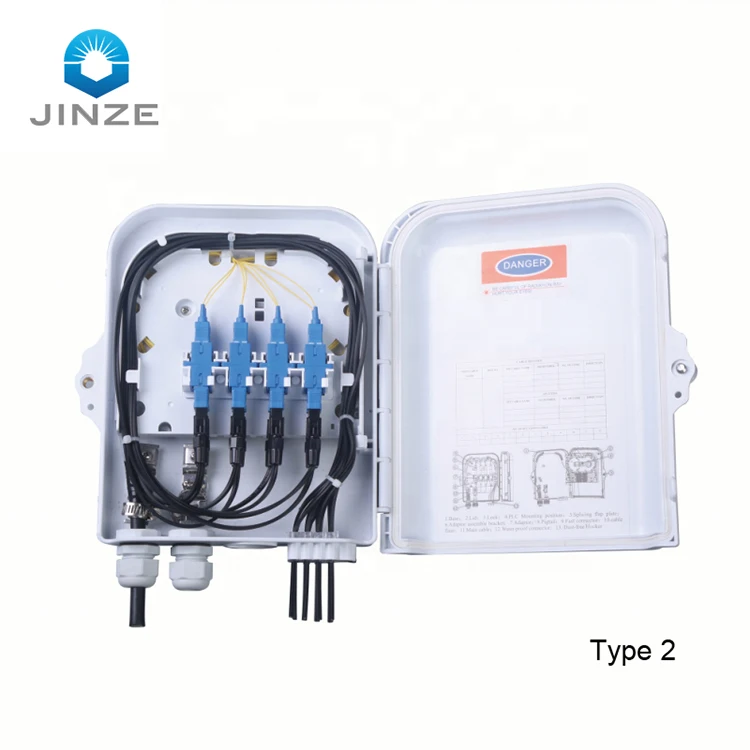

1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
Our Company
NIngbo Jinze Telecommunication Equipment Co.,Ltd. was founded in 1994.We have a complete R&D system,advanced production and testing equipments,and have established a quality assurance system in accordance with the ISO9001 standards.
After more than 20 years of development in the communication and network field,our company now provides a full range of products and solutions in FTTH(FTTX)system,Generic Cabling system (ALL-LAN),and MDF system.The products have past the tests from the Ministry of Information Industry of China.
Jinze always keeps 'quality,service'as the guiding principle.With the innovative technology and scientific management,we are ready to effectively provide all kinds of standard products and customized products for you!
Certifications
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
