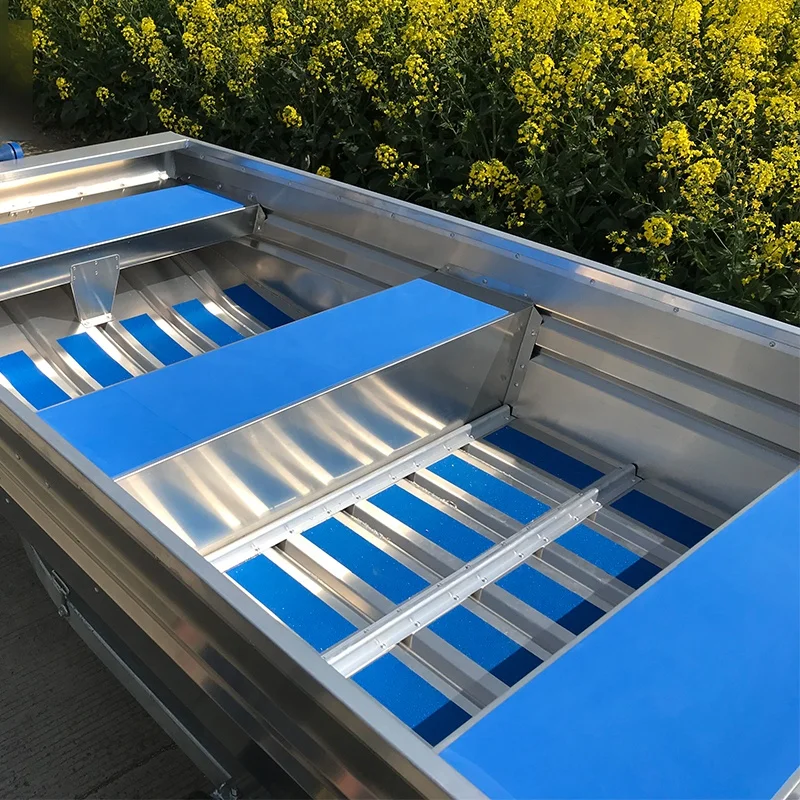

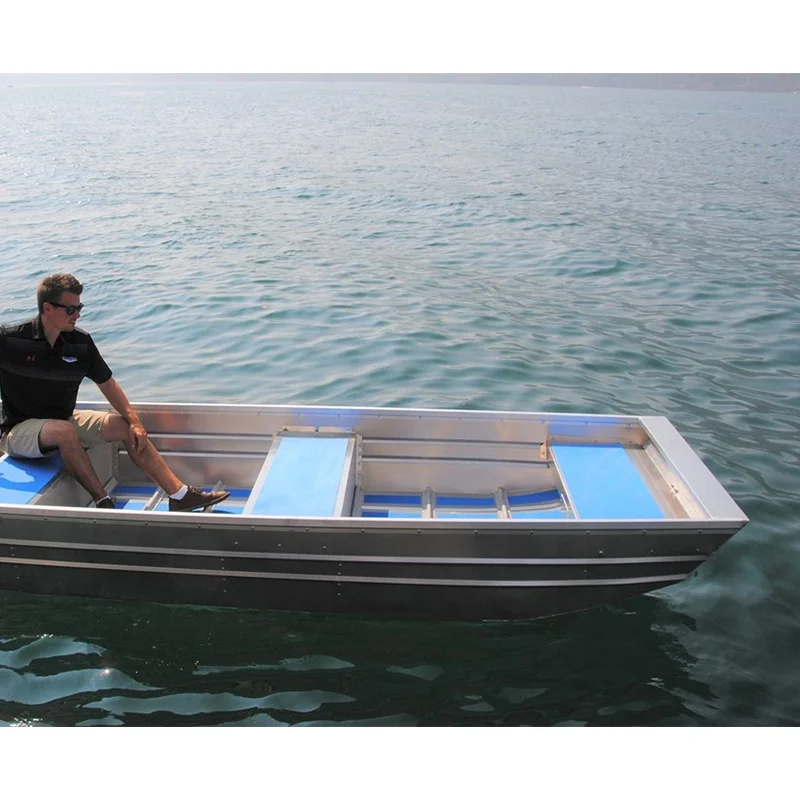

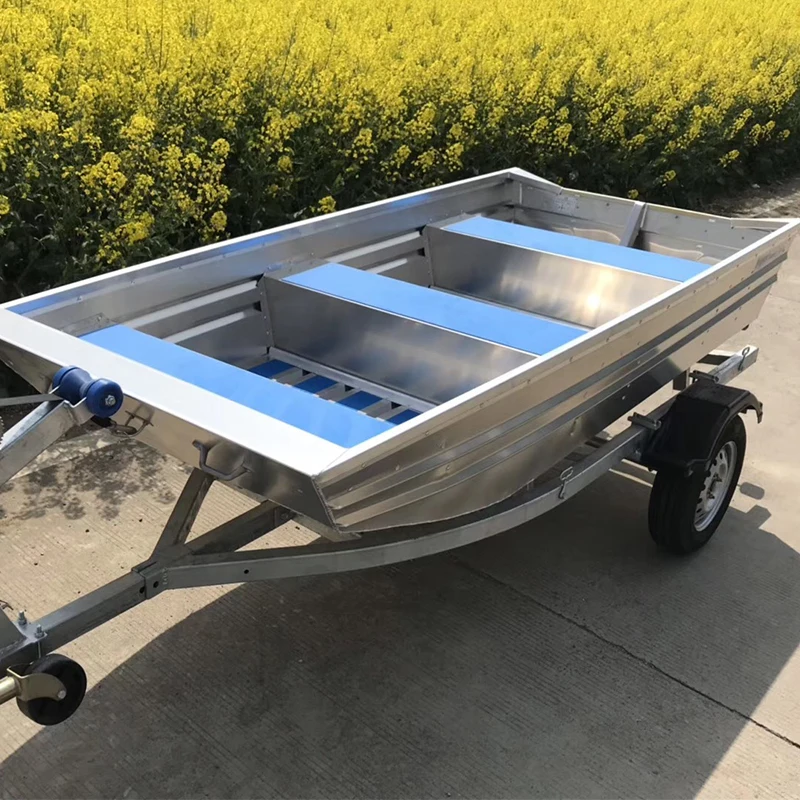

CG Marine Aluminum Hull Classic riveted and welded Jon Boat



Why choose CG MARINE aluminium boats?



Aluminium is the most common metal in the Earth's crust. Its very availability has made it popular for many uses.

Everything from foodstuffs packaging to aircraft and boats. Despite its availability, aluminium, unlike plastics, hasits own cycle". Without losing its unique properties, it is fully recyclable. The aluminium alloy we use is strongyet light. CG marine boats tolerate hard use and robust landings.







Parameter

specifications CG-290 CG-300 CG-330 CG360 CG-360Z CG-370 BY-430 BY-490 Length  2.9m 3.0m 3.3m 3.6m 3.6m 3.7m 4.3m 4.9m Beam 1.1m 1.4m 1.15m 1.15m 1.35m 1.5m 1.6m 1.8m Max Depth  0.4 0.45 0.4 0.4 0.4 0.5 0.58m 0.58m Transom Height  0.41m 0.41m 0.41m 0.41m 0.41m 0.41m 0.41m 0.51m Bottom Thickness  1.2mm 1.2mm 1.2mm 1.2mm 1.2mm 1.2mm 2mm 2mm Side Thickness  1.2mm 1.2mm 1.2mm 1.2mm 1.2mm 1.2mm 2mm 2mm Transom Thickness  2mm 2mm 2mm 2mm 2mm 2mm 3mm 3mm Weight(hull) 38KG 45KG 44KG 48kg 50kg 60kg 100kg 130kg Max loading capacity ≤180kg ≤200kg ≤240kg ≤280kg ≤320kg ≤350kg ≤380kg ≤480kg Max passenger 2 2 2 2 2+1 3 4 6 Max HP  5HP 6HP 5HP 5HP 6HP 8HP 15HP 30HP Boweye 1 1 1 1 1 1 1 1 Rear Handles 2 2 2 2 2 2 2 2 Buoyancy Seat 2 2 2 2 2 2 2 3 Drainage Hole 1 1 1 1 1 1 1 1 Rear Storage —— —— —— —— —— —— —— —— Non Slip Floor —— —— —— —— —— —— —— —— handrail —— —— —— —— —— —— —— ——

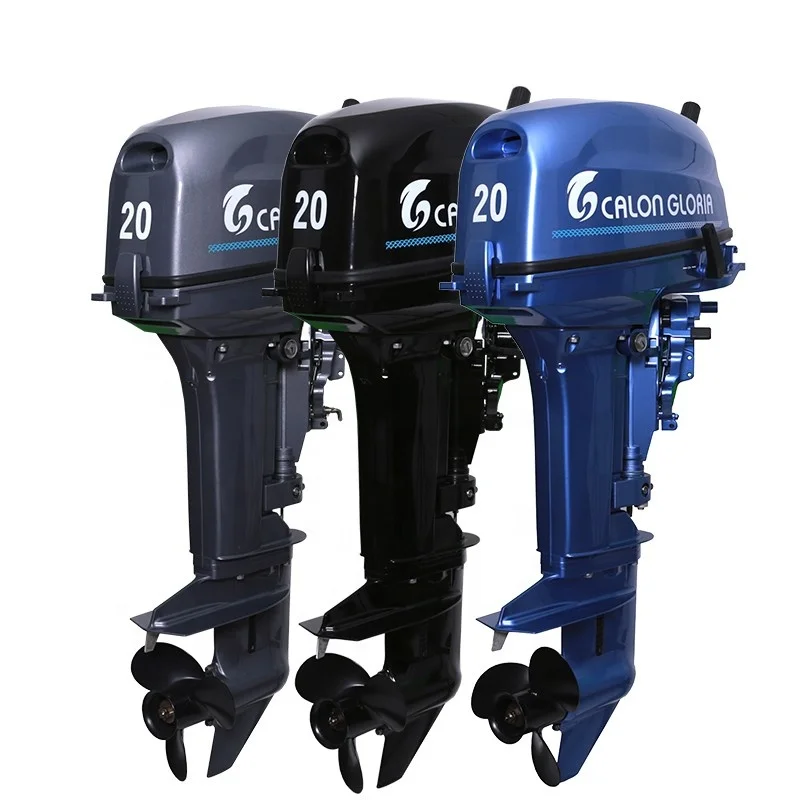

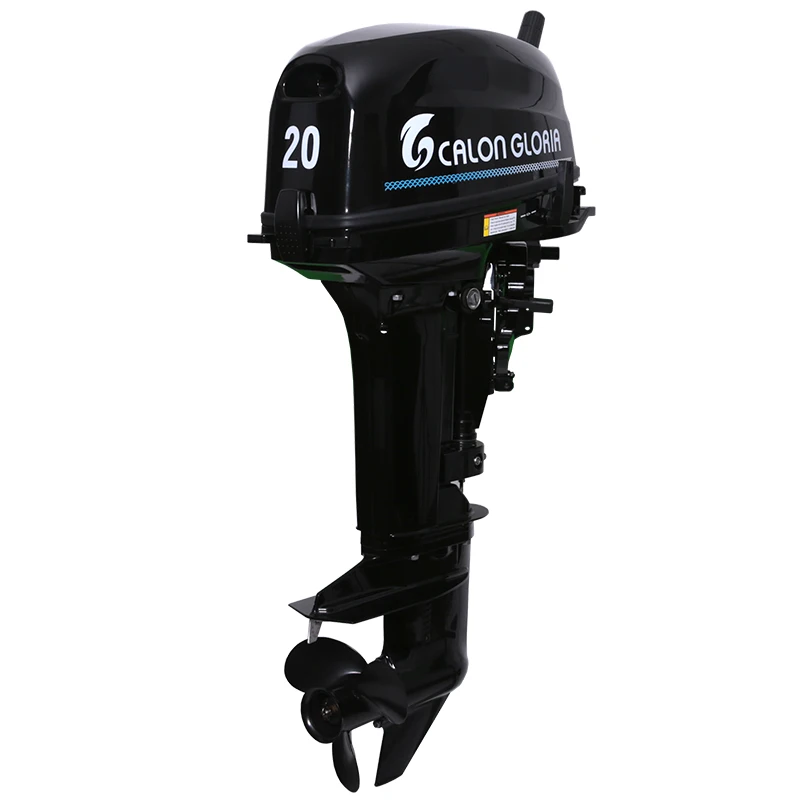

OUTBOARD MOTOR CG 3-40HP 2 stroke Click:









Details











Packing Details

Size	20GP(MOQ)	40HQ
12ft Flat bottom	8 pcs	27pcs
14ft Flat bottom	7pcs	24pcs
