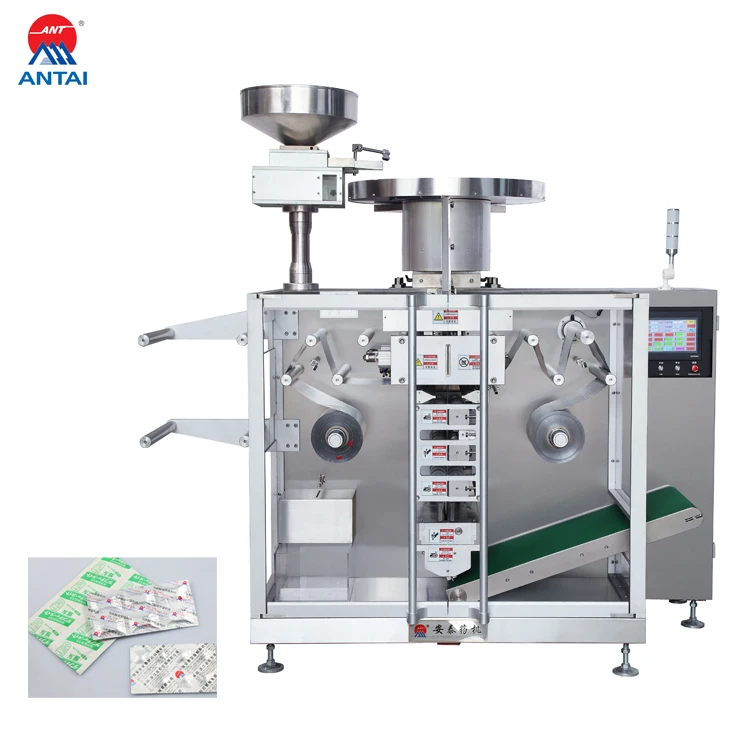

Автоматическая машина для упаковки мягкой двойной алюминиевой полосы ламинированной фольги
- Категория: >>>
- Поставщик: Ruian,Antai,Pharmaceutical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.6 $* | 0.62 $* |
| Aug-15-2025 | 0.16 $* | 0.5 $* |
| Jul-15-2025 | 0.67 $* | 0.46 $* |
| Jun-15-2025 | 0.34 $* | 0.83 $* |
| May-15-2025 | 0.50 $* | 0.16 $* |
| Apr-15-2025 | 0.26 $* | 0.82 $* |
| Mar-15-2025 | 0.26 $* | 0.30 $* |
| Feb-15-2025 | 0.31 $* | 0.85 $* |
| Jan-15-2025 | 0.13 $* | 0.39 $* |
Характеристики
Product Description
Speed of drum | 5-11m/min |
Packing Specification | 440 |
PVC for medicine | 0.05-0.1*440mm |
AL/PL Laminated Foil | 0.08*440mm |
Electrothermal Power | 3.2kw |
Main Motor Power | 1.55kw |
Overall Dimension | 1800*1100*2100(L*W*H) |
Weight | 1500kg |
Summarize:
This machine is a new generation of high-tech products developed and designed by our scientific researchers. Each mechanism adopts an independent power unit, driven by a servo (synchronous motor) and controlled by PLC to realize the synchronization and stability of feeding, material control, hot press forming, temperature infrared detection, material cooling, defective product detection, indentation, coding, slitting, traction, roll cutting, reject, conveying and edge crushing. It is suitable for soft double aluminium packaging of tablets, capsules and pills in pharmaceutical and health products industries. The pack The packaged
strip is light-proof, moisture-proof, good sealing and high grade.
strip is light-proof, moisture-proof, good sealing and high grade.
Packaging materials: polyethylene chloride thin film, aluminum-plastic composite film, paper-plastic-aluminum composite film, dialysis paper etc.
Basic Process：
Features:
1. Innovative design which compared with old type；
2. Adopt PLC control, 10 Inch Touch Screen operation, Chinese and English digital display, three-level password permission can be set, frequency conversion speed regulation, 5-position servo drive control;
3. Material controlling adopt ratchet mechanism, servo drive, PLC control, can effective higher feeding speed to meet machine high speed running；
4. The diameter of heat pressing cam can be changed between 90-130mm, easy to change different specification；
5. Heating thermometric parts adopt infrared checking, PLC control, can effective avoid bad sealing, virtual stick etc phenomenon which caused by temperature error at high speed running；
6. Product feeding adopt roll cutting feeding, servo drive, PLC control, can effective raise machine speed and ensure synchronism and steady；
7. Defective sorting, product transporting adopt manipulator control, convenient for follow-up connect line；
8. Waste material mechanism adopt roll cutting type, convenient for waste material recycle；
9. Machine without pneumatic component, no need compressed air；
10. This machine suitable for AL/PL laminated foil packaging, also suitable for Paper/Foil or thin film/thin plastic film package；
11. This machine design novel, beautiful, the cover consist of armoured glass and aluminum alloy frame to higher product level；
12. Can add Photocell Device, Photocell Device can make your product packaging more beautiful；
13. Can Additional Equip horizontal vibration screening (tablet dust, debris, debris collection), automatic feeding, customized production of cartoning machine connection.
1. Innovative design which compared with old type；
2. Adopt PLC control, 10 Inch Touch Screen operation, Chinese and English digital display, three-level password permission can be set, frequency conversion speed regulation, 5-position servo drive control;
3. Material controlling adopt ratchet mechanism, servo drive, PLC control, can effective higher feeding speed to meet machine high speed running；
4. The diameter of heat pressing cam can be changed between 90-130mm, easy to change different specification；
5. Heating thermometric parts adopt infrared checking, PLC control, can effective avoid bad sealing, virtual stick etc phenomenon which caused by temperature error at high speed running；
6. Product feeding adopt roll cutting feeding, servo drive, PLC control, can effective raise machine speed and ensure synchronism and steady；
7. Defective sorting, product transporting adopt manipulator control, convenient for follow-up connect line；
8. Waste material mechanism adopt roll cutting type, convenient for waste material recycle；
9. Machine without pneumatic component, no need compressed air；
10. This machine suitable for AL/PL laminated foil packaging, also suitable for Paper/Foil or thin film/thin plastic film package；
11. This machine design novel, beautiful, the cover consist of armoured glass and aluminum alloy frame to higher product level；
12. Can add Photocell Device, Photocell Device can make your product packaging more beautiful；
13. Can Additional Equip horizontal vibration screening (tablet dust, debris, debris collection), automatic feeding, customized production of cartoning machine connection.

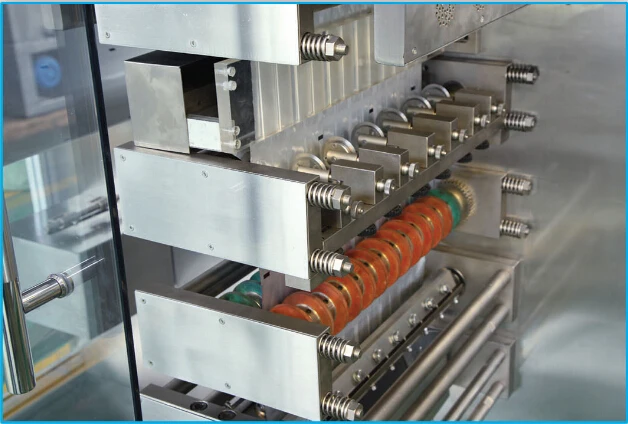

Detailed Images
Customer Photos
Project or customer name: | PT. XXX |
Customer country: | Indonesia |

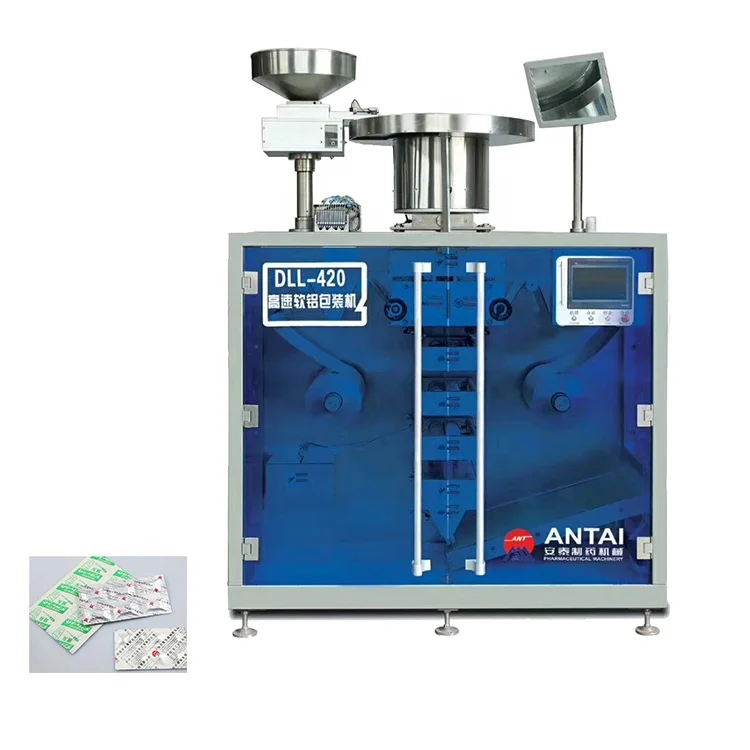

Trade Product Name: | DLL-420 High Speed Strip Packing Machine |
Recommend Products
Finished Products
Company Introduction
Ruian Antai Pharmaceutical Machinery Co., Ltd. (Antai) is located in the Chinese Packing Machinery City. Equipped with strong technical capabilities and advanced production equipment, we integrated scientific research, manufacture, and sales service. We develop our different series of packing machines by modern techniques. In September 2000, our company became a member of China Association for Pharmaceutical Equipment. Moreover, we manage our company in accordance with ISO9001:2000 and 5S systems. We also provide pharmacy equipment and foodstuff equipment according to GMP requirements and CE authentication. In 2007, we obtained independent foreign trade rights by The People's Republic of China.With the characteristics of multiple functions, steady
performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for
10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for
10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
FAQ
Q:Are you factory or a trading company.
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works.
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products.
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
