Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Китайский производитель продажа автоматический гибочный станок для сгиба медных труб 1 дюйм и 2
- Категория: Гибочные станки для труб и трубок >>>
- Поставщик: Zhangjiagang,Heli,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7021.7 $* | 7372.6 $* |
| Aug-16-2025 | 6962.15 $* | 7310.7 $* |
| Jul-16-2025 | 5841.73 $* | 6133.54 $* |
| Jun-16-2025 | 6844.53 $* | 7186.39 $* |
| May-16-2025 | 5959.93 $* | 6257.80 $* |
| Apr-16-2025 | 6726.4 $* | 7062.17 $* |
| Mar-16-2025 | 6667.5 $* | 7000.16 $* |
| Feb-16-2025 | 6608.76 $* | 6938.4 $* |
| Jan-16-2025 | 6549.62 $* | 6876.24 $* |
Характеристики
Products Description
feature machine

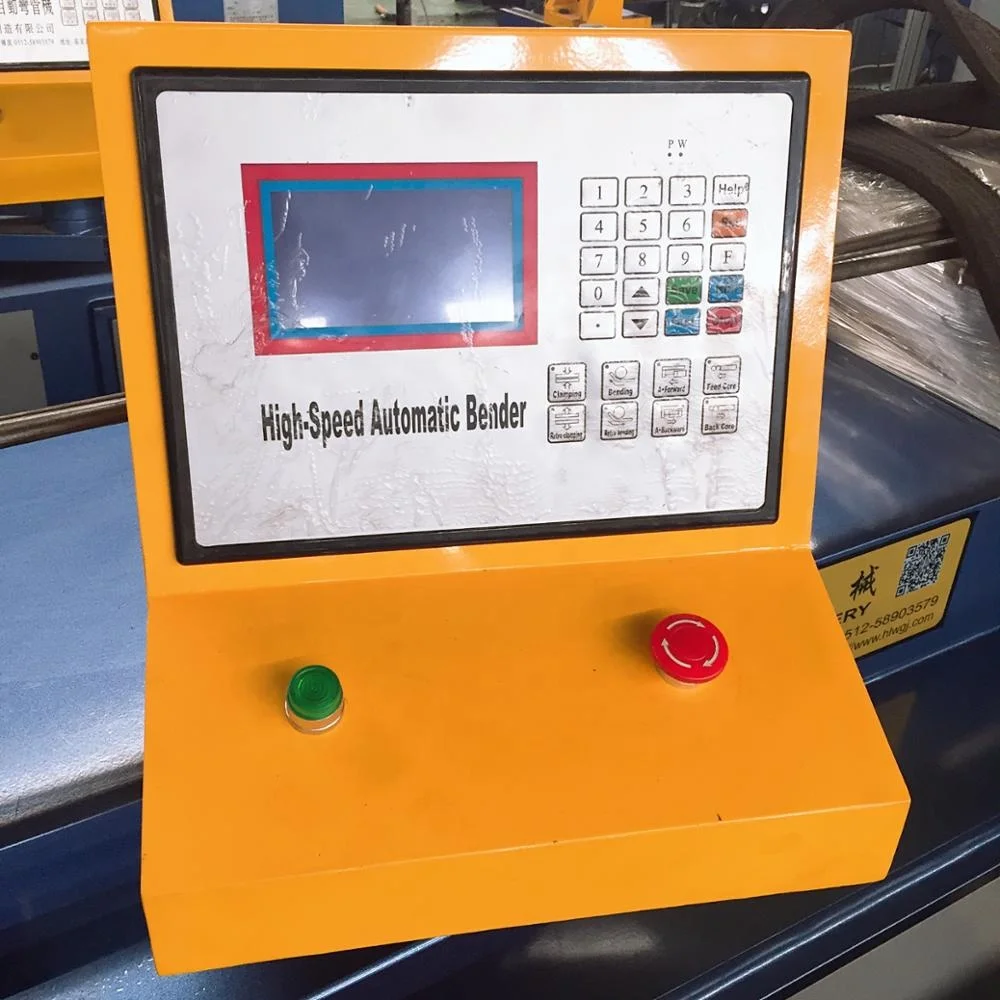

1. Using Micro computer control,man-machine dialogue operation, the machine can remind operator what to do next step. very easy
operation
2. the machine body structure is stable, not easy to deformation
3. can set 16 bending angle for each pipe, and can can store 256 sets bending file
4. Error message displayed on the screen to help the operator immediately excluded.
6. can set any bending angle from 0-190degree.
7. English control panel and program
8. the machine has manual working mode as well as automatic working mode
9.can ben round pipe, square tube, oval tube, rectangular tube as well as aluminum profile
10.can bend copper pipe,stainless steel pipe, steel pipe,as well as aluminum pipe.
11.machine voltage can be customized, (such as 415,400.22V etc)
operation
2. the machine body structure is stable, not easy to deformation
3. can set 16 bending angle for each pipe, and can can store 256 sets bending file
4. Error message displayed on the screen to help the operator immediately excluded.
6. can set any bending angle from 0-190degree.
7. English control panel and program
8. the machine has manual working mode as well as automatic working mode
9.can ben round pipe, square tube, oval tube, rectangular tube as well as aluminum profile
10.can bend copper pipe,stainless steel pipe, steel pipe,as well as aluminum pipe.
11.machine voltage can be customized, (such as 415,400.22V etc)
Type | SB-50NC |
Max diameter of pipe | Φ50×2.0 T |
Max core length of wear | 2000mm |
Max bending angle | 180° |
maxi Bending radius | 220mm |
Elbow number | 16 |
Pipe number of files | 16X16 |
Size | 280*80*100 |
Control method | NC single chip |
Motor power | 5.5kw |
Hydraulic press | 14Mpa |
Cooling system | Water cooling |

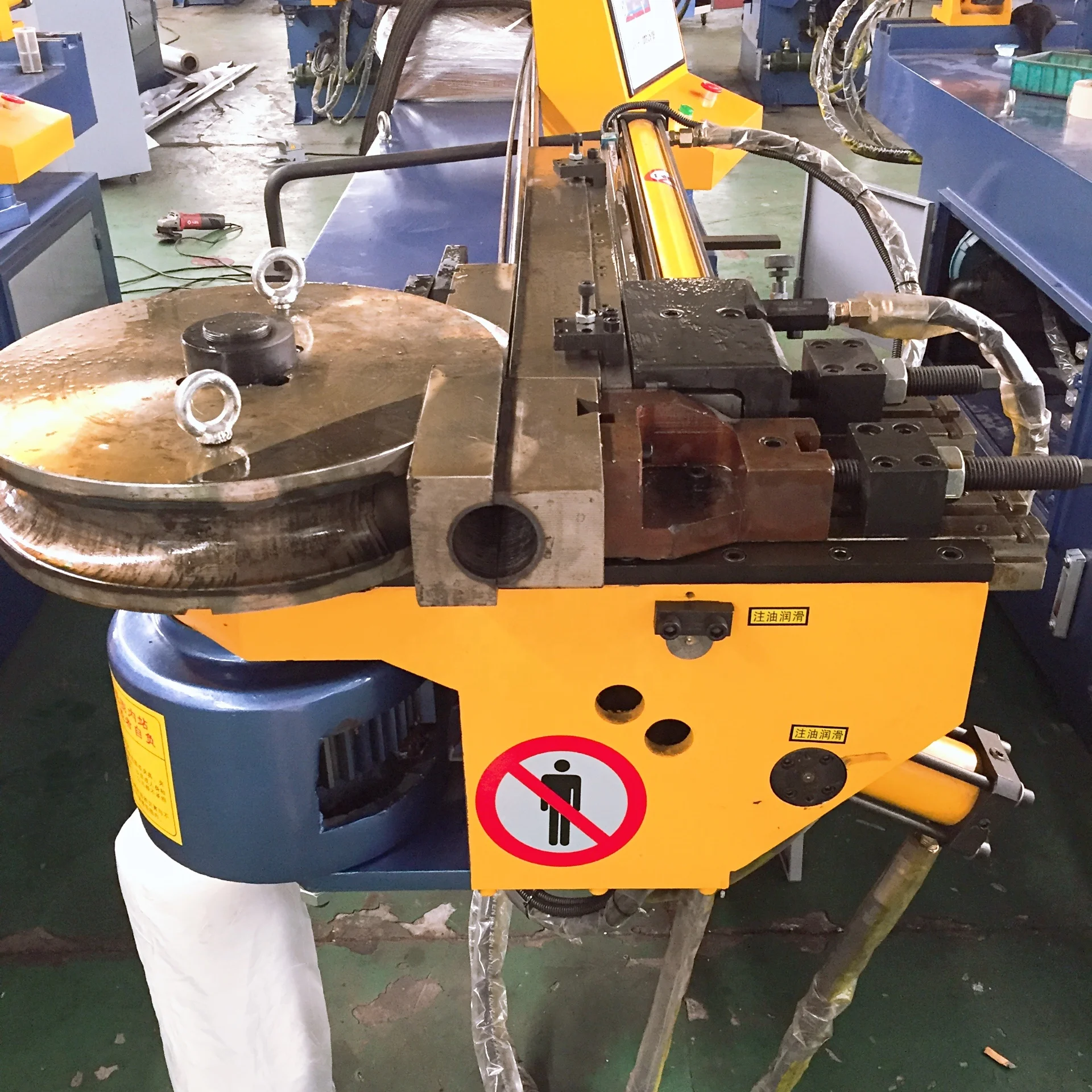

mould
mandrel
mould
wiper die
parameter needed before inquiry
we need to know several parameters before recommend the suitable model
1. what product are you going to produce with pipe bending machine
2. what is the pipe material ?
3. what is the pipe OD and thickness
4. what is the bending radius
5.how many angles on one pipe
6 what is the pipe length?
5. if you have bending drawing, please send it to me, so that we can know your technical requirement . just like the bending
drawing as belowed.
1. what product are you going to produce with pipe bending machine
2. what is the pipe material ?
3. what is the pipe OD and thickness
4. what is the bending radius
5.how many angles on one pipe
6 what is the pipe length?
5. if you have bending drawing, please send it to me, so that we can know your technical requirement . just like the bending
drawing as belowed.
CE
CE
C
After sales-service
After the machine is installed in buyer’s factory, 365 days later, if any parts are damaged because of quality,
the seller will give new parts for free
I f any problem happens to the machine, Seller agrees to assist the Buyer in repairing the machine
through email or phone call. In case the presence of Sellers technician is required for repairing the machine,
the Buyer will pay for the tickets and accommodation of visiting technician.
the seller will give new parts for free
I f any problem happens to the machine, Seller agrees to assist the Buyer in repairing the machine
through email or phone call. In case the presence of Sellers technician is required for repairing the machine,
the Buyer will pay for the tickets and accommodation of visiting technician.
