Вакуумное обслуживание для криогенного газового баллона
- Категория: Сосуды высокого давления >>>
- Поставщик: South,China,Special,Gas,Institute,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.65 $* | 0.12 $* |
| Aug-19-2025 | 0.47 $* | 0.24 $* |
| Jul-19-2025 | 0.67 $* | 0.27 $* |
| Jun-19-2025 | 0.3 $* | 0.77 $* |
| May-19-2025 | 0.36 $* | 0.93 $* |
| Apr-19-2025 | 0.56 $* | 0.95 $* |
| Mar-19-2025 | 0.71 $* | 0.78 $* |
| Feb-19-2025 | 0.5 $* | 0.88 $* |
| Jan-19-2025 | 0.68 $* | 0.95 $* |
Характеристики
Product Description

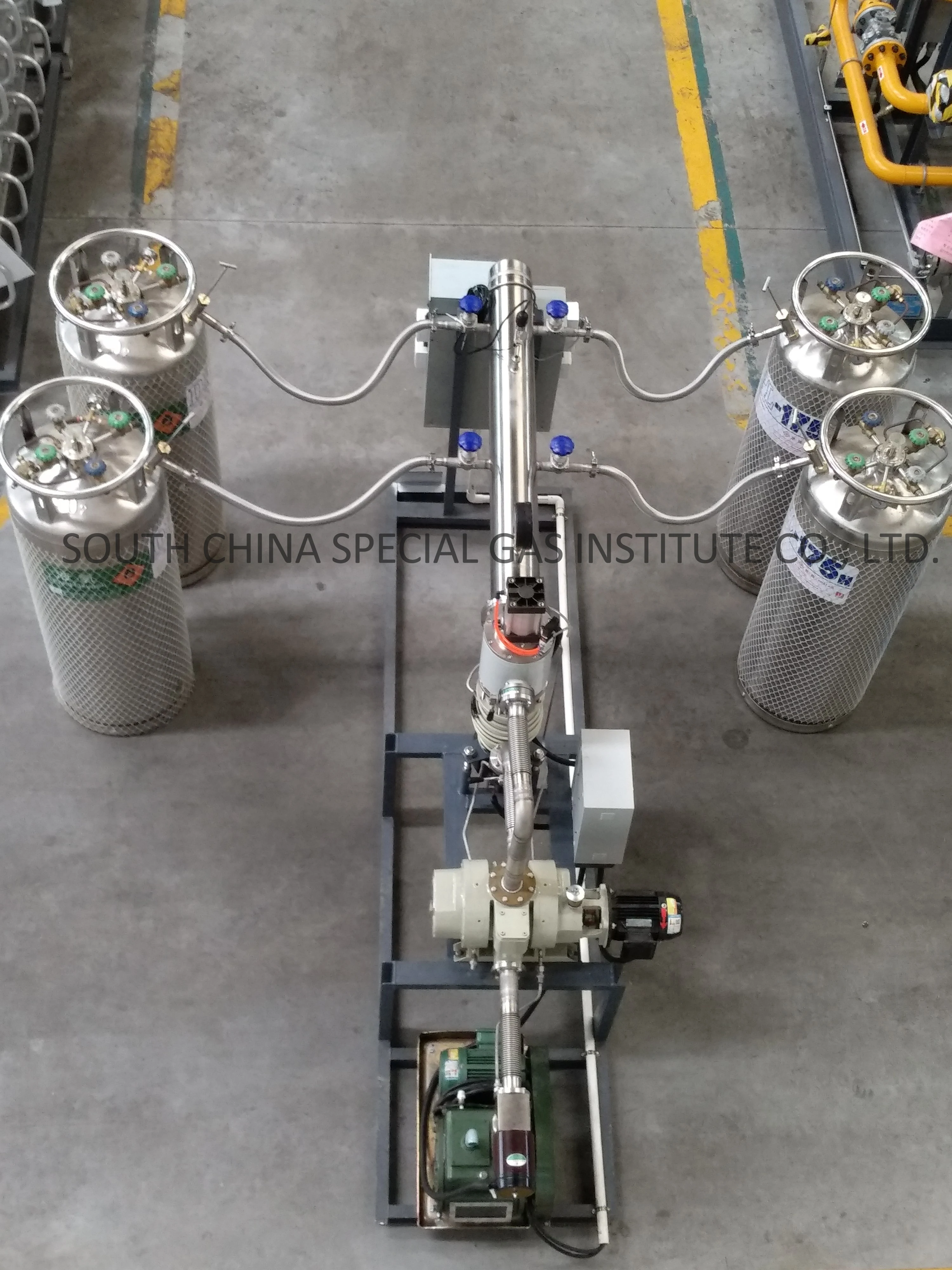

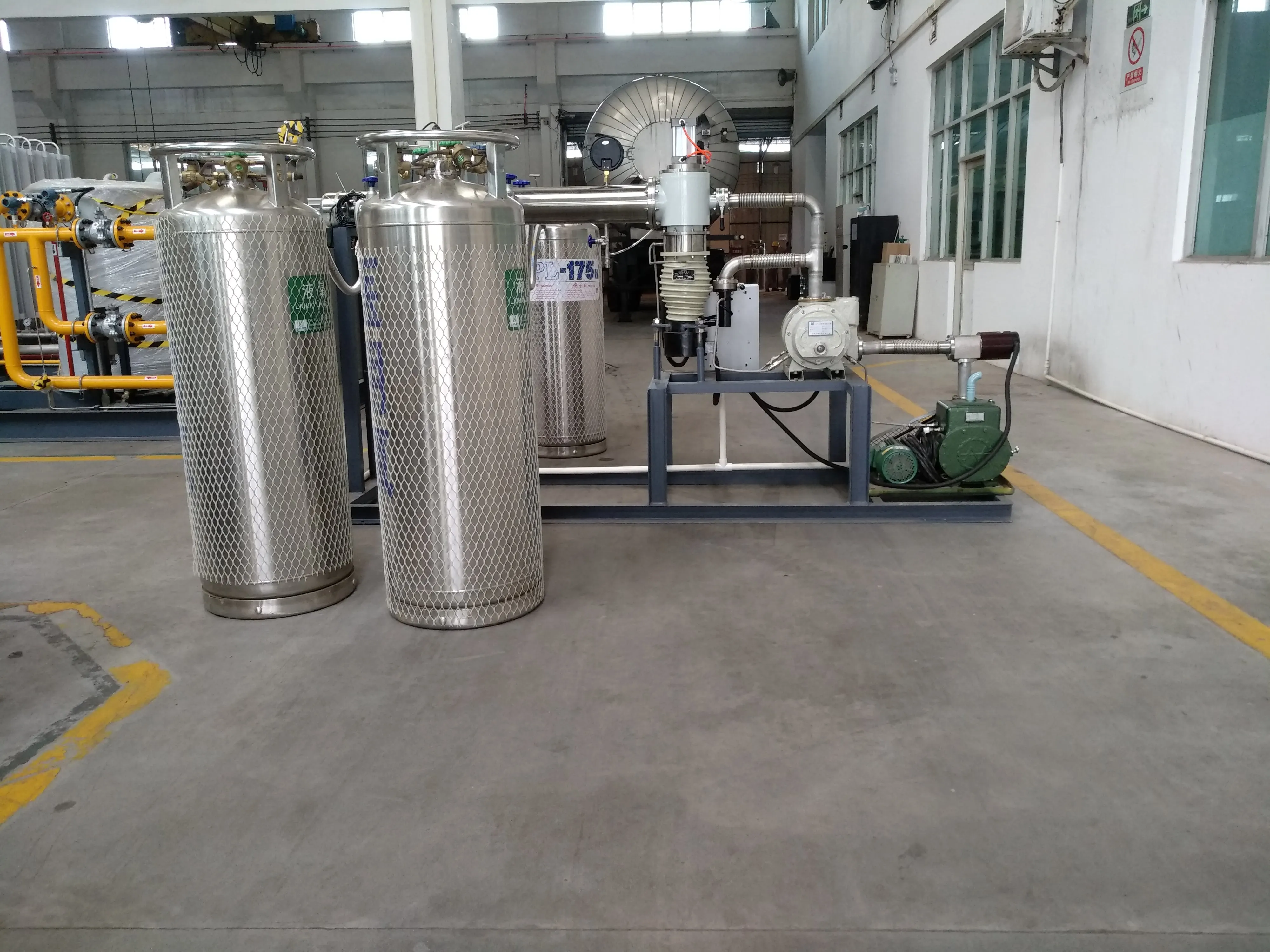

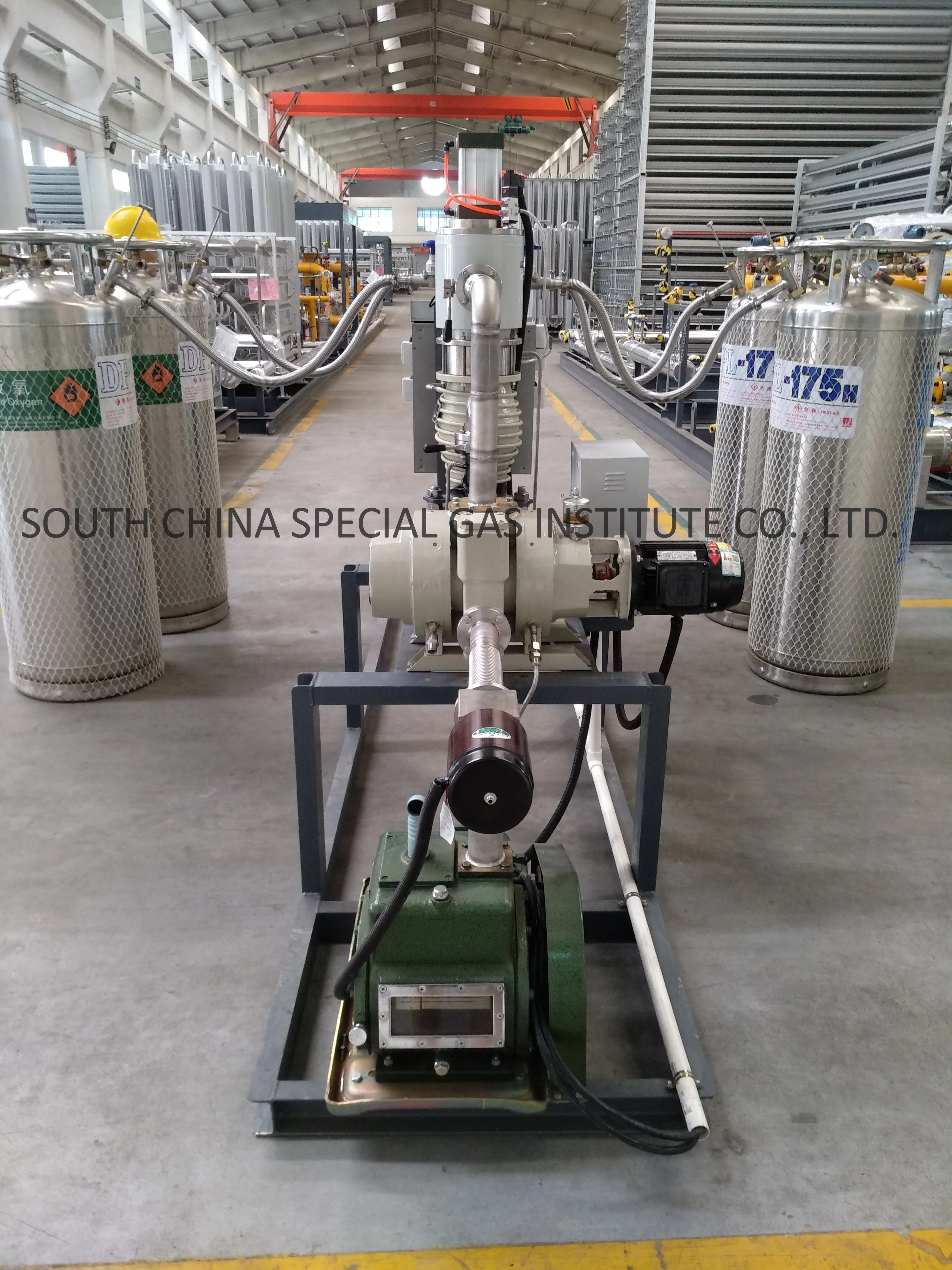

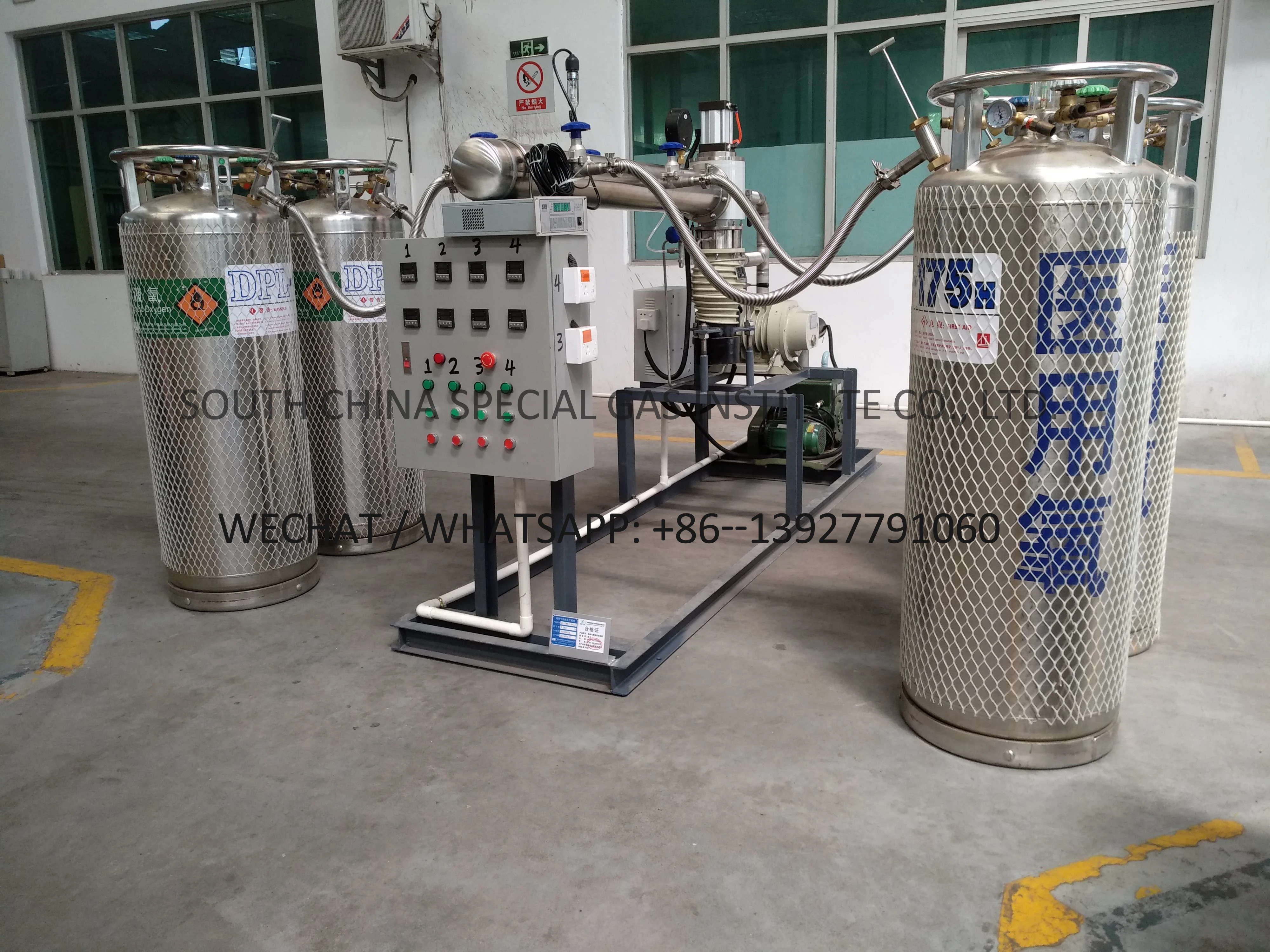

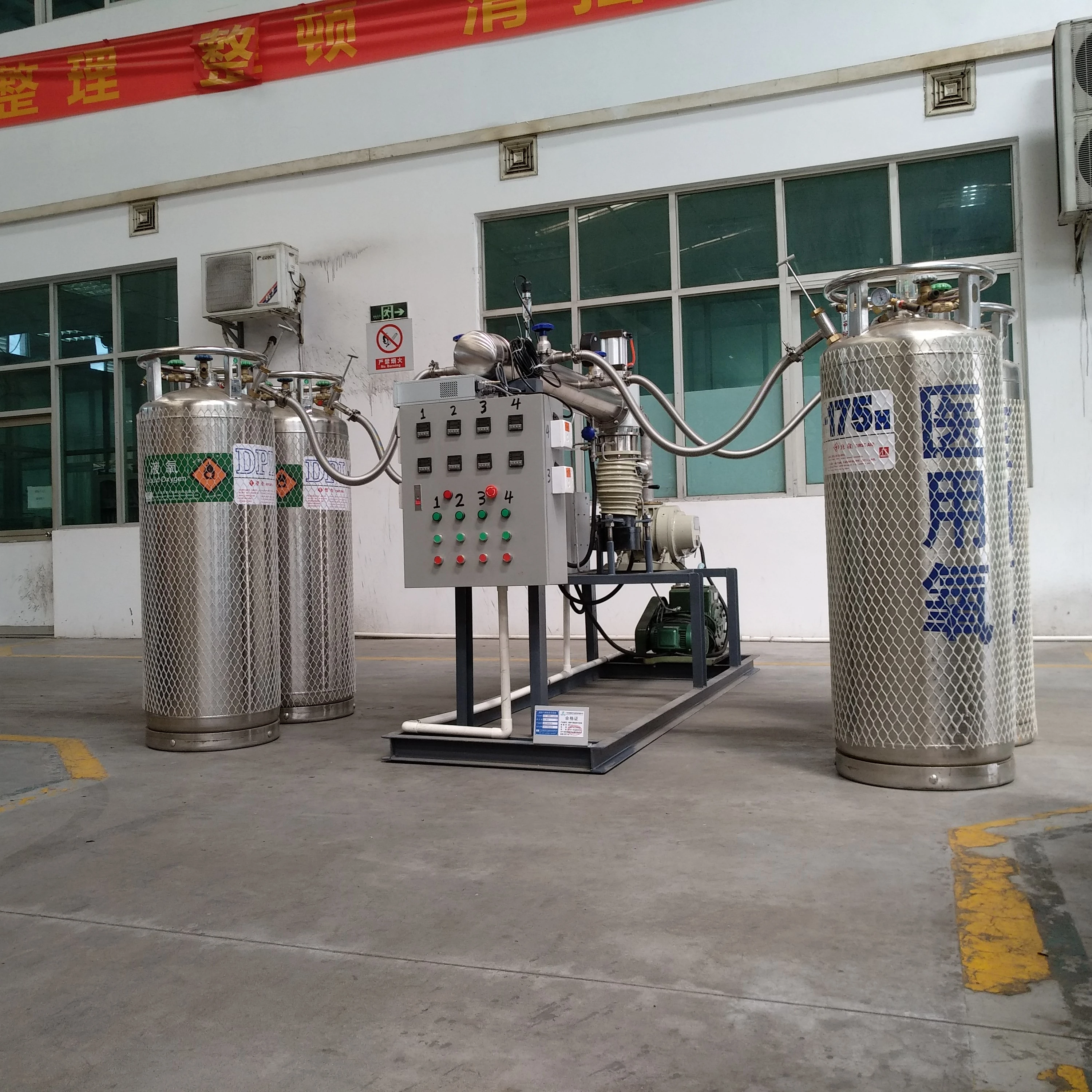

SCSG-VM4 Vacuum maintenance equipment can re-vacuumized cryogenic gas cylinder ranged from 100L -450L as for following specifaction:
DPL-175L/195L/210L-1.4Mpa Technical Specification | ||||||
Product Model | DPL-175L | DPL-195L | DPL-210L | |||
Diameter*Height(mm) | 508*1500 | 508*1620 | 508*1707 | |||
Working Pressure(MPa) | 1.40 | 1.40 | 1.40 | |||
Pressure Relief Valve(MPa) | 1.59 | 1.59 | 1.59 | |||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 | 2.60 | |||
Maximum Liquid Capacity(L) | 175 | 195 | 210 | |||
Usable Liquid Capacity(L) | 166 | 185 | 197 | |||
Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | |||
Tare Weight(Kg) | 110 | 117 | 123 | |||
Max. Filling Quality Oxygen(kg) | 172 | 191 | 205 | |||
Max. Filling Quality Nitrogen(kg) | 121 | 135 | 145 | |||
Max. Filling Quality Argon(Kg) | 208 | 233 | 250 | |||
Max. Filling Quality Natural Gas (Kg) | 70.1 | 76 | 86.3 | |||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
S30408 Refined Polish
Each of our cylinder must strictly go through degreasing and refined polish.
Digitail level gauge Optional
we provide digital level gauge for option, which is show by precision percentage.
Anti-Shock Rubber Cushion
The thicken rubber cushion can
greatly prevent the inner container
from any sudden shock and buffer
the impact.
.
Protective ring.
Each of our cylinder has two protective rings to protect the brass vaporizer coils and pressure built coils from any deformation
Firm Foundation Structure.
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation.
Certifications
Our Service
Packing & Delivery
