Грузовой кран XCMG qy50k ii грузовой 50 тонн
- Категория: Cranes >>>
- Поставщик: Xcmg,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.37 $* | 12495.57 $* |
| Aug-16-2025 | 11800.73 $* | 12390.12 $* |
| Jul-16-2025 | 9900.45 $* | 10395.98 $* |
| Jun-16-2025 | 11600.31 $* | 12180.95 $* |
| May-16-2025 | 10100.60 $* | 10605.75 $* |
| Apr-16-2025 | 11400.97 $* | 11970.7 $* |
| Mar-16-2025 | 11300.82 $* | 11865.57 $* |
| Feb-16-2025 | 11200.39 $* | 11760.88 $* |
| Jan-16-2025 | 11100.33 $* | 11655.10 $* |
Характеристики
Product Description

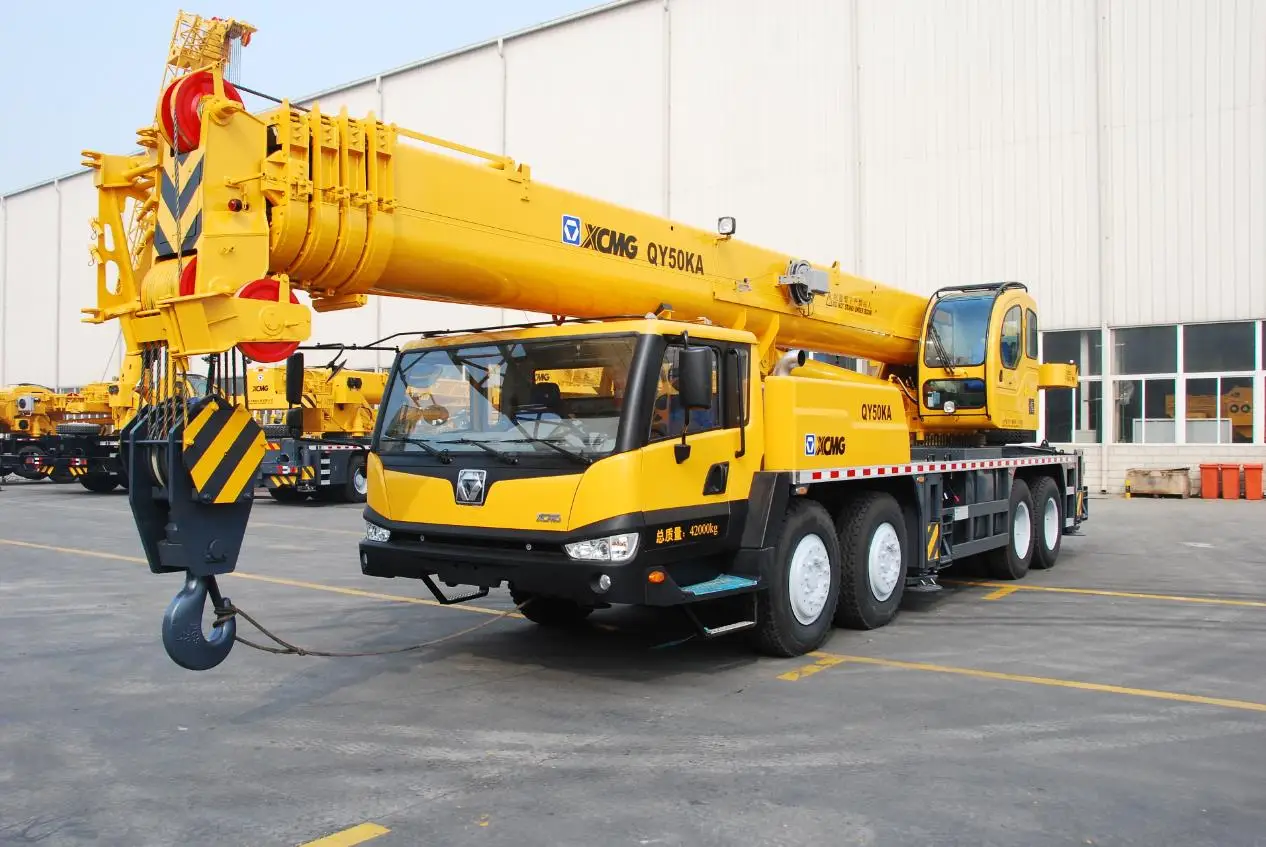

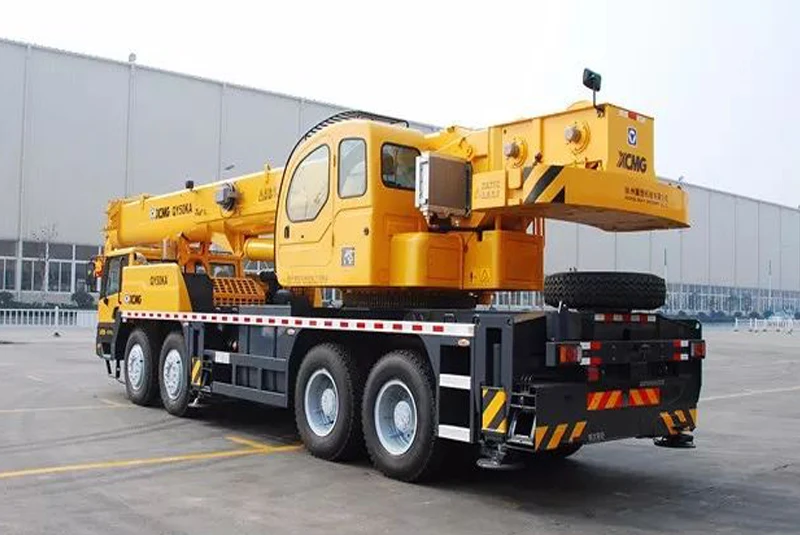

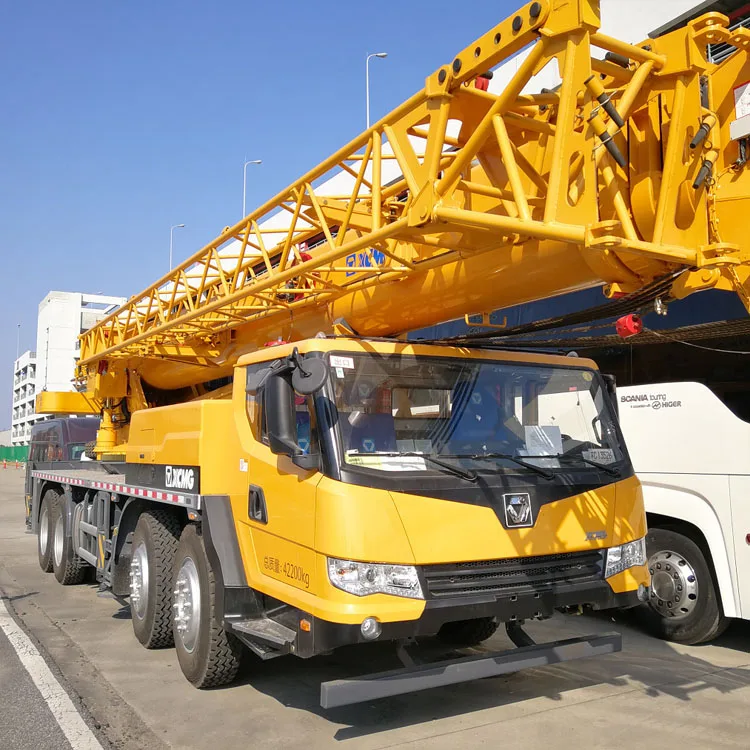

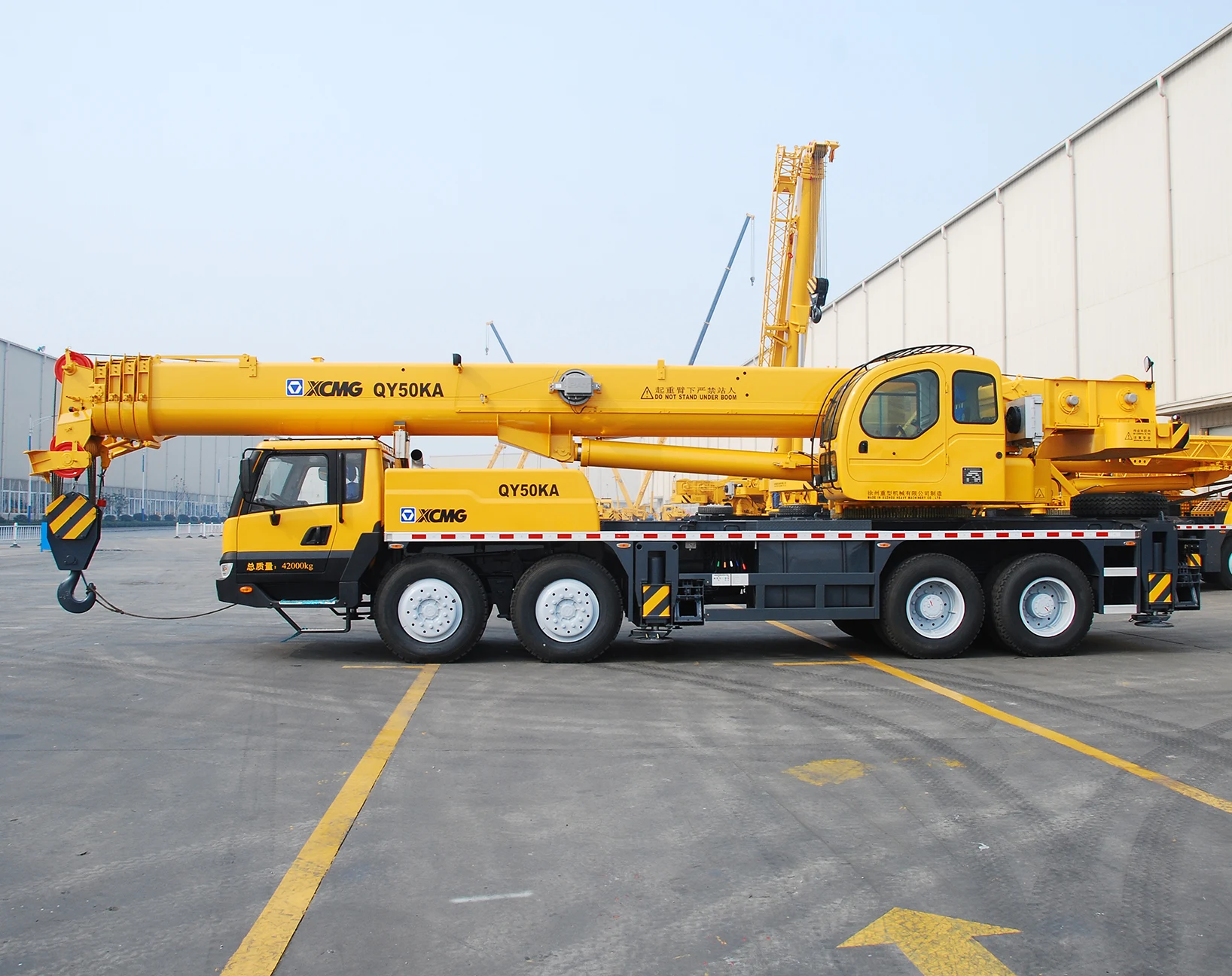

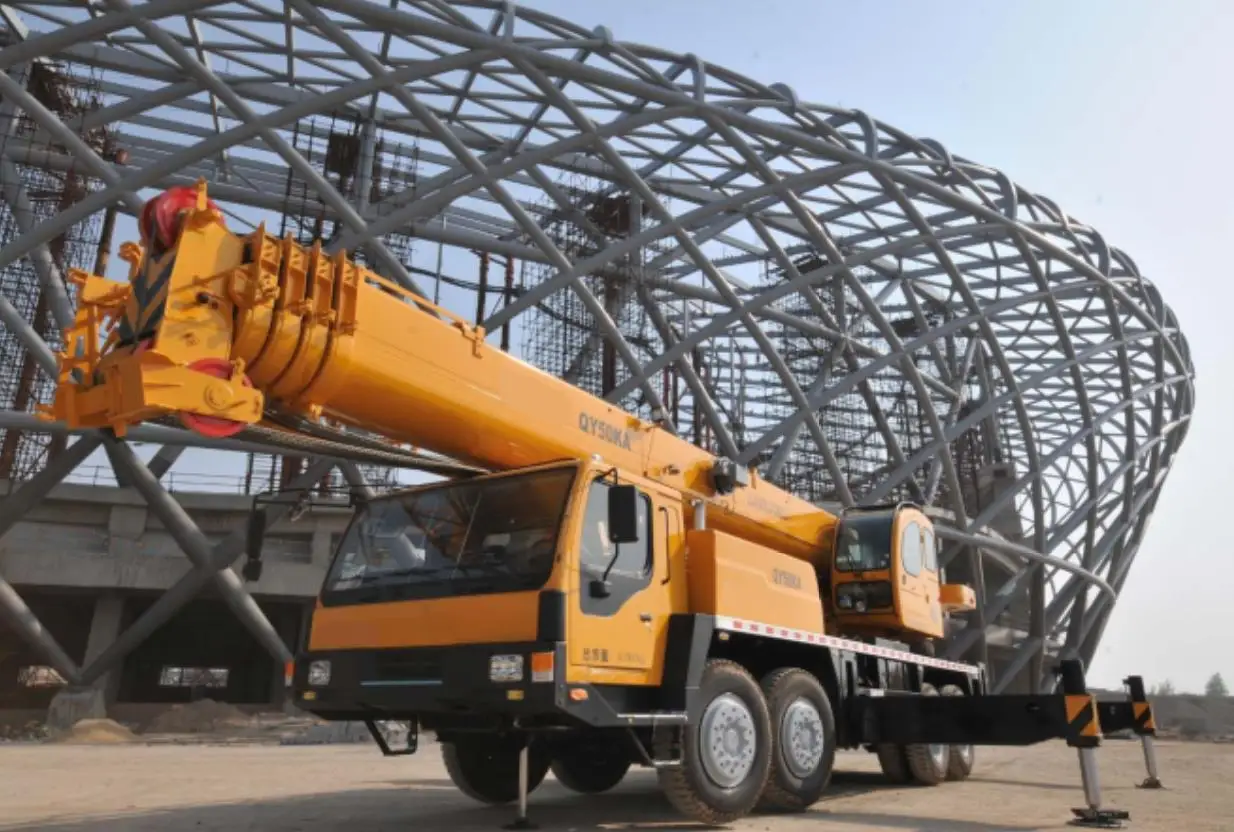

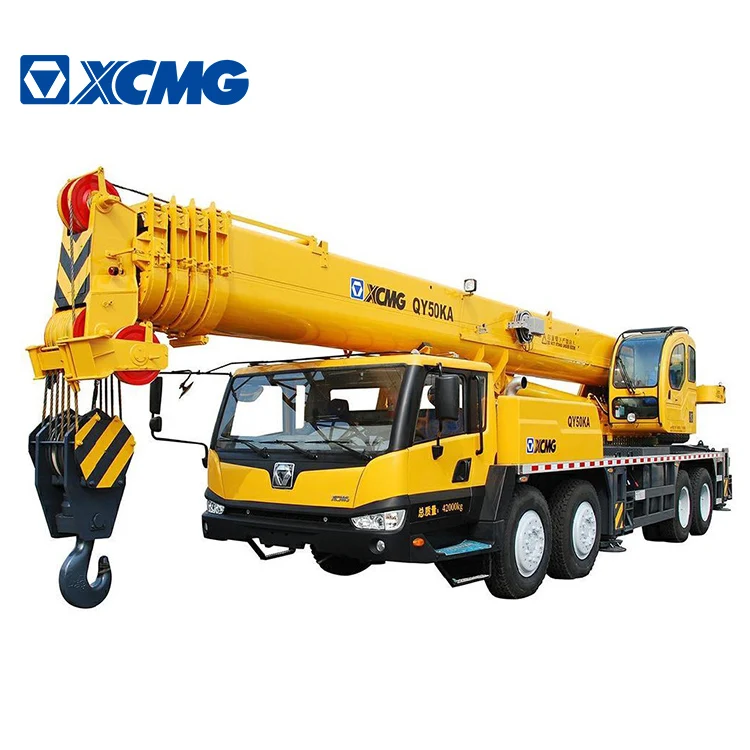

XCMG qy50k ii truck crane 50 ton mobile crane price.
XCMG QY50KA truck crane's structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors.
Advantages and highlights:
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
3. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Advantages and highlights:
1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
3. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
Specification
Description | Unit | Parameter value | |
Overall length | / | mm | 13930 |
Overall width | / | mm | 2780 |
Overall Height | / | mm | 3630 |
Axle base | 1st ,2nd axle | mm | 1470 |
2nd ,3rd axle | 4300 | ||
3rd ,4th axle | 1350 | ||
Wheel Base | / | mm | 2304+2075 |
Front overhang/rear overhang | / | mm | 2389/2064or 2376/2064 |
Front extension/rear extension | / | mm | 2131/226 or 2144/226 |
Total vehicle mass in travel configuration | / | kg | 42200 |
Axle load | Front axle | kg | 16200 |
Rear axle | 26000 | ||
Engine Model | / | / | WD615.338 |
Engine rated power | / | kw/(r/min) | 276/2200 |
Engine rated torque | / | N.m/(r/min) | 1500/1300-1600 |
Max. travel speed | / | km/h | 85 |
Min. steady travel speed | / | km/h | 2～3 |
Min. turning diameter | / | m | 24 |
Min. ground clearance | / | mm | 327 |
Max. grade ability | / | % | 42 |
Approach angle | / | ° | 19 |
Departure angle | / | ° | 15 |
Braking distance (at 30 km/h, full load ) | / | m | ≤10 |
Oil consumption per 100km | / | L | 40 |
Exterior noise level during acceleration traveling | / | dB (A) | ≤88 |
Noise level at seated position | / | dB (A) | ≤90 |
Max. total rated lifting capacity | / | t | 50 |
Min. rated working radius | / | m | 3 |
Turning radius at turntable tail | / | mm | 3800 |
Max. load moment | Base boom | KN.m | 2009 |
Fully-extended boom | 1129 | ||
Outrigger span | Longitudinal | m | 6.1 |
Lateral | 7.1 | ||
Hoist height | Base boom | 11.9 | |
Fully-extended boom | 44 | ||
Fully-extended boom + Jib | 58.1 | ||
Boom length | Base boom | 11.4 | |
Fully-extended boom | 43.5 | ||
Fully-extended boom + Jib | 59.5 | ||
Jib offset angle | / | ° | 0, 15, 30 |
Time for boom raising | / | s | ≤40 |
Time for boom extending fully | / | s | ≤90 |
Max. slewing speed | / | r/min | ≥2.0 |
Exterior noise level | / | dB (A) | ≤118 |
Noise level at seated position | / | dB (A) | ≤90 |
Product Show
Packing & Delivery
Producing & Service
Company Profile
FAQ
