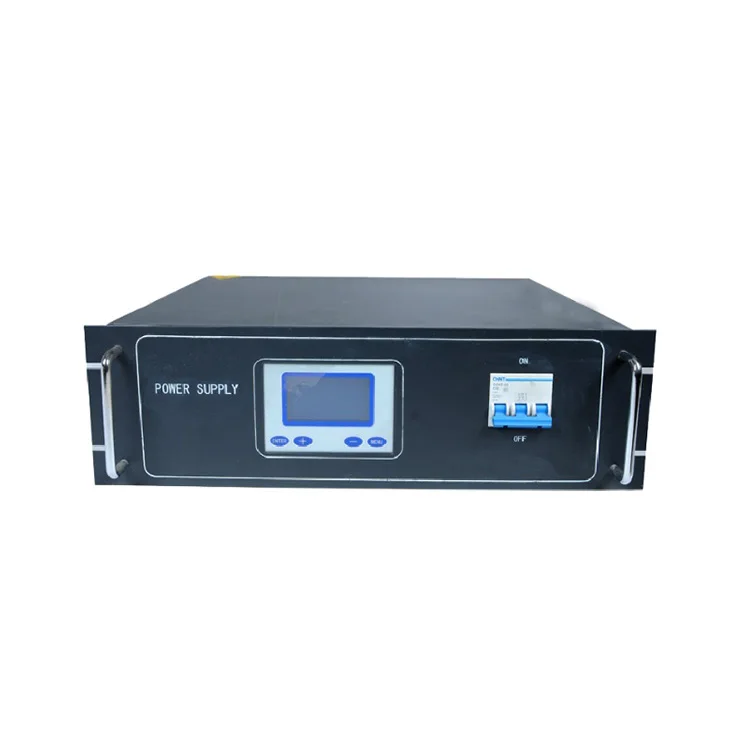

10KW/10KV Dielectric Barrier Discharge(DBD) Power Supply SMPS Made In China

Product Description



Description:

Model: DBD Series for DBD plasma cleaner equipment

Alias: Dielectric barrier discharge power supply

DBD power supplys with DB9 pin, it is controlled by analog signal or lcd screen in the front panel.

Factory default analog interface.



Feature:

1)Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.

2)The circuit adapt modular design, convenient debugging and maintenance.

3)Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.



Main technical paramters:

Product Name

DBD power supply

Items No.

TN-DBD-10KV

Input Voltage

Single Phase 200-220VAC

Output

Power

10KW

Current

1A

Voltage

10KV

Frequency

20~50khz

Waveform

Quasi-sine-wave

Output Mode

Constant power, constant current, or constant voltage is for customized

Regulation Precision

≤1%

Efficiency

≥90%

Power Factor

cosΦ≥0.9

Power Switch

DB9 pin

Control Mode

1)Analog signal control: TTL potential

2)Digital interface control can be custoimized: RS-485 /RS-232

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Insulation Resistance

Input – Output: ≥20MΩ

Input – Enclosure: ≥20MΩ

Insulating Strength

Input – Output: 2000VAC, 1minute

Input – Enclosure: 3500VAC, 1minute

Ambient Conditions

Temperature: (-20~50)

Display Mode

Chinese-English LCD display

Display Content

Working state, output voltage, output current, set value

Output Protection

Overvoltage, overcurrent and offset

Input Protection

Overvoltage, undervoltage, overcurrent, open phase

Insulation Class

B

Protect Grade

IP20

Protection Response Time

1uS

Input Shell Resistance

≥20MΩ

Output Shell Resistance

≥20MΩ

Input Withstand Voltage

2000V/1min

Output Withstand Voltage

3500V/1min

Temperature

0~35

Humidity

≤80%

Cooling mode

Air-cooling

Dimensions

480*135*380(mm)



Application:

Ozone generation, power supply for cnc plasma, plasma cleaning and plasma formation.etc.

power supply1.jpgpower supply 1.jpg

If you have some special request, we can customized for you!
