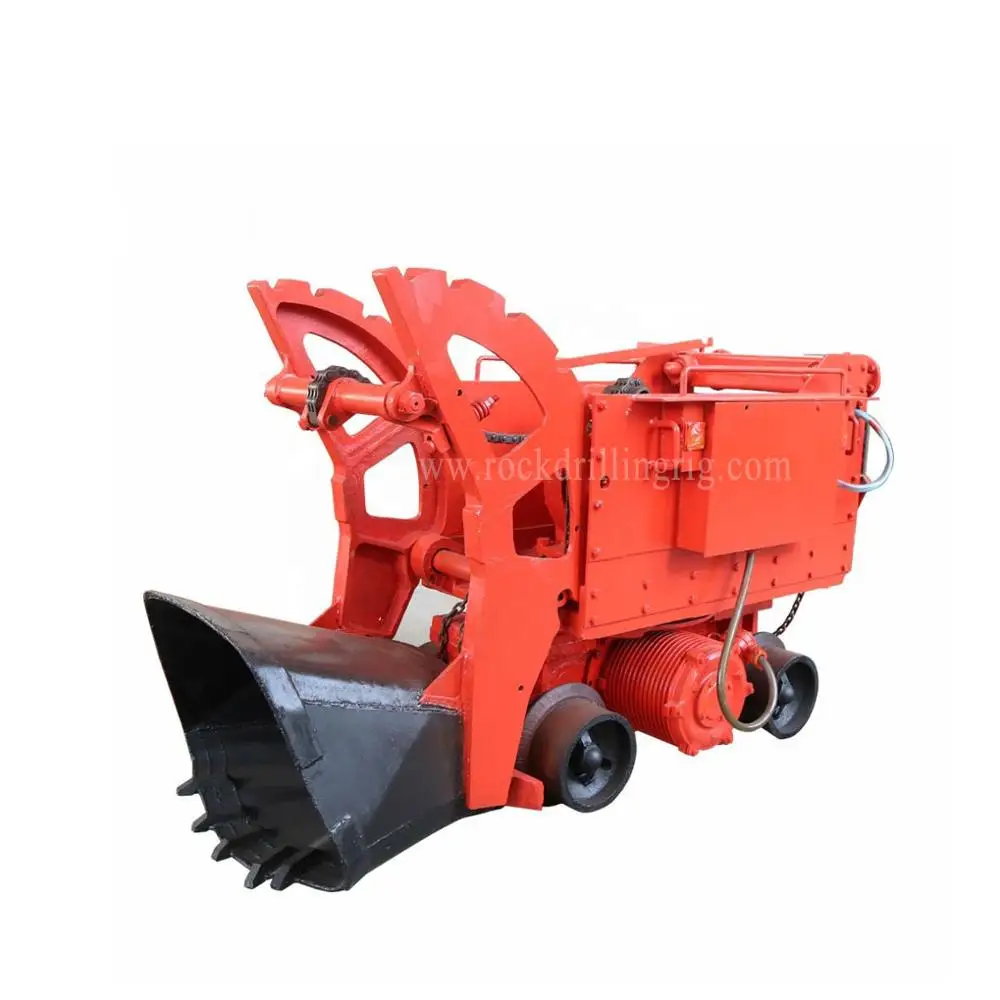

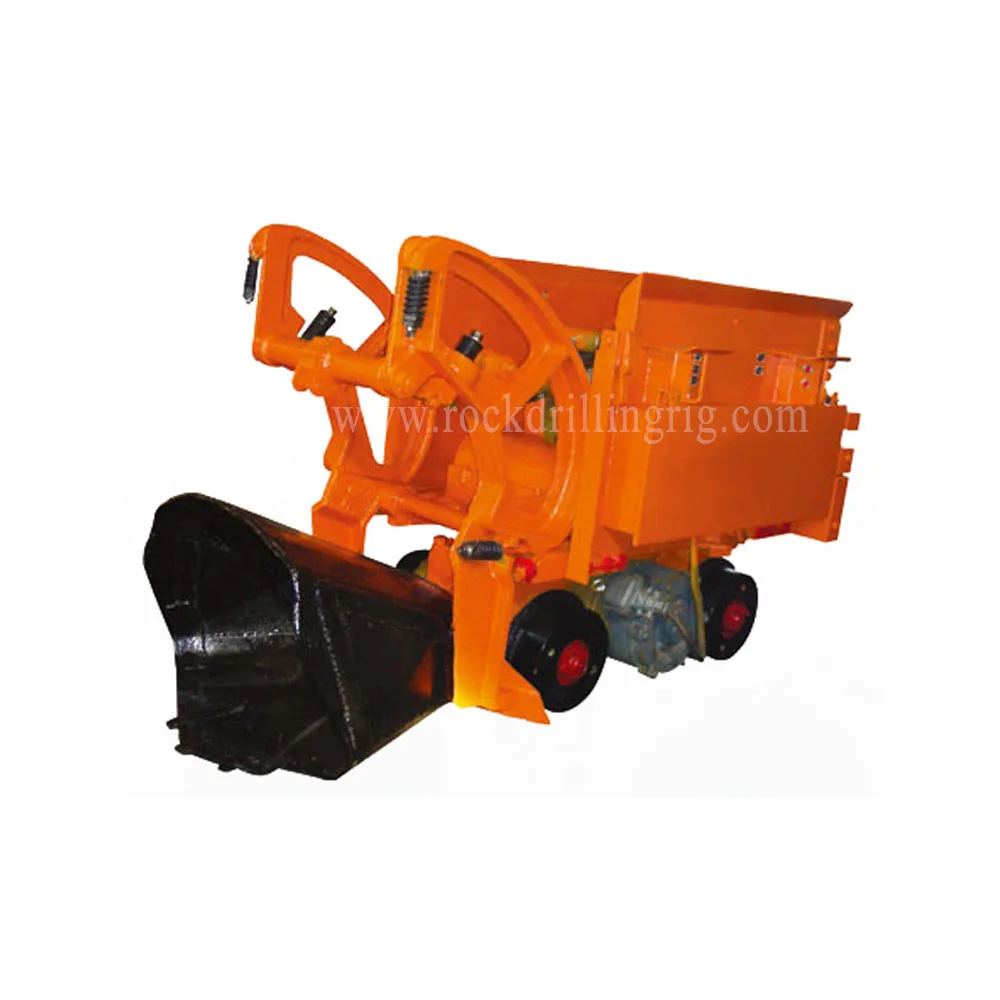

ZQ-17 Pneumatic Rock Loader

ZQ-17 pneumatic rock loader is used to load the rock, ore when the explosive blows up the big rock or ore. Loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, and etc. It can be used in a explosion proof fields. The max. diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, pls tell in advance.

 Characteristics

safety requirement:
1. strictly prohibit other people to operate the machine expect the technicist.
2. Strictly prohibit two people work at each side together.
3. Strictly prohibit check the machine before the electric motor put off.
Scope of application:
section of the tunnel: width:2.25m, Height: 1.8-3.0m
2. angle of the tunnel: 8degree

Specification

Model	ZQ-17
Bucket volume	0.17M3
Technique productivity	52-60M3/h
Loading width	2500-2700mm
Unload height	1250mm
Unload distance	480mm
Max. Air consumption	11.5-19M3/min
Working pressure	5-6bar
Gauge	600mm
Wheel diameter	1000mm
Length	2375
Width	1370
Height	1375
Motor	9+15kw
Working speed	about 0.79m/s
Promoting speed	0.46-0.71m/s
Weight	2700kg

Standard sea transportation package or packed as customer's requirement.
