ABS сброс аварийного сброса выключатель точка вызова с двухцветным индикатором и
- Категория: Другие товары управления доступом >>>
- Поставщик: S4a,Industrial,Co.,limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.44 $* | 0.82 $* |
| Aug-19-2025 | 0.48 $* | 0.55 $* |
| Jul-19-2025 | 0.46 $* | 0.49 $* |
| Jun-19-2025 | 0.90 $* | 0.14 $* |
| May-19-2025 | 0.7 $* | 0.68 $* |
| Apr-19-2025 | 0.0 $* | 0.88 $* |
| Mar-19-2025 | 0.18 $* | 0.67 $* |
| Feb-19-2025 | 0.96 $* | 0.56 $* |
| Jan-19-2025 | 0.54 $* | 0.72 $* |
Характеристики
ABS Emergency Release Reset-able Switch Call Point with Dual color indicator and Buzzer
Product Description

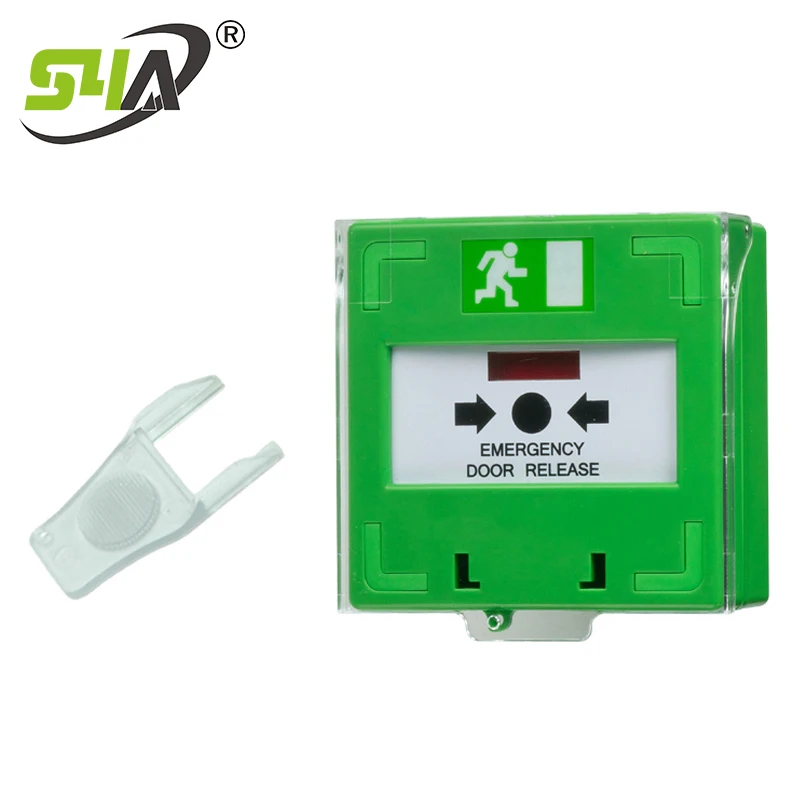

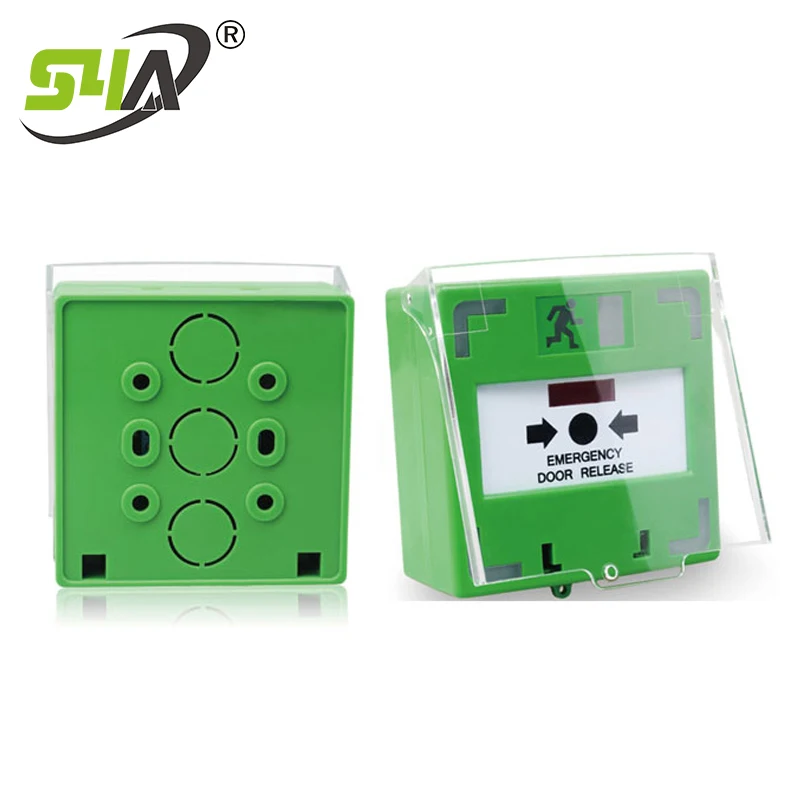

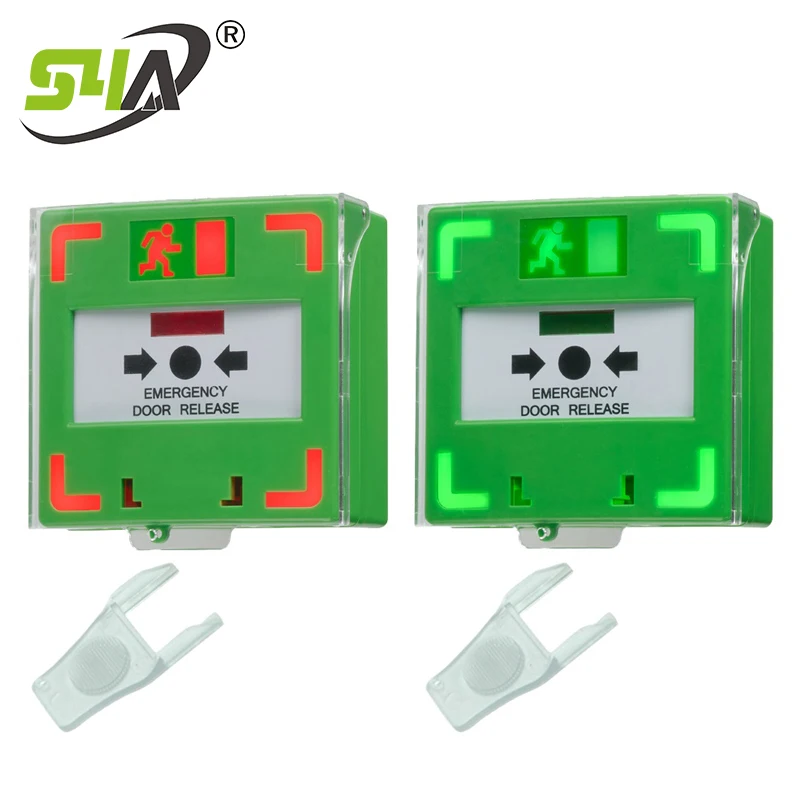

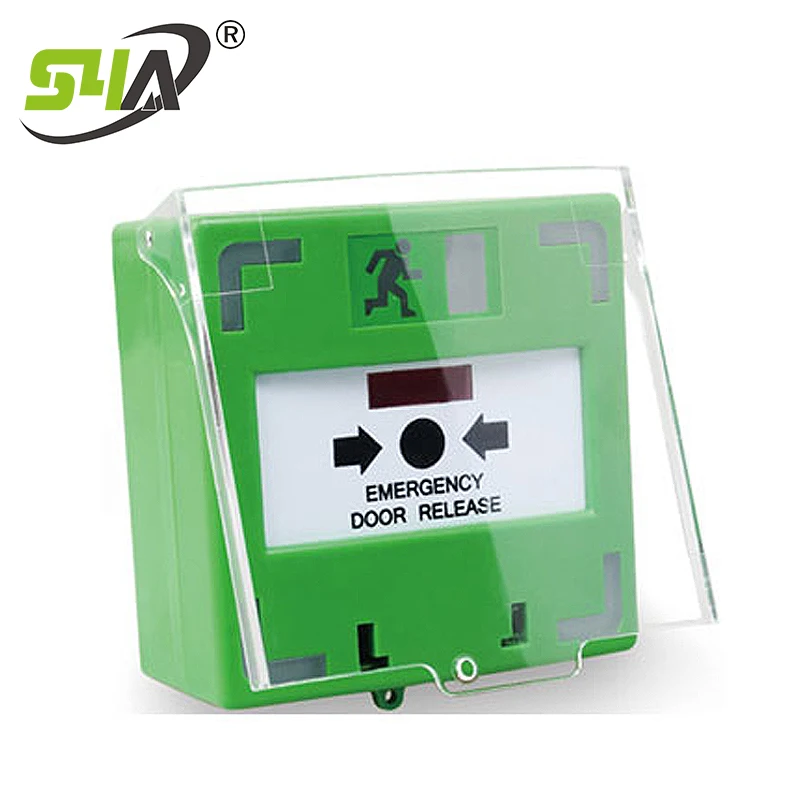

Reset-able Switch Call Point EB-20G with Dual-Color Indicator
Products Description:
S4A Emergency Door Release EB-20G DPDT is specially designed for the use in fire detection with the central control monitoring systems. Its can be used for open or closed circuit. When the PS Glass is pressed hard or break, the circuit will close or open instantly vice versa.
EB-20G Reset-able Switch Call Point is molded with the highest engineering precision. The ABS material used is noted to be high resistance to heat and with good impact strength.
To ensure long lasting resistance to corrosion, the metal parts are made of brass and
phosphor bronze.
Parameters for Reset-able Switch Call Point EB-20G
EB-20G | Parameters |
Power Supply | DC12-DC 24V (±5%) |
Operation current | DC 12V/18mA(Standby)/75mA(Operation) (±5%) |
Buzzer | Set as silent, interval wailing or continuous wailing |
Indicator | Dual-color(red and green) |
Output | N.O.N.C.&COM. Output(Maximum load of 125V/3A) |
Weight | 208g |
Dimensions | 90mm(L)*93mm(W)*45mm(H) |
Material | ABS, PC (transparent part) |

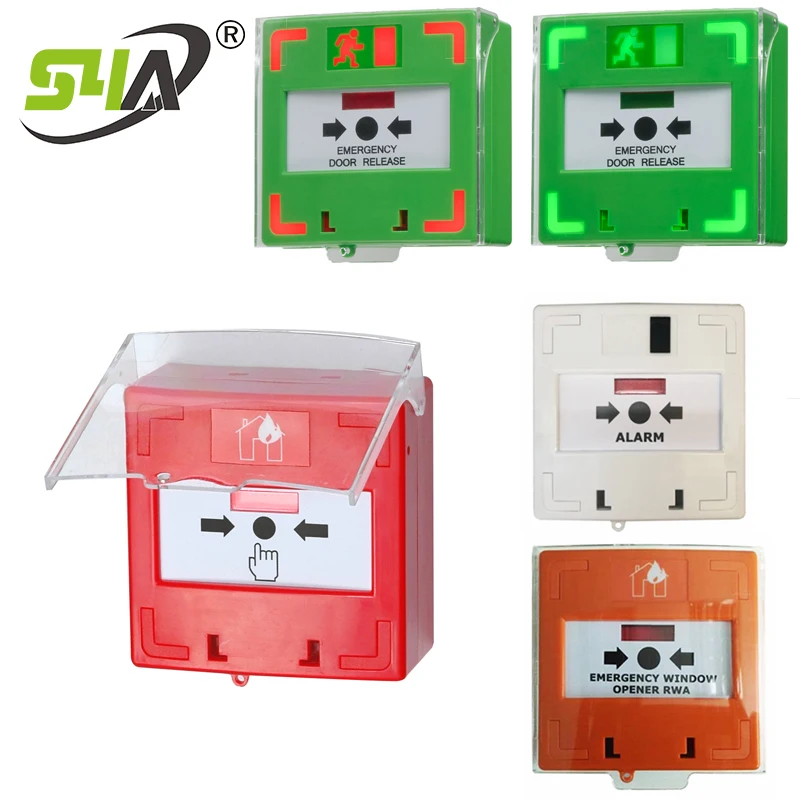

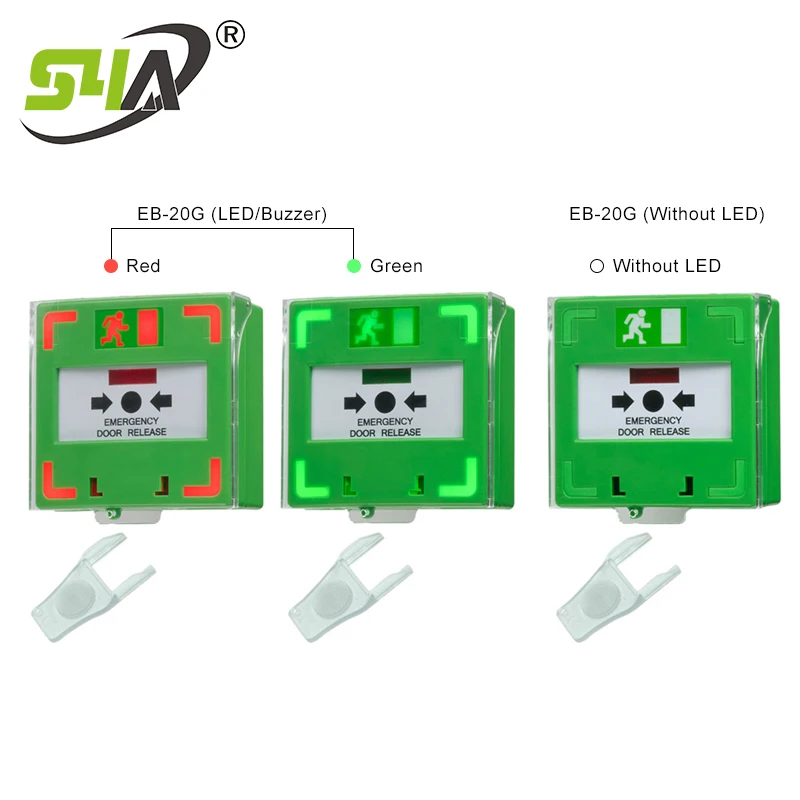

Here listed 4 different types for Emergency Break Glass from S4A Industrial.
Red color, Yellow color, White Color, Green color etc both available support OEM & ODM customized.
Different function equal to Different appearance and Price, as below:
