Huiyang оцинкованное оборудование для очистки высоких окон

Contact: Duran Liu  WhatsApp:86-18706398887   Company Video: https://youtu.be/uDPE69dO-pY

1. Working Cage:  Material Q235 Steel with Hot-dipped Galvanised.  ( Steel+Painting or Aluminum Alloy+Painting is available also)

 1.1  Working Cage is the workplace at heights for the workers.

 1.2  L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3)  W=0.69m; H=1.42m;
 1.3  With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

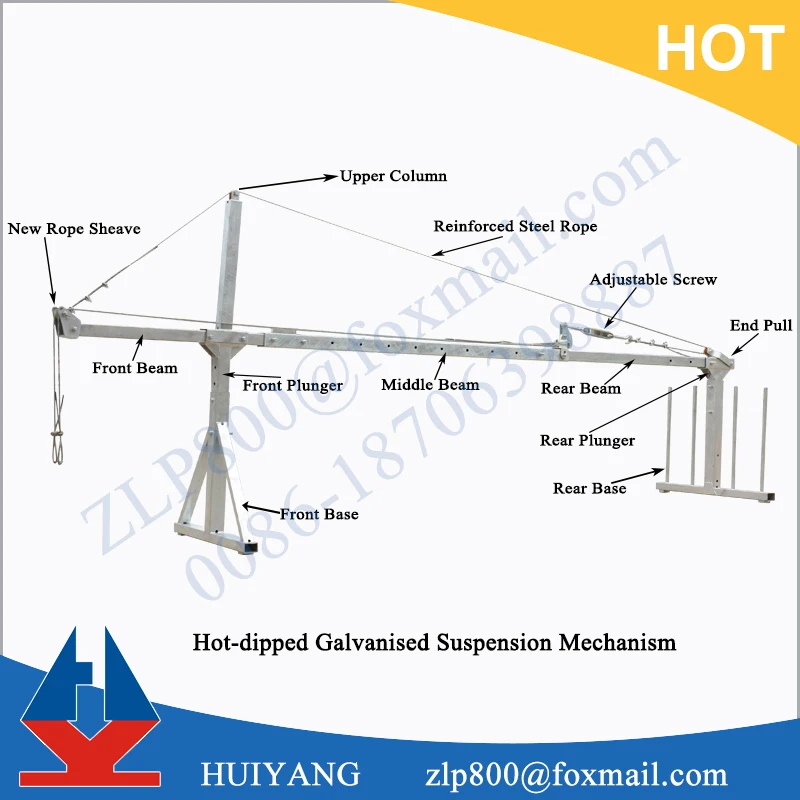

2. Suspension Mechanism: Surface with Hot-dipped Galvanized

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

3. Components:
LTD6.3 Hoist, 1.5kw, 2 sets;
LSD20 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.0+2x1.0mm sq; Rubber;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

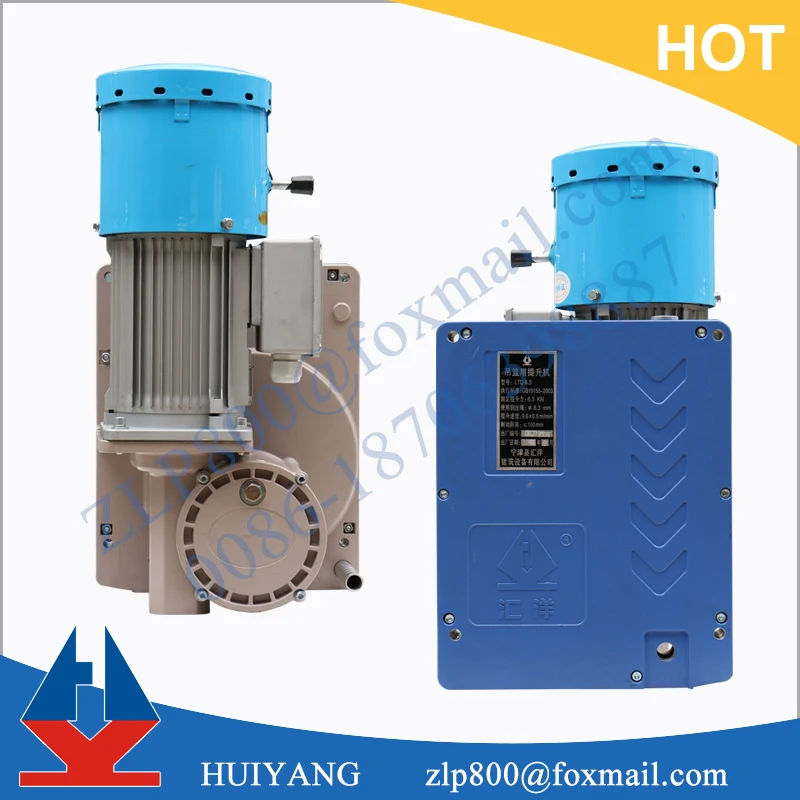

Components 1

Name: Hoist                                    Brand: HUIYANG

Model:\t\tLTD6.3                                Quantity:\t2 sets

Lifting Speed\t\t9.3±0.5m/min        Lifting Force: \t6.3KN

Name: Motor                                   Brand: Tianjin YONGHENG

Power:\t1.5kw*2            Voltage: 3 Phase 380/220V 50/60Hz
\tRotational Speed\t1420rpm           Weight:48kgx2

Components 2

Name: Safety Lock                    Brand: HUIYANG
Model:\t\tLSG20                             Quantity:\t\t2 sets
Locking Rope Angle:\t\t3°~8°      Allow impulsive force\t\t20KN
Steel Wire Diameter:\t8.3mm    Weight: 5kgx2

Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

Components 3

Name: Electrlic Control Cabinet    Brand: HUIYANG
Surface: Galvanised                         With manual Switch

Components Brand: CHNT (Schneider need add $50)

On Electric Control Cabinet, there are 4 buttons and a 220V

50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )

Components 4

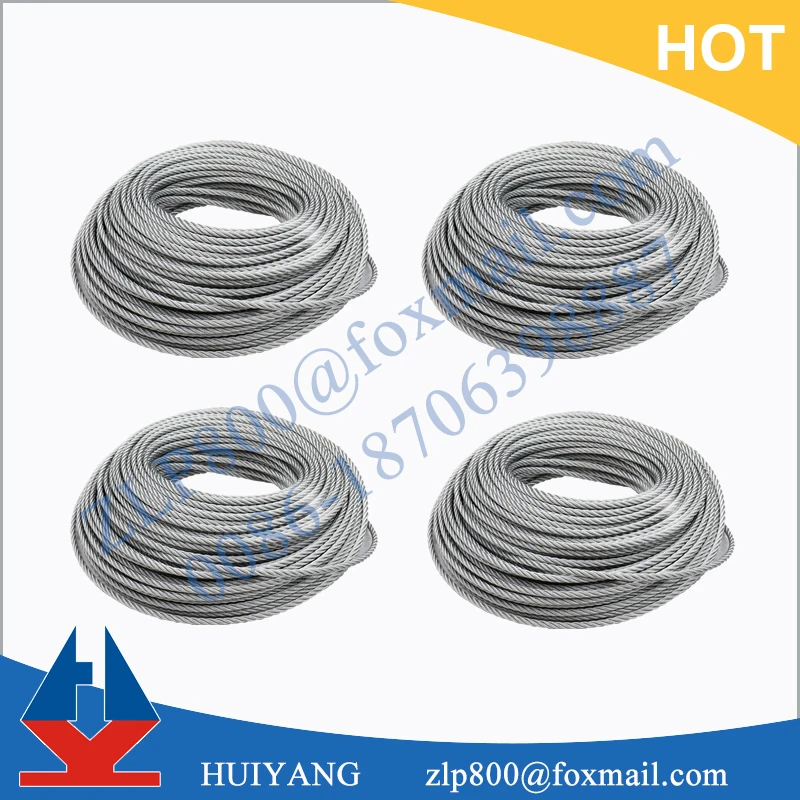

Name: Steel Rope                   Brand: Fasten

Quantity: 4pcs                         Length=100m/pcs;

Diameter=8.3mm                    Weight:25kgx4

4x31SW+FC

Nylon Safety Rope 1Pcs=100m
Electric Cable: 1Pcs=100m, Rubber, (3x2.0+2x1.0mm2)
Counterweight: (Optional) Cement or Cast Iron

HUIYANG Company Introduction.

Ningjin Huiyang Construction Equipment Co., Ltd,established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.

Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.

No matter what structure needs, everything is easier with Huiyang!

Skype: duranliu1   WhatsApp: 86-18706398887  www.facebook.com/suspendedplatform1

FAQ.

1. How much is this suspended platform?
    Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
    We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
    Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
    Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?           T/T or L/C at sight.
6. Spare parts & guarantee?
   If any parts get damaged because of quality within 12 months after shipping date.

   We will send new parts to replace right away.
7. Can you make suspended platform with our brand?    Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.
