Роторная буровая установка для бурения скважин взрыва пескоструйной
- Категория: Mining Machinery >>>
- Поставщик: Jining,Hengwang,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.99 $* | 0.83 $* |
| Aug-19-2025 | 0.96 $* | 0.33 $* |
| Jul-19-2025 | 0.73 $* | 0.71 $* |
| Jun-19-2025 | 0.13 $* | 0.34 $* |
| May-19-2025 | 0.94 $* | 0.54 $* |
| Apr-19-2025 | 0.14 $* | 0.50 $* |
| Mar-19-2025 | 0.66 $* | 0.64 $* |
| Feb-19-2025 | 0.34 $* | 0.95 $* |
| Jan-19-2025 | 0.28 $* | 0.84 $* |
Характеристики
DTH Drilling Rig Description

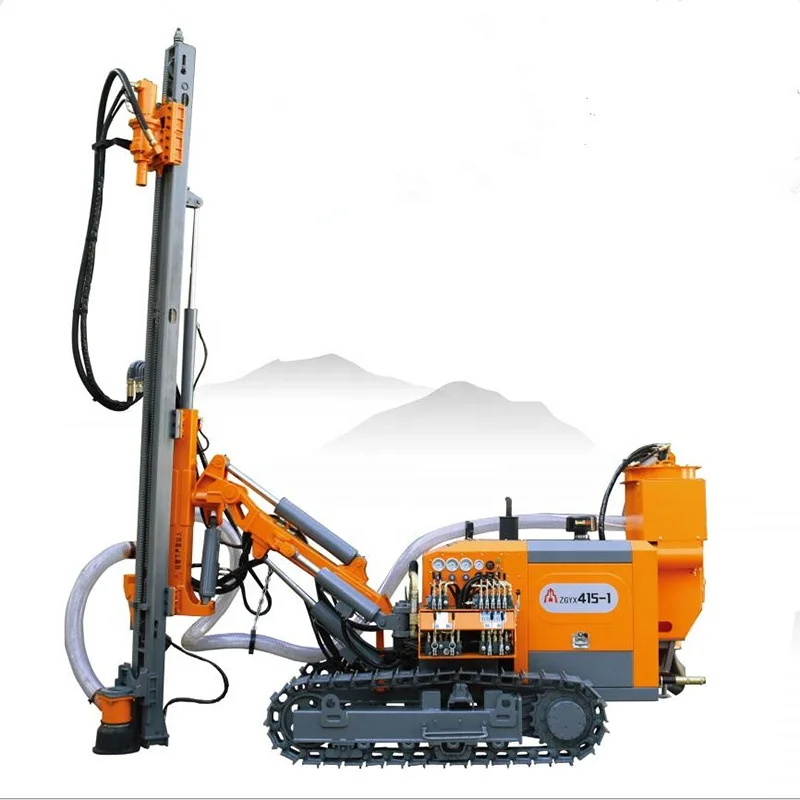

ZGYX-415 separated DTH surface drill rig is another model of high performance low
cost rig of Zhigao for surface mining industry.ZGYX- 415 rig tramming components,hydraulic system ,feed beam, rotary head & the whole rig chassis are upgraded basedon data callected & aralysis of ZGYX-410E application reports. by Zhigao R&Ddepartment. The upgraded rig with improved features of strong dimbing abilty, largerotation torque, long life motar. hole depth up to three meters at one time and availabiefor various side & horizontal holes, is widely applicable to various surface mining environment.
DTH Drilling Rig Parameter
| Model | ZGYX-415 |
| Drill Diameter | 90-115mm |
| Drill Depth | 30m |
| Drill pipe size | Dia.60*3000mm |
| Max.torque | 1850 N.M |
| Rotation speed | 0-110 rpm |
| Feed Force | 15 kn |
| Pull Up Force | 25 Kn |
| Feed Type | Chain /Cylinder |
| Tramming Speed | 2.5 km/h |
| Gradient | 25° |
| Engine | Yuchai 50 kw |
| Transport Dimension | 4900*2000*2200mm |
| Weight | 4500kg |
