Тестер автомобильного аккумулятора Konnwei KW600 100-2000 CCA 12 В с автомобильным запуском и

Konnwei KW600 100-2000 CCA 12v  automotriz  Car Battery tester with Automotive Cranking and Charging System

Model : KW600

 Item name :KW600 battery tester

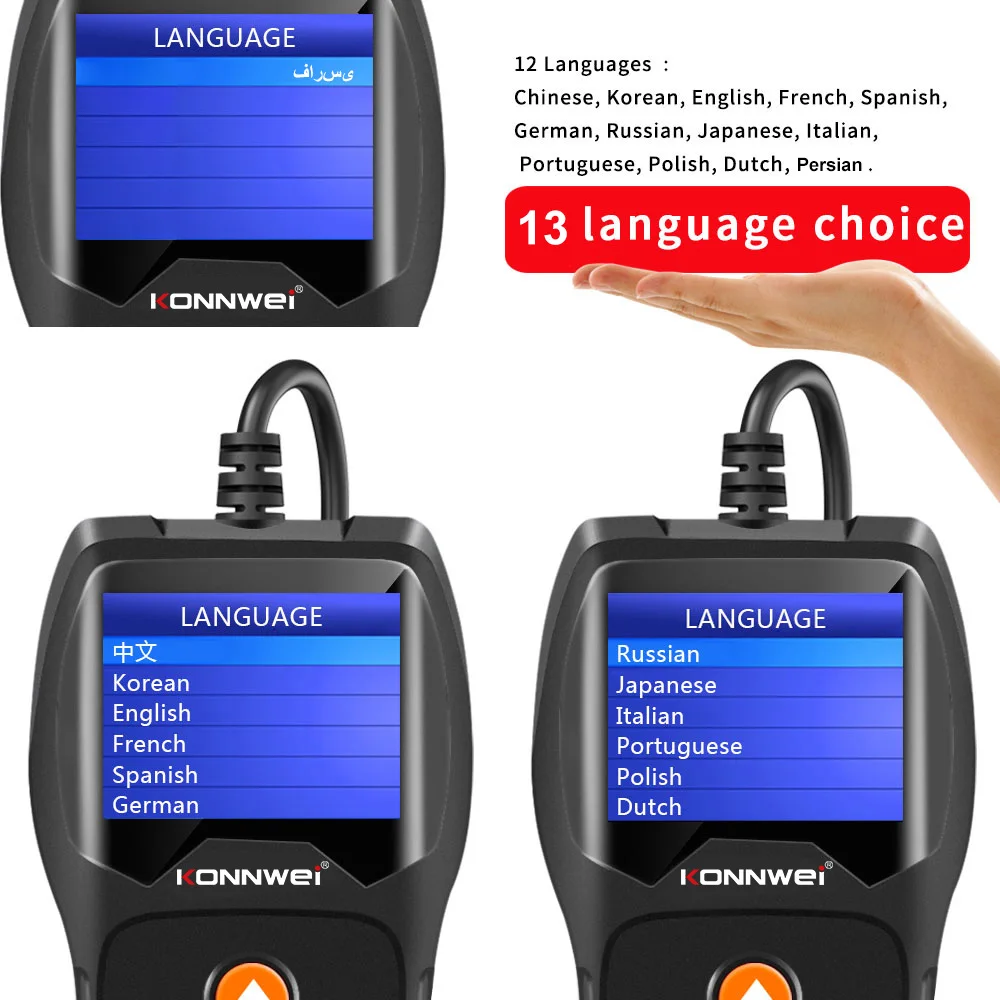

support 12 Languages:

Chinese, English,German,

French,Japanese,Korean,

Dutch, Russian, Spanish,

Italian,Portuguese,Polish

 Application :

KW600 konnwei Battery tools can Apply for all 12V car battery include battery from gasoline, diesel, hybrid electric vehicles, motorcycle batteries , and emergency batteries.

KONNWEI KW600 Auto Battery Analyzer For All 12V Cars

        KONNWEI KW600 12V car battery testeris able to effectively analyze andread important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.  It provides accurate results, calculates thecold cranking capability of the battery and the aging extent, allowingfor a quicker, more precise car repairing.

Test results display in both text and graphing, but the real-time battery voltage showing in a waveform. With an intelligent 2.4” LCD screen and STM32 main chip, reading access is practical and rapid! Lifetime update service is supported by KONNWEI BTlink app.

System voltage 12 Volts and Voltage test in waveform

Test Result Good, Recharge or Replace

Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mΩ) and Life in percentage (%)

Cranking system and Charging system

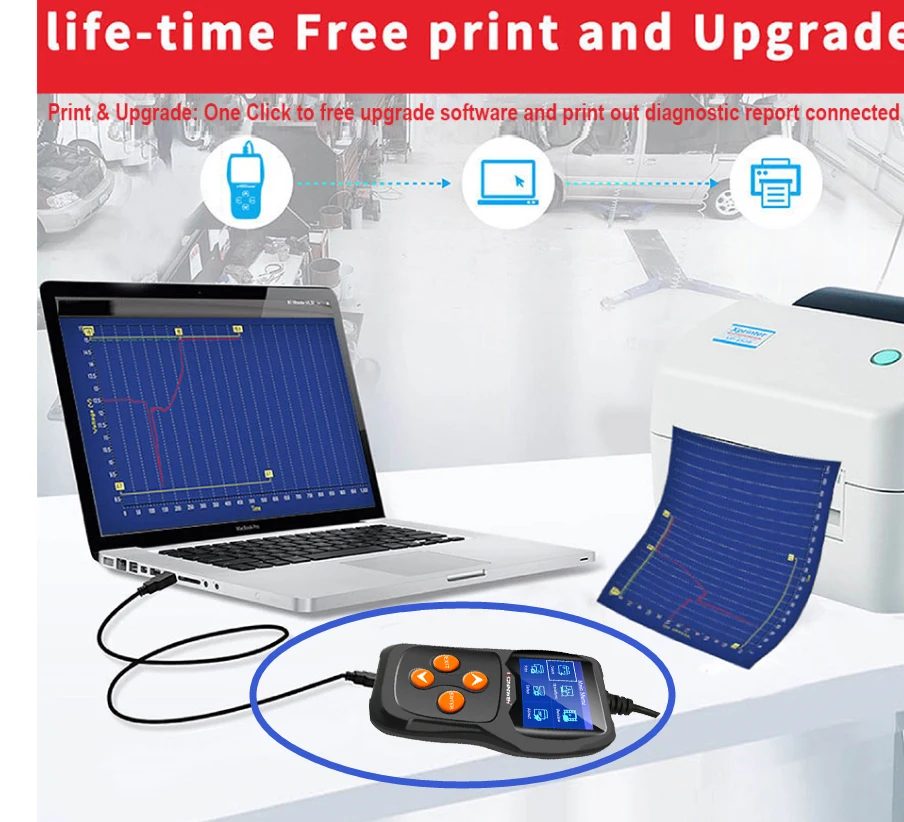

Record and re-play battery data, Life-time free update service

Battery test, cranking test, charging test and other additional functions.

The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported

12 Languages  :Chinese, English, German, French ,Japanese,Korean, Dutch, Russian, Spanish,italian , Portuguese , Poland

 China Hot sell KONNWEI KW600 car battery tester with printer 8-16V CA CCA BCL MCA JIS SAE EN GB DIN IEC

100-2000cca

Feature :

Measure Standard ,CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000,

JIS 26A17-24SH52 ,DIN 100-1400 ,IEC 100-1400 ,EN 100-2000 ,SAE 100-2000,

GB 100-1400,System Voltage 12 Volts ,Input Voltage Range 8V-16V ,Power Requirements are no internal batteries required,Power on when hooked up during testing.

KW600 battery tester key functions & features:

1.System voltage: 12 Volts

2.Test Result: Good, Recharge or Replace

3.Capacity - Cold Cranking Amps

(CCA), DIN, EN and IEC information relative to battery rating.

4.Internal resistance value (mΩ)

5.Life in percentage (%)

6.Cranking system

7.Charging system

8.Voltage test in waveform

9.Record and re-play battery data, Life-time free update service

10.Battery test, cranking test, charging test and other additional functions.

Specifications :

1.Measure Standard

2.CCA:100-2000

3.BCI:100-2000

4.CA:100-2000

5.MCA:100-2000

6.JIS:26A17-24SH52

7.DIN:100-1400

8.IEC:100-1400

9.EN:100-2000

10SAE:100-2000

11.GB:100-1400

12Display: Color TFT LCD Screen

13.System Voltage:12 Volts

14.Input Voltage Range:8V-16V

15.Power Requirements: No internal batteries required.

16.Power on when hooked up during testing.

17.Operating Temperature:0℃-50℃

18.Storage Temperature:-20℃-70℃

Application:

Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.

The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.

Package includes:

1*KONNWEI KW600 Auto Diagnostic Scanner

1*Mini USB cable

1*User’s Manual
