Механический таймер для духовки и тостера с круглой осью на 60

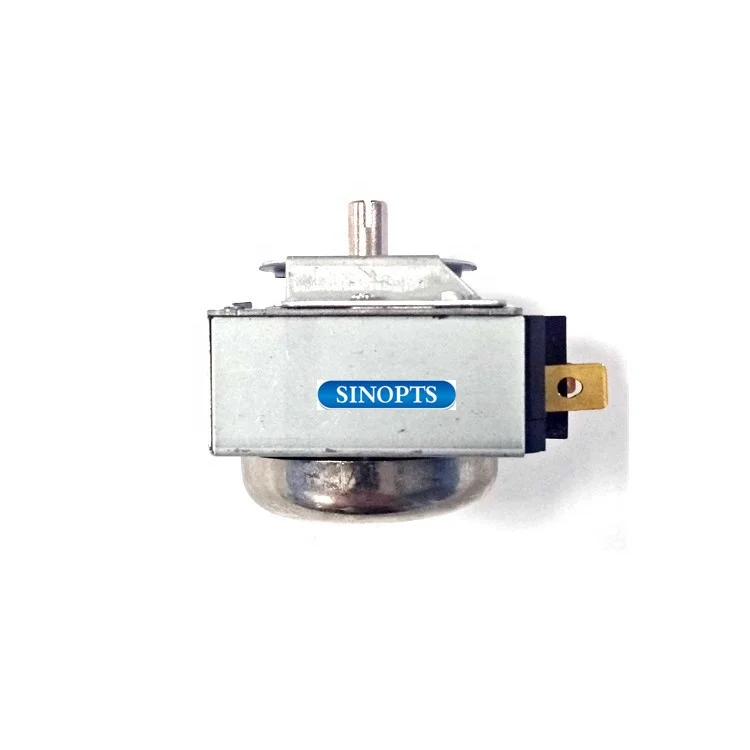

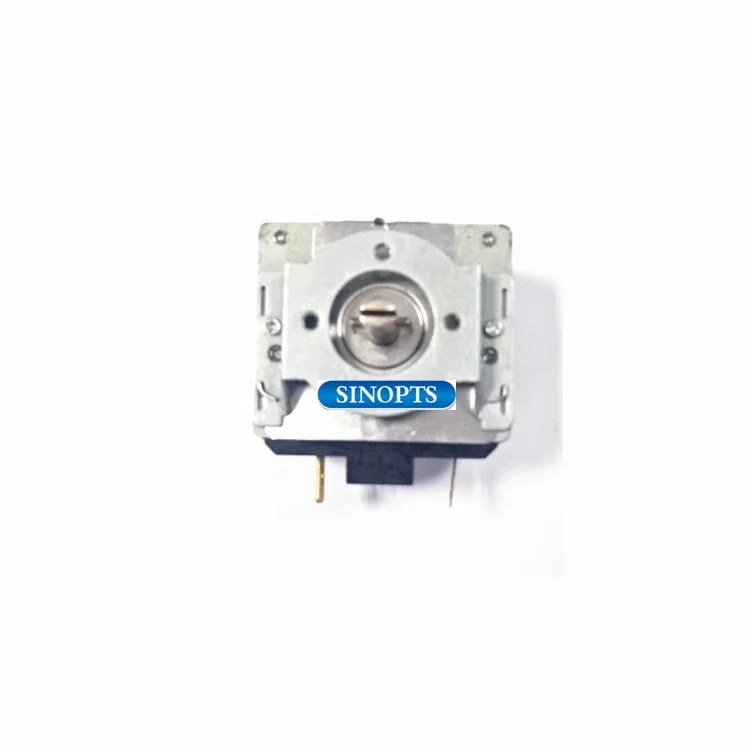

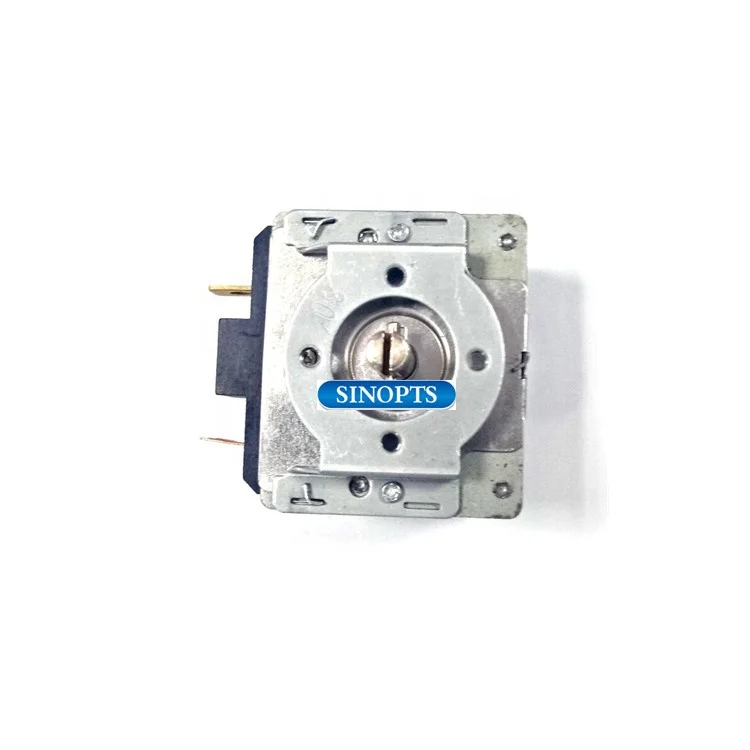

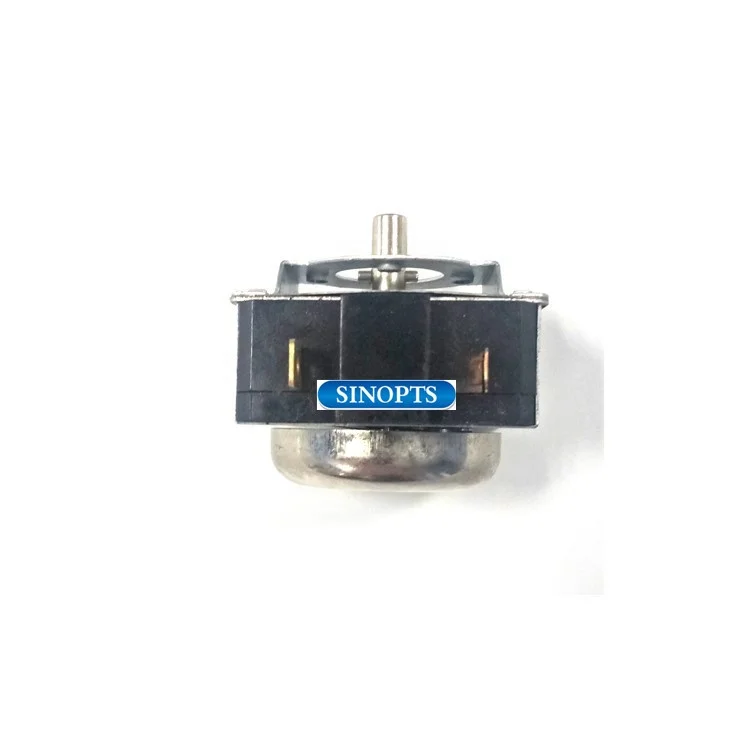

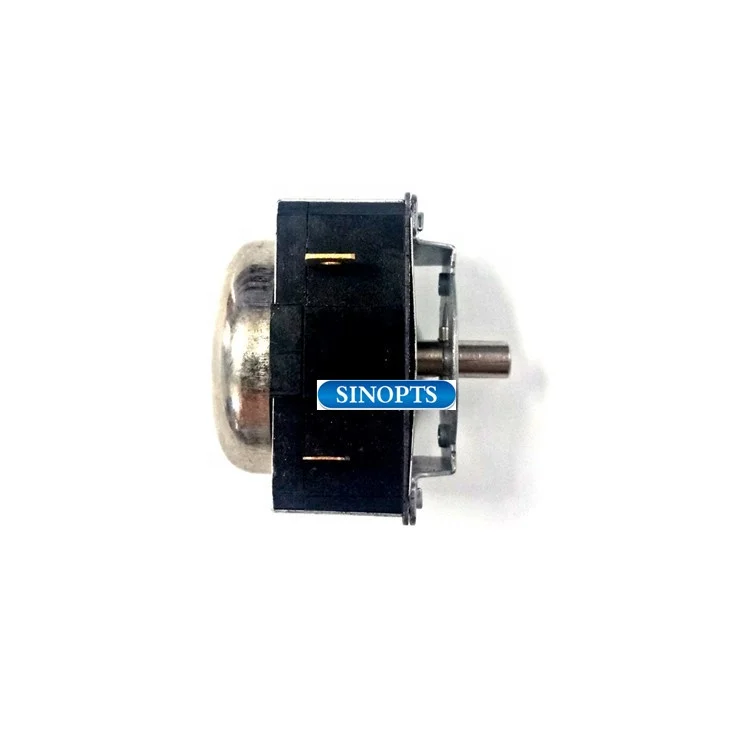

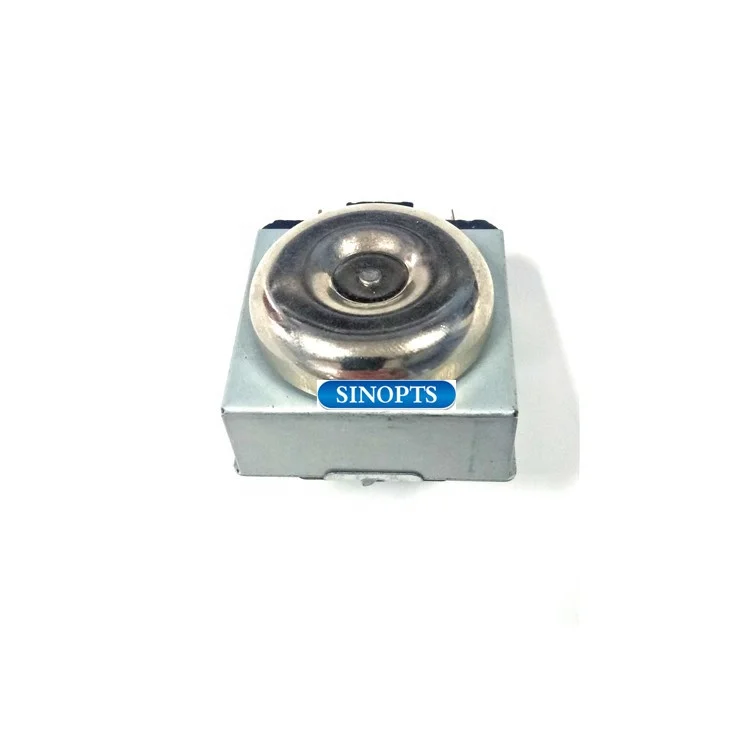

Sinopts Round axis 60 minutes mechanical timer with bell

Specifications and features

1. When the timer stops running, the system will cut off the power and stop the control system.

2. Single current system, on/off.

3, precision production makes the product's operating error is almost zero, and high temperature resistance.

4. When the prompt sounds, it means the timer stops running. (system closed)

1-180 minutes oven timer passed UL, TUV certification, suitable for kitchen appliances such as rice cooker / oven, electric steamer

Product manual

1. Time setting range 15', 20', 30', 60', 120', 180' or custom

2. Applicable: microwave / oven / electric pressure cooker / other kitchen machine

3. Contact capacity: AC 120V 15A; AC 250V 15A

4. Time setting direction: continuous

5. Working direction: counterclockwise.

6. Operating temperature range: -10 ° C --- C + 120 °

7. Working angle: 270 ° ± 5 ° / 285 ° ± 5 ° / 315 ° ± 5 ° or custom

8. Insulation resistance: 1500V / 1min; 1800V / sec (DC 500V megohmmeter)

9. Withstand voltage: 1 minute minute ac1800v / 0.5A

10. Life>=10000 times, 6 times/min.

11. Operation <0.4N.m

12. Shaft shank: horizontal pin or flat shaft or custom

13. Operating torque: 1.0---4.0kg.f-cm

14. Loosen torque: 1.0---4.0kg.f-cm

15. Time tolerance: ±4% (270°)---±5%

In order to obtain more accurate prices,

pls inform us of the specifications (drawings, specific parameters, size, etc.) and quantity of the products you need.

Your inquiry is welcome!
