XYZ 3-axis gantry робот CNC точности Линейный модуль привода моторизированная линейная слайд таблицы движения системы для лазерная
- Категория: Machinery Accessories >>>
- Поставщик: Chongqing,Umot,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.40 $* |
| Aug-16-2025 | 0.1 $* | 0.45 $* |
| Jul-16-2025 | 0.51 $* | 0.24 $* |
| Jun-16-2025 | 0.61 $* | 0.31 $* |
| May-16-2025 | 0.29 $* | 0.52 $* |
| Apr-16-2025 | 0.13 $* | 0.96 $* |
| Mar-16-2025 | 0.62 $* | 0.15 $* |
| Feb-16-2025 | 0.23 $* | 0.22 $* |
| Jan-16-2025 | 0.90 $* | 0.91 $* |
Характеристики

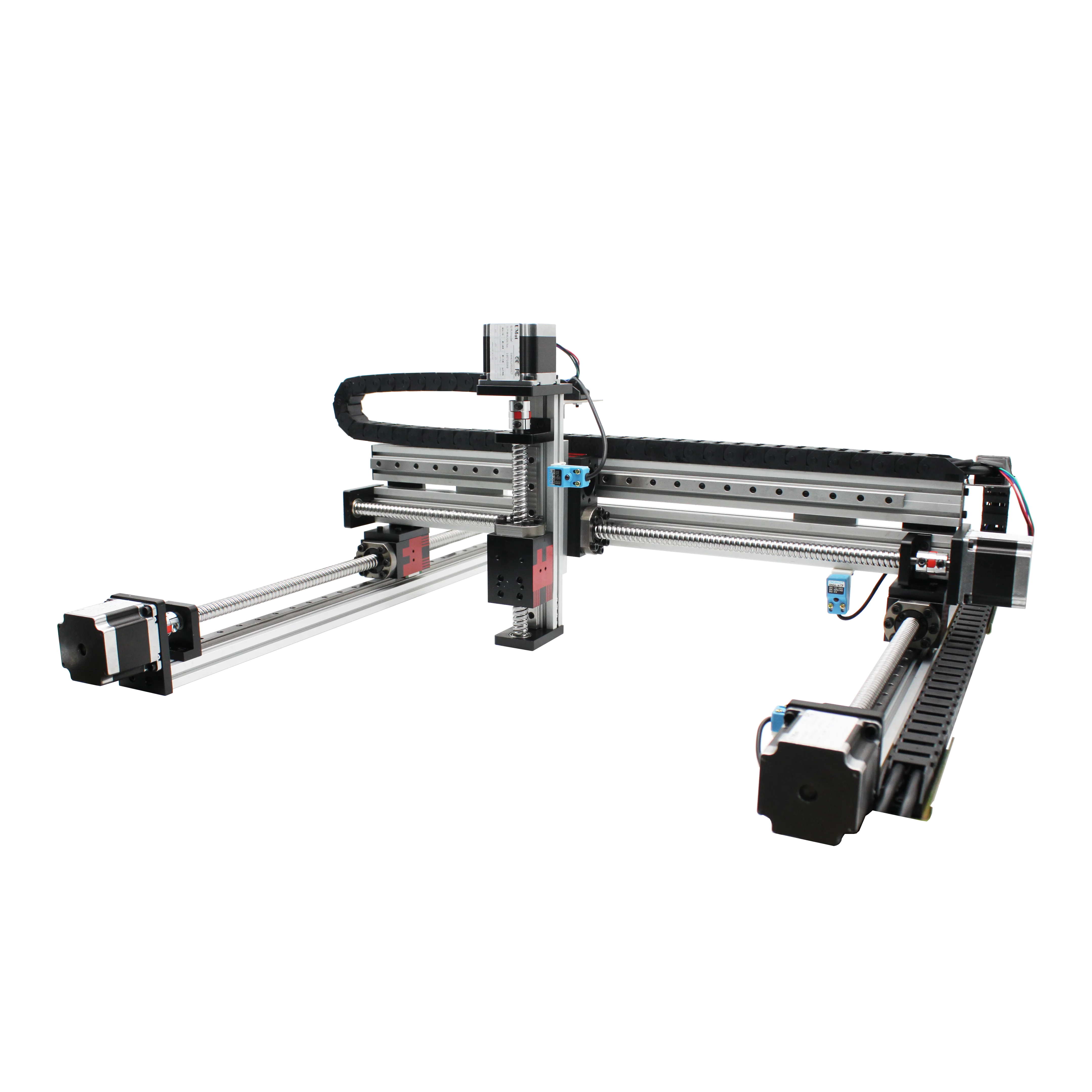

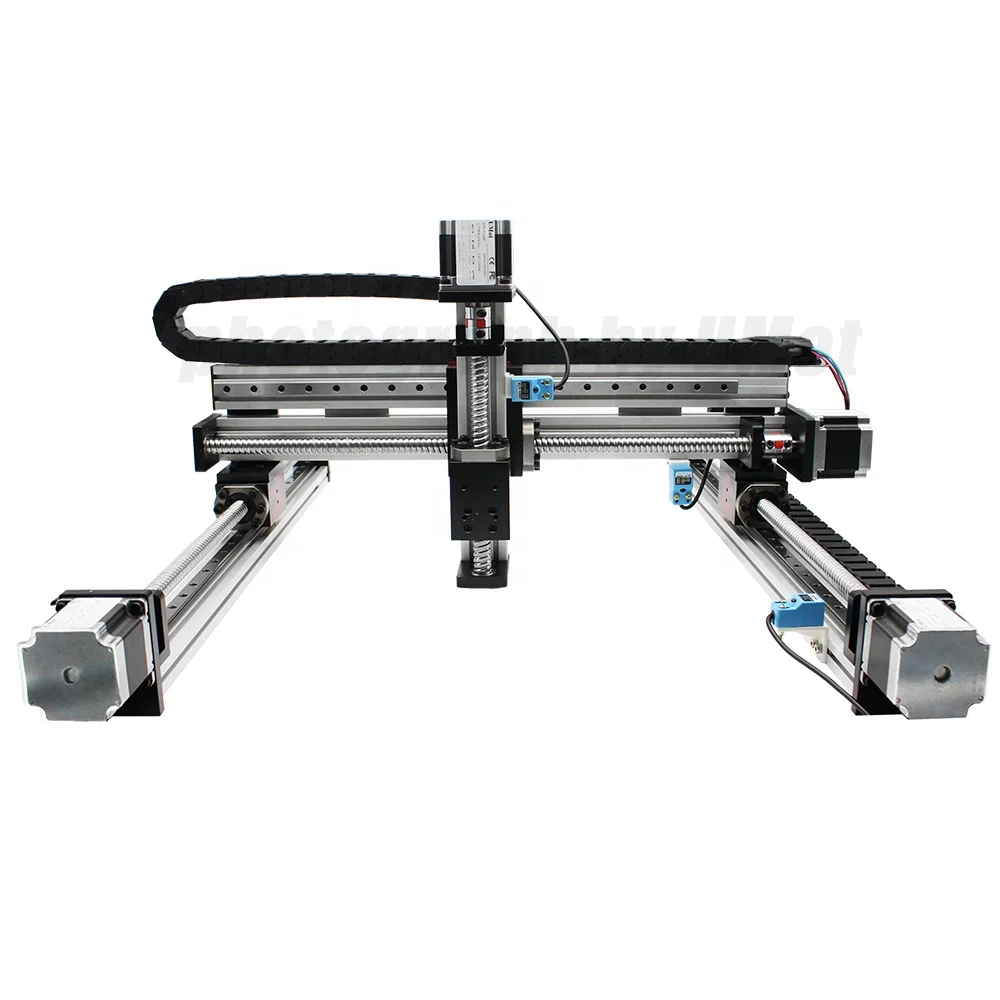

XYZ 3-axis gantry robot CNC linear module actuator motorized linear stage table slide motion system for laser cutting
UMot stable XYZ linear stage cartesian robot 4-axis ball screw driven linear axis is customized product. The max travel length we can do is from 50mm to 1000mm. Please contact us to customize your linear guide rails.
Discount will be given to you if you leave a message to us.
Product Description
| Brand Name | UMot |
| Guide Width | 40mm |
| Model Number | SW40 |
| Effective Stroke | 50-4000mm |
| Position Accuracy | 0.05mm |
| Screw Precision Grade | C7 |
| Max thrust | 471N |
| Stepper Motor Type | Nema 23 |
| Max Honrizontal Loadings | 25kg |
| Max Vertical Loading | 15kg |
| Max Honrizontal Full Speed | 230mm/s |
| Max Vertical Full Speed | 90mm/s |
| Rated Acceleration | 500mm/s² |

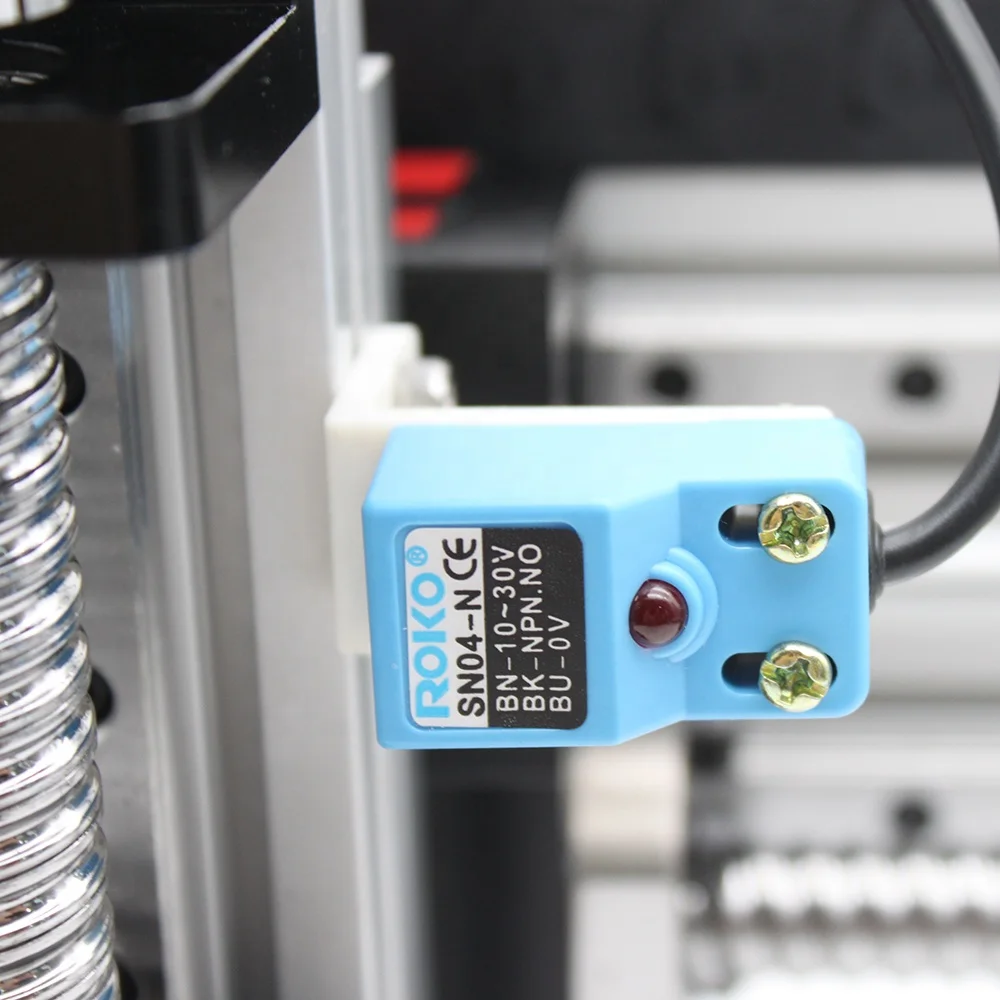

| Limit switch | 2 for free |
| Application field | 3D printer automated production line robotic arm plasma detector |
| Applicable industry | medical equipment spraying equipment automatic welding series |
Description&Feature
Packaging & Shipping
Packaging: carton / wooden box + foam + waterproof membrane
Delivery method: Fedex IE/UPS
Our Services
Pre Sales Service
Inquiry and consulting support
Sample testing support
Factory visiting
After Sales Service
Free drawing and free software
Training how to use the products
Engineers available to offer technical supports overseas
Company Information
Chongqing UMot Technology Co.,Ltd.
Our main products:
Linear Motion Actuators
Servo Motor and Servo Driver(Modbus,EtherCAT,CANopen,PROFIBUS-DP,PROFINET and Motionnet)
Hybrid Stepper Motor,Linear Stepper Motor,Geared Stepper Motor and Stepper Motor Driver
4 Axis and 6 Axis Robot Controller
High Precision Planetary Gearbox
Advantages:
1) Over 20 years professional experience about motor.
2) High quality assurance,CE,UL,Rohs,CCC approved. European standard.
3) Professional engineer team to help you develop perfect system solutions.
4) Competitive price, Trade Assuarance.
5) OEM Manufacturing, Sample orders welcome.
6) We will reply your inquiry in 12 hours. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way
Certifications
FAQ
1.What's the stroke length for X,Y and Z?
The stroke length can be customilized from 50mm to 4000mm.
2.What's the accurancy for the linear?
0.05mm
3.Do you have 3D drawing?
Yes, we have STEP file.
4.How can i install the 3 axis linear?
We have install manual,you can install it as to the steps.
5.How can i control the 3 axis linear?
We can offer you matched stepper motor driver,3 pulse axis controller,PLC and HMI.
