Топ-проверка толщины покрытия FE крошечный и

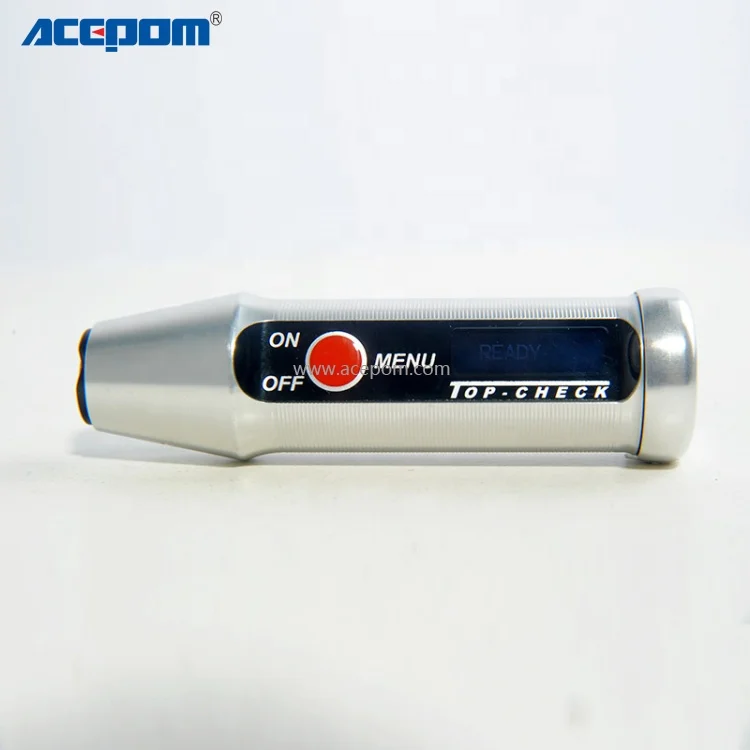

 Top-Check FE tiny Thickness Gauge

Coating Thickness Meter with integrated swivel-mounted probe

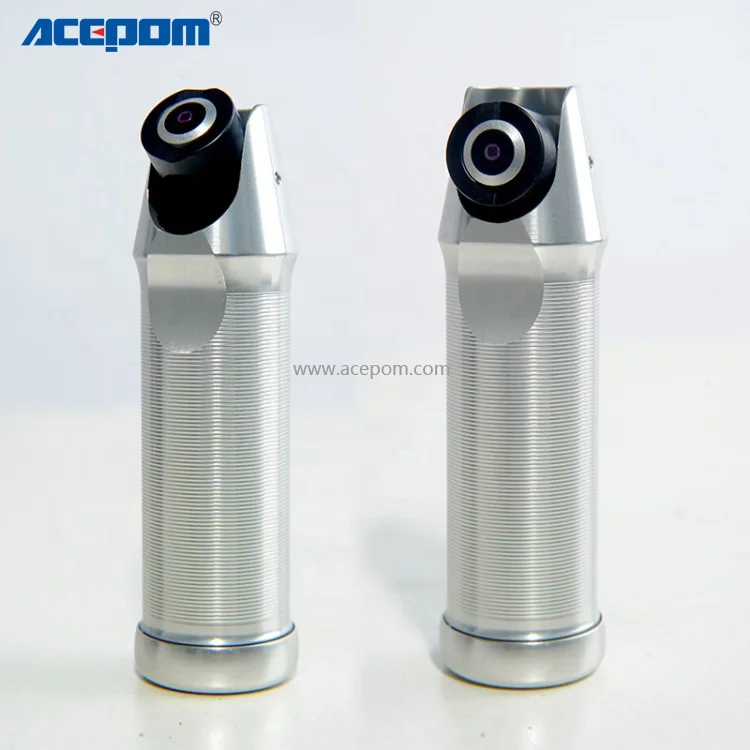

The unique layer thickness gauge with swiveling probe

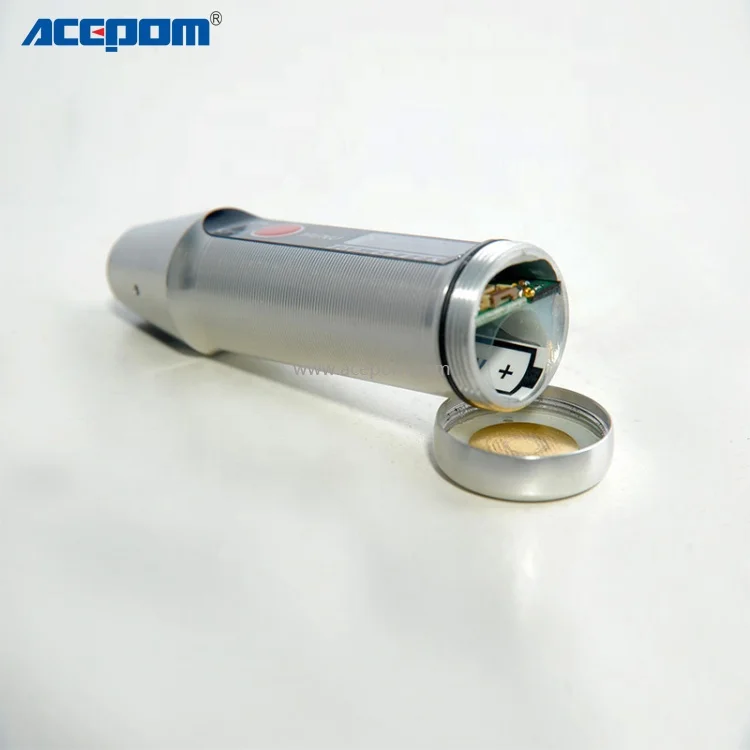

With the integrated, world-wide unique 90° swivel-mounted probe of the LIST-MAGNETIK TOP-CHECK coating thickness meters, you always carry out precise measurements. The compact, lightweight devices are barely larger than a probe and are therefore ideal for on-site applications in areas that are difficult to access. For interference-free measurements in harsh environments, the handy metal housing is splash-proof, in accordance with IP 64. Optionally, we also offer coating thickness tester equipment with flow-water protection. The measuring probe has a wear-resistant ruby probe pole for a long service life with frequent measurement on rough surfaces.

The coating thickness gauges are very easy to use, with the press of a button, and the self-explanatory multilingual menu.

Insulating layer thicknesses measure on iron and steel

TOP-CHECK FE is ideal for iron and steel substrates. The device measures insulating layers of lacquer, paint, plastic, rubber, ceramic and galvanic coatings (except nickel) according to ISO 2178. TOP-CHECK FE-B supplements the performance spectrum by data logger and Bluetooth interface.

Combined probe in magnetic-inductive measuring method

TOP-CHECK FN has a combined probe that measures insulating layers of paint, varnish, plastic, rubber, ceramics and galvanic coatings (except nickel) in a magnet-inductive measuring method. The device is used on iron and steel subsoil. It is also suitable for measuring insulating layers, according to the eddy current method, on non-ferrous metals such as aluminum, brass, copper, bronze and non-magnetic stainless steels, according to ISO 2178 and ISO 2360. TOP-CHECK FN-B supplements these services by data logger and Bluetooth interface.

Manage and send measurement data with a free application

So that you can easily manage and send your measurement data, the TOP-CHECK TRANSFER application for TOP-CHECK FN-B and TOP-CHECK FE-B is available for the PC free of charge, as well as a free Mobile App for Android.

Quality in the coating thickness measurement

A coating thickness meter is usually used in the quality assurance of coating processes, for example to determine the paint thickness of a paint job, in the testing of vehicles or steel structures, in fire protection (determination of the layer thickness of steel doors). It is not only a paint thickness gauge, but also gumming, anodizing and galvanic coatings can be measured.

The LIST MAGNETIK TOP-CHECK FE-1000 / FE-1000-B coating thickness meters use a probe that requires little contact area and low pressure. The compact devices are barely larger than a measuring probe and are particularly suitable for measuring thin layers on uneven or complex ground, for example tinplate cans.
