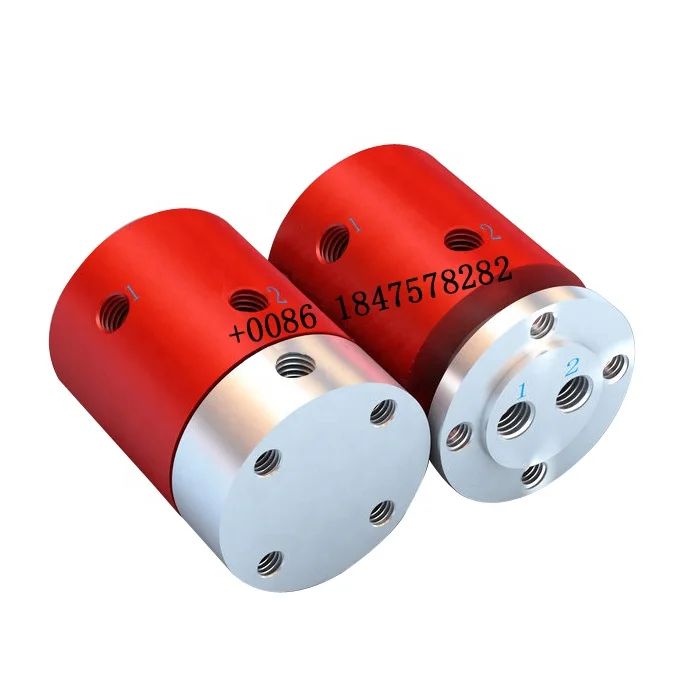

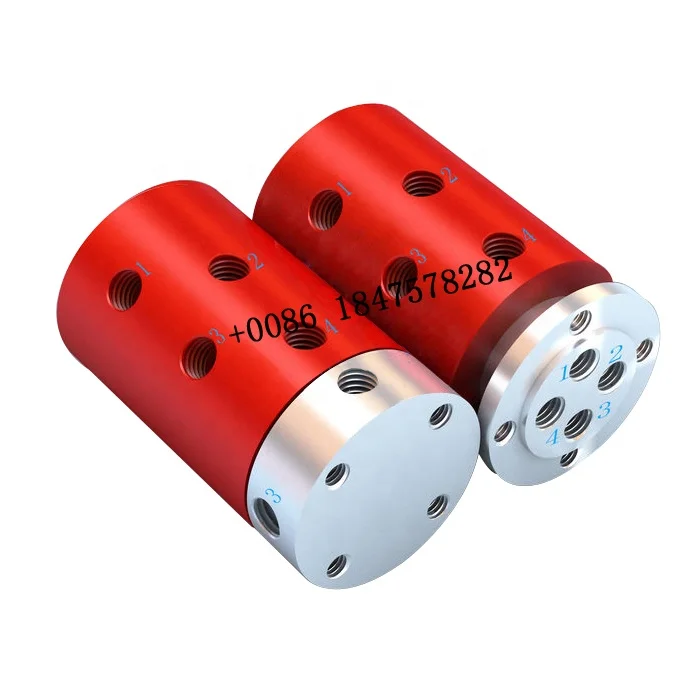

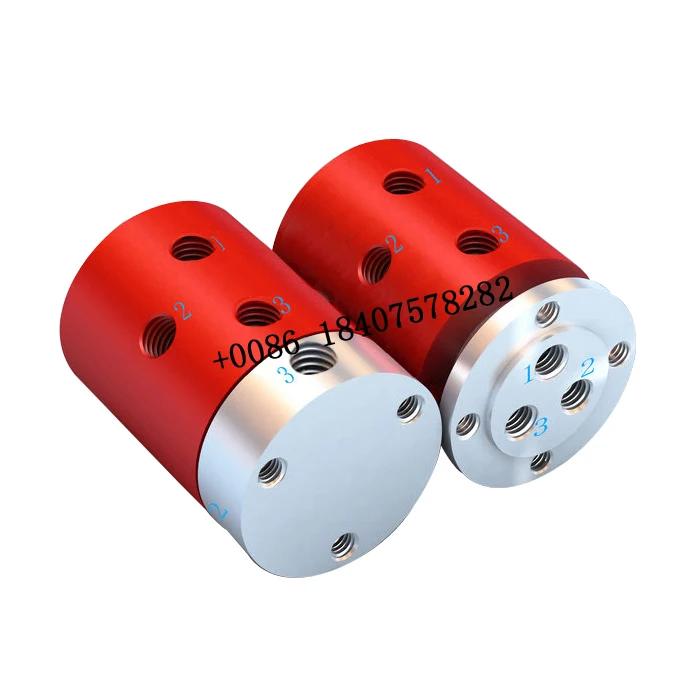

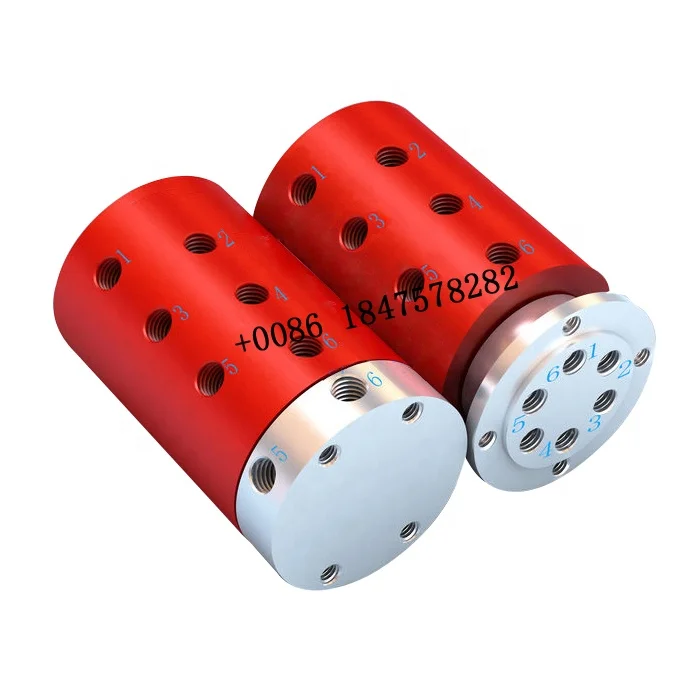

Our hydraulic multi-channel rotary joint can rotate 360 degrees, and can also transport gas, hydraulic oil, hot water, cold water, heat transfer oil, coolant, steam and other media. These media can be mixed and used without interference.

The size of the threaded interface is M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 "etc.

Our hydraulic joints are designed in one piece, full-imported high-precision bearing support, and internally sealed with super-abrasive materials. It has small size, light weight, stable turning torque, and is not affected by supply pressure and temperature changes. The turning force is also unaffected. Mainly used in the automation industry, food industry, paper industry, CNC machine tool industry, printing industry, semiconductor industry, military industry, food industry, plastic molding excavator industry, fire truck industry, and other industries.

Special requirements rotary joints such as high speed and high pressure can be customized.



Model	A	B	B	D	E	F	G	H	L
FLY-3GP-50R	M5	M6	35	45	35	15	1	45	89
FLY-3GP-18R	G1/8	M6	40	50	40	20	1	50	93
FLY-3GP-14R	G1/4	M6	55	65	55	27	1	65	131
FLY-3GP-38R	G3/8	M8	68	80	68	33	1	80	145
FLY-3GP-12R	G1/2	M8	68	80	68	34	1	80	149

Model	A	B	C	D	E	F	G	H	X	N	M	L
HLY-3GP-50R	M5	M6	40	50	40	28	2	50	13.5	8	20	103
HLY-3GP-18R	G1/8	M6	50	60	50	38	2	60	18	8	20	112
HLY-3GP-14R	G1/4	M6	55	65	55	43	2	65	20.5	8	20	123
HLY-3GP-38R	G3/8	M8	63	75	63	48	2	75	23.5	8	20	129
HLY-3GP-12R	G1/2	M8	78	90	78	60	2	90	29	10	22	148
