Маленький мембранный фильтр для сточных вод из полого волокна


Поделиться:


Цена:35,00 $ - 40,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 44.39 $* 45.53 $*
Jul-18-2025 36.86 $* 37.37 $*
Jun-18-2025 44.6 $* 45.28 $*
May-18-2025 43.5 $* 44.33 $*
Apr-18-2025 35.50 $* 36.47 $*
Mar-18-2025 43.68 $* 44.93 $*
Feb-18-2025 42.88 $* 43.49 $*
Jan-18-2025 42.39 $* 43.51 $*

Характеристики



Product Description





4.2m2 water filter uf membrane hollow fiber

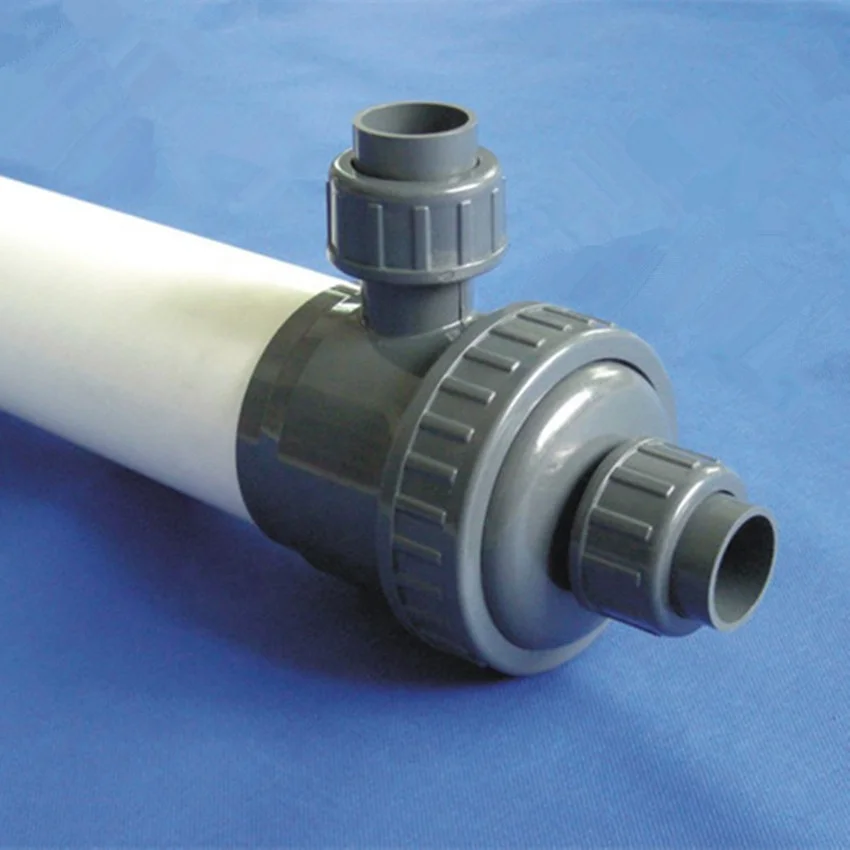

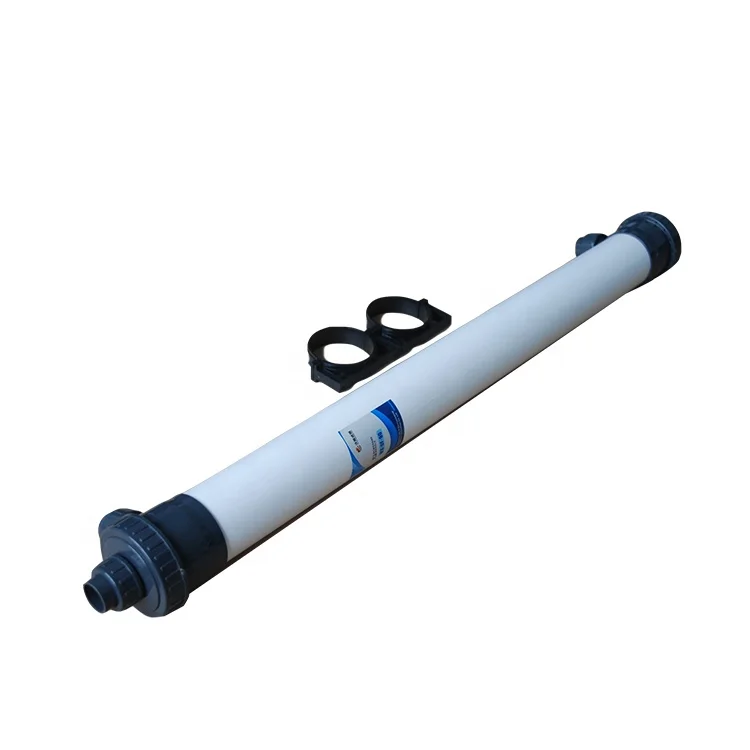

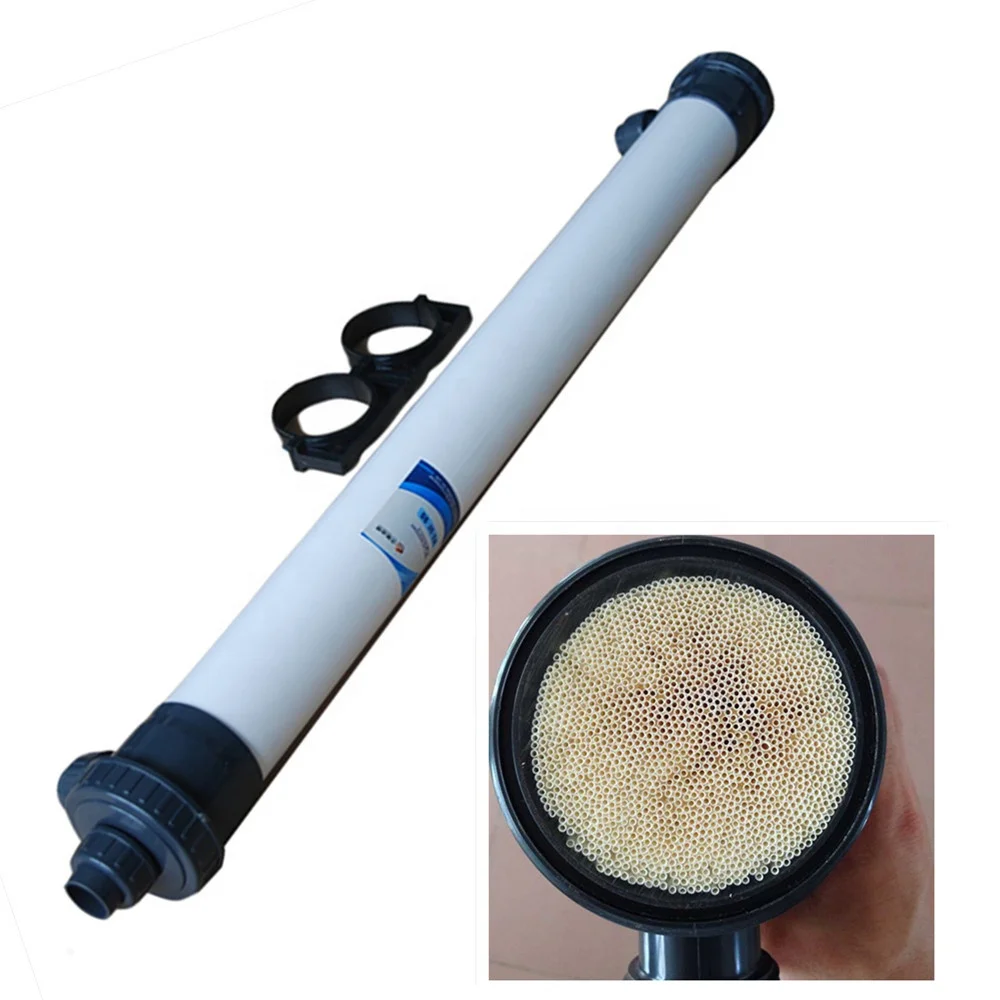

Detailed Images






Specification


Basics parameters
Membrane Dimension
Ø90mm*1175mm
Membrane area
4.2㎡
Designed membrane flow
300-500L/H
Hollow Membrane fiber ID/OD
1.0mm/1.66mm
MWCO
100,000Dalton
Filter method
Inside-out
Temperature
5-45℃
PH Range
2-12
End seal material
Epoxy resins
Housing material
UPVC


Working Conditions
Maximum TMP
0.2Mpa
Recommended TMP
0.04-0.08Mpa
Maximum Operating pressure
<0.15Mpa
Maximum Turbidity
25NTU
Maximum particle size
0.2mm
Continuous residual chlorine resistance
100ppm
Discontinuous residual chlorine resistance
200ppm
Operating method
Cross flow or Dead-end flow


Production Water Index
Production water (SDI) index
<3
Production water Turbidity
≤0.1NTU
SS Removal
99.99%
Microorganisms, bacteria, pathogens removal
99.99%



UF membrane application

1) RO pre-treatment and post-treatment,raw water includes sea water, surface water,well water and waste water etc.
2) Drinking water supply treatment.
3) Condensate water reuse.
4) Pharmaceutical industry to remove pyrogen.
5) Municipal water,surface water and well water treated for drinking.
6) Waste water deep treated for recycling.
7) Turbidity removal of liquor,removing bacterial and turbidity from fruit wine,grape wine and yellow rice wine.
8) Applied to industries of concentration treatment such as food,beverages,fermentation,milk




Vocee UF membrane Features

1) Membrane material is hydrophilically modified to decrease the transmembrane pressure (TMP), low running cost,large flux,anti-pollution enhanced.


2) Membrane fiber has been treated by physical and chemical,it has High mechanical strength and toughness characteristics,greatly reduce the rate of fiber broken during operating.

3) Membrane fiber both sides are smooth,effectively reduce the adsorption pollution and impurities deposition on membrane fiber surface,greatly improved membrane fiber anti-pollution performance.

4) PH range reaches 2-13,resistant to various acids ,alkali and oxidation,such as Sodium hypochlorite and hydrogen peroxide, etc. Applied to treat different kinds of raw water quality.

5) Produced water SDI < 1(raw water turbidity test values less than 20NTU)








Related Products






Our Company




Guangzhou Vocee Membrane Technology Co.,Ltd is a professional manufacturer of UF membrane,MBR membrane and membrane treatment system.
We have several senior technical experts,excellent engineering,team and sophisticated workers for Hollow fiber membrane manufacturing and water treatment equipment designation, assembly, installation, test, commissioning and after sales service.
Our company will continue to optimize technique and quality,strive to provide customers with comprehensive and detailed technical services, and we also will keep innovating in the field of MBR and UF membrane technology, constantly meet customers needs and exceed customers expectations with high quality membrane products.




Why choose us?
1.10 years experience in UF and MBR membrane
2.Excellent cooperation partner
3.Own an excellent technical team
4.Advanced R & D capability
5.International management system
6.Located in Guangzhou, convenient export transportation.





Our Service


1) UF membrane technical consulting,

2) UF membrane application engineering design,

3) UF equipment manufacturing, installation and commissioning,

4)Different membrane dimension, material like pp, PVDF,reinforced PVDF etc.,can be customize according to your requirements

5)12months warranty



Packing & Delivery




FAQ


Q: Are you trading company or manufacturer?
A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.

Q:What about the lead time?
A:Sample needs 3-5 days, mass production needs 1-2 weeks after the payment.

Q:Can I have a sample order for UF/MBR Membrane?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q:Is it OK to print my logo on UF Membrane product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
