2020 New Design CE ISO approved 200kg 4.5m hydraulic self propelled moving mini tracked crawler electric scissor lift for sale
CFMG Self-propelled Track Crawler Scissor Lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are construction•oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 12m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...
Model
CFPT0406LD
CFPT0608LD
CFPT0810LD
Platform Height(m)
4.5
6
8
Work Height(m)
6.5
8
10
Load Capacity(kg)
200
450
450
Platform Szie(mm)
1230*655
2270*1120
2270*1120
Overall Size(mm)
1270*790*1820
2470*1450*1765
2470*1450*1890
Extendable Platform(mm)
550
900
900
Weight(kg)
790
2750
2870
Main Features:
•Rough-terrain capability •6-14m working height •320kg load capacity •24V DC or 48V power source with long working cycles •Zero inside turning radius •Derivable and functional at full height •Outriggers (optional) •Emergency stop at both platform and ground controls •Proportional controls for drive functions

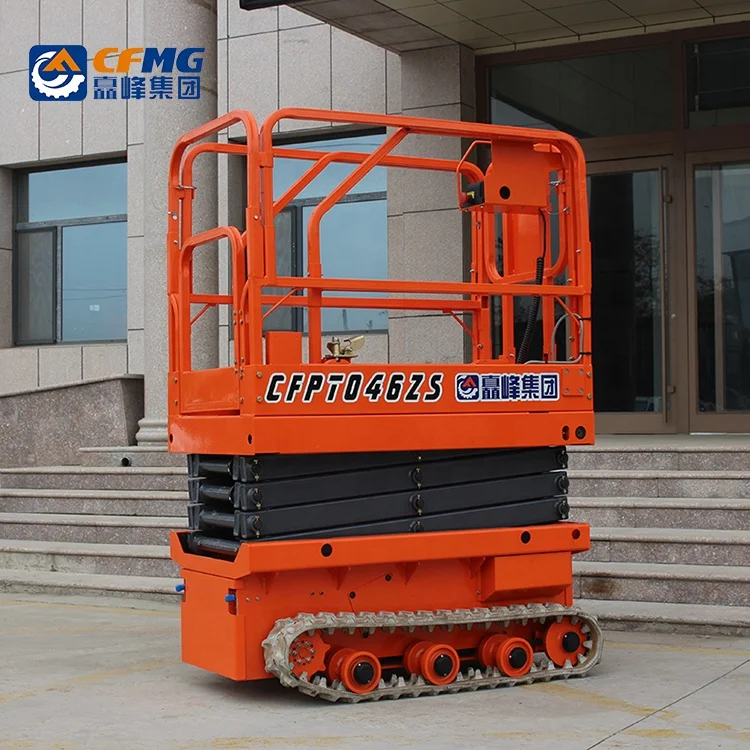

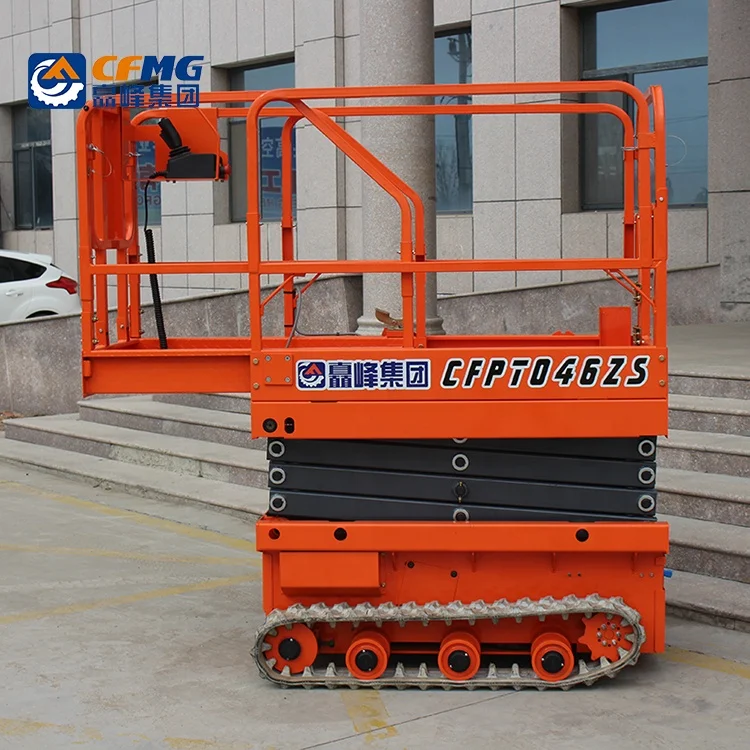

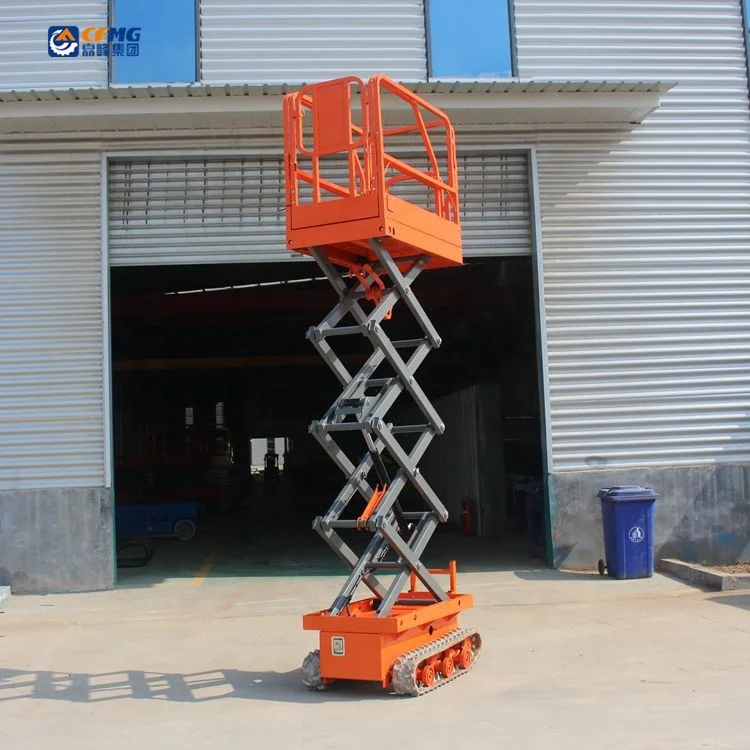

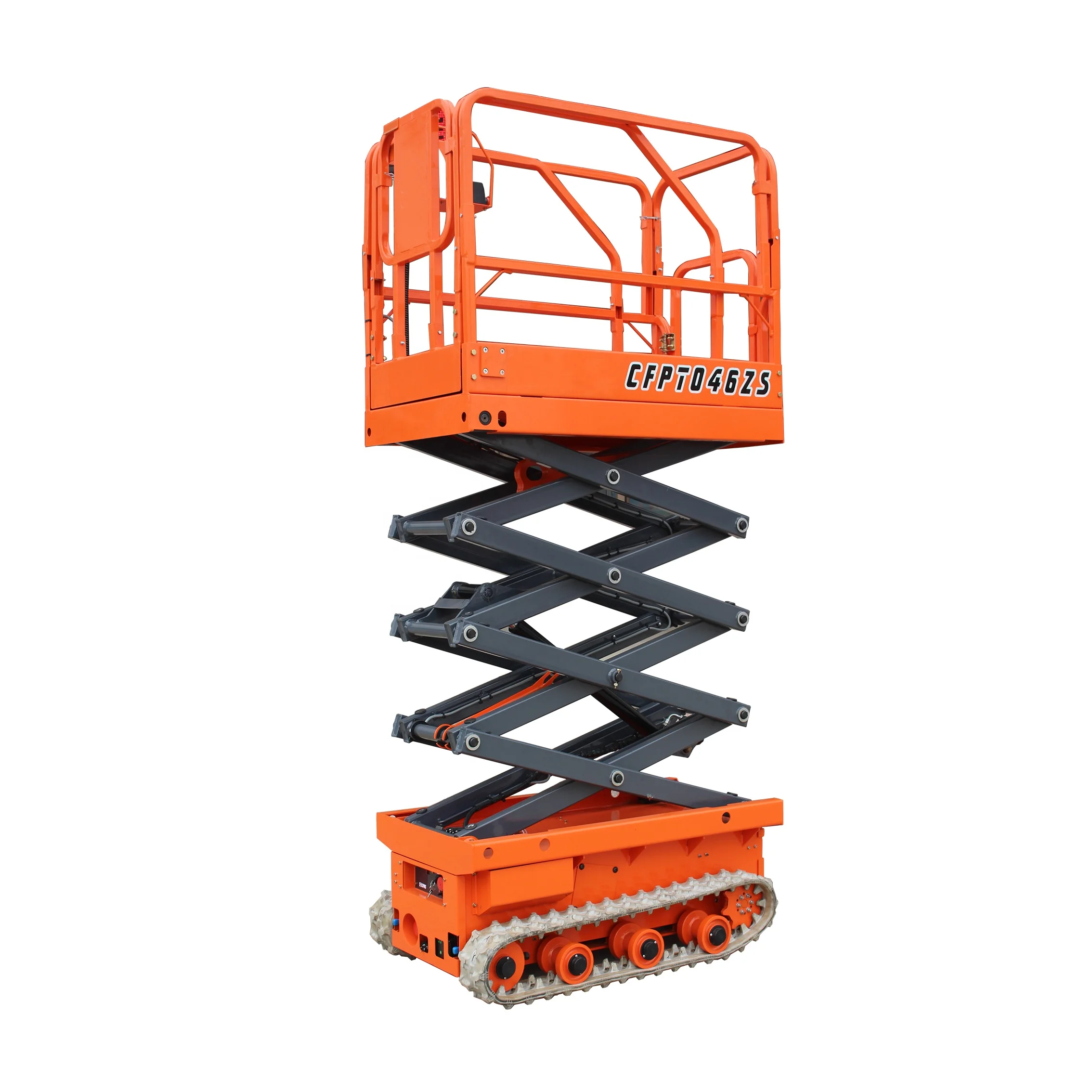

Detailed Images
Our Factory
Packing & Delivery
Our Service
1.Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service: One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
4. Quick responses: we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
