DISMATIC FORIX-монтаж поверхности-20 A IP 2X - BLANC

DISMATIC FORIX-монтаж поверхности-20 A IP 2X - BLANC

Категория: Circuit Breakers >>>
Поставщик: Yueqing,Yougu,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.67 $*	0.48 $*
Aug-16-2025	0.75 $*	0.84 $*
Jul-16-2025	0.75 $*	0.98 $*
Jun-16-2025	0.64 $*	0.54 $*
May-16-2025	0.52 $*	0.80 $*
Apr-16-2025	0.93 $*	0.65 $*
Mar-16-2025	0.14 $*	0.63 $*
Feb-16-2025	0.86 $*	0.85 $*
Jan-16-2025	0.2 $*	0.27 $*

Характеристики

Product Parameters

Y200 Disjoncteur Dismatic circuit breaker

Y200 Series low voltage disjoncteur dismatic product have overload and isolation protection, suitable for high frequency repeating start and widely used in high frequency repeating start and protect for household appliances (air-condition, electric fan), medical equipment, professional tools, and gardening tools, In France this disjoncteur are used by manufacturers of floor sanding machines and concrete vibrators. They serve for the switch on and off of all loads on board such as bilge pump the anchor light of interior lights, at the same time they protect cables and equipment loads against possible damages caused by overheating in the event of overcurrent. The products conform with the standards of IEC60898 & NF F62001

\t Rated current In	\t 20A
\t Pole number	\t 1P
\t Rated voltage Ue	\t AC 230/380V
\t Rated frequency	\t 50/60Hz
\t Rated overload breaking capacity	\t 1.5 KA
\t Rated shock withstand voltage	\t 4 KV
\t High-voltage insulation	\t 2KA/1 min
\t Tripping style	\t Overload tripping
\t Electrical life	\t 8000 times
\t Protection level	\t IP20
\t Fiducial temperature	\t 30℃
\t Ambient temperature	\t -5℃ to +40℃
\t Storage temperature	\t -35℃ to +70℃
\t Resistance to damp heat	\t 2 types(temperature 55℃,relative humidity 95%)
\t Installation type	\t Screw fastening card mounting with panel
\t Terminal wiring capability	\t 2.5mm²
\t Flame retardant grade	\t V-1
\t Tightening torque	\t 2.5N*m 22In-Ibs
\t Pollution degree	\t 2
\t Connection	\t Cassette connection

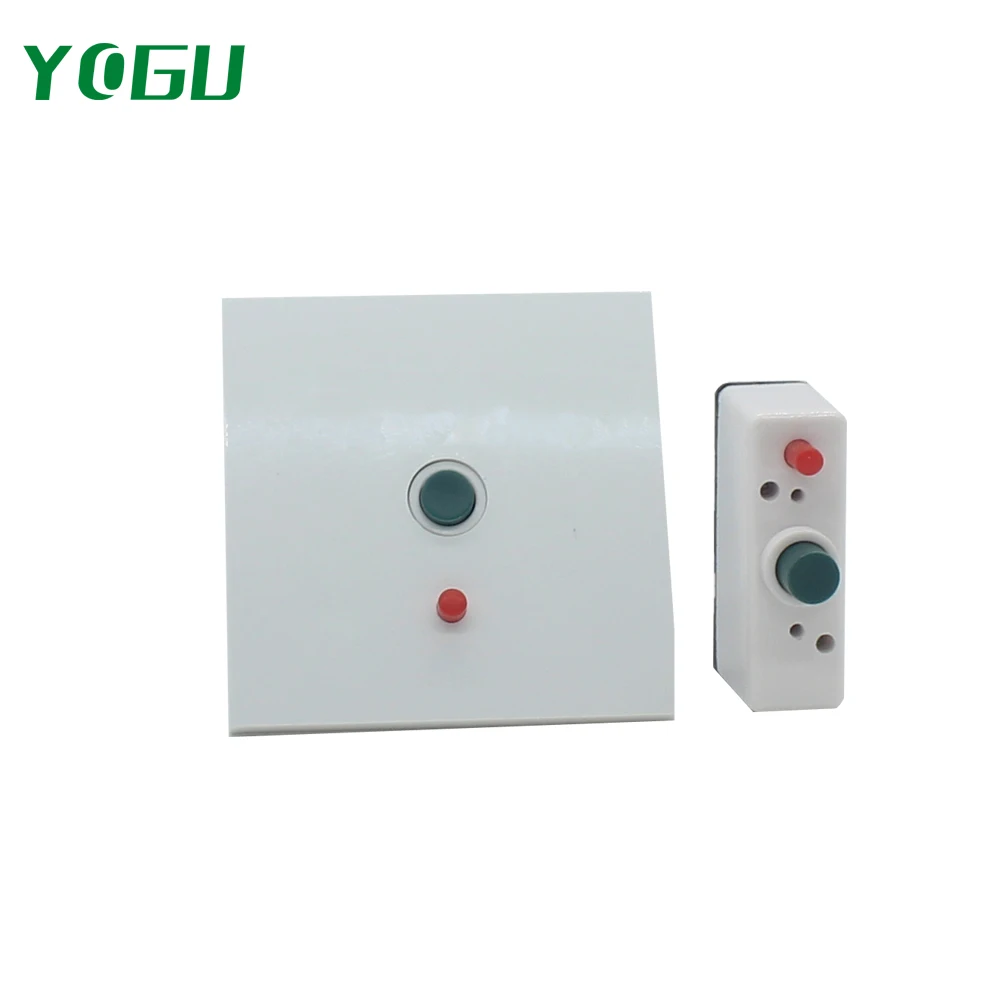

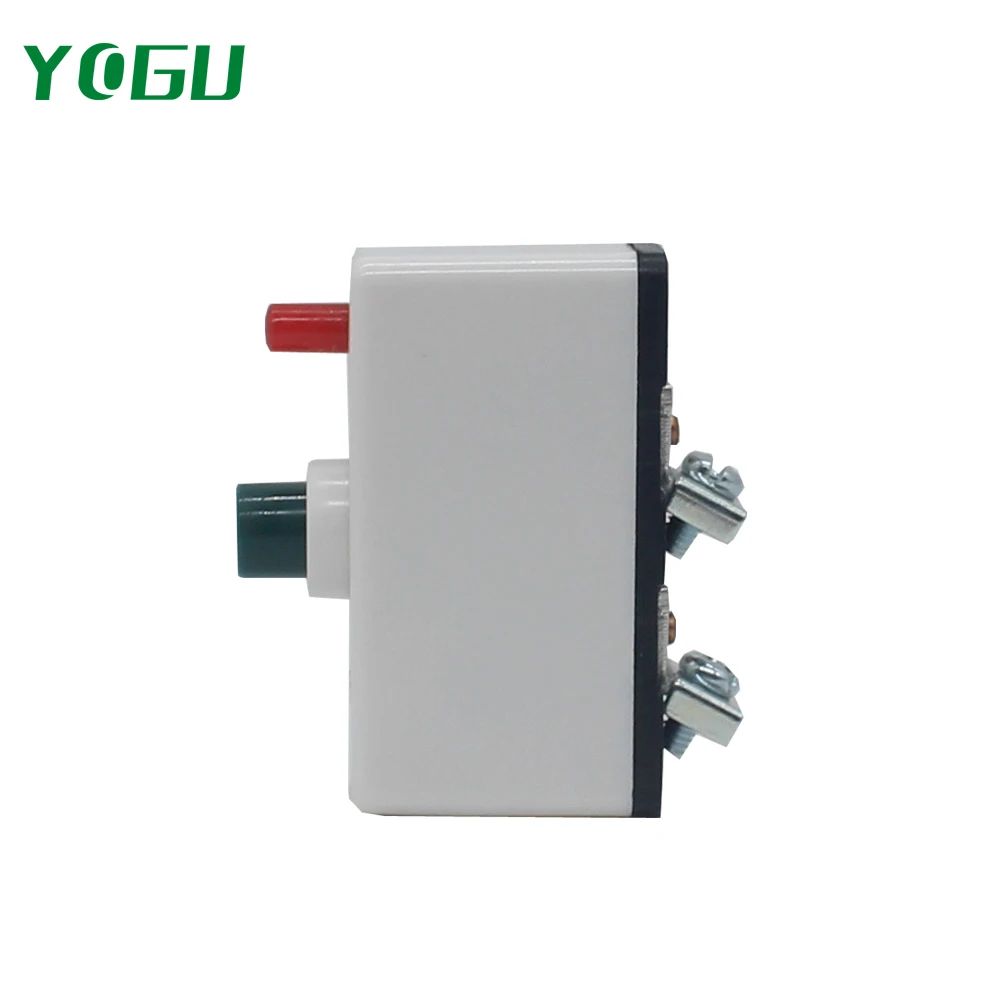

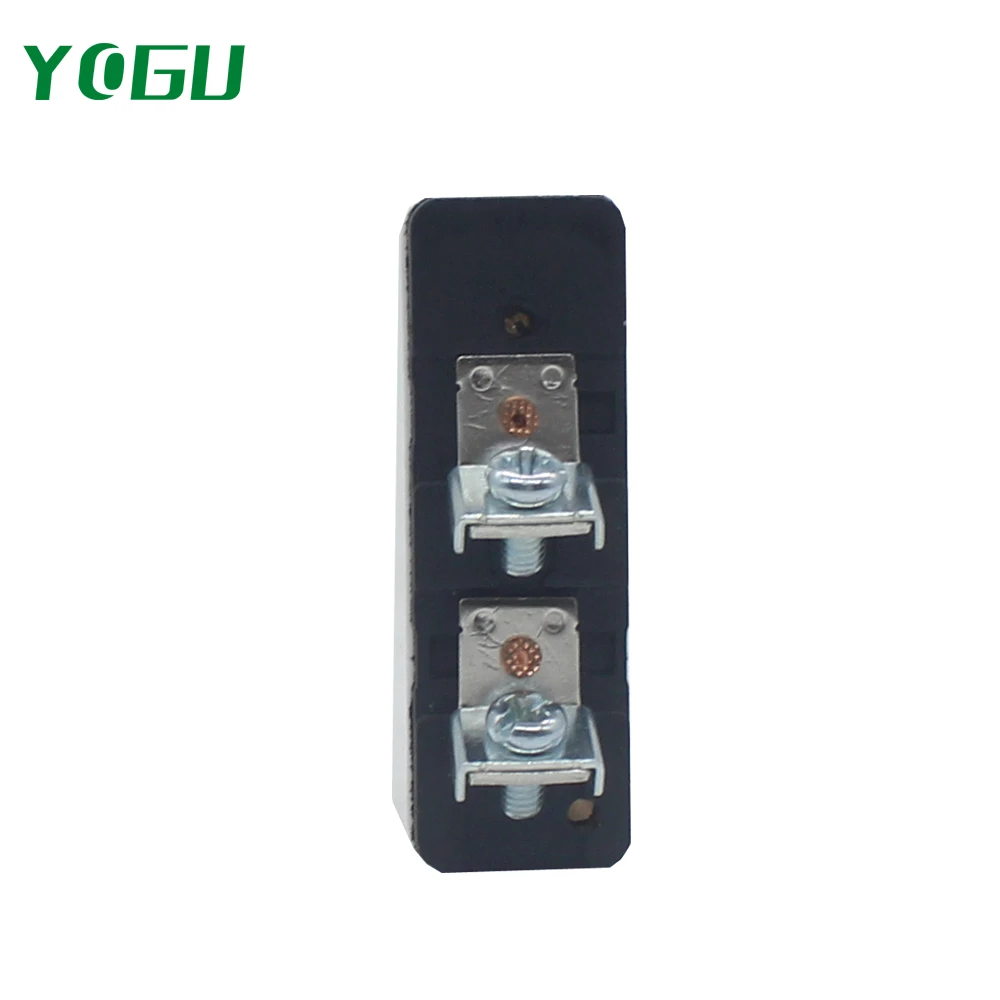

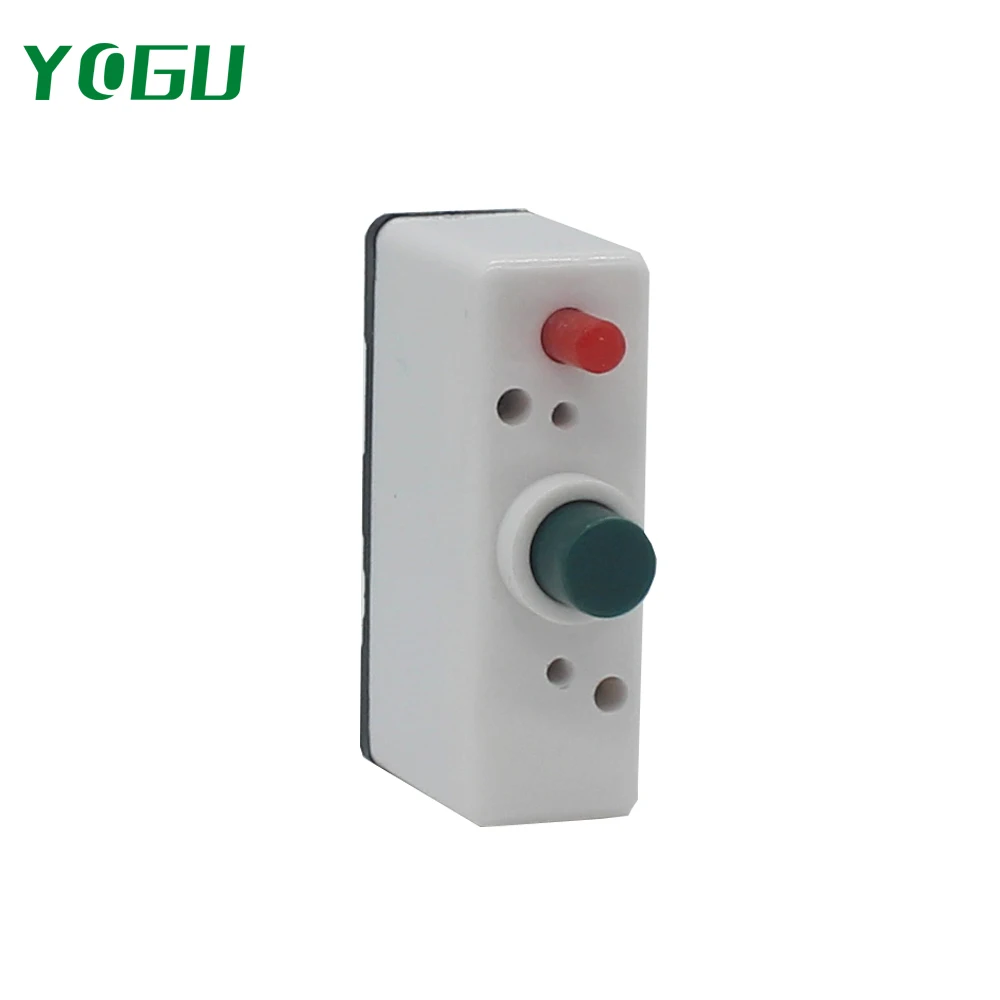

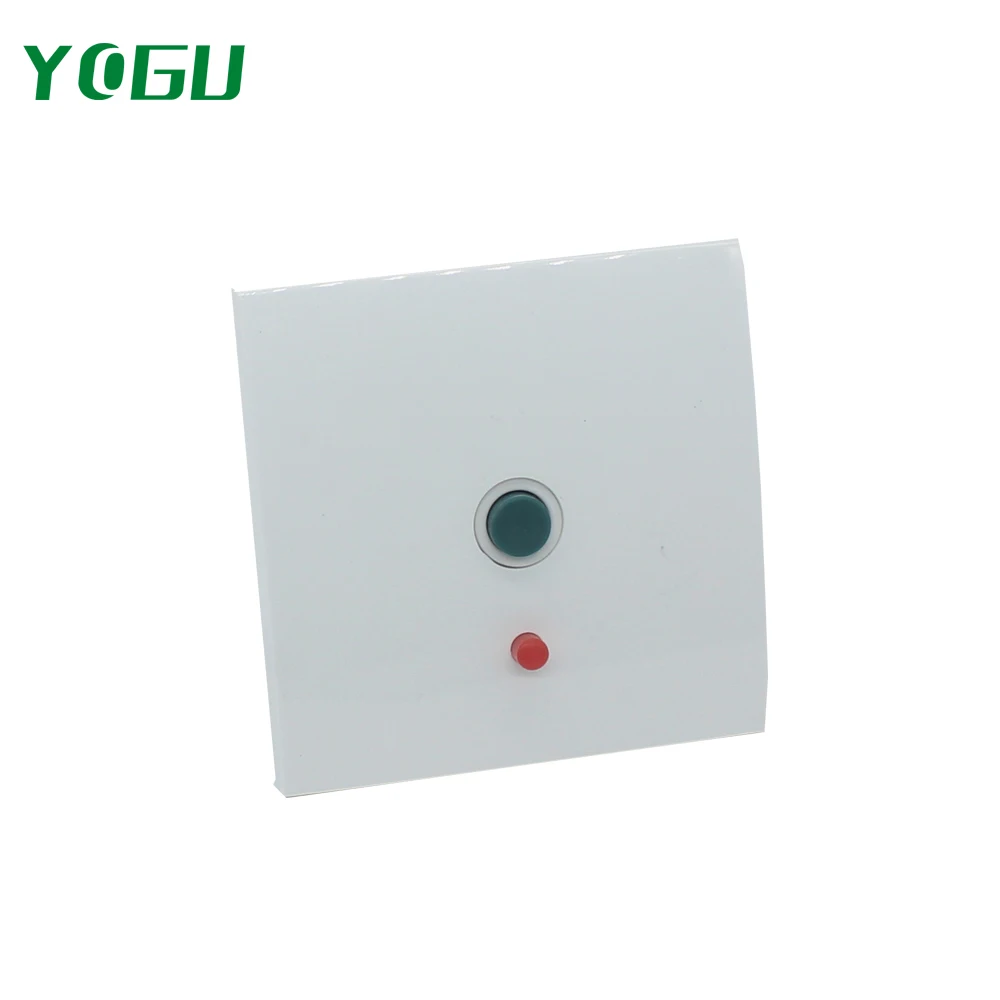

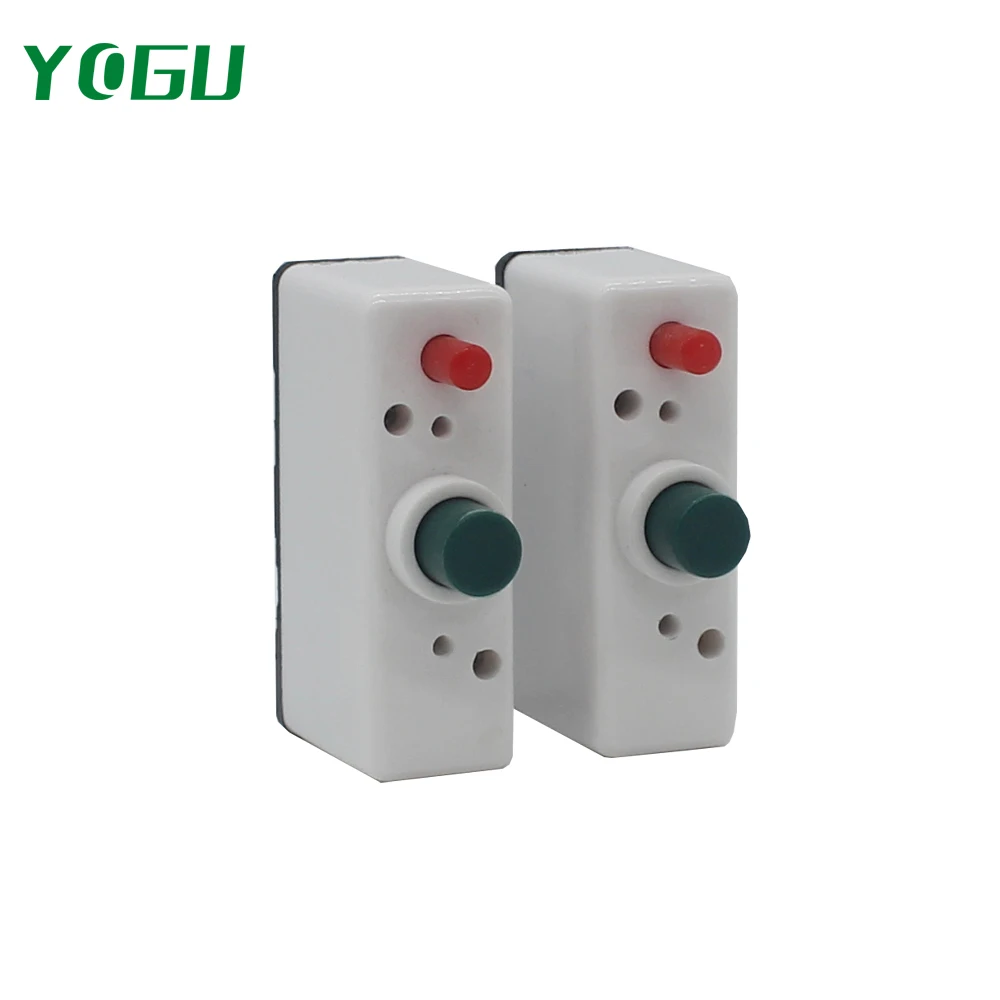

Product Display

Product Inspection

Yueqing Yougu Electric Co., Ltd

is a professional manufacturer of kinds of circuit breakers, ac contactors, SPD, motor protectors, and distribution boxes, etc. We specialized in the field of low-voltage electric appliances for more than 15 years. Providing customers with quality products and professional services is our goal.
