Заводское программное обеспечение msr90 для считывания карт с магнитной
- Категория: Устройство считывания карт >>>
- Поставщик: Shenzhen,OCOM,Technologies,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 19.52 $* | 19.87 $* |
| Jul-19-2025 | 15.24 $* | 15.8 $* |
| Jun-19-2025 | 19.66 $* | 19.14 $* |
| May-19-2025 | 19.19 $* | 19.69 $* |
| Apr-19-2025 | 15.54 $* | 15.57 $* |
| Mar-19-2025 | 18.39 $* | 18.98 $* |
| Feb-19-2025 | 18.41 $* | 18.54 $* |
| Jan-19-2025 | 18.16 $* | 18.9 $* |
Характеристики

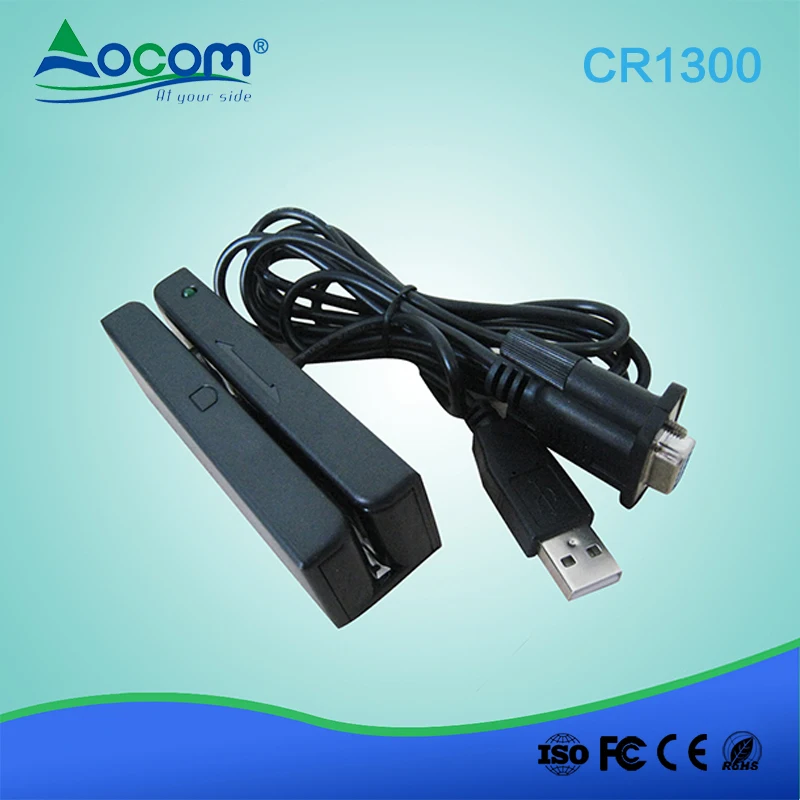

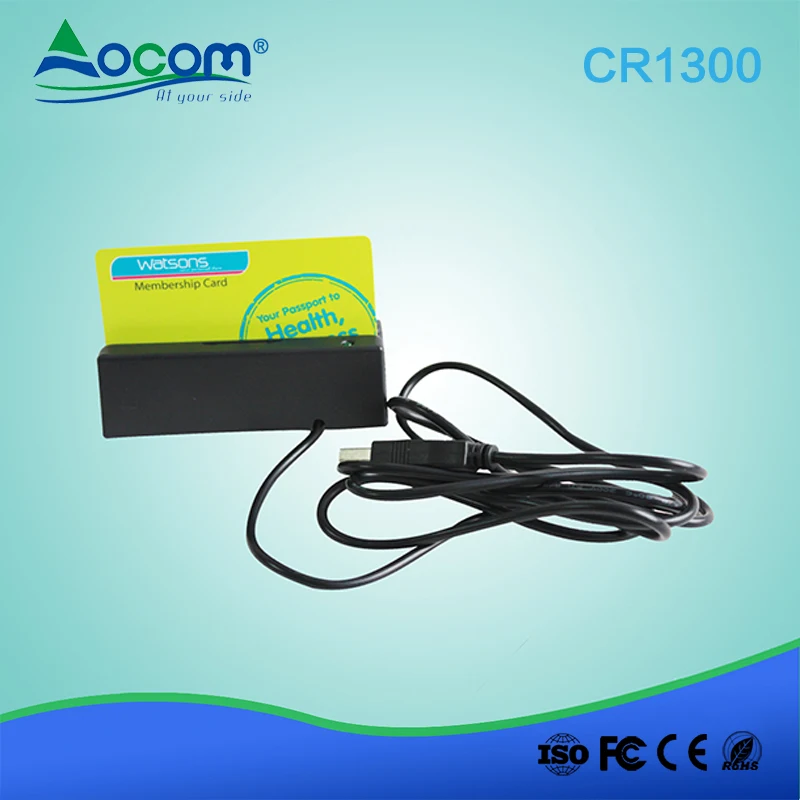

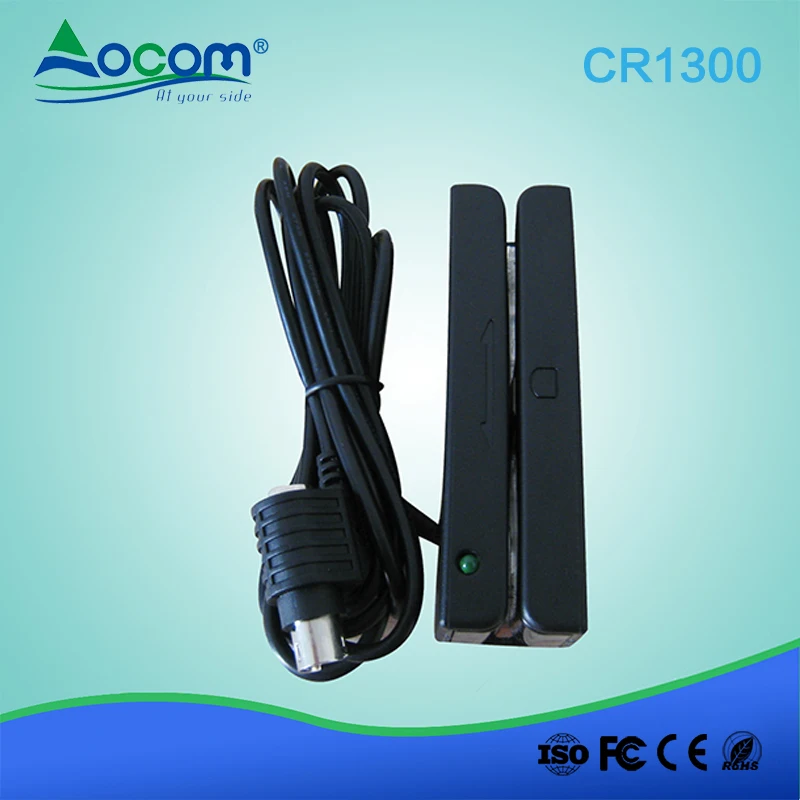

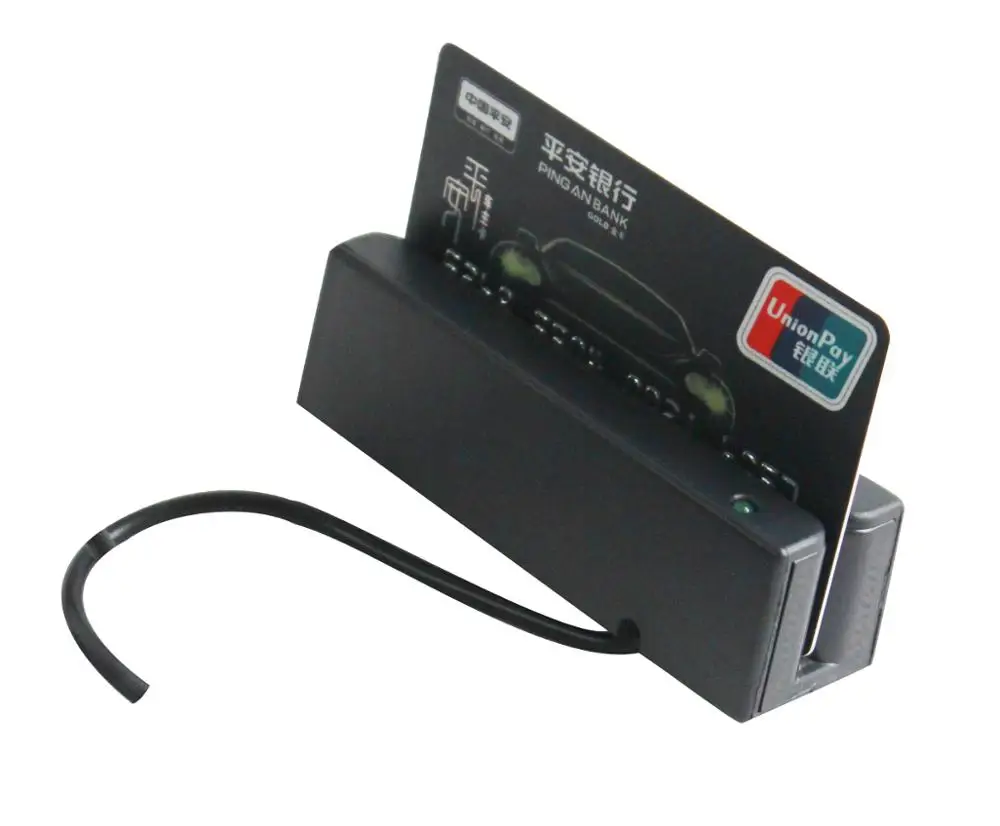

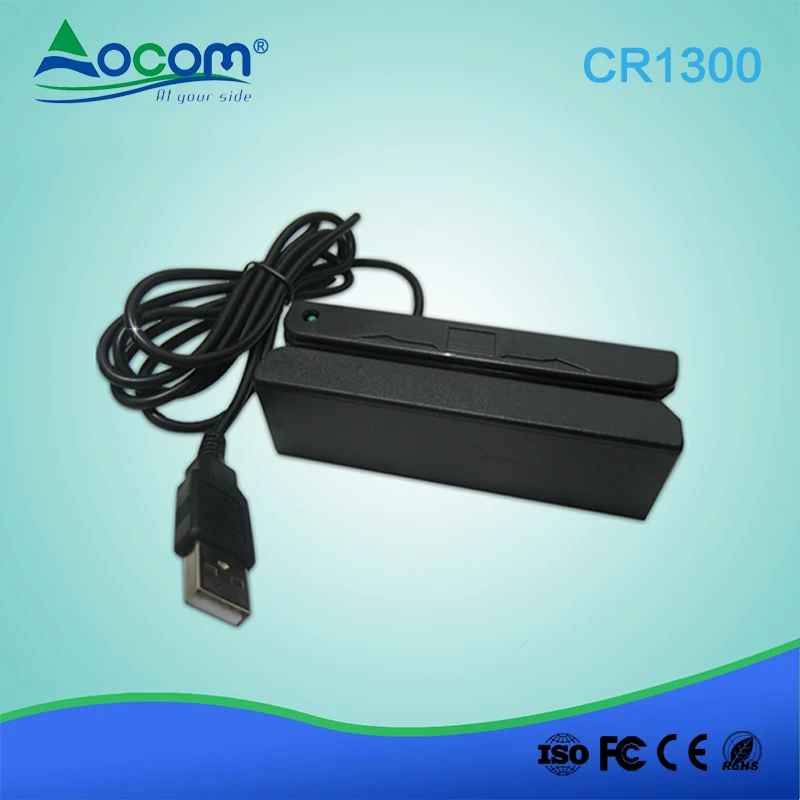

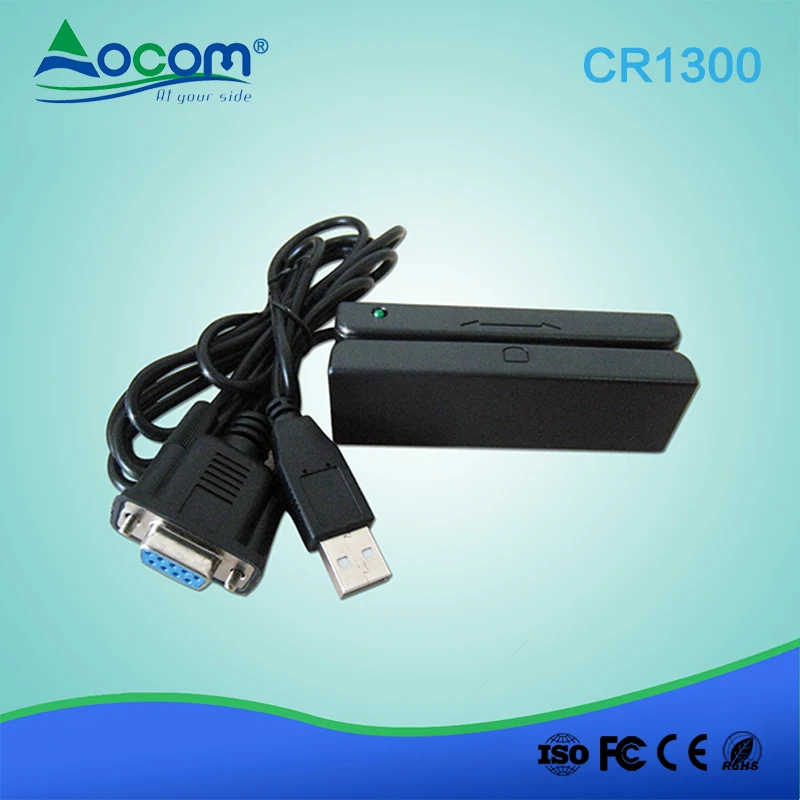

Factory Magnetic Stripe Card Reader Writer Software msr90
(Model No.: CR1300)
Features:
l Compatible with Android System.
l All 3 tracks can set to 75/210 BPI;
l USB or Serial interface.
l Long service life (500,000 card passes).
l Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.
Specifications:
Dimension | 90mm(L) x 26mm(W) x 28mm(H) | ||
Weight | 85g(approx.) | ||
Power Supply | +5V DV ±5% | ||
Power consumption | 40mA (max.) | ||
Operation Locus | Indoor use | ||
Card Standard | ISO7811/7812 | ||
Track Position | ISO 1 (IATA) | ISO 2 (ABA) | ISO 3 (MINTS) |
Recording Density | 210 BPI | 75 BPI | 210 BPI |
Recording Capacity | 79 Characters (7bits) | 40 Characters (5bits) | 107 Characters (5bits) |
Interface | USB / Serial | ||
Card Thickness | Plastic 0.76 ± 0.08mm | ||
Head Function | Read only 1.5mm | ||
Operation Speed | 10 ~ 150cm/sec | ||
Life of Head | 500,000 card passes (1 pass : one swipe) | ||
Error Rate | Less than 0.5% (JSE Test card) | ||
Temperature | Storage : -30°C to +70°C Operating : -20°C to +70°C | ||
Humidity | Storage : 0% to 95% RH Operating : 20% to 90% RH | ||
FAQ
1. Warranty
OCOM is dedicated to providing most cost-effective products and services with highest quality that will meet customers'satisfication, our warranty of the products is about 12 months from the shipment normally, some designated models can have as long as 24 months warranty. For mass order, we can supply you some spare parts for local repair. And after that, you can returned failure parts for reworks.
2. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable. Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
3.Shipment
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
4. Sample Availability & Policy
After customers confirmed our specification, we are very glad to provide samples for testing and qualification. All samples should be paid before shippment, and the samples price is a little higher than mass order. When the mass order placed, we can return you the samples cost, or send you more products with the shippments. You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress: http://www.aliexpress.com/store/403448?tracelog=minisite_CI The sample order is needed before we release to our factorie
5. After-sales Service:
(1) All products warranty is not less than one year, some models even up to two years warranty. (2) Spare parts will be provided for mass orders for customers' local maintenance. (3) Have distributors or authorized agents in main market who can provide local repair and replacement services. (4) Professional CRM management insures fast customer's enquiries and orders tracking. (5) Sales with many years experience in foreign trade, proficient in foreign languages and strong sense of responsibility. (6) 7*24 hours online, working days respond within four hours, rest days within 12 hours.
6.Download
You can access our website to download drivers, SDK software, product specifications and user manuals.
7. Video Guide
To help customers use our products better, we have recorded and upload some video guidance, you can find them at www.ocominc.com
8. MOQ policy
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
