Оптоволоконная коммутационная панель 12 портов LC дуплексный 9/125 мкм однорежимный полностью оснащенный косичками с адаптерами и необходимыми
- Категория: Patch Panel >>>
- Поставщик: Guangzhou,Lulink,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.8 $* | 0.44 $* |
| Aug-16-2025 | 0.40 $* | 0.19 $* |
| Jul-16-2025 | 0.99 $* | 0.56 $* |
| Jun-16-2025 | 0.30 $* | 0.29 $* |
| May-16-2025 | 0.98 $* | 0.10 $* |
| Apr-16-2025 | 0.95 $* | 0.86 $* |
| Mar-16-2025 | 0.97 $* | 0.9 $* |
| Feb-16-2025 | 0.44 $* | 0.77 $* |
| Jan-16-2025 | 0.34 $* | 0.59 $* |
Характеристики
Fiber Patch Panel - 24 port LC 9/125μm Single mode, FULL equipped with pigtails, with adaptors, and necessary accessories.

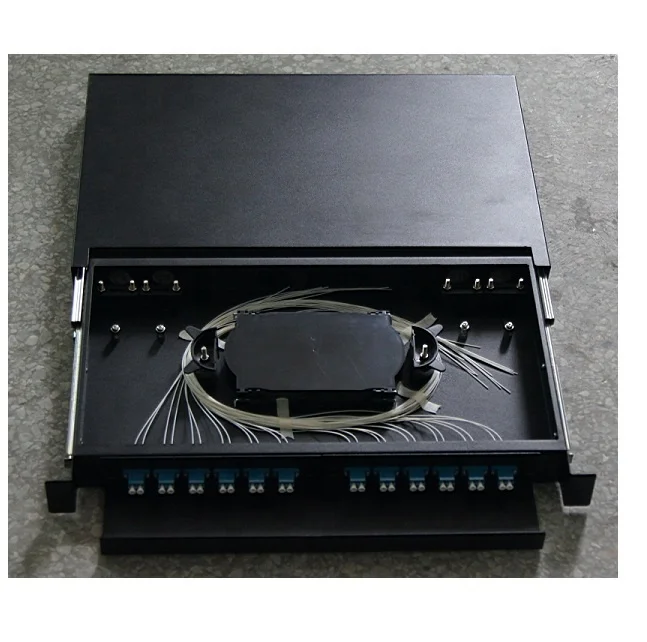

Slidable Rack-mounted Fiber Optic Patch Panel has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.
Features:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
Suitable for ribbon and single fiber
Compact design for space saving
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
Easy for management and operation
Insert loss ≤0.3dB
Return loss ≥35dB
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
LK07R201-24 | 24 | 1U | 45x 32x4.45 | 4.5 |
Description:
This DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.
Features:
Reasonable design, aluminum box, light weight
Electrostatic powder painting, grey or black color
ABS plastic blue splice tray, rotatable design, compact structure
Max. 24 fibers capacity
FC, ST, LC, SC ... different adapter port available
DIN rail mounted application
Specification:
Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
133x136.6x35mm | Aluminum | 12 SC simplex | Max. 24 fibers | 4 ports | DIN rail mounted |
Accessories:
Item | Name | Specification | Unit | Qty |
1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
2 | Cable tie | 3*120mm white | pcs | 2 |
Cable management drawings:
1. Fiber optic cable 2. stripping out optical fiber 3. fiber optic pigtail
4. splice tray 5. heat shrinkable protection sleeve
