Алюминиевый Ручной Телескопический Натяжной трос
- Категория: Telecommunication Towers & Accessories >>>
- Поставщик: Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 3641.80 $* | 3714.65 $* |
| Jul-16-2025 | 2953.15 $* | 3012.67 $* |
| Jun-16-2025 | 3584.4 $* | 3656.85 $* |
| May-16-2025 | 3555.78 $* | 3626.23 $* |
| Apr-16-2025 | 2838.56 $* | 2895.31 $* |
| Mar-16-2025 | 3498.50 $* | 3568.2 $* |
| Feb-16-2025 | 3469.80 $* | 3538.46 $* |
| Jan-16-2025 | 3440.3 $* | 3509.55 $* |
Характеристики
Product Description

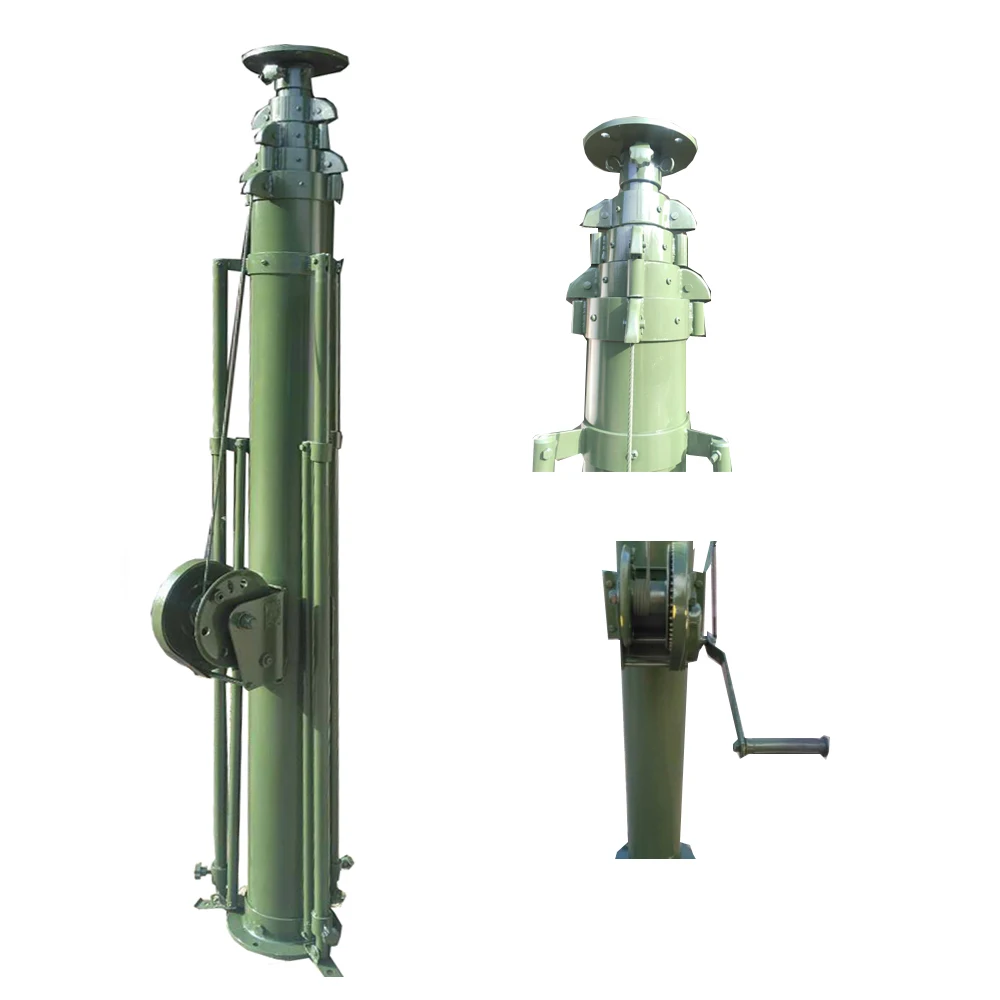

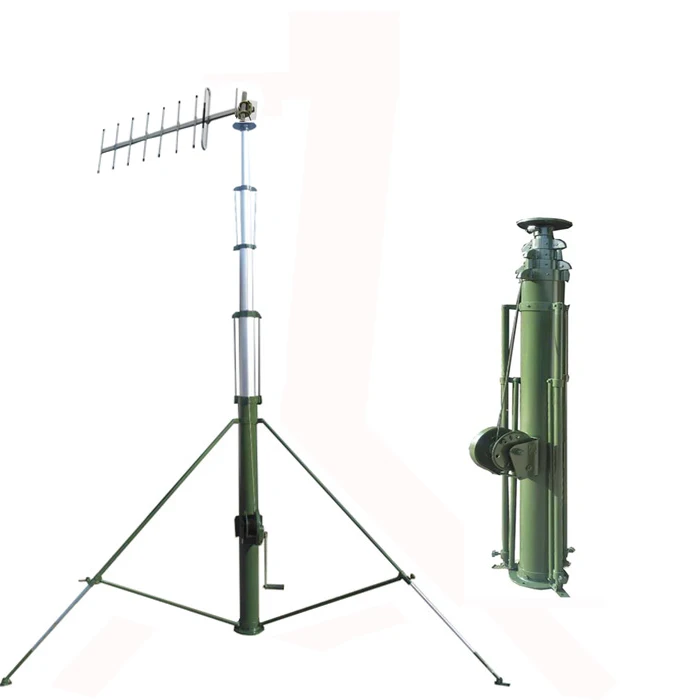

Aluminum Manual telescopic guy wire mast

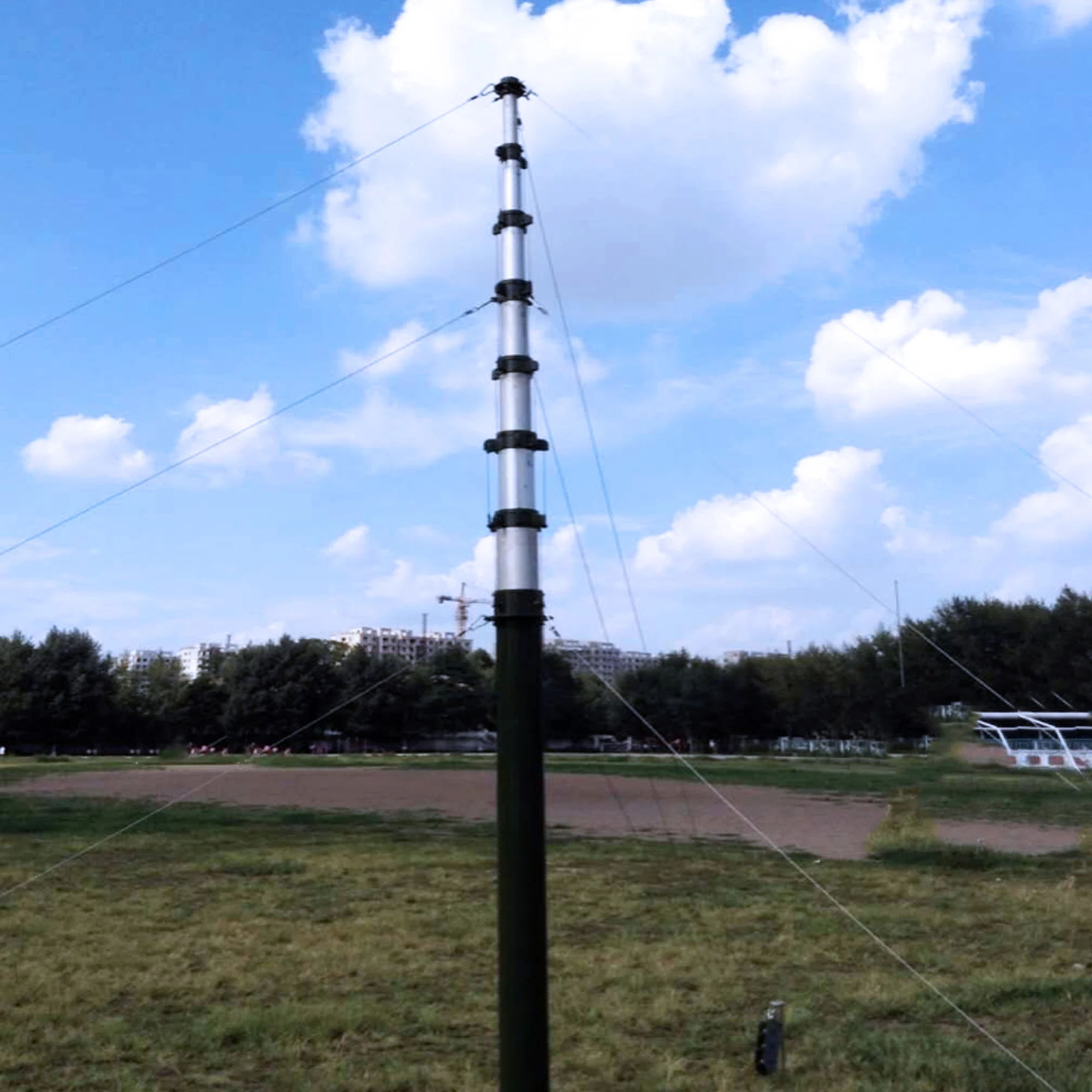

Guy wire tower, it can be mounted on ground, also truck, With guy wire could keep good stable station.
Specification
Specification Aluminum Manual telescopic guy wire mast | ||
Model | Tal-M18-3.04-50-A | |
Mast material | Aluminum alloy | |
Mast color | the whole unit will be in army green when closed and extended . | |
Color Technology: painting | 20kg | |
Mast extended height | 18.0m | |
Mast retracted height | 3.04m | |
Max head load | 50kg | |
Mast sections No. | 8sections | |
Tube OD*Wall thickness | 8sections Tube OD*Wall thickness 1#150/3.0mm 2#132/3.0mm 3# 114/3.0mm 4# 98/3.0mm 5# 83/3.0mm 6#69/3.0mm 7# 55/3.0mm 8# 42/3.0mm | |
Mast wind load | Around 120km/h | |
TOP flange size (diameter/thickness): Round shape | ||
Bottom Flange size(diameter/thickness) round shape | ||
Working temperature | -15to 50 ℃ | |
Accessories | 2.Bottom flange(base)-----------------1pc 3.TOP flange----------------------------1pc 4.Pulling cord box----------------------3pcs 5Ground anchor------------------------3pcs 6.tripod------------------------------------1pc | |
Details
Color:
powder painting process
army green, oliver green, silver, white, bronze color for choose. Also accept the customeized color.
Materal:
mast in alumihnum alloy 6063B.
anodizing treatment
inner stainless steel 304 wire
Flange and guy wire stakes in Galvanized steel.
Manin Acessories
Packing & Delivery
18m guy wire tower
Packing : one set mast with accessories will
be packed into a plywood case.
Gross weight:180kgs
Package meas:320*58*53
Other sepcification
Accept height from 2m to 35m, Max head load 300kg.
if any request, contact with us
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
