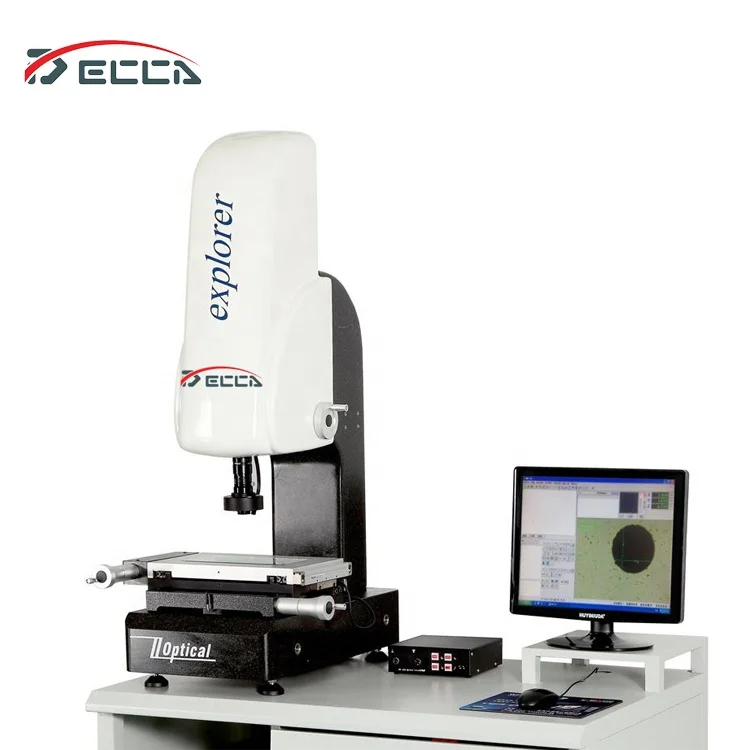

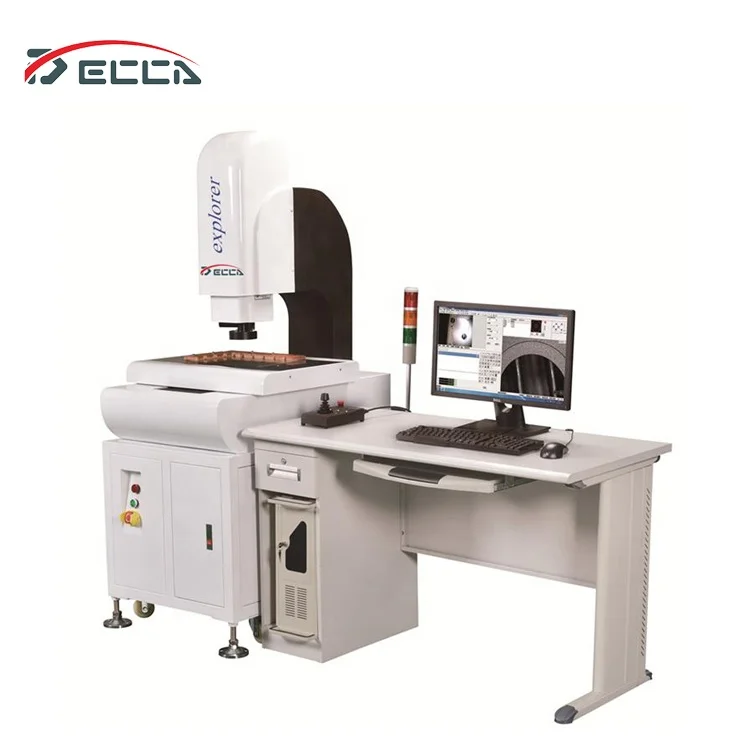

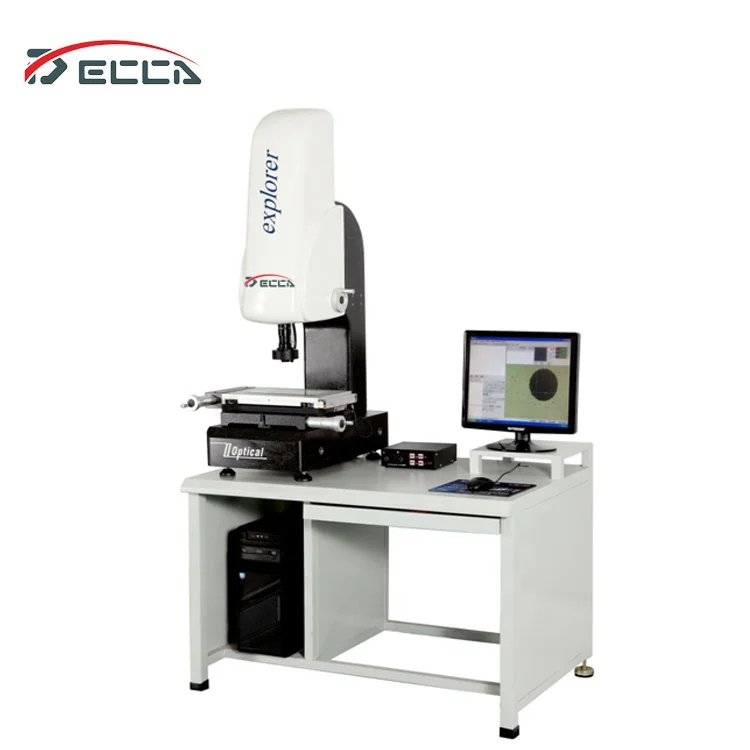

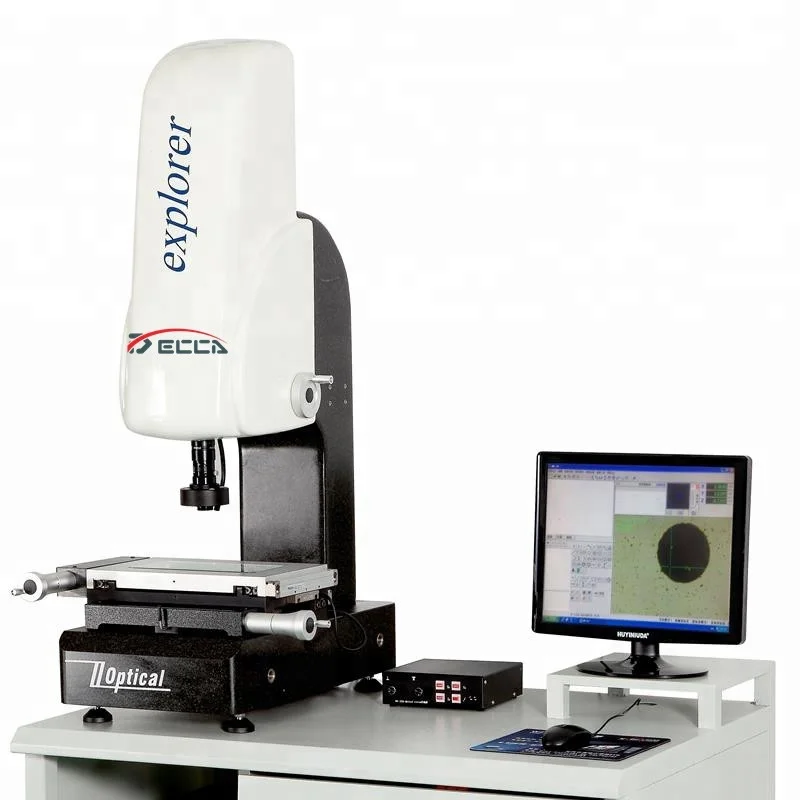

CNC optical instrument semi-automatic manual 2.5D vision vmm image video measuring system machine



Model		SMV-2010	SMV-3020	SMV-4030	SMV-5040
Worktable	Metal table’s size(mm)	350*220	450*350	550*450	700*600
	Glass table’s size(mm)	230*130	330*230	430*330	530*430
	Three axis travel Travel(mm)	200*100	300*200	400*300	500*400
Weight(kg)		170	260	300	500
Dimension(L)*(W)*(H)		500*700*1100	600*750*1100	700*900*1150	850*1050*1200
Measuring System		Camera :SONY1 / 3" Color CCD Camera
(Standard Accessories)		Lens magnification :0.7~4.5X       WD:95mm
		Total magnification:30~230X        Object view:7~1.1mm
		Double Cross Line Generator
		Data Resolution:0.001mm
Z-axis lifting travel (mm):150mm (AUTO FOCUS)
The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm)



Features:

• Measurement of basic graph: point,line,circle,arc,

         rectangle and cirque...and so on

• Axis-skew and coordinate-shift


• Element construction: construct the center,intersection,

        midpoint,line,circle and angle,and so on

• Save as DXF and edit in Auto CAD.


• Multi-point measurement.


• Excel and TXT report.


• English operation interface, other language available.


• Zoom in, Zoom out, Move,Print,Select,Cancel select, Delete.


• Tolerance setup.


• Size and angle label.


• Scale calibration


• Q-axis record.


• Update forever and OEM available.


• Scan the sample image save as DXF.file



WM - ME 3 d measurement software main functions are as follows:

measuring element:

   Can measure the 12 kinds of elements, such as point, line, circle, arc, ellipse, rectangle, trough, o-rings, distance, Angle and open cloud line, closed cloud line).

Features:

Measurement method variety (automatic discriminant, mining point measurement, comparison, tolerance contrast measurement. Preset element), can satisfy differentcustomers' needs, greatly improve the ease of use and measuring precision.

There are many single point sampling method: the mouse point, cross line edge point, amplified by points.

Closed to measure the perimeter of the cloud line, area and center of gravity, the use ofthree interpolation algorithm, for the most accurate measuring method of cloud line.

 Can undertake box to choose measurement more round, fast and accuratemeasurement of multiple round at a time.

 The measured data can be saved as a DXF file, or. BMP images, and the user programformat.

(2)  the macro measurement function

    Macro measurement function is that will be some measure, command associated witha button. Click on the buttonthat starts the macro measurement function, macro measurement function automatically completes the tectonic movement, decrease the times of user mouse operation and improve the work efficiency.

Note: macro measurement is different from the user program function, macro measuredoes not record source, coordinate position measurement condition, etc. Run themacro function, also do not move the workbench, polishing, etc. 16 software provides aset of macro measure function, the user can edit the macro measurement functionbutton.
