Мотоциклетные шлемы из АБС-пластика 101DOT хорошего качества
US $19.00-$30.00
Шаг 12 7 мм Золотая цепь для мотоцикла 428
- Категория: Запчасти и аксессуары для мотоциклов >>>
- Поставщик: Changsha,Terry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.87 $* | 2.75 $* |
| Aug-19-2025 | 2.57 $* | 2.55 $* |
| Jul-19-2025 | 2.70 $* | 2.92 $* |
| Jun-19-2025 | 2.8 $* | 2.45 $* |
| May-19-2025 | 2.78 $* | 2.17 $* |
| Apr-19-2025 | 2.4 $* | 2.57 $* |
| Mar-19-2025 | 2.60 $* | 2.93 $* |
| Feb-19-2025 | 2.96 $* | 2.53 $* |
| Jan-19-2025 | 2.68 $* | 2.14 $* |
Характеристики
Product Description

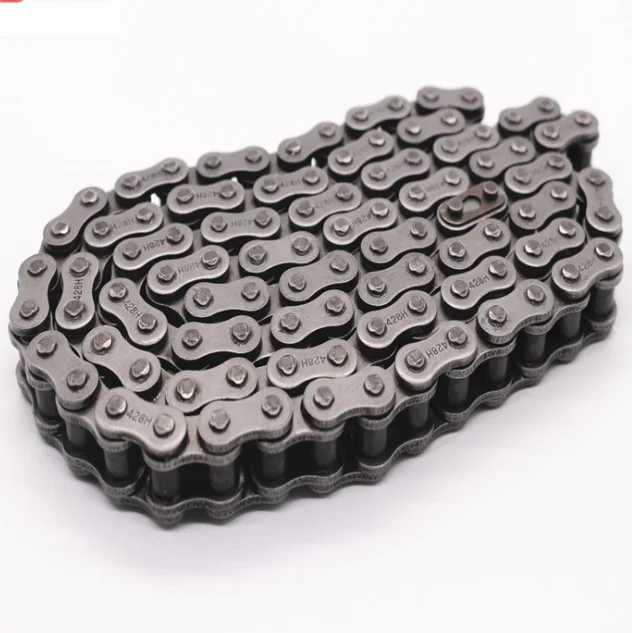

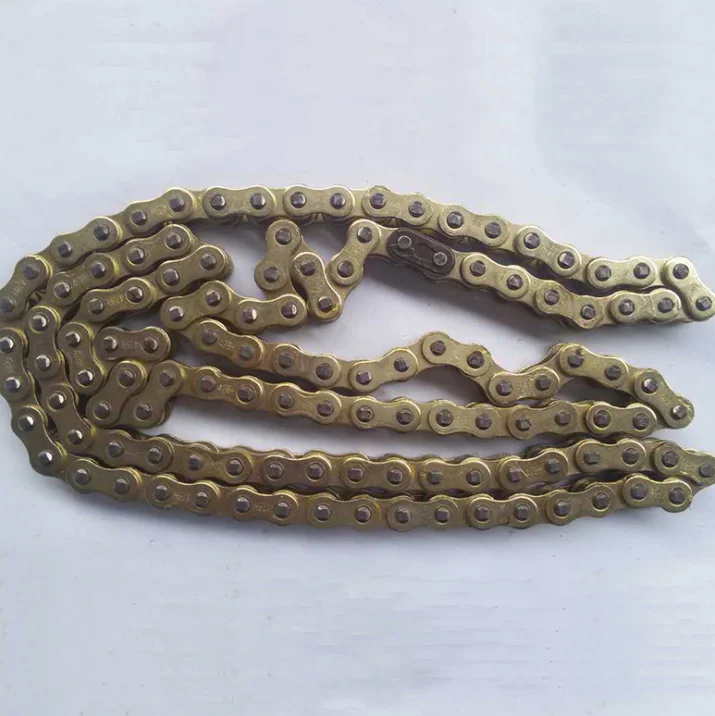

pitch 12.7mm gold motorcycle chain 428 428H
pitch 12.7mm gold motorcycle chain 428 428H
Material : Plate: 40Mn steel
Pin : 30CrMnTi
Roll : 10 steel
Bush: 20MN
Technology : ]. Heat Treatment. 2. Four Side Riveting .3. Lubricate with Grease .4.Shot peening surface
Colors : Natural, Yellow,Blue,Gold and Nickel
Detailed Images

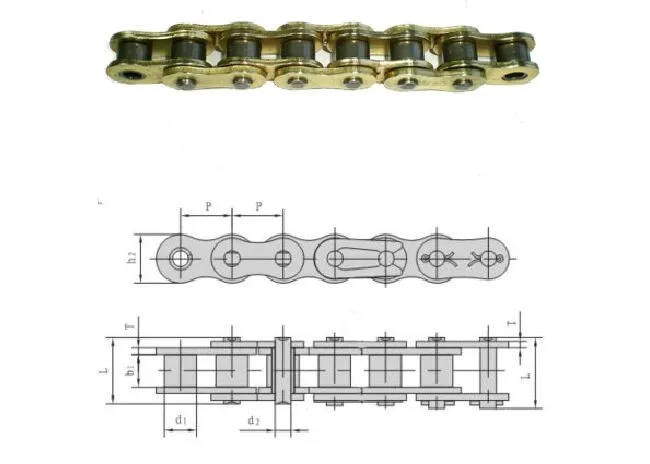

Size Information
IF YOU NEED FREE SAMPLE, PLS CLICK HERE ! ![]()
DIN/ISO | Pitch | Roller | Width | Pin | Plate | Average | weight |
KIN/ISO | between | diameter | thick | tensile | per | ||
Chain | inner plates | -ness | strength | meter | |||
No. | P | d1 | b1 | d2 | T | Q0 | q |
max | min | max | max | ||||
mm | mm | mm | mm | mm | kN | kg/m | |
*25H | 6.35 | 3.3 | 3.18 | 2.31 | 1.04 | 5.5 | 0.17 |
*219H | 7.774 | 4059 | 5 | 3.01 | 1.2/1.0 | 7.4 | 0.28 |
*270H | 8.5 | 5 | 4.75 | 3.28 | 1.8/1.4 | 11 | 0.33 |
*T3F | 9.525 | 6 | 9.5 | 4.5 | 1.85/1.48 | 14.1 | 0.61 |
420 | 12.7 | 7.77 | 6.25 | 3.96 | 1.5 | 18.1 | 0.55 |
428 | 12.7 | 8.51 | 7.75 | 4.45 | 1.6 | 20.1 | 0.7 |
428H | 12.7 | 8.51 | 7.85 | 4.45 | 2.03 | 23.4 | 0.79 |
428DS | 12.7 | 8.51 | 7.94 | 4.45 | 1.85 | 21 | 0.76 |
520 | 15.875 | 10.16 | 6.25 | 5.08 | 2.03 | 29.7 | 0.89 |
520H | 15.875 | 10.16 | 6.25 | 5.08 | 2.42 | 31.5 | 1.1 |
530 | 15.875 | 10.16 | 9.4 | 5.08 | 2.03 | 29.7 | 1.06 |
Related Products
Packing&Shipping
Packing Details : Carton+Pallet
Delivery Details : 3-30 days after order confirmation
1. Special Single Box
2. Cartob box
3. Single Pallet
4. Carton+Pallet
5. Complete Pallet
6. Complete package
Workshop
Warehouse Corner
FAQ
1.What is the producing process?
A:Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
A:Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3: How long is your delivery time?
A:Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
5: What is your terms of payment ?
A: Stocks goods,100% prepaid. If goods need produce,30% prepaid and balance paid before shipment.
For big order over 50000 USD,we can accept L/C At sight.
6. What is your MOQ ?
A: For standard type,no MOQ. For produce goods,we need according bearing type.
7.What is the transportation?
A: Small quantity ,by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea or air
8. Can we design packaging?Title goes here.
A:Yes. Except regular packing, and we can make customer's own packing
9.What's your payment method.
A: We can accet PayPal/ West Union/alibaba order by credit card/ Bank transfer Etc.
10.Can you provide OEM service?
A:Yes, we provide OEM service , do as your size , packing and other requirements
