ZKLDF260 260*385*55 мм Китай поворотный стол подшипник Производитель Индивидуальные

YRTS high-speed rotary table bearings are high-precision bearings. They are widely used in CNC machines, industrial robot arms, etc. These high-precision equipment fields are very common, so the stability and reliability of YRTS itself is also very important.

YRTS bearings are mainly subjected to radial load by a row of radial rolling rollers, and axial loads are supported by two rows of axial rollers. Such a bearing structure will make the YRTS bearing have a relatively strong load capacity and increase The stability of the rotation. YRTS is a radial roller belt retainer, so it is more suitable for high-speed rotation. The rotating body is also very stable under the support of three rows of rollers.

YRTS high-speed rotary table bearings, its shape and structure are generally the same as the YRT type. But its internal structure is very different from the YRT series. Because of this, the limit speed of YRTS rotary table bearings will be higher than the YRT series. At the same time, the friction torque of the YRTS is relatively lower and uniform. Therefore, YRTS still has obvious advantages and is more suitable in the operation of high-speed and low-friction equipment.

YRTS are highly rigid and the bearings are also preloaded. Its accuracy is also up to P4, P2 level, YRTS is the most used in those high speed work. YRTS has been widely used in such fields as vertical grinding machines, indexing heads, and gear hobbing machines.

Advantages of the angular measuring system.

1.operates by non-contact means and is therefore not subject to wear

2.carries out measurement irrespective of tilting and position

3.has an automatically self-adjusting electronic system

4.has a self-centring function

5.is unaffected by lubricants

6.is easy to fit and the measuring heads are easily adjusted

7.there is no need for alignment of the bearing and a separate measuring system

8.requires no additional parts
– the dimensional scale and measuring heads are integrated in the bearing and adjacent construction respectively
– the resulting space saved can be used for the machining area of the machine

9.does not give any problems relating to supply cables. The cables can be laid within the adjacent construction directly through the large bearing bore

10.ives savings on design envelope size and costs due to the compact, integrated design requiring fewer components.

Rotary Table Bearings:
YRT series(Standard percision grade as INA):
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT395,YRT460,YRT580,YRT650,YRT850,YRT950,YRT1030,YRT1200

YRTC series (Standard percision grade as INA):
YRTC100,YRTC120,YRTC150,YRTC180,YRTC200,YRTC260,YRTC325,YRTC395
YRTC460,YRTC580,YRTC650,YRTC850,YRTC1030

YRTS series(Standard percision grade as INA):
YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580

YRTM series(Standard percision grade as INA):
YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580

ZKLDF series(Standard percision grade as INA):
ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580

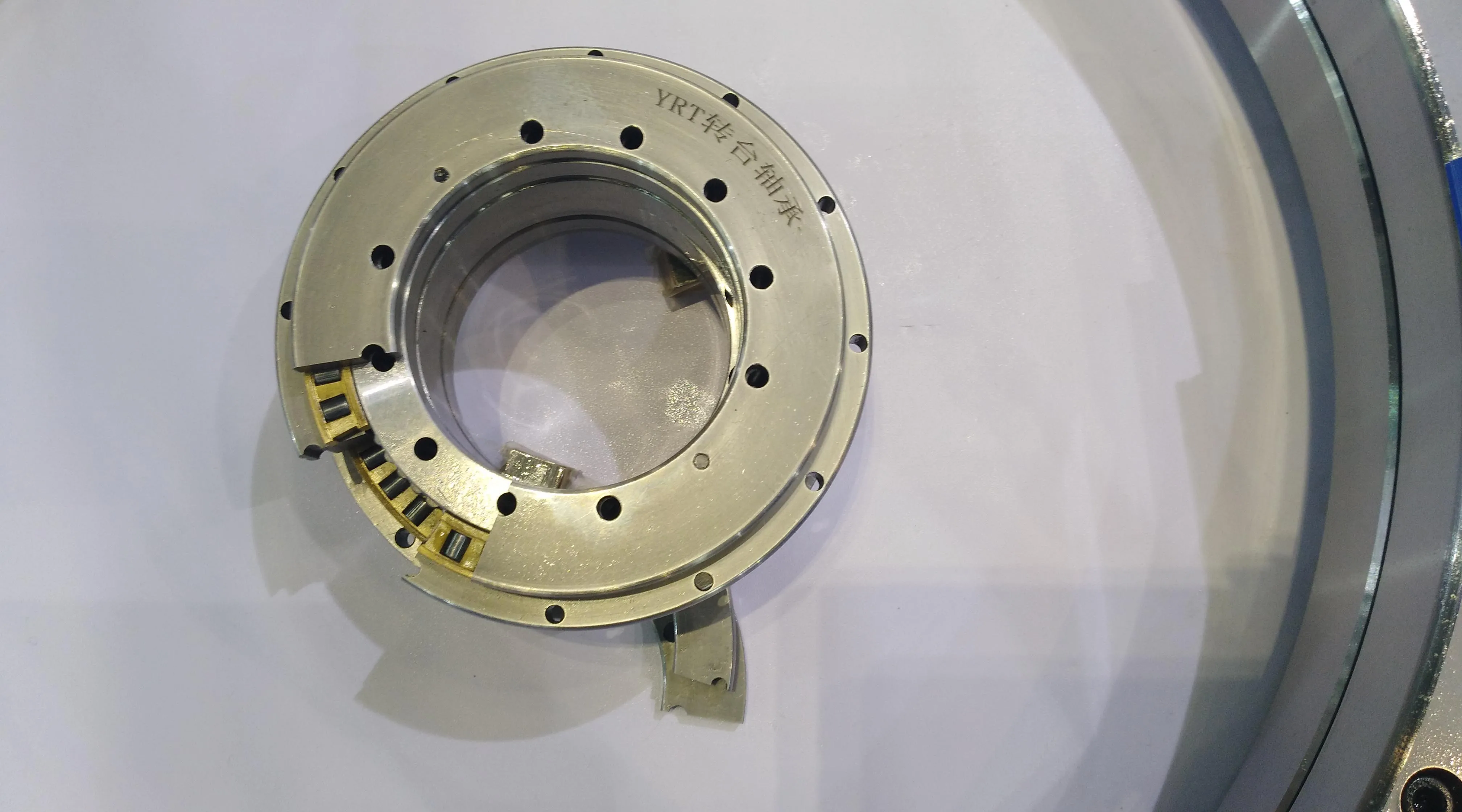

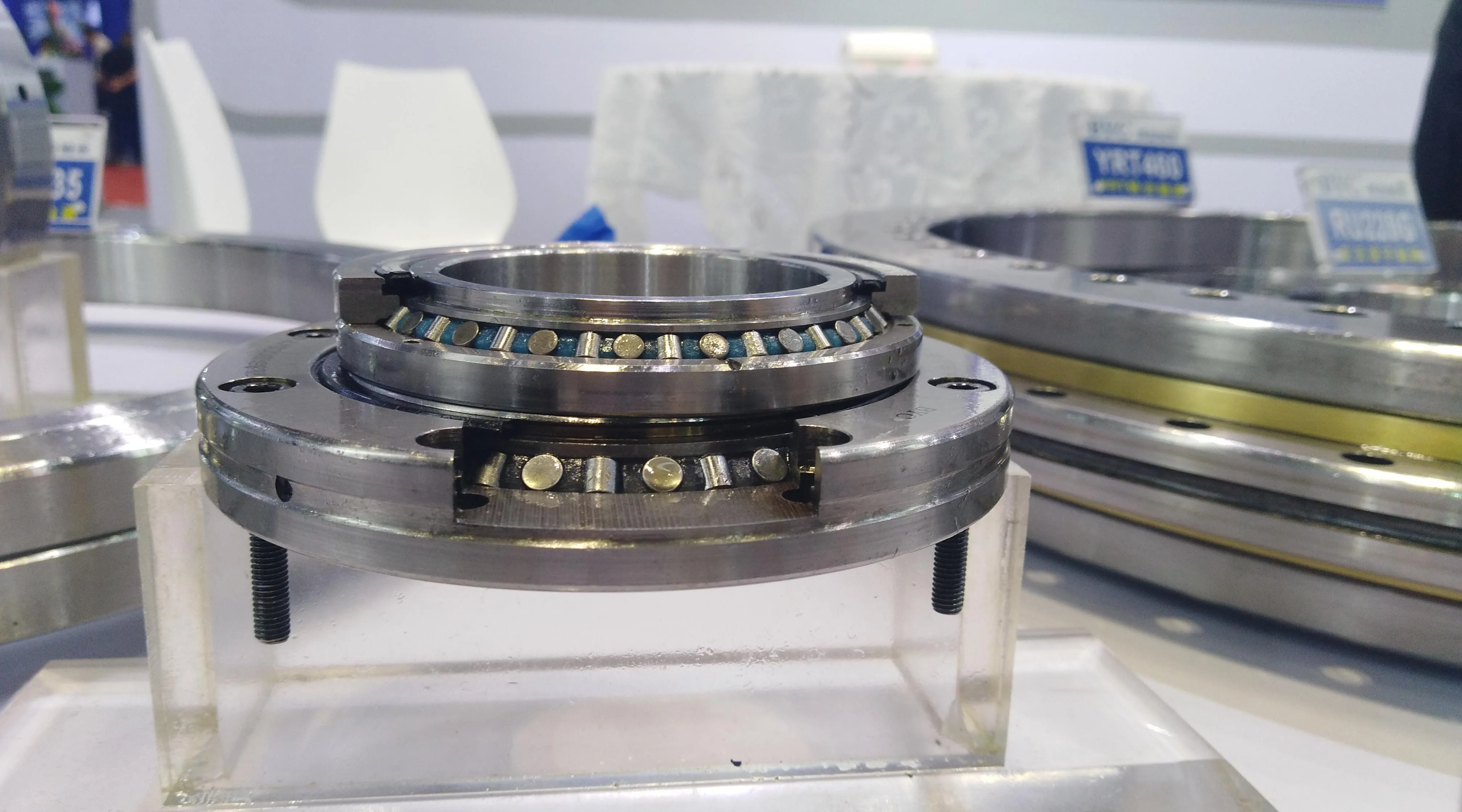

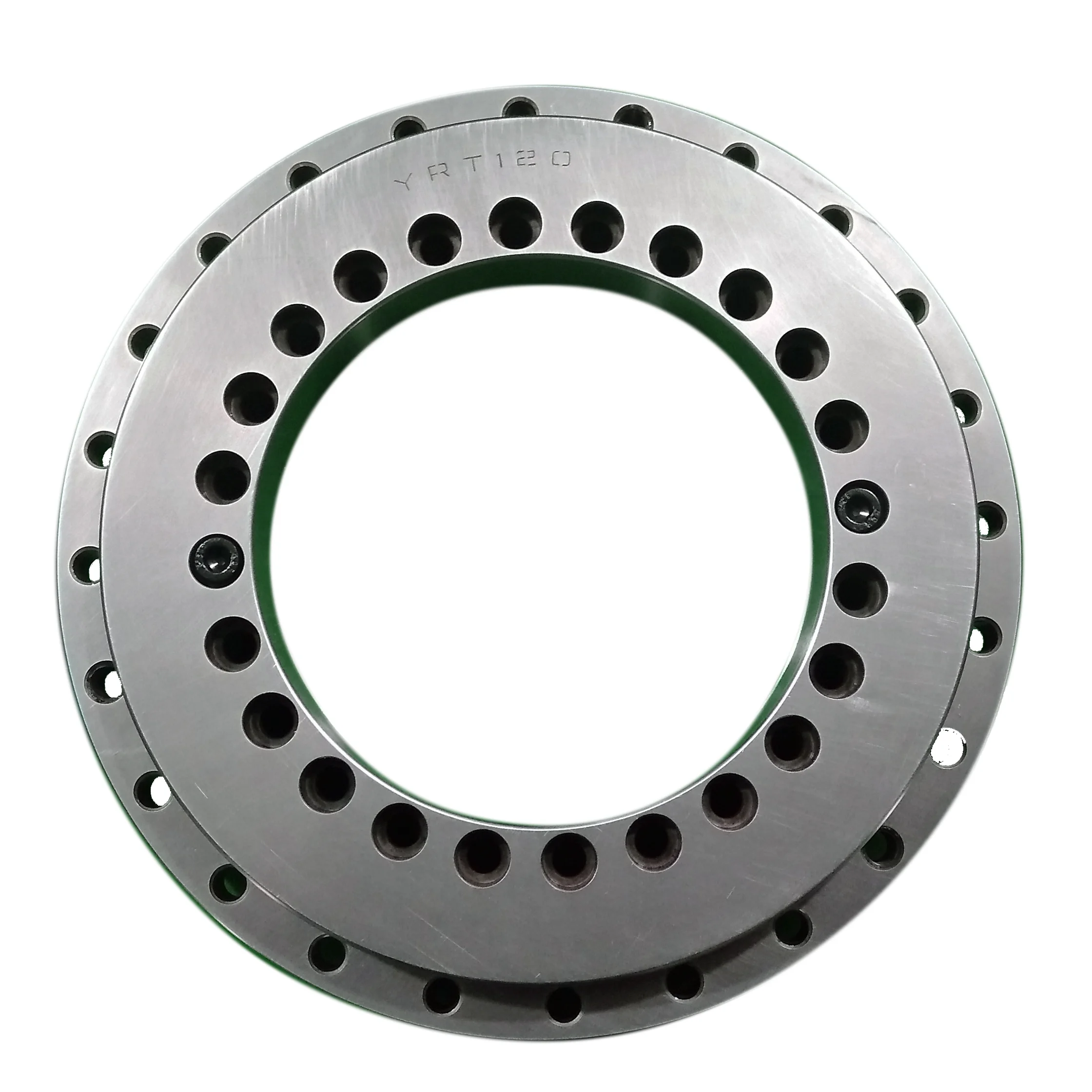

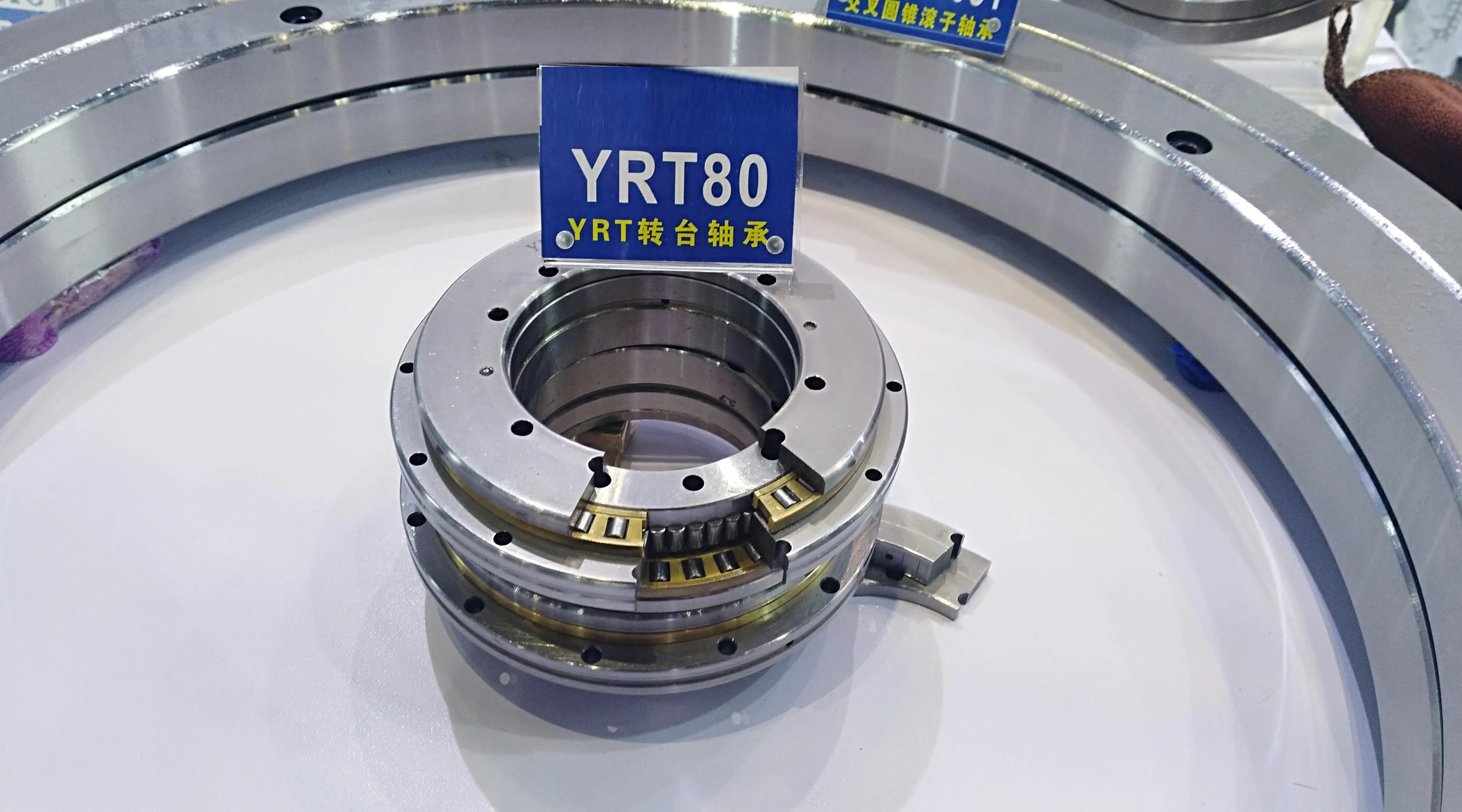

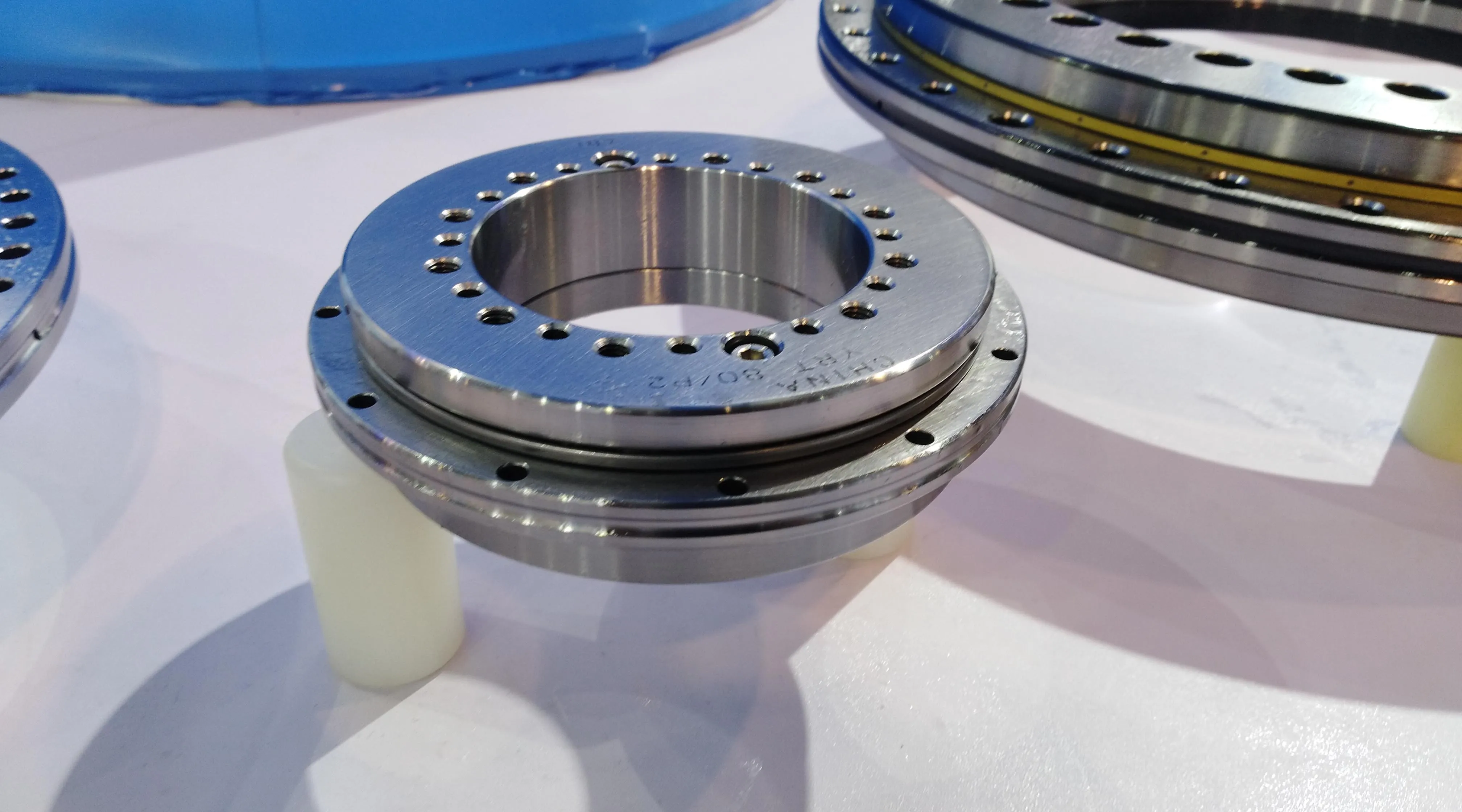

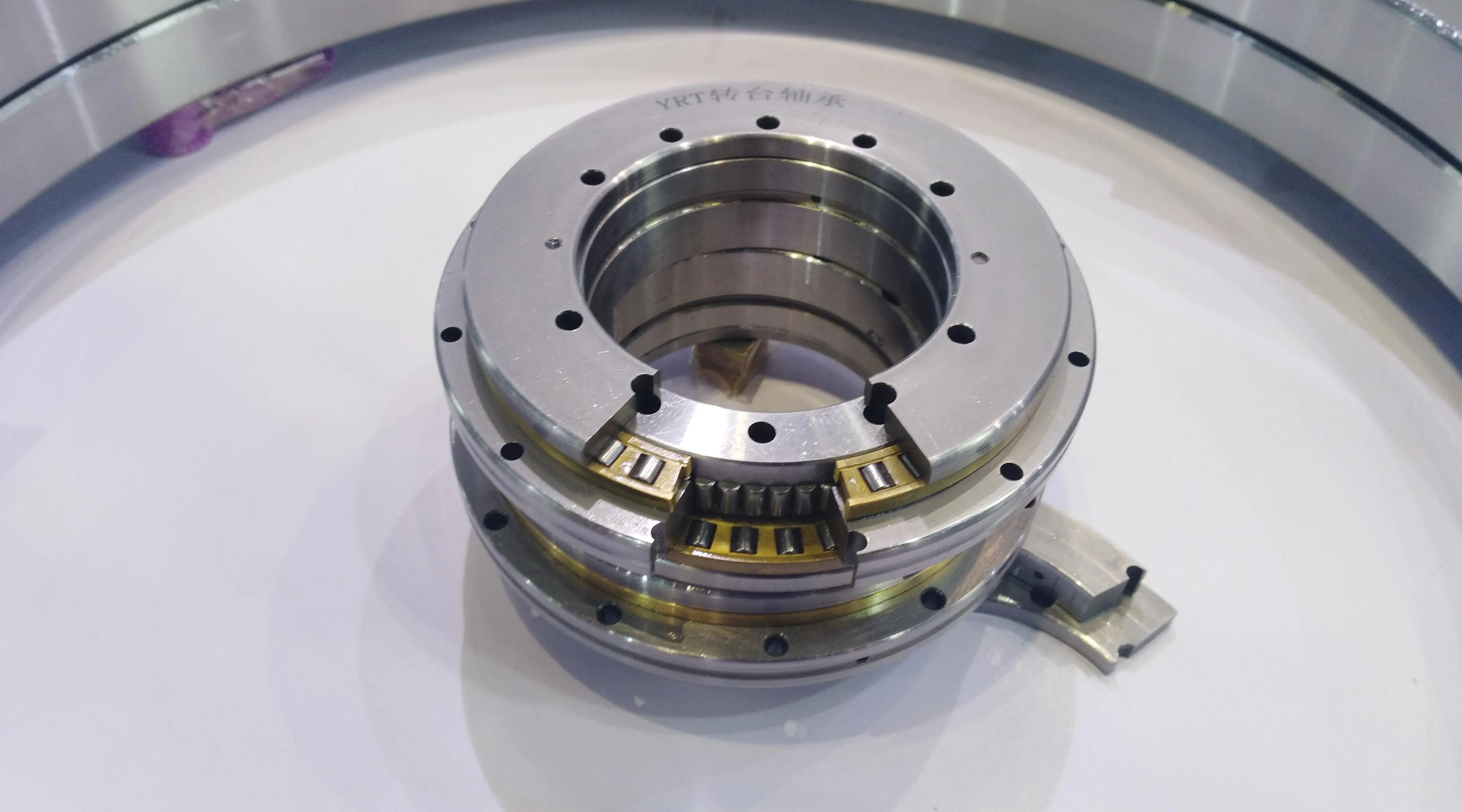

Products Photos

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
